Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Modicon Premium Automation platform |
| Software designation | PL7 Junior/Pro |

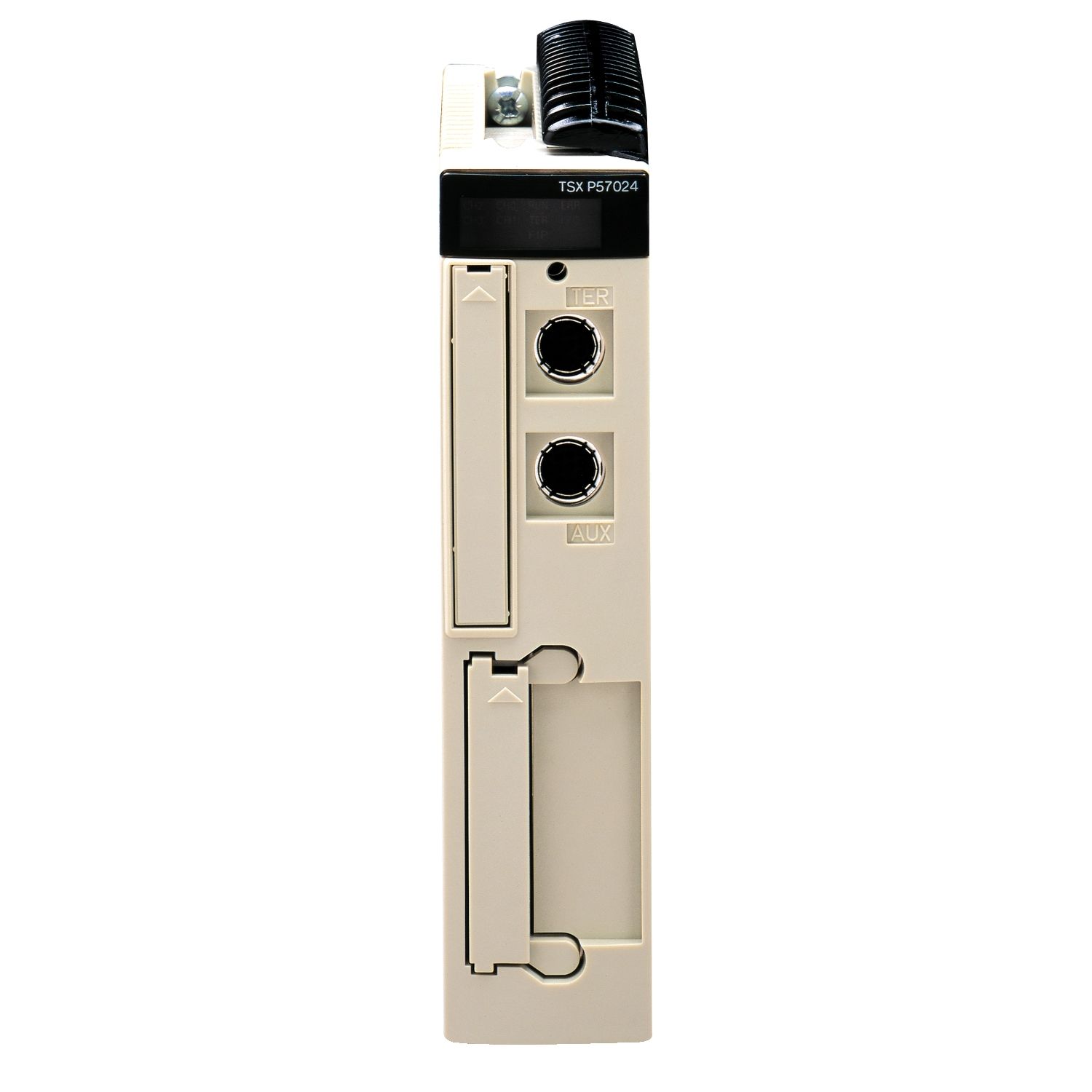

| Product or component type | single-format PL7 processor |
| Complementary | |
| Number of application specific channel | 8 |
| Memory description | PCMCIA card 64 Kwords program, PCMCIA card 128 Kwords additional data storage, internal RAM (without PCMCIA card) 32 Kwords program and data, internal RAM (with PCMCIA card) 32 Kwords data |
| Analogue I/O processor capacity | 24 I/O |
| Module format | standard |
| Number of instructions per ms | 1.52 Kinst/ms 100 % Boolean without PCMCIA card, 1.18 Kinst/ms 100 % Boolean with PCMCIA card, 1.05 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card, 0.85 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card |
| Number of slots | 24, 32, 16 |
| Application structure | 32 event tasks, 1 fast task, 1 master task |
| Marking | CE |
| Discrete I/O processor capacity | 512 I/O |
| Local signalling | 1 LED (yellow) for activity on the terminal port (TER), 1 LED (red) for processor or system fault (ERR), 1 LED (red) for I/O module or configuration fault (I/O), 1 LED (green) for processor running (RUN) |
| Execution time per instruction | 44 µs floating points without PCMCIA card, 44 µs floating points with PCMCIA card, 0.87 µs word or fixed-point arithmetic with PCMCIA card, 0.62 µs word or fixed-point arithmetic without PCMCIA card, 0.6 µs Boolean with PCMCIA card, 0.5 µs Boolean without PCMCIA card |
| Maximum size of object areas | 4096 %Mi located internal bits, 32 %KWi constant words located internal data, 30.5 %MWi internal words located internal data |
| Integrated connection type | non isolated serial link 2 female mini DIN connector (19.2 kbit/s) |
| System overhead | 1.5 ms for master task, 0.8 ms for fast task |
| Net weight | 0.38 kg |
| Current consumption | 440 mA at 5 V DC |
| Communication module processor capacity | 1 CANopen, 2 AS-Interface bus modules, 1 network module |
| Number of racks | 4 4/6/8 slots, 2 12 slots |
| Environment | |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Relative humidity | 5-95 % without condensation for storage, 10-95 % without condensation for operation |
| Ambient air temperature for storage | -25-70 °C |
| Pollution degree | 2 |
| Ambient air temperature for operation | 0-60 °C |
| Operating altitude | 0...2000 m |
| Standards | CSA C22.2 No 213 Class I Division 2 Group D, IEC 61131-2, CSA C22.2 No 213 Class I Division 2 Group B, 93/68/EEC, 92/31/EEC, CSA C22.2 No 213 Class I Division 2 Group C, 73/23/EEC, UL 508, 89/336/EEC, CSA C22.2 No 142, CSA C22.2 No 213 Class I Division 2 Group A |
| Product certifications | RINA, LR, ABS, BV, RMRS, GL, DNV |
