Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Height | 4.92 in |
| Ambient air temperature for operation | 32-122 °F |
| Calibration certificate | 1 pt |
| Standards | CSA C22.2 No 24, FCC part 15 Subpart B, UL 873, ICES-003 |
| Output voltage | 30 V AC, 7 V DC for relay power supply |

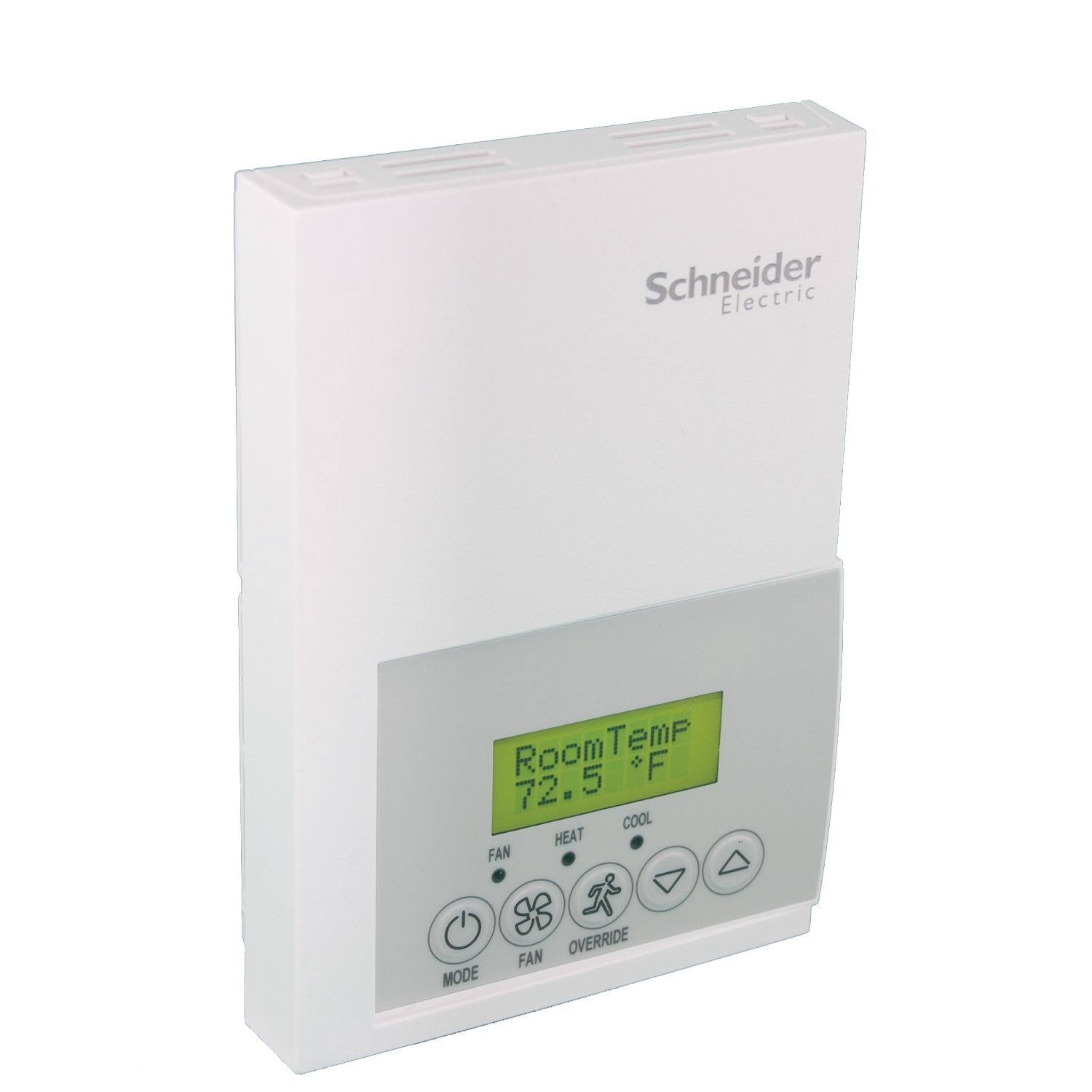

| Product or component type | room controller |
| Output type | 1 xrelay |
| Product name | SE7000 Series |
| Net weight | 0.75 lb(US) |
| Range | EcoStruxure Building Expert |
| Input type | 2.0 x dry contact |
| Communication port protocol | BACnet MS/TP |
| Directives | 89/336/EEC - electromagnetic compatibility |
| AWG gauge | AWG 22...AWG 14 |
| Ambient air temperature for storage | -22-122 °F |
| Relative humidity | 0-95 % RH, non-condensing |
| Sensor type | single point calibrated bulk polymer RH sensor humidity, 10 kOhm T2 NTC thermistor temperature |
| Temperature setting range | 40-90 °F heating, 0.9-0.9 °F per step, 54-100 °F cooling |
| Width | 3.42 in |
| Market segment | small commercial |
| Humidity setting range | dehumidification: 30-95 % |
| Depth | 1.18 in |
| Device application | line voltage fan coil |
| Device short name | SER7300 |
| Complementary | |
| Device presentation | without cover |
| Contractual warranty | |
| Warranty | 18 |
