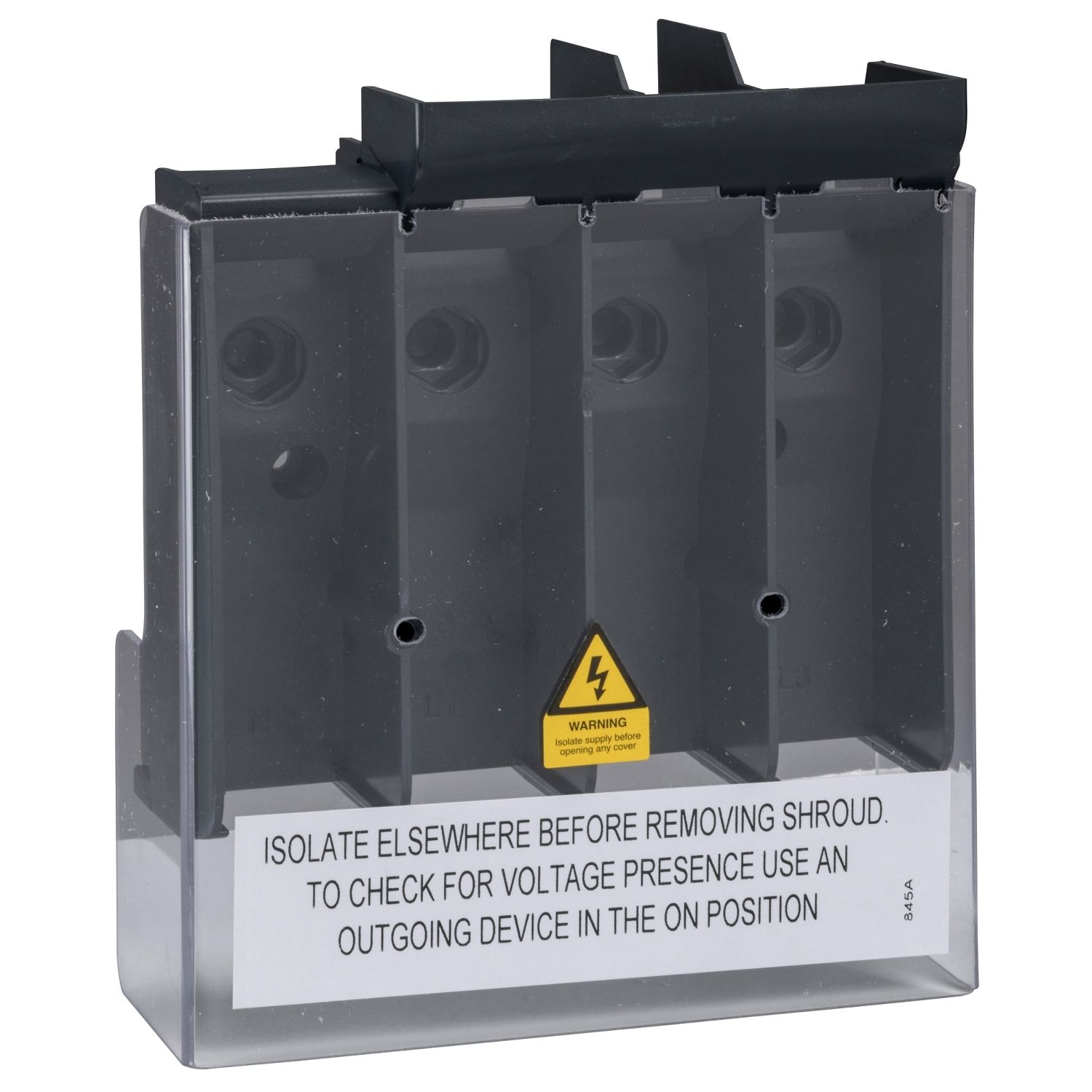

This Acti9 Isobar B accessory is a terminal block. It has 4 poles. The Ie rated operational current is up to 250A. Its dimensions are (W) 150mm x (H) 172mm x (D) 65mm. It is intended to realize the connection of devices in the distribution board. A cable cross-section of 95mm² can be used for rigid cables, and a 120mm² one for solid cables.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | connection |
| Range | Acti9 |
| Product or component type | terminal block |
| Complementary | |
| Cable stiffness | solid 120-120 mm², flexible 95-95 mm² |
| Depth | 65 mm |
| Width | 150 mm |
| [Ie] rated operational current | 250 A |
| Poles description | 4P |
| Range compatibility | Acti 9 Acti9 Isobar B distribution board |
| Height | 172 mm |
