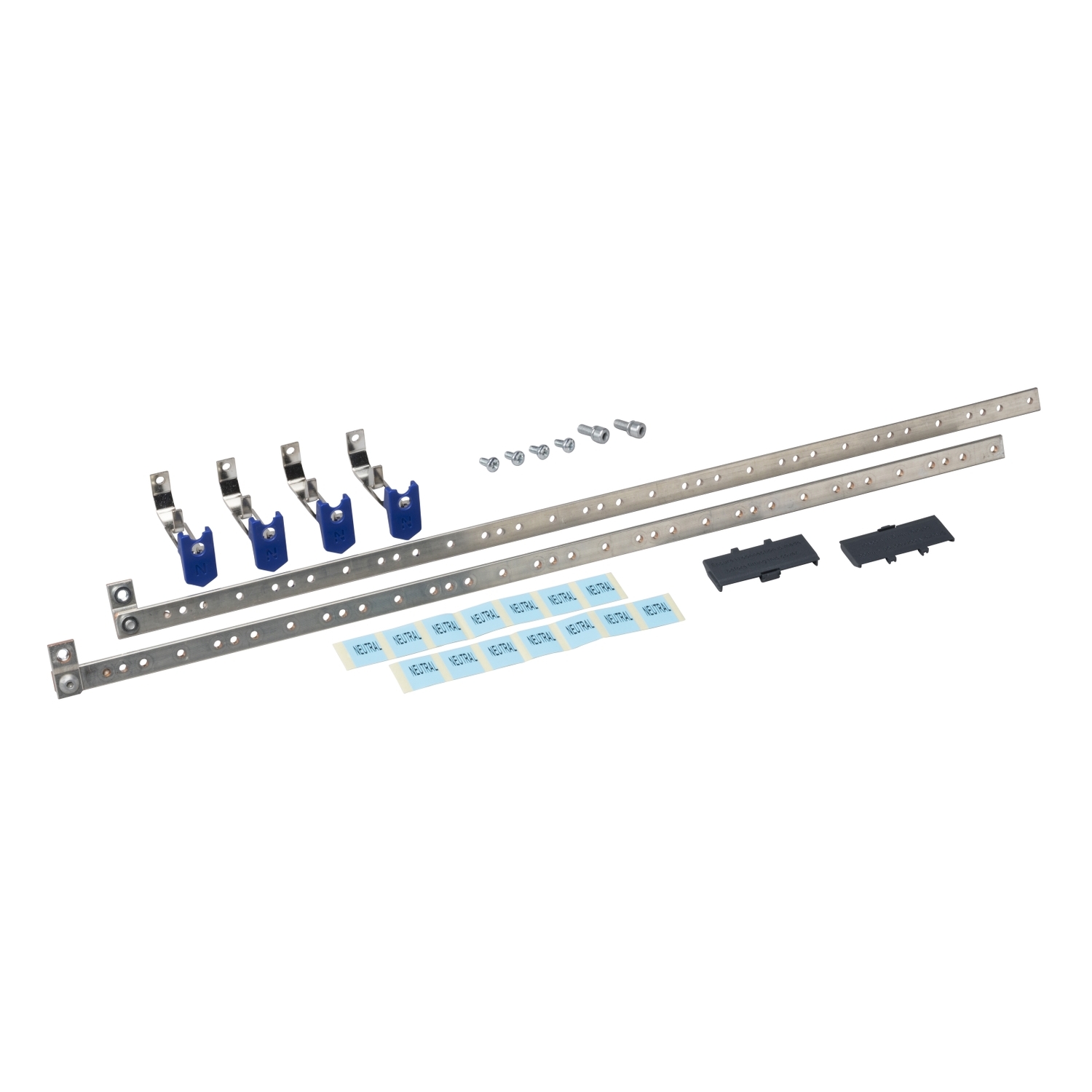

Neutral bar assembly designed for use in 18 way Acti 9 Isobar B-type distribution boards. It provides a reliable and organized method for neutral connections in low-voltage electrical installations. The Ie rated operational current is 250A at 400/415VAC. The ambiant temperature for operation is -35°C to 70°, while the temperature for storage is -40°C to 80°C. Ideal for residential and light commercial electrical distribution systems
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Door type | overall |
| Enclosure type | standard |
| Product or component type | neutral bar |
| Range of product | Acti9 |
| Complementary | |
| Depth | 139 mm |
| Colour | white (RAL 9001) |
| [Ie] rated operational current | 250 A at 400/415 V AC |
| Poles description | 3P + N |
| Enclosure material | steel |
| Protection device name | iC60H |
| IP degree of protection | IP3x external conforming to BS EN 60529, IP2X internal conforming to BS EN 60529 |
| Surface treatment | epoxy |
| Surface finish | powder paint |
| Number of ways | 18 ways outgoer |
| Breaking capacity | 25 kA |
| Provided equipment | cover, busbar link 4 , neutral bar |
| Height | 862 mm |
| Product destination | distribution board |
| IK degree of protection | IK05 conforming to BS EN 60529 |
| Environment | |
| Ambient air temperature for storage | -40-80 °C |
| Ambient air temperature for operation | -35-70 °C |
