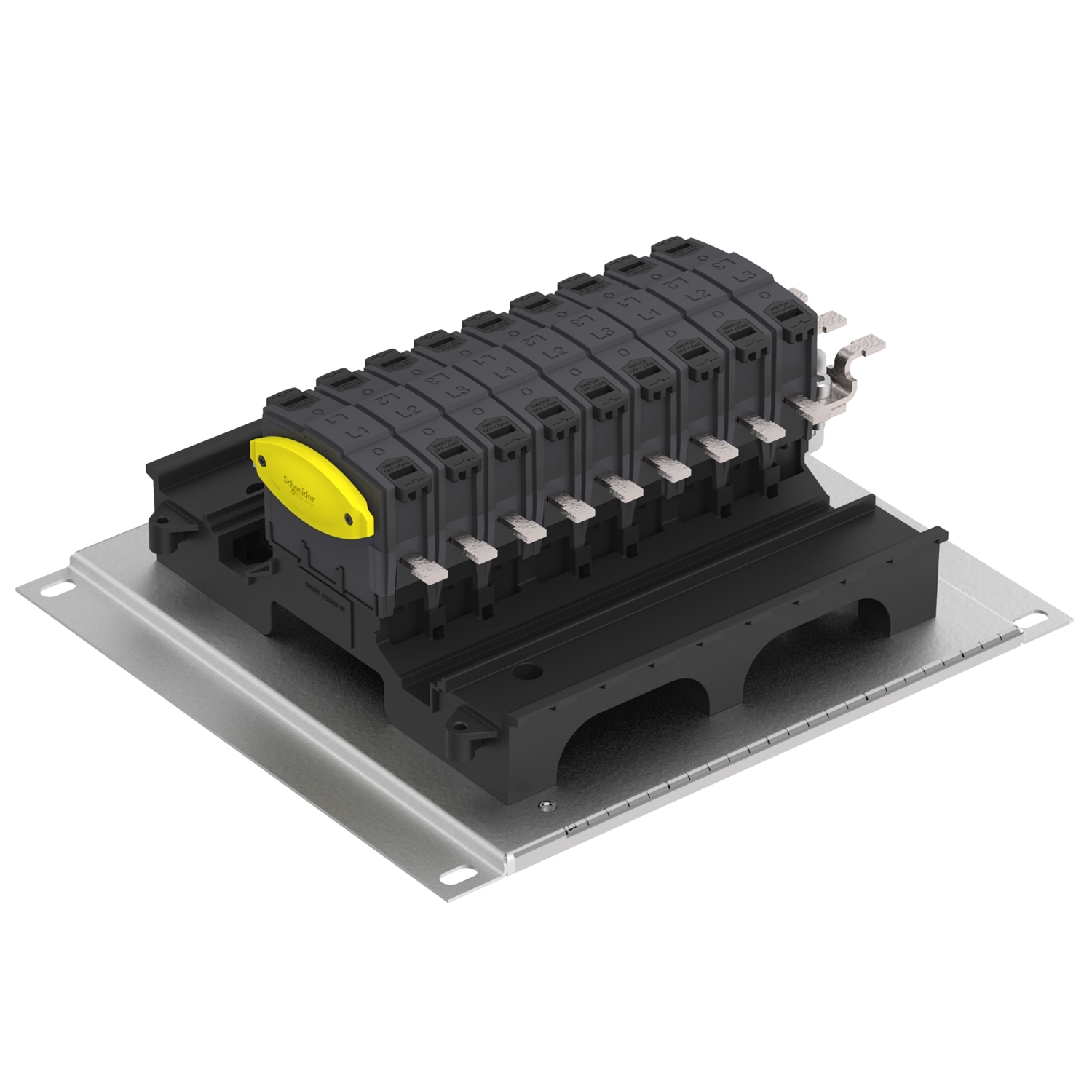

This Acti9 Isobar B product is a pan assembly which can be installed in Acti9 Isobar B distribution board Distribution board provides 6 outgoing ways. Incomer device options 4P switch disconnector,4P terminal block, 3P+N RCCB, 3P+ N MCCB and 4P contactor. Protection device options at outgoer residual current circuit breaker with overcurrent protection (RCBO) up to 45A and miniature circuit breaker up to 63A.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | distribution |
| Range | Acti9 |
| Product or component type | pan assembly |
| Complementary | |
| Protection device type | miniature circuit breaker (MCB) 63 A max , residual current circuit breaker with overcurrent protection (RCBO) 45 A max |
| Depth | 90 mm |
| Width | 210 mm |
| Incomer device | 3P MCCB, 3P terminal block, 3P switch disconnector |
| [In] rated current | 250 A |
| Provided equipment | mounting plate |
| Number of poles | 18 x 18 mm |
| Length | 236 mm |
| Range compatibility | Acti 9 Acti9 Isobar B distribution board |
| Number of ways | 6 ways (outgoer), 1 way (incomer) - 3P + N |
