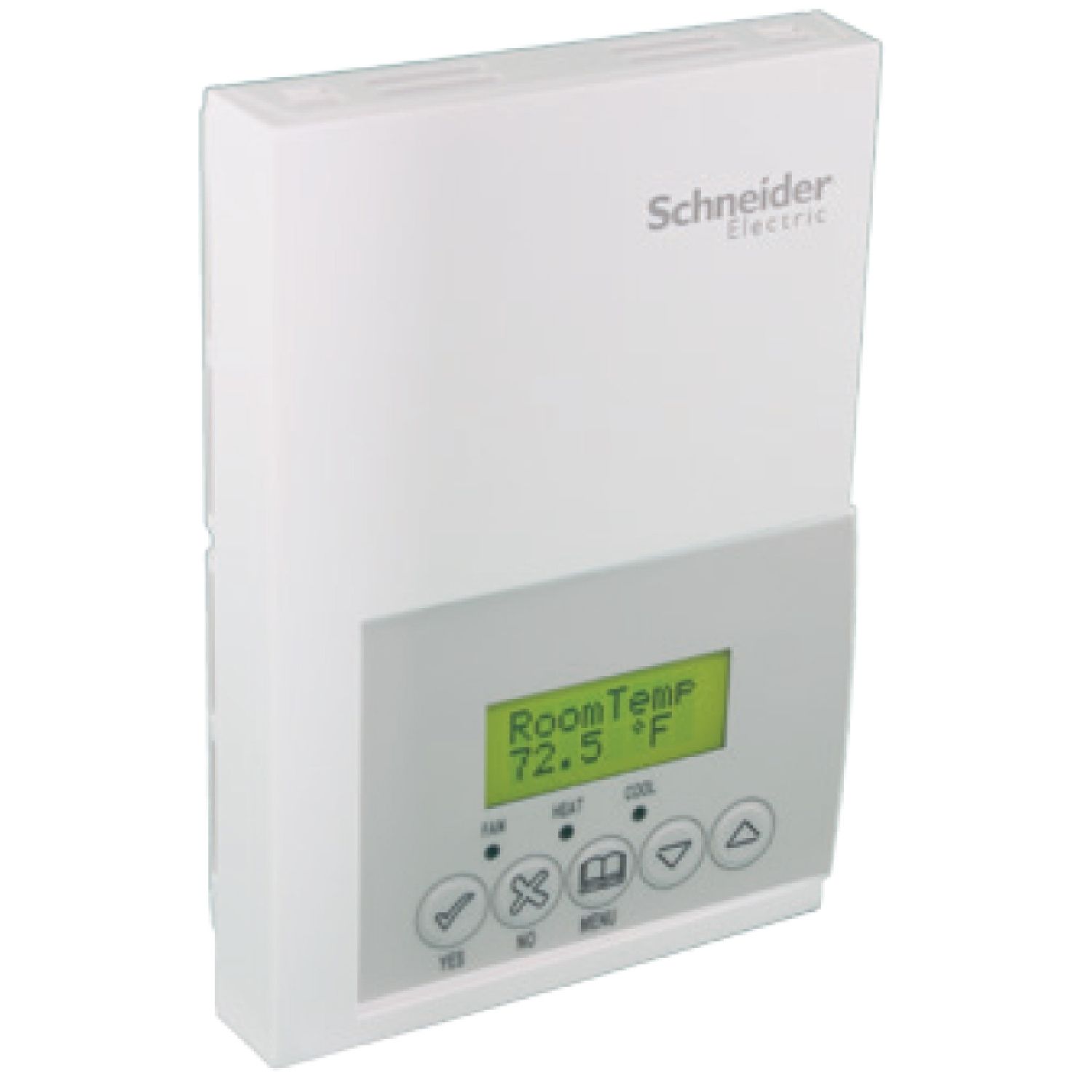

Roof Top Controller: BACnet MS/TP, 2H/2C, Local scheduling
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | SE7600B |
| Device application | staging equipment (RTU/HP), low voltage rooftop |
| Depth | 1.18 in |
| Humidity setting range | dehumidification: 30-95 % |
| Market segment | residential |
| Width | 3.42 in |
| Temperature setting range | 54-100 °F cooling, 0.9-0.9 °F per step, 40-90 °F heating |
| Relative humidity | 0-95 % RH, non-condensing |
| Sensor type | 10 kOhm T2 NTC thermistor temperature |
| Product specific application | 2-stage cooling, 2-stage heating |
| Output current | <= 5 mA analog output, 3 A digital output (inrush), 1 A digital output (maximum) |
| Ambient air temperature for storage | -22-122 °F |
| AWG gauge | AWG 22...AWG 18 |
| Directives | 89/336/EEC - electromagnetic compatibility |
| Communication port protocol | BACnet MS/TP |
| Input type | 2 x dry contact |
| Range | EcoStruxure Building Expert |
| Net weight | 0.75 lb(US) |
| Product name | SE7000 Series |
| Output type | 2 xuniversal |
| Product or component type | room controller |
| Output voltage | 0...10 V DC for analog output, 30 V AC for digital output |
| Standards | ICES-003, CSA C22.2 No 24, UL 873, FCC part 15 Subpart B |
| Calibration certificate | 1 pt |
| Ambient air temperature for operation | 32-122 °F |
| Height | 4.92 in |
| Storage Relative Humidity | 0-95 % RH, non-condensing |
| Complementary | |
| Internal resistance | >= 2 kOhm |
| Device presentation | without cover |
| Rated operational power in VA | 2 VA |
| Environment | |
| Electrical insulation class | class II |
| Economizer | No |
| PIR cover | No |
| Humidity control | No |
| Scheduling | Yes |
