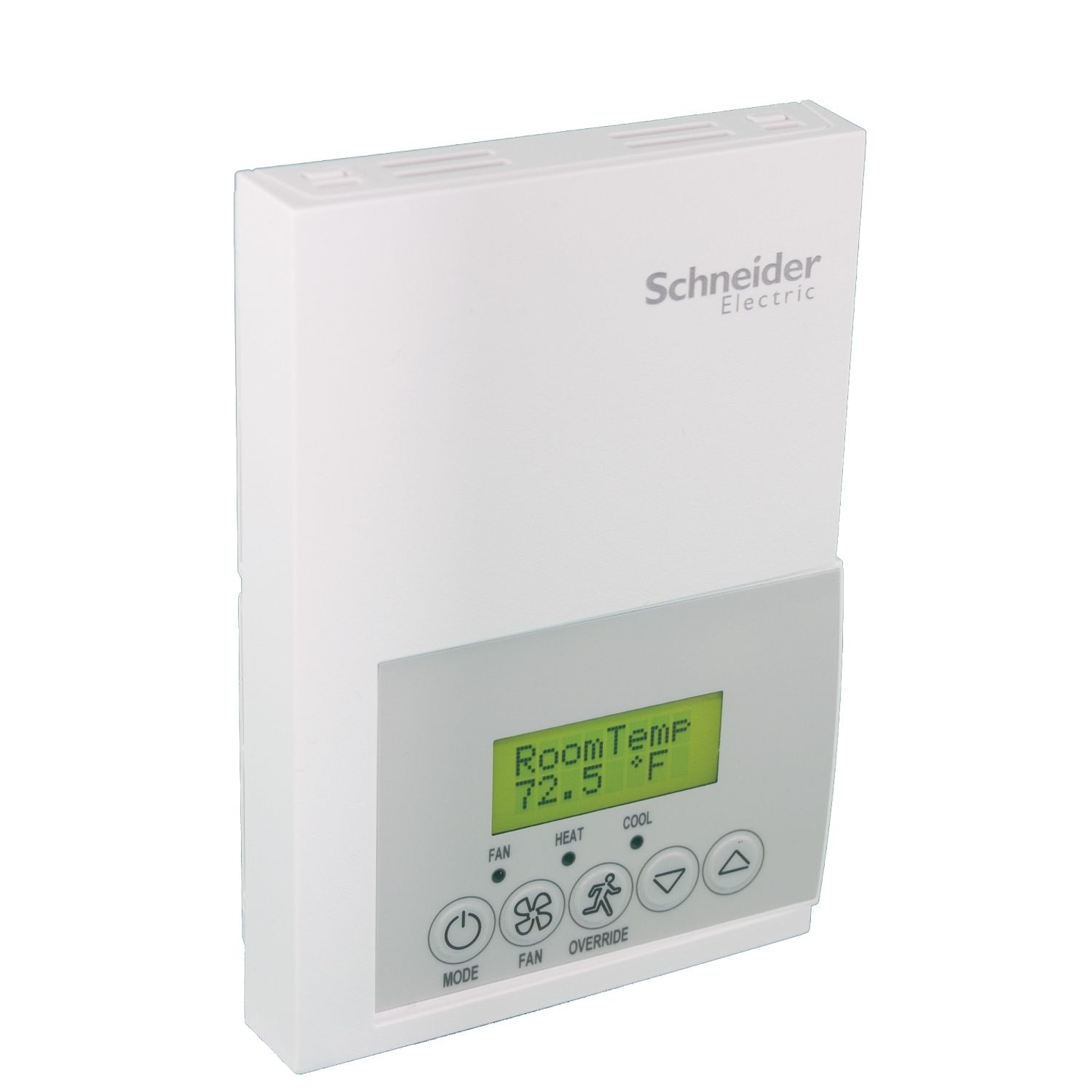

Low-Voltage Fan Coil Room Controller: BACnet MS/TP, RH sensor & control, Floating or on-off, Commercial/Override
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | SE7300 |
| Device application | low voltage fan coil |
| Depth | 1.18 in |
| Humidity setting range | dehumidification: 15-95 %, humidification: 10-90 % |
| Market segment | small commercial |
| Width | 3.42 in |
| Temperature setting range | 54-100 °F cooling, 0.9-0.9 °F per step, 40-90 °F heating |
| Sensor type | 10 kOhm T2 NTC thermistor temperature, single point calibrated bulk polymer RH sensor humidity |
| Relative humidity | 0-95 % RH, non-condensing |
| Output current | 3 A relay output (inrush), 1 A relay output |
| Ambient air temperature for storage | -22-122 °F |
| AWG gauge | AWG 22...AWG 18 |
| Directives | 89/336/EEC - electromagnetic compatibility |
| Communication port protocol | BACnet MS/TP |
| Input type | 1.0 x dry contact |
| Range | EcoStruxure Building Expert |
| Net weight | 0.75 lb(US) |
| Product name | SE7000 Series |
| Output type | 1 xdigital, 2 xuniversal |
| Product or component type | room controller |
| Output voltage | 30 V AC for universal output, 0...10 V DC for universal output |
| Standards | ICES-003, CSA C22.2 No 24, FCC part 15 Subpart B, UL 873 |
| Calibration certificate | 1 pt |
| Ambient air temperature for operation | 32-122 °F |
| Height | 4.92 in |
| Complementary | |
| Device presentation | without cover |
| Rated operational power in VA | 2 VA |
| Environment | |
| Electrical insulation class | class II |
| Economizer | No |
| PIR cover | No |
| Humidity control | Yes |
| Scheduling | No |
