Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Height | 4.92 in |
| Ambient air temperature for operation | 32-122 °F |
| Calibration certificate | 1 pt |
| Standards | CSA C22.2 No 24, FCC part 15 Subpart B, UL 873, ICES-003 |
| Output voltage | 0...10 V DC for universal output, 30 V AC for universal output |

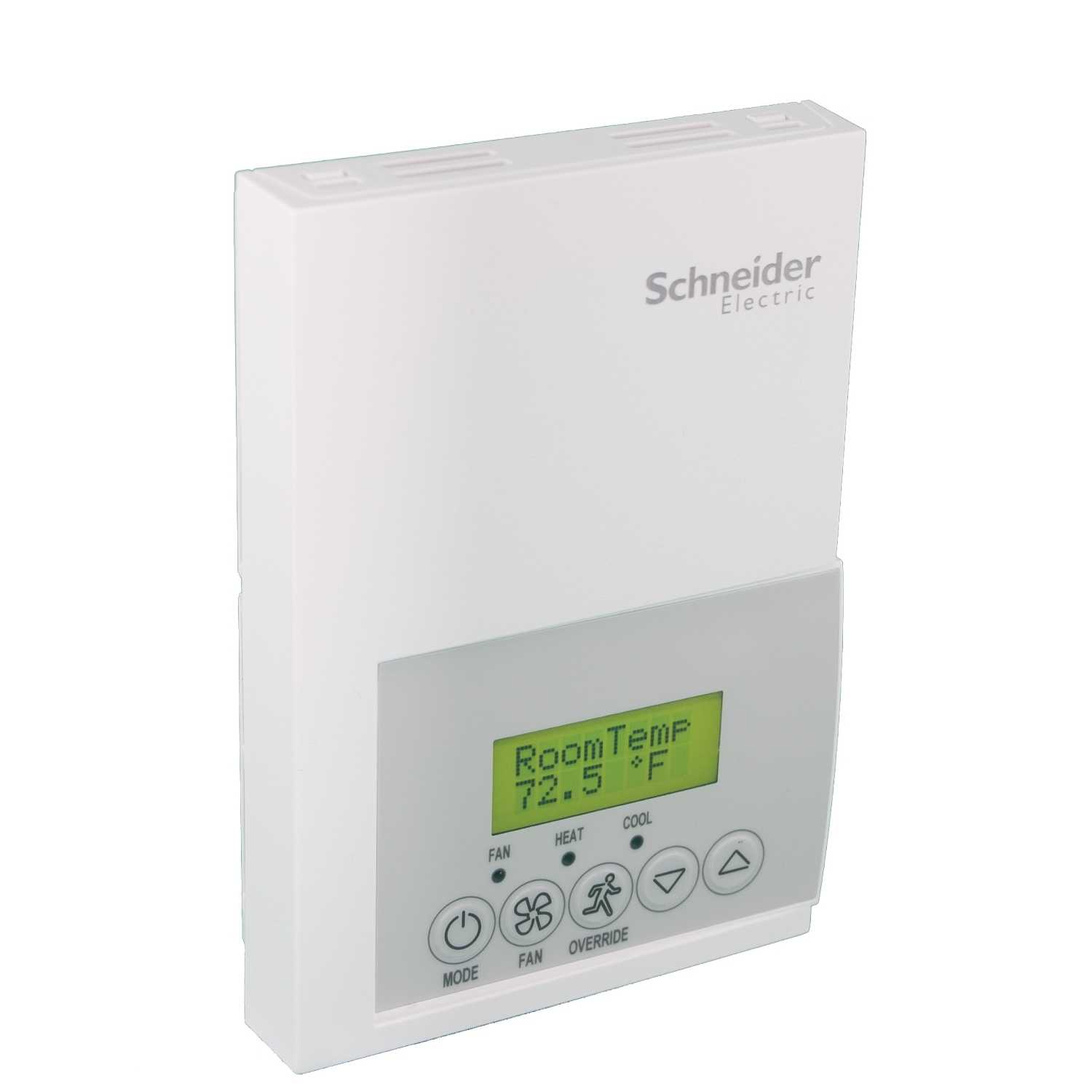

| Product or component type | room controller |
| Output type | 2 xuniversal, 1 xdigital |
| Product name | SE7000 Series |
| Net weight | 0.75 lb(US) |
| Range | EcoStruxure Building Expert |
| Input type | 1.0 x dry contact |
| Communication port protocol | standalone (network ready) |
| Directives | 89/336/EEC - electromagnetic compatibility |
| AWG gauge | AWG 22...AWG 18 |
| Ambient air temperature for storage | -22-122 °F |
| Output current | 1 A relay output, 3 A relay output (inrush) |
| Relative humidity | 0-95 % RH, non-condensing |
| Sensor type | single point calibrated bulk polymer RH sensor humidity, 10 kOhm T2 NTC thermistor temperature |
| Temperature setting range | 40-90 °F heating, 0.9-0.9 °F per step, 54-100 °F cooling |
| Width | 3.42 in |
| Market segment | small commercial |
| Humidity setting range | humidification: 10-90 %, dehumidification: 15-95 % |
| Depth | 1.18 in |
| Device application | low voltage fan coil |
| Device short name | SE7300 |
| Complementary | |
| Rated operational power in VA | 2 VA |
| Device presentation | without cover |
| Environment | |
| Electrical insulation class | class II |
| Contractual warranty | |
| Warranty | 18 |
