Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

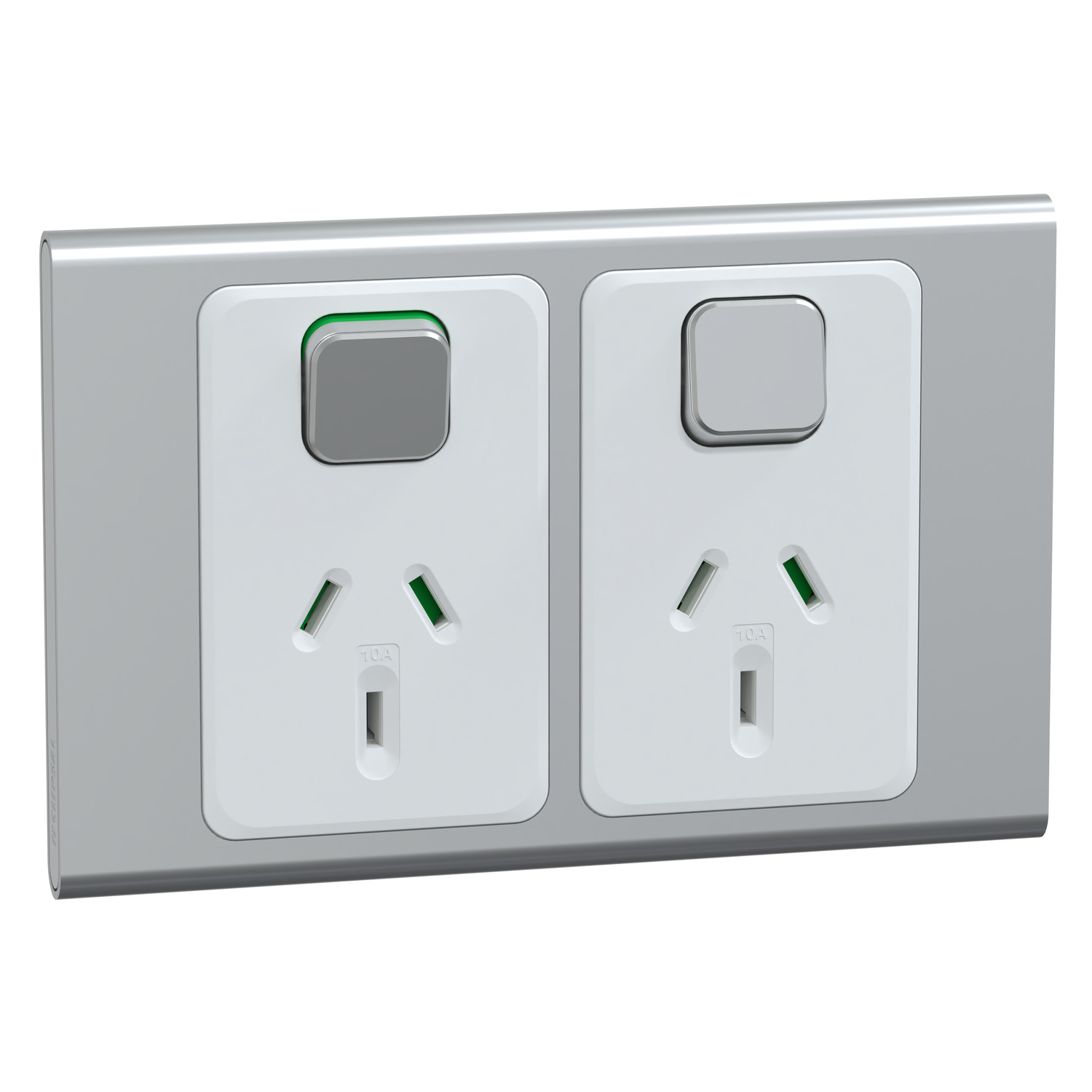

| Product or component type | switched socket |
| Colour tint | silver (SV) |
| Range of product | Iconic |
| Range | Iconic |
| Outlet standard | Australian |
| Main colour tint | silver |
| Product brand | Clipsal |
| Device presentation | complete product |
| Outlet poles configuration | 2P + E with shutter |
| Switch application | on/off switching |
| Complementary | |
| Network frequency | 50 Hz |
| Connections - terminals | screw terminals |
| Fixing mode | by screws |
| Rated current | 10 A at 230/240 V AC 50 Hz, 10 A |
| Installation direction | horizontal |
| Mounting position | horizontal |
| Width | 126 mm |
| Depth | 36.5 mm |
| [Ue] rated operational voltage | 230/240 V |
| Surface finish | glossy |
| Socket-outlet type | twin switched socket-outlet |
| Embedding depth | 28 mm |
| Device mounting | flush |
| Network type | AC |
| Socket number | 2 |
| Clamping connection capacity | 1 x 2.5...4 x 2.5 mm² for rigid cable(s), 1 x 2.5...4 x 2.5 mm² for stranded cable(s), 1 x 2.5...4 x 2.5 mm² for flexible cable(s) |
| Material | metal |
| Number of rocker | 2 |
| Height | 82 mm |
| Surface treatment | anodised |
| Wire stripping length | 16 mm |
| Contractual warranty | |
| Warranty | 18 |
