Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz, 230 V |
| Continuous output current | 10 A |

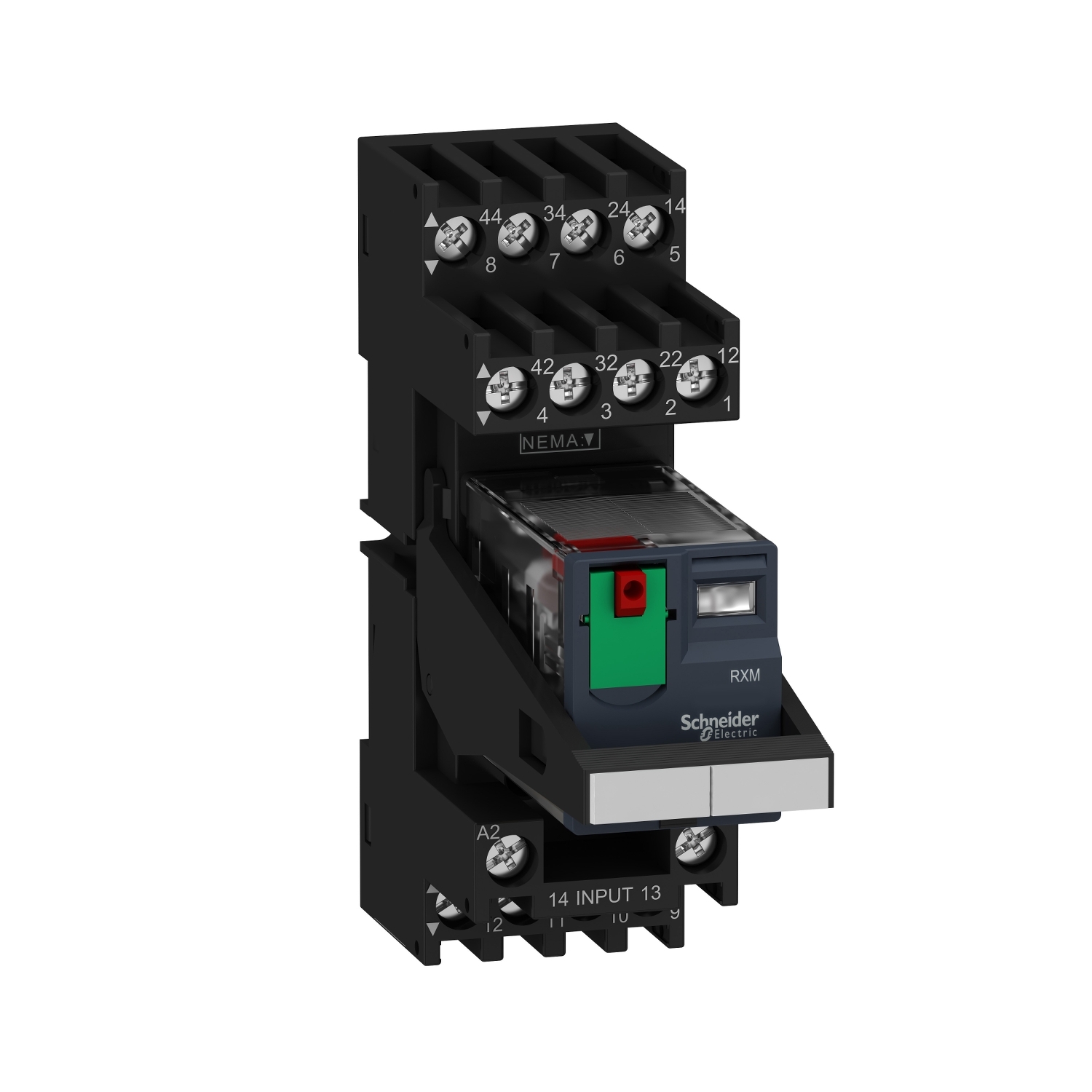

| Product or component type | pre-assembled plug-in relay with socket |
| Status LED | with |
| Series name | RXM series |
| Contacts type and composition | 2 C/O |
| [In] rated current | 10 A |
| [Ithe] conventional enclosed thermal current | 10 A |
| Control circuit type | AC |
| Range of product | Harmony Electromechanical Relays |
| Control type | lockable test button |
| Relay type | miniature relay |
| Complementary | |
| Connections - terminals | screw connectors, connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end, connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end, connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Operating rate | <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load |
| Protection category | RT I |
| Test levels | level A group mounting |
| Reset time | 20 ms |
| Dielectric strength | 1300 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with basic insulation, 2000 V AC between poles with basic insulation |
| Net weight | 0.096 kg |
| Maximum switching voltage | 250 V |
| Rated operational voltage limits | 184...253 V AC |
| [Ie] rated operational current | 6 A at 28 V (DC) NC conforming to IEC, 6 A at 250 V (AC) NC conforming to IEC, 10 A at 28 V (DC) NO conforming to UL, 10 A at 250 V (AC) NO conforming to UL |
| [Ui] rated insulation voltage | 250 V conforming to IEC |
| Minimum switching current | 10 mA |
| Operating time | 20 ms |
| Minimum switching voltage | 17 V |
| CAD overall width | 26.9 mm |
| Minimum switching capacity | 170 mW at 10 mA, 17 V |
| CAD overall depth | 78.45 mm |
| Utilisation coefficient | 20 % |
| Maximum switching capacity | 2500 VA AC, 280 W DC |
| Safety reliability data | B10d = 100000 |
| Torque value | 1 N.m |
| Contacts material | AgNi |
| Pollution degree | 2 |
| Shape of pin | flat (faston type) |
| Contact terminal arrangement | mixed |
| CAD overall height | 79 mm |
| Average resistance | 15000 Ohm at 20 °C +/- 15 % |
| Device presentation | complete product |
| Average coil consumption | 1.2 W, AC |
| Sale per indivisible quantity | 30 |
| Electrical durability | 100000 cycles for resistive load |
| Mechanical durability | 10000000 cycles |
| Compatibility code | RXM |
| Operating position | any position |
| Load current | 10 A at 250 V AC, 10 A at 28 V DC |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs |
| Drop-out voltage threshold | >= 0.3 Uc AC |
| Environment | |
| Product certifications | UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme |
| Standards | UL 508, IEC 61810-1, CSA C22.2 No 14, IEC 61984 |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles in operation, 5 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles not operating |
| Shock resistance | 10 gn for in operation, 30 gn for not operating |
| Ambient air temperature for operation | -40-55 °C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for storage | -40-85 °C |
| Contractual warranty | |
| Warranty | 18 |
