Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Uc] control circuit voltage | 24 V DC, 24 V |

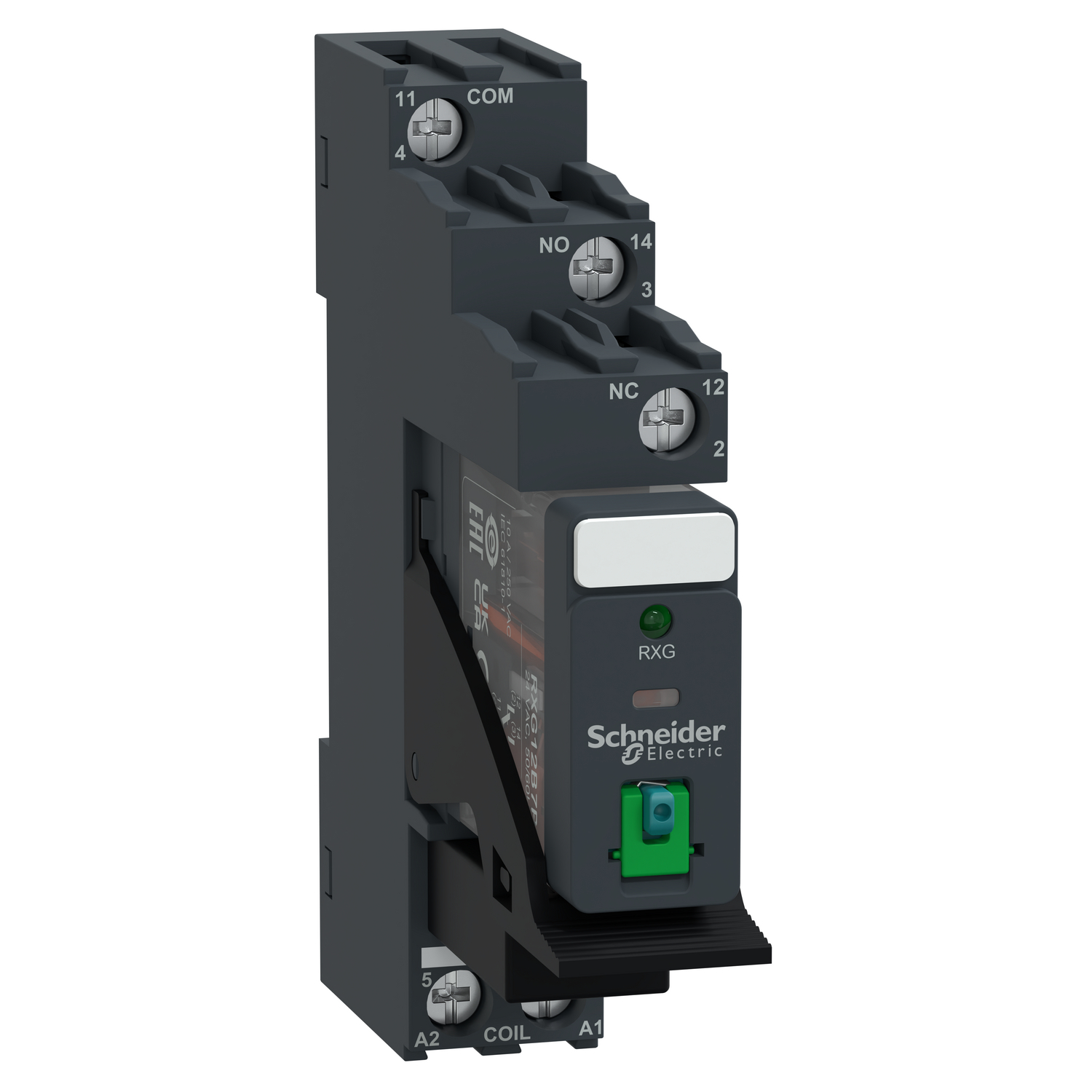

| Product or component type | pre-assembled plug-in relay with socket |
| Series name | RXG series |
| Contacts type and composition | 1 C/O |
| [In] rated current | 10 A |
| [Ithe] conventional enclosed thermal current | 10 A |
| Control circuit type | DC |
| Range of product | Harmony Electromechanical Relays |
| Relay type | interface relay |
| Complementary | |
| Connections - terminals | screw connectors, connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end, connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end, connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Operating rate | <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load |
| Protection category | RT I |
| Test levels | level A group mounting |
| Reset time | 20 ms |
| Dielectric strength | 1000 V AC between contacts with micro disconnection, 1300 V between terminals and base with basic insulation, 3000 V between terminals and LTB area with basic insulation, 5000 V AC between coil and contact with reinforced insulation |
| Status LED | with |
| Net weight | 0.058 kg |
| Maximum switching voltage | 250 V |
| [Ui] rated insulation voltage | 250 V conforming to IEC |
| Overvoltage category | III |
| Minimum switching capacity | 500 mW at 100 mA, 5 V DC |
| presentation of legend | with |
| Utilisation coefficient | 20 % |
| Maximum switching capacity | 2500 VA AC, 300 W DC |
| Safety reliability data | B10d = 100000 |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Contacts material | silver alloy (AgSnO2In2O3) |
| Pollution degree | 2 |
| Shape of pin | flat (faston type) |
| Contact terminal arrangement | separate |
| Control type | lockable test button |
| Average resistance | 1100 Ohm at 23 °C +/- 10 % |
| Device presentation | complete product |
| Electrical insulation class | class F |
| [Ie] rated operational current | 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to IEC, 10 A at 250 V (AC) conforming to UL, 10 A at 250 V (AC) conforming to IEC |
| Electrical durability | 100000 cycles for NO resistive load at 55 °C, 100000 cycles for NC resistive load at 55 °C |
| Mechanical durability | 10000000 cycles |
| [Uimp] rated impulse withstand voltage | 1200 V AC between contacts with micro disconnection, 6000 V between coil and contact with reinforced insulation, 1500 V between terminals and case with basic insulation |
| Load current | 10 A |
| Drop-out voltage threshold | >= 0.1 Uc DC |
| Operating time | 20 ms |
| Contact resistance | 100 mOhm |
| Environment | |
| Product certifications | CSA, CE, EAC, UL, DNV |
| Standards | IEC 61810-1, CSA C22.2 No 14, UL 508, IEC 61984 |
| Vibration resistance | 3 gn, amplitude = +/- 1.5 mm (f = 10-150 Hz)in operation, 5 gn, amplitude = +/- 1.5 mm (f = 10-150 Hz)not in operation |
| Ambient air temperature for operation | -40-70 °C |
| Relative humidity | 10-85 % |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | IP20 |
| Contractual warranty | |
| Warranty | 18 |
