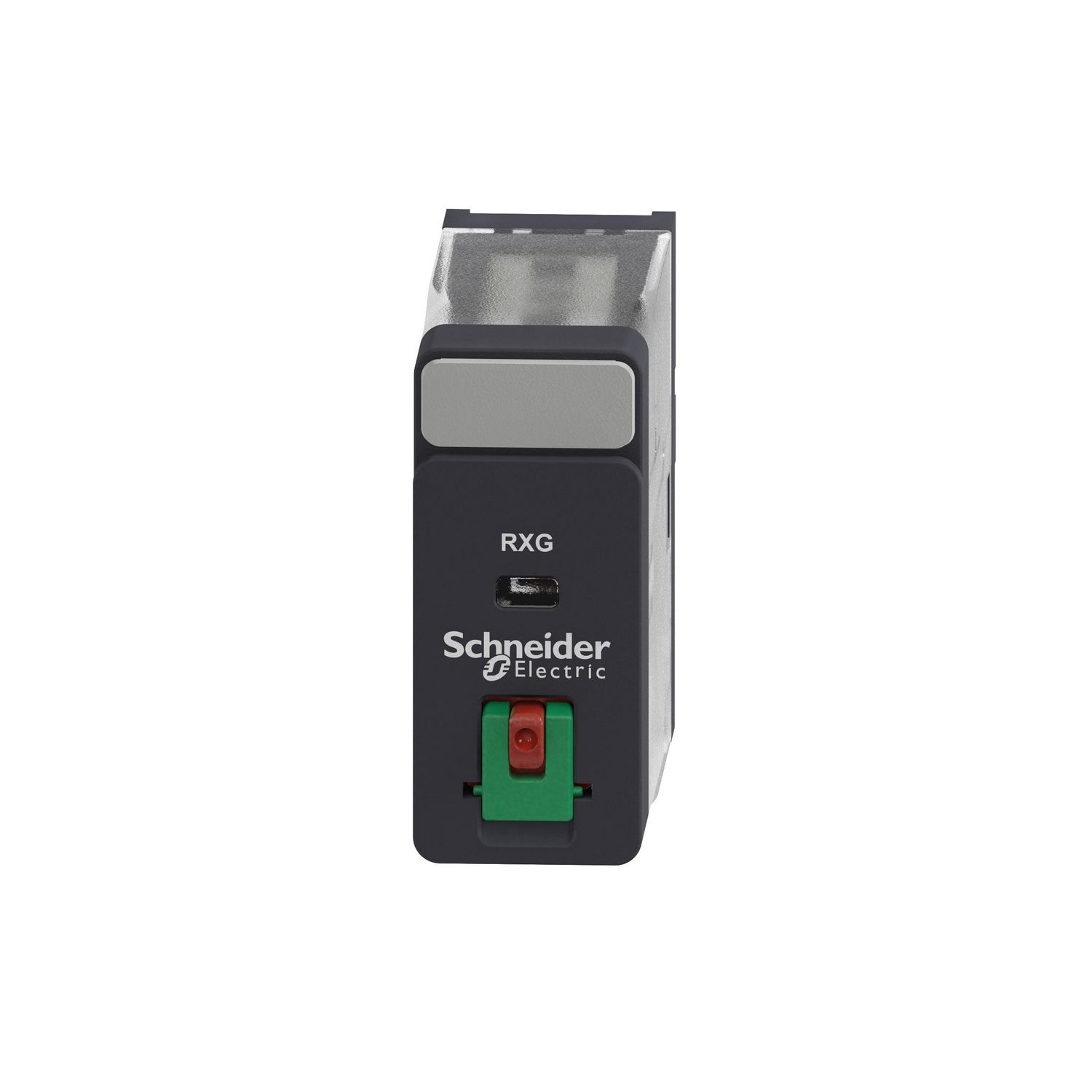

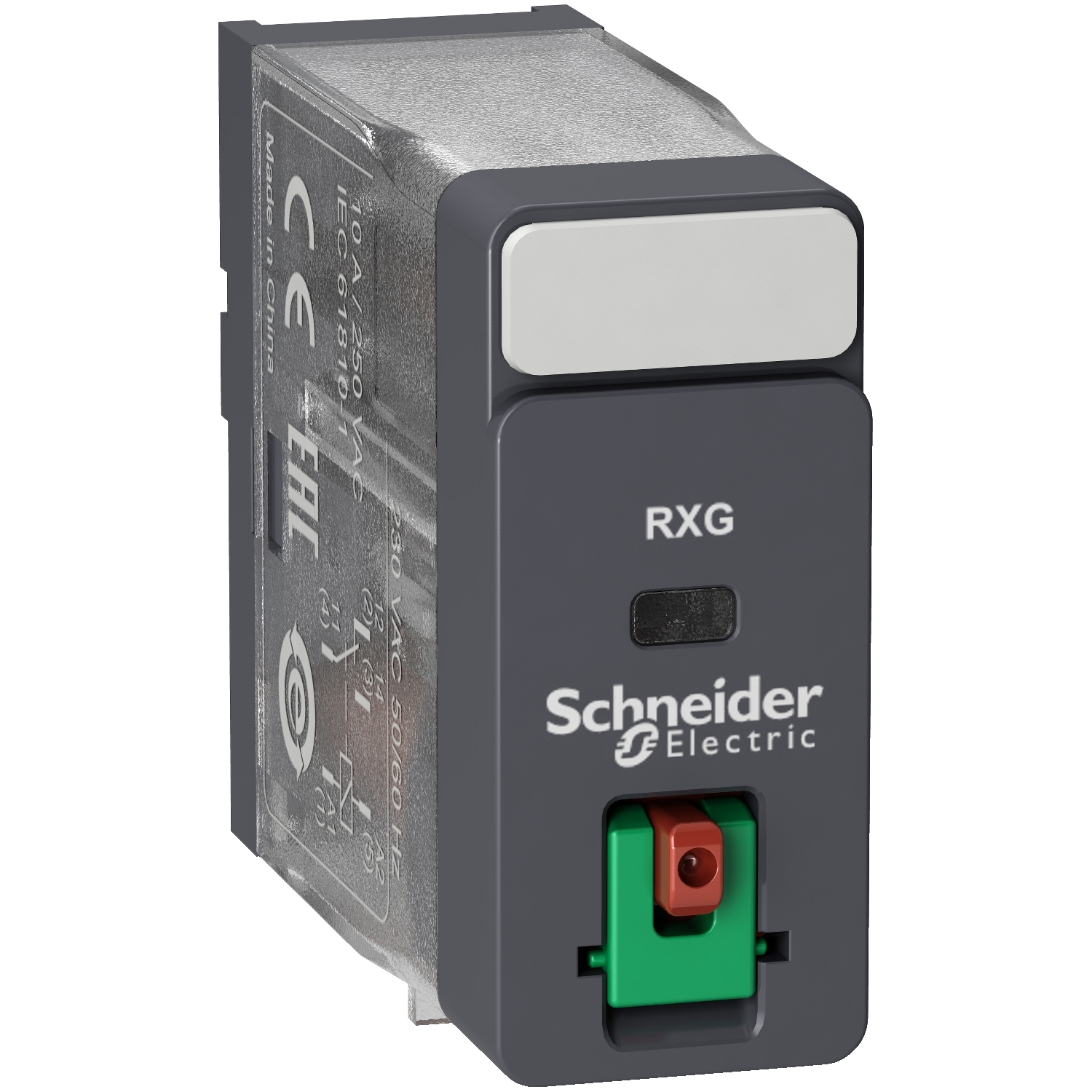

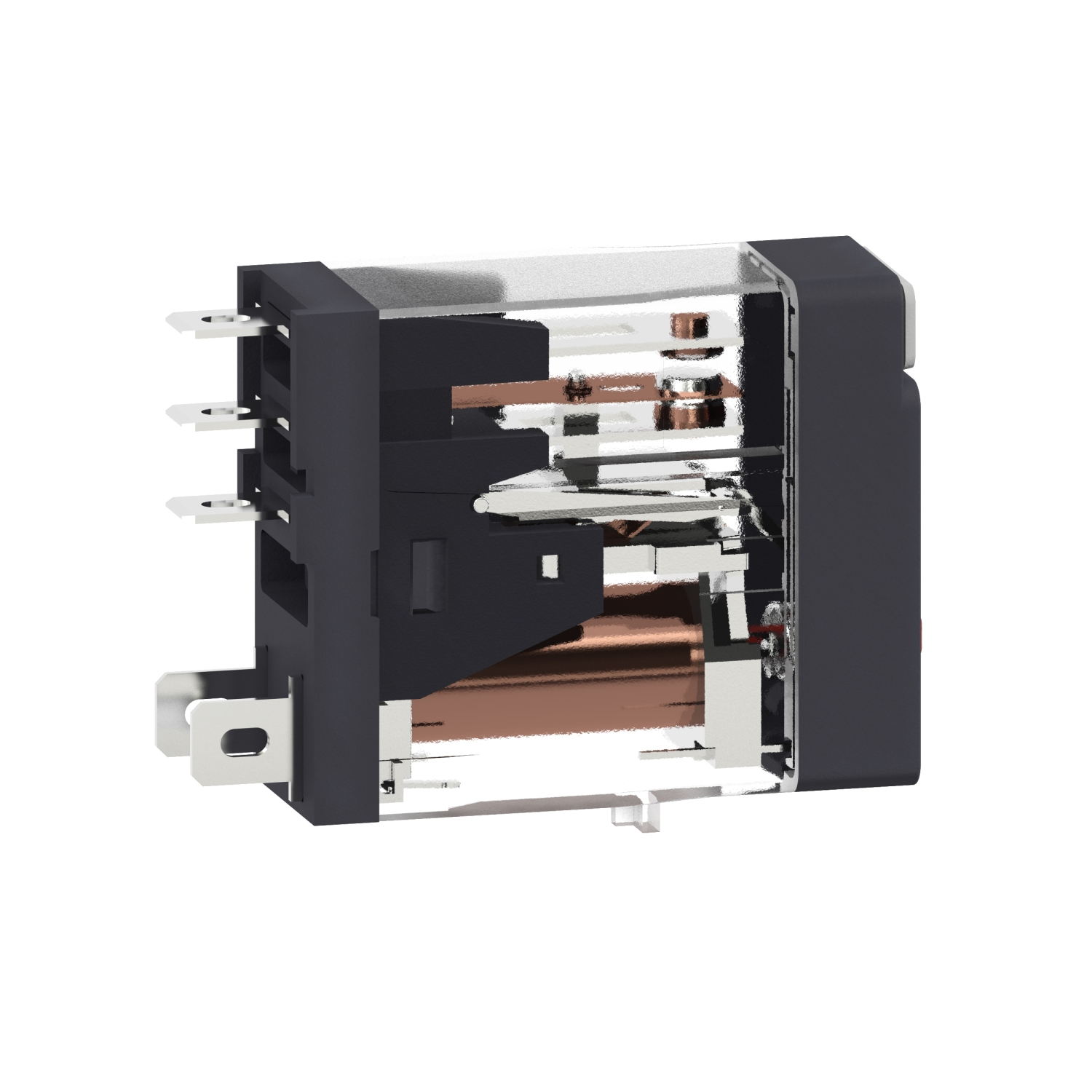

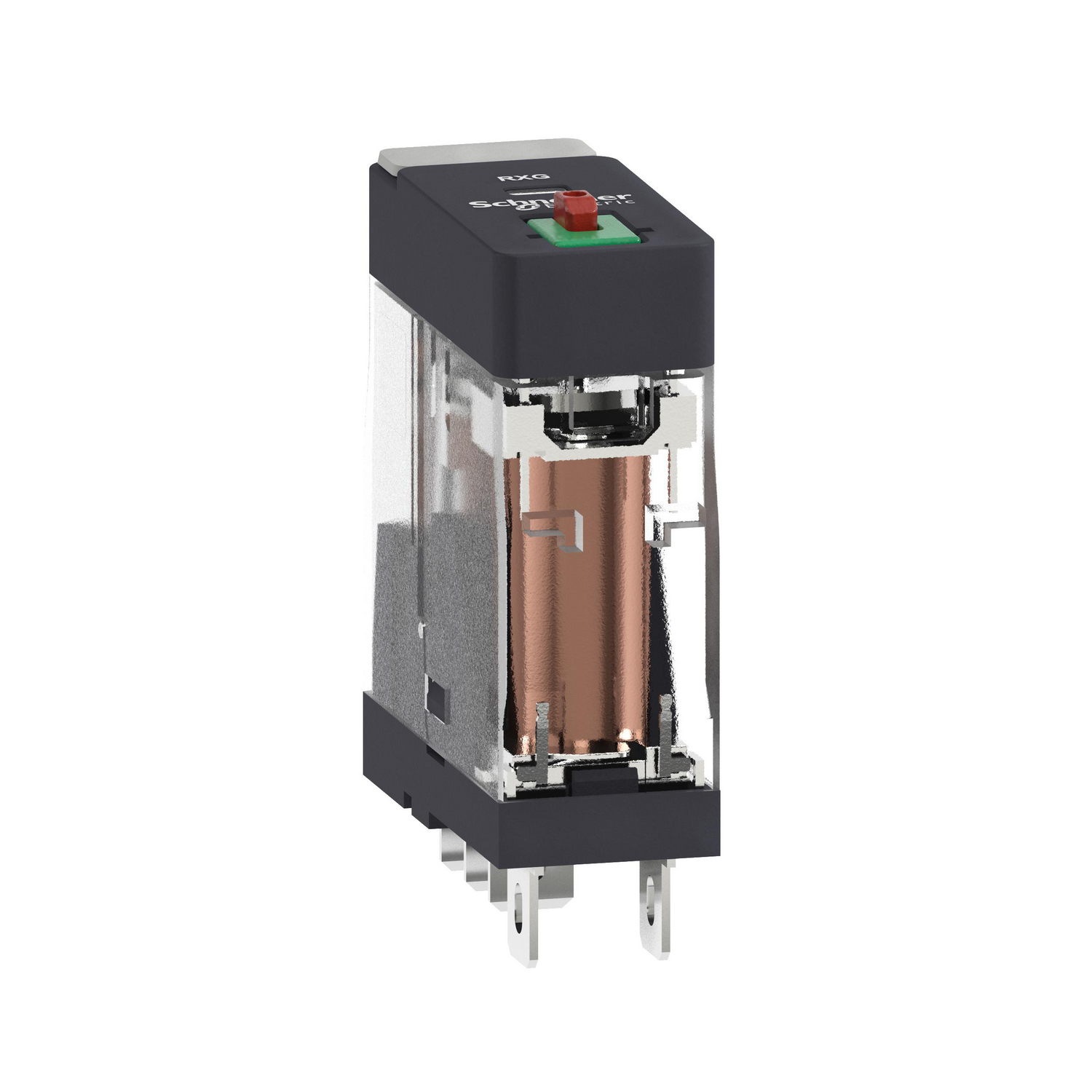

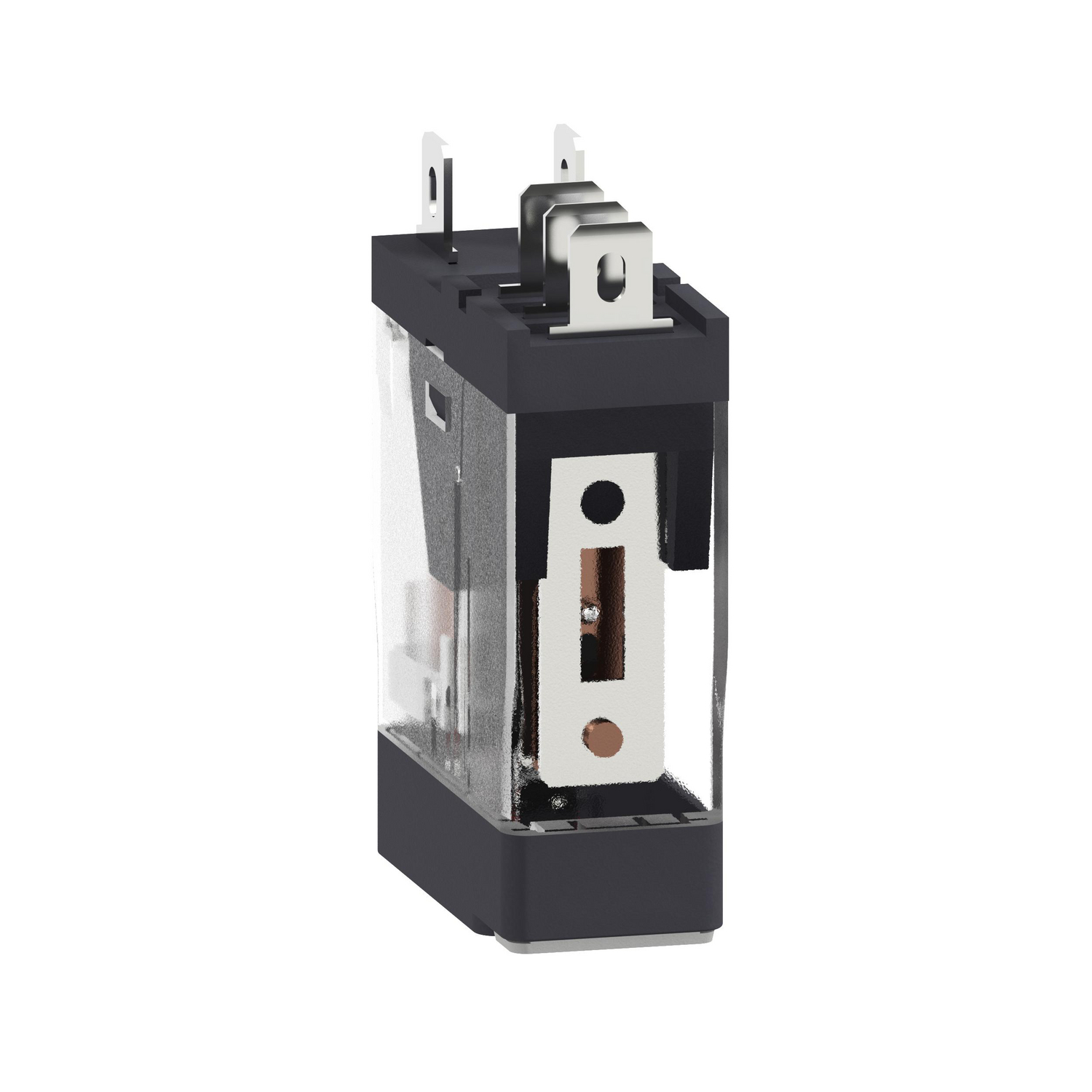

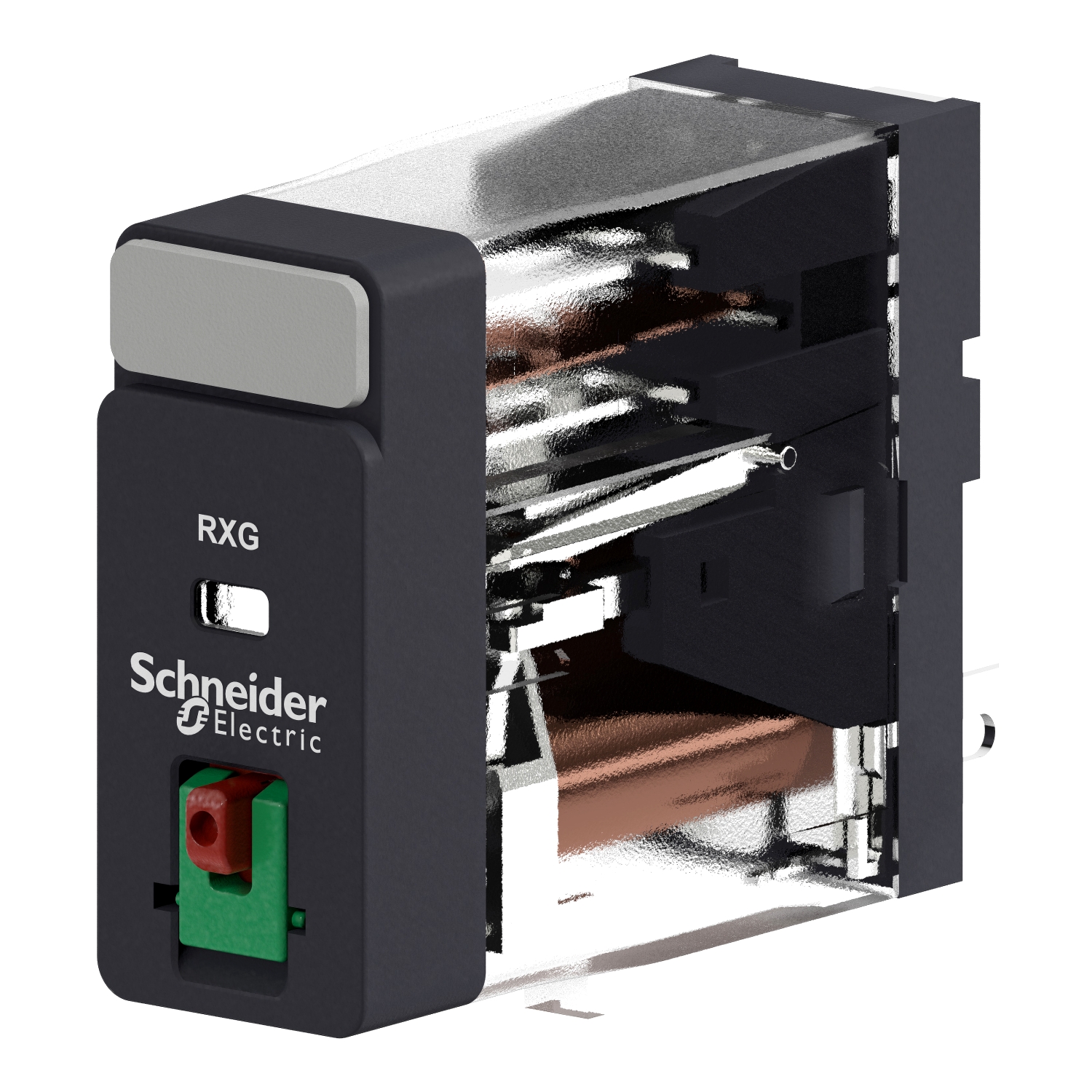

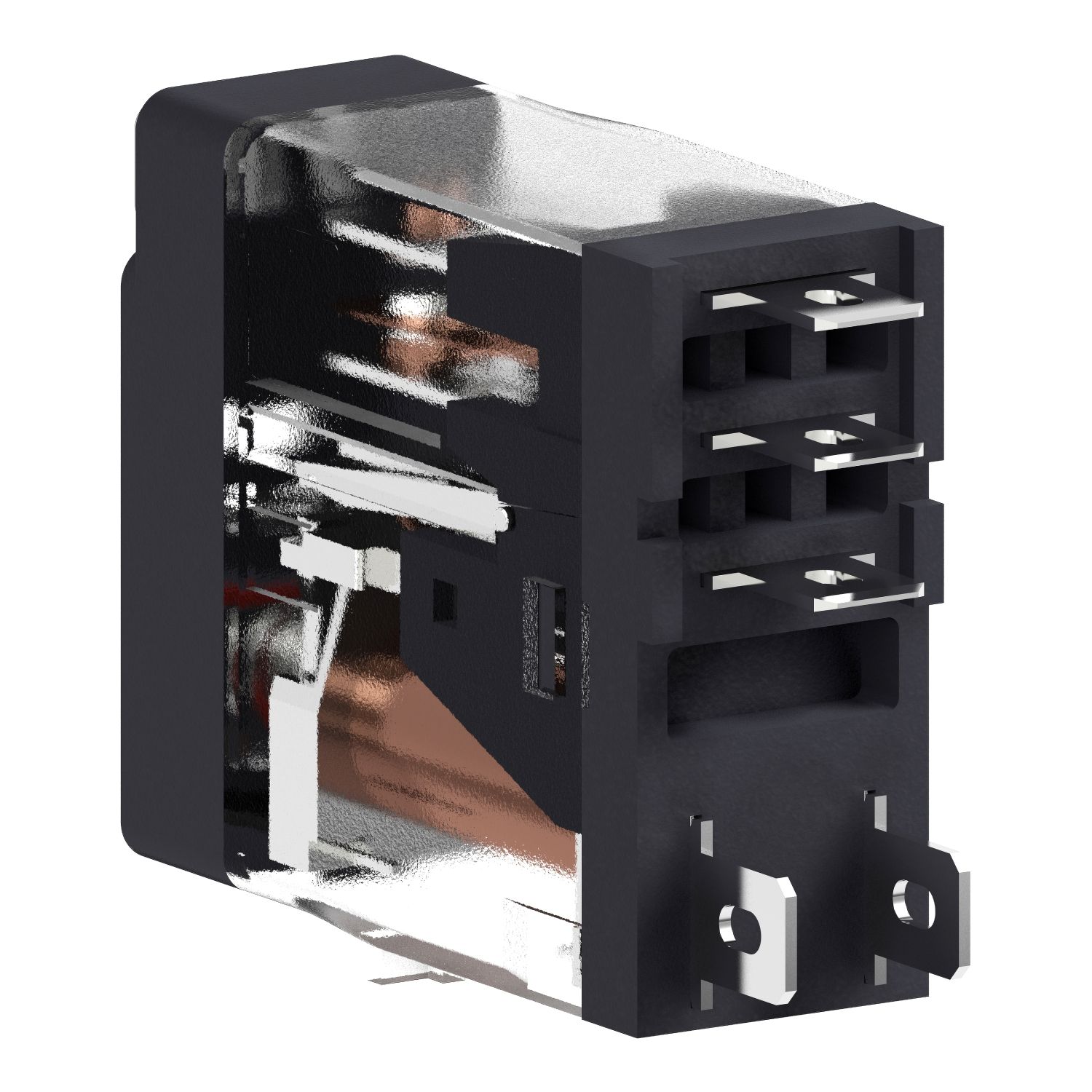

"This Harmony RXG plug-in relay socket has a coil control voltage of 230V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It also offers lockable test button." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere thanks to its 16mm width." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | RXG |
| [Uc] control circuit voltage | 230 V |
| Range of product | Harmony Electromechanical Relays |
| [Ithe] conventional enclosed thermal current | 10 A at -40-55 °C |
| Local signalling | flag |
| [In] rated current | 10 A |
| Contacts type and composition | 1 C/O |
| Series name | interface relay |
| Product or component type | plug-in relay |
| Complementary | |
| Drop-out voltage threshold | >= 0.3 Uc AC |
| Load current | 10 A at 250 V AC |
| Control circuit voltage limits | 0.8...1.1 Uc AC |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles for NC resistive load at 55 °C, 100000 cycles for NO resistive load at 55 °C |
| Device presentation | complete product |
| Control type | lockable test button |
| Colour of cover | standard |
| Shock resistance | 100 gn not in operation, 20 gn in operation |
| Pollution degree | 2 |
| Contacts material | silver alloy (AgSnO2In2O3) |
| Torque value | 0.8 N.m |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Safety reliability data | B10d = 100000 |
| Maximum switching capacity | 2500 VA |
| Utilisation coefficient | 20 % |
| Minimum switching capacity | 500 mW at 100 mA, 5 V DC |
| Overvoltage category | III |
| Mounting position | any position |
| Resistance | 23500 Ohm +/- 15 % |
| [Ui] rated insulation voltage | 300 V conforming to UL, 300 V conforming to CSA, 250 V conforming to IEC |
| [Ie] rated operational current | 10 A at 250 V (AC) conforming to UL, 10 A at 250 V (AC) conforming to IEC, 10 A at 30 V (DC) conforming to IEC, 10 A at 30 V (DC) conforming to UL |
| Maximum switching voltage | 30 V DC, 250 V AC |
| Net weight | 0.02 kg |
| Status LED | without |
| Dielectric strength | 5000 V AC between coil and contact with reinforced insulation, 1000 V AC between contacts with micro disconnection |
| Test levels | level A group mounting |
| Protection category | RT I |
| Operating rate | <= 18000 cycles/hour no-load, <= 1800 cycles/hour under load |
| Average consumption | 0.82 VA 60 Hz |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| Environment | |
| IP degree of protection | IP40 |
| Ambient air temperature for storage | -40-85 °C |
| Relative humidity | 10-85 % |
| Ambient air temperature for operation | -40-70 °C |
| Vibration resistance | 5 gn, amplitude = +/- 0.75 mm (f = 10-150 Hz)not in operation, 3 gn, amplitude = +/- 0.75 mm (f = 10-150 Hz)in operation |
| Standards | UL 508, IEC 61810-1, CSA C22.2 No 14 |
| Product certifications | DNV-GL, CSA, EAC, CE, UL |
| Contact resistance | 100 mOhm |
| Operating time | 20 ms |
| Electrical insulation class | class F |
| Reset time | 20 ms |
