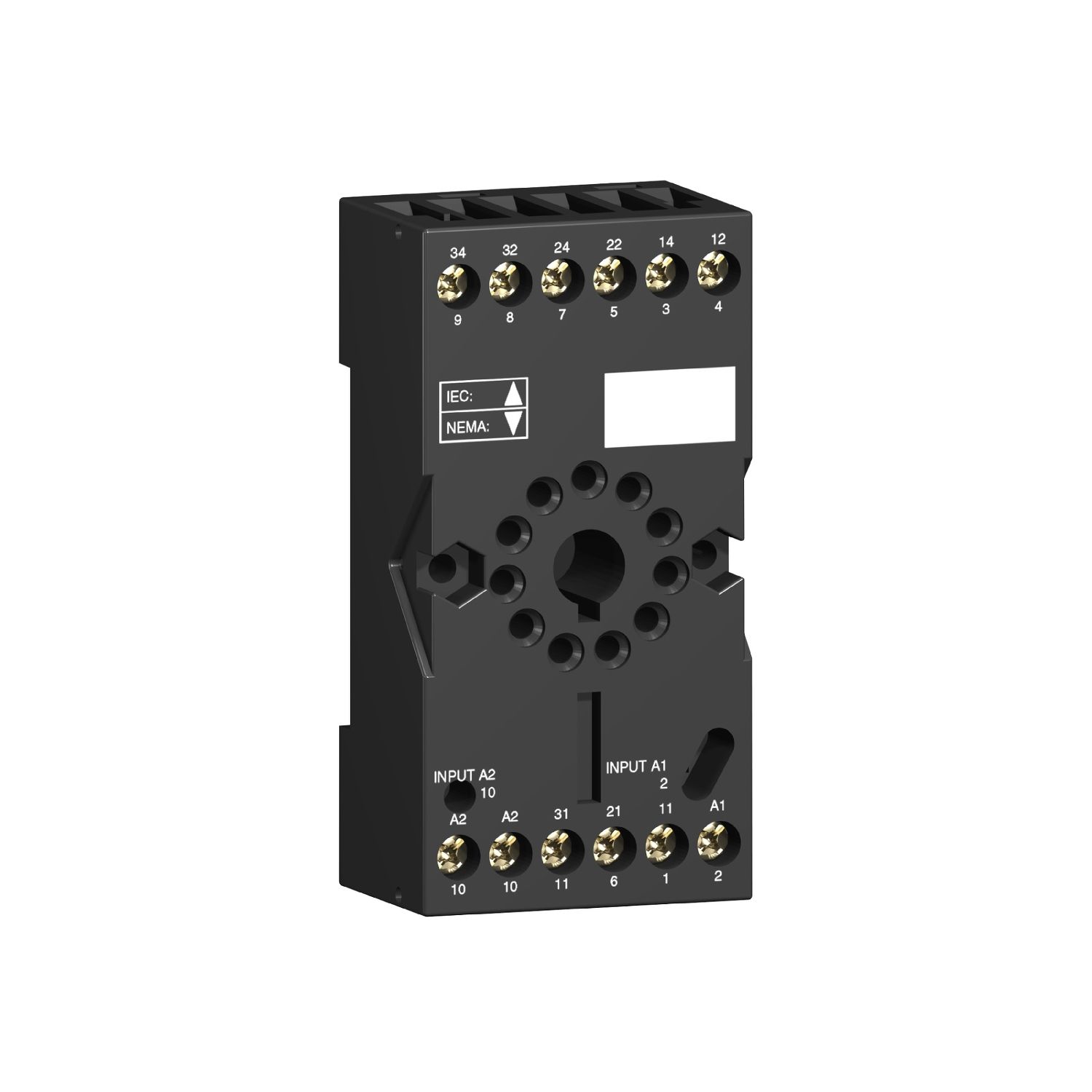

Socket, Harmony Electromechanical Relays, for RUMC2 relays, 12A, screw connectors, separate contact
Manufacturer: Schneider Electric
SKU: RUZSC2M
GTIN: 3389119403245
Old price: $14.19 inc GST
$12.81 inc GST
Supported cards
Supported cards
"This Harmony RUM plug-in socket has a rated voltage of 250V AC with an output rating of 12A." "This plug-in relay socket is compatible with interface plug-in relay RUM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage < 250 V
Device short name RUZ
[In] rated current 12 A
Product compatibility plug-in relay RUM with 2 C/O contact
Contacts type and composition 2 C/O
Product or component type socket
Range of product Harmony Electromechanical Relays
[Ith] conventional free air thermal current 12 A
Complementary
Group of product RUM_2_C/O_CON_SEP_CYL
Overvoltage category III
Width 36 mm
Compatibility code RUZ
Sale per indivisible quantity 10
Connections - terminals connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end, connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end, screw connectors
Fixing mode clip-on (35 mm symmetrical DIN rail), by screw (panel)
Net weight 0.095 kg
Contact terminal arrangement separate
Shape of pin cylindrical
Pollution degree 3
[Uimp] rated impulse withstand voltage 4 kV
Tightening torque < 1 N.m for M3.5 screw(s)
Environment
Ambient air temperature for storage -40-85 °C
IP degree of protection IP20 conforming to EN/IEC 60529
Marking CE
Standards IEC 61984
Ambient air temperature for operation -40-55 °C
Product certifications CSA, UL
