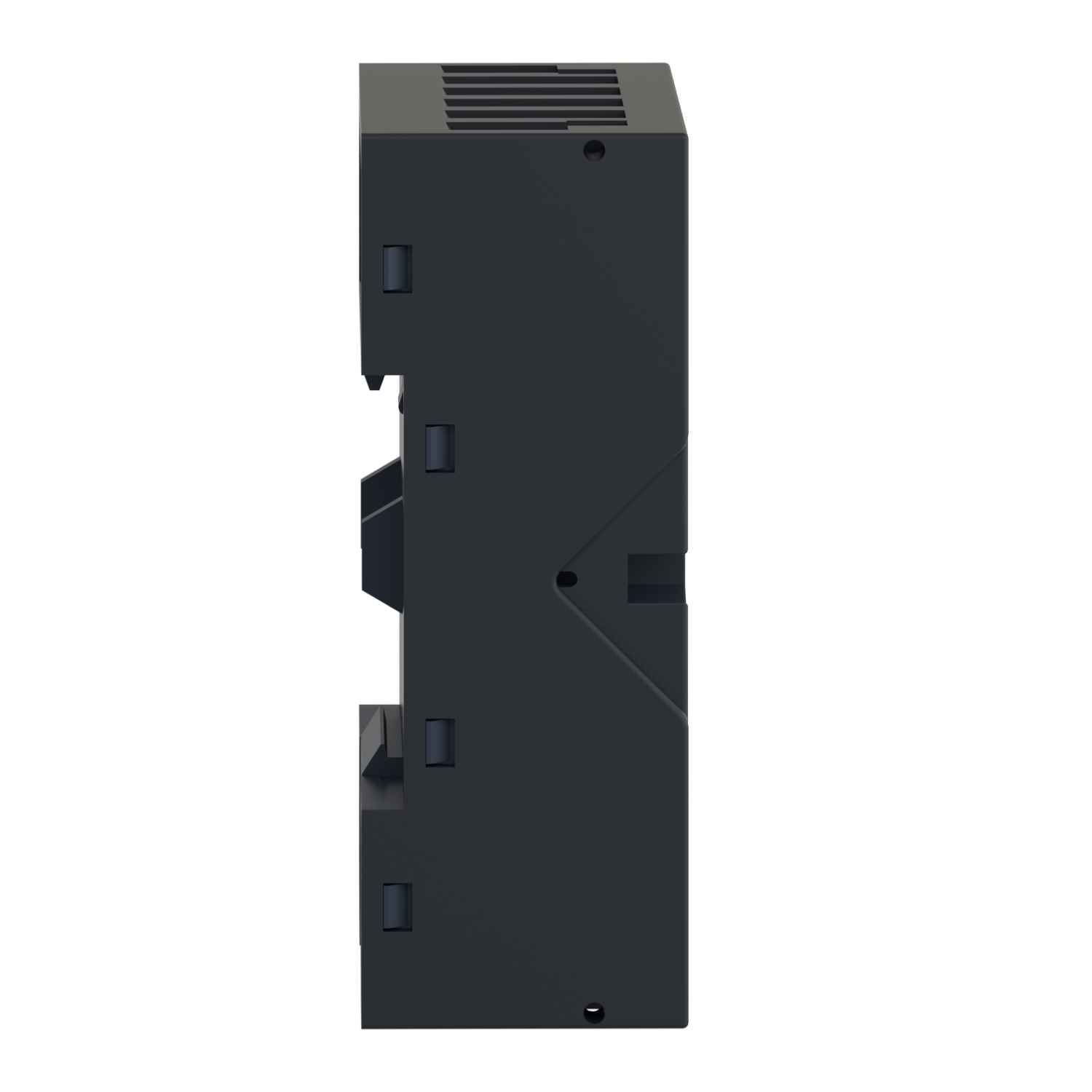

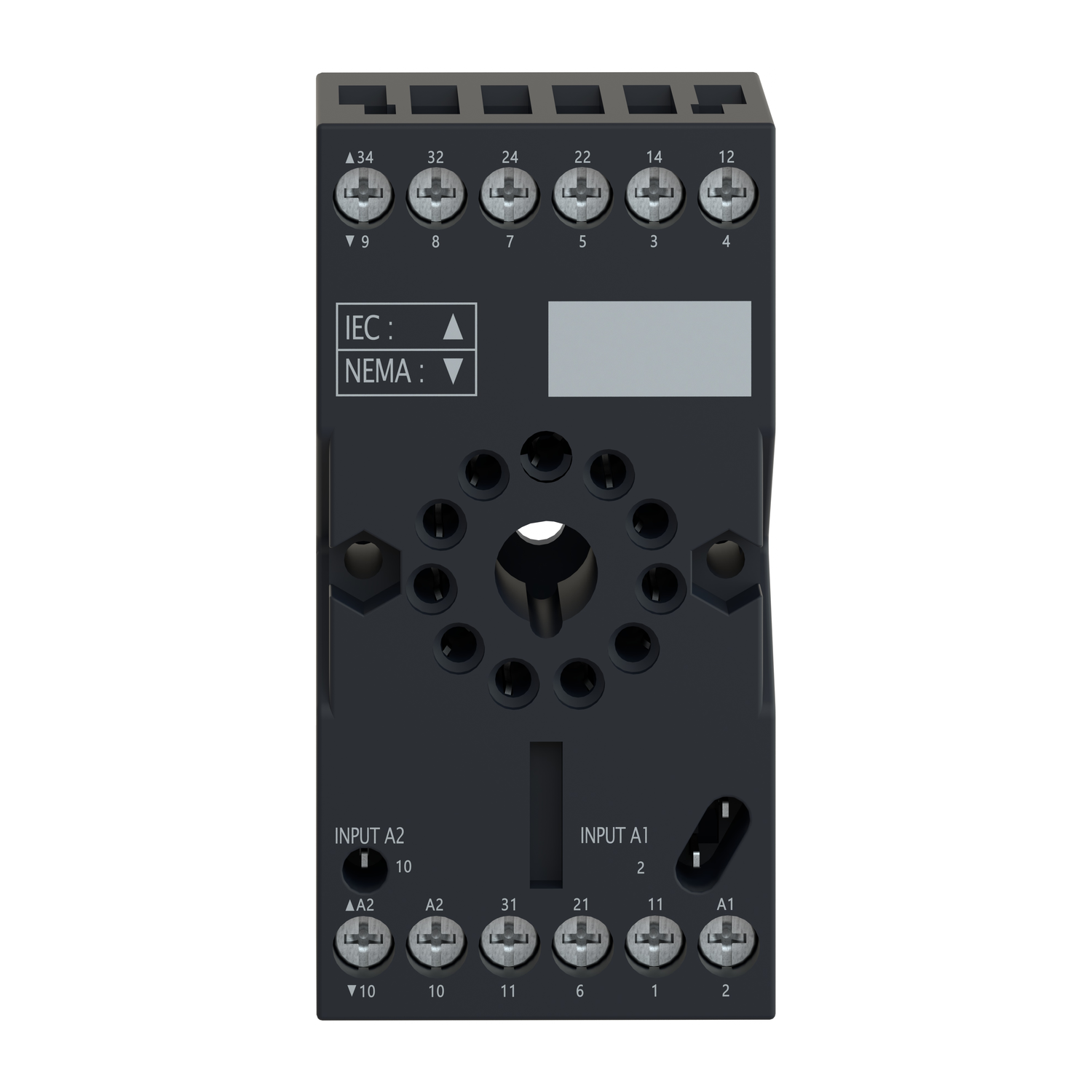

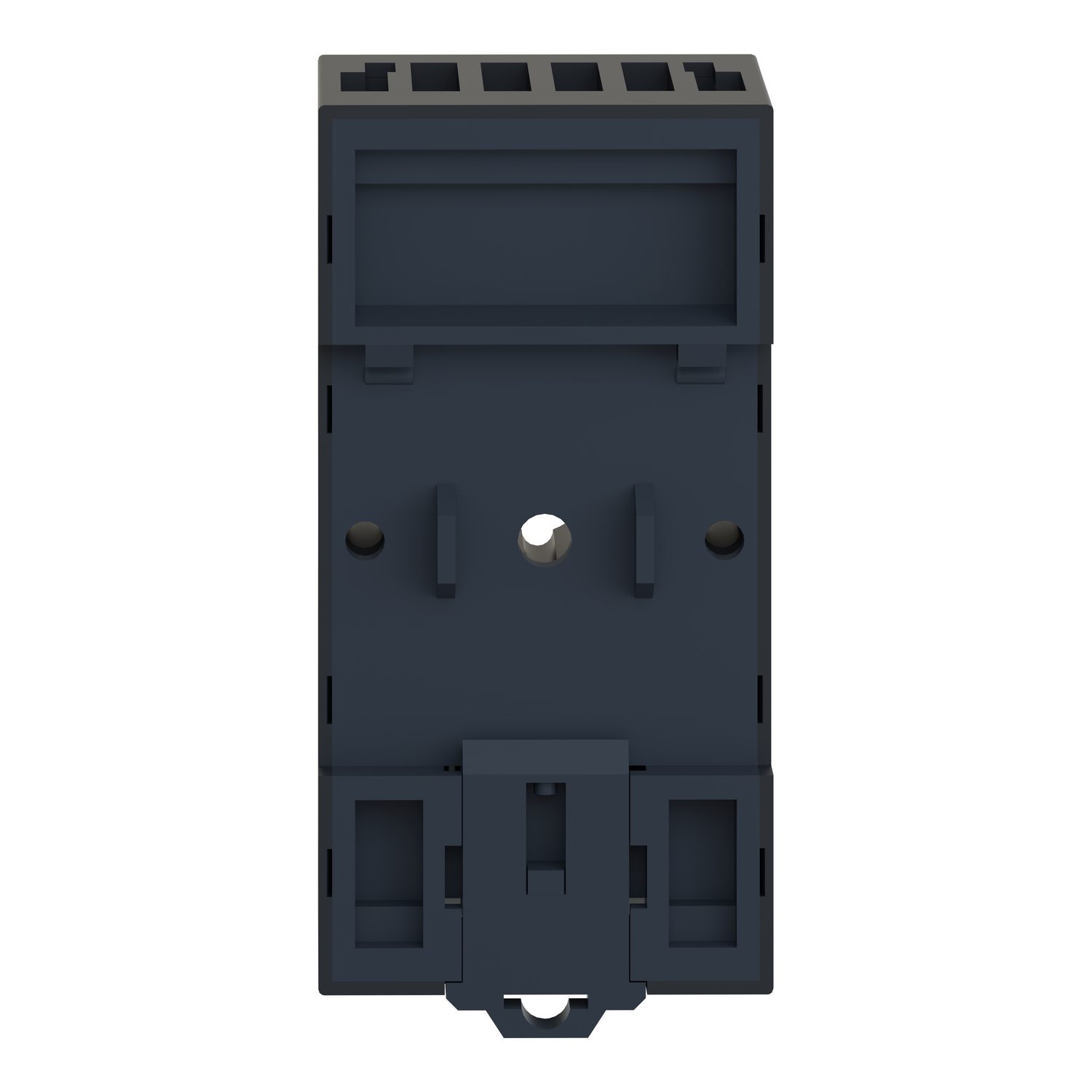

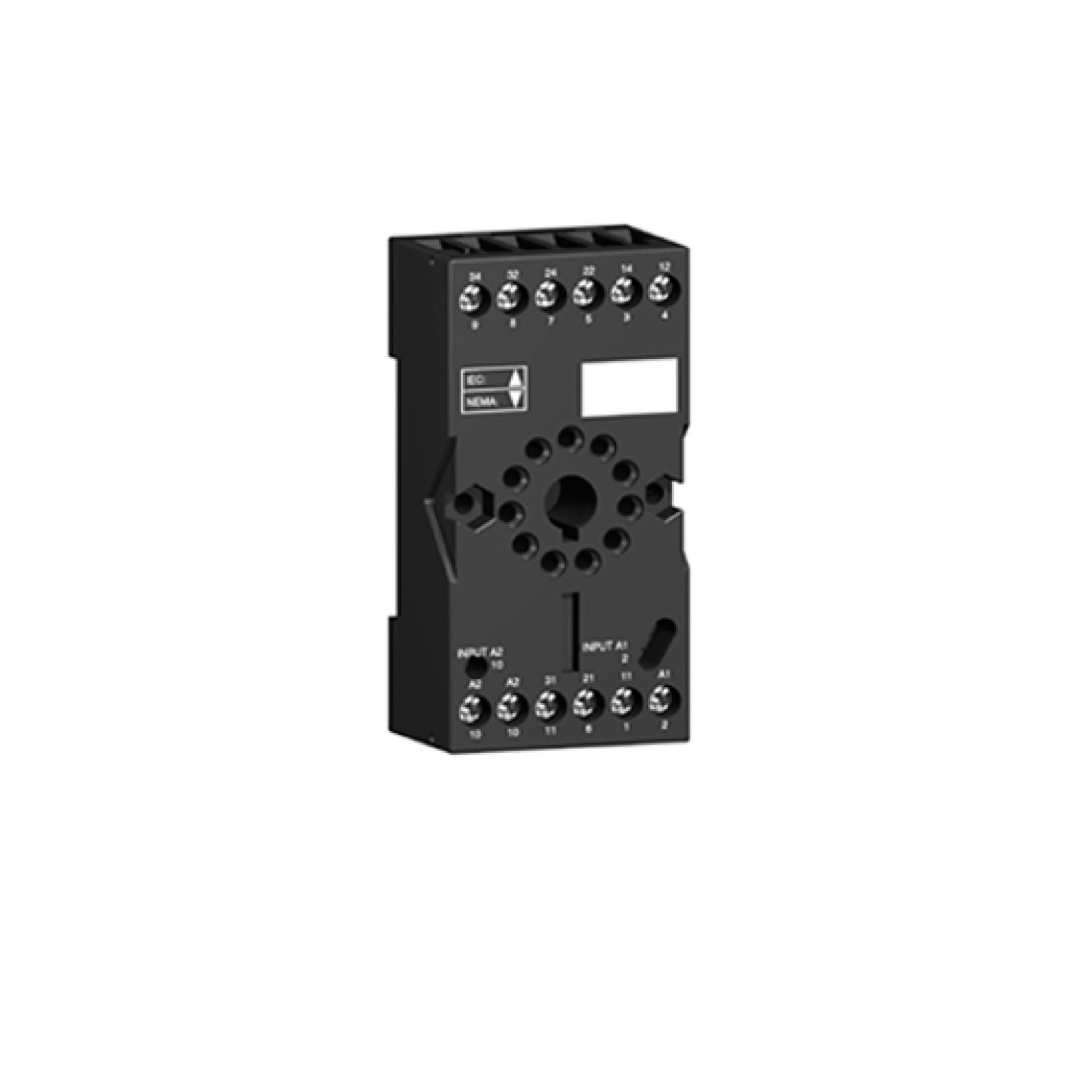

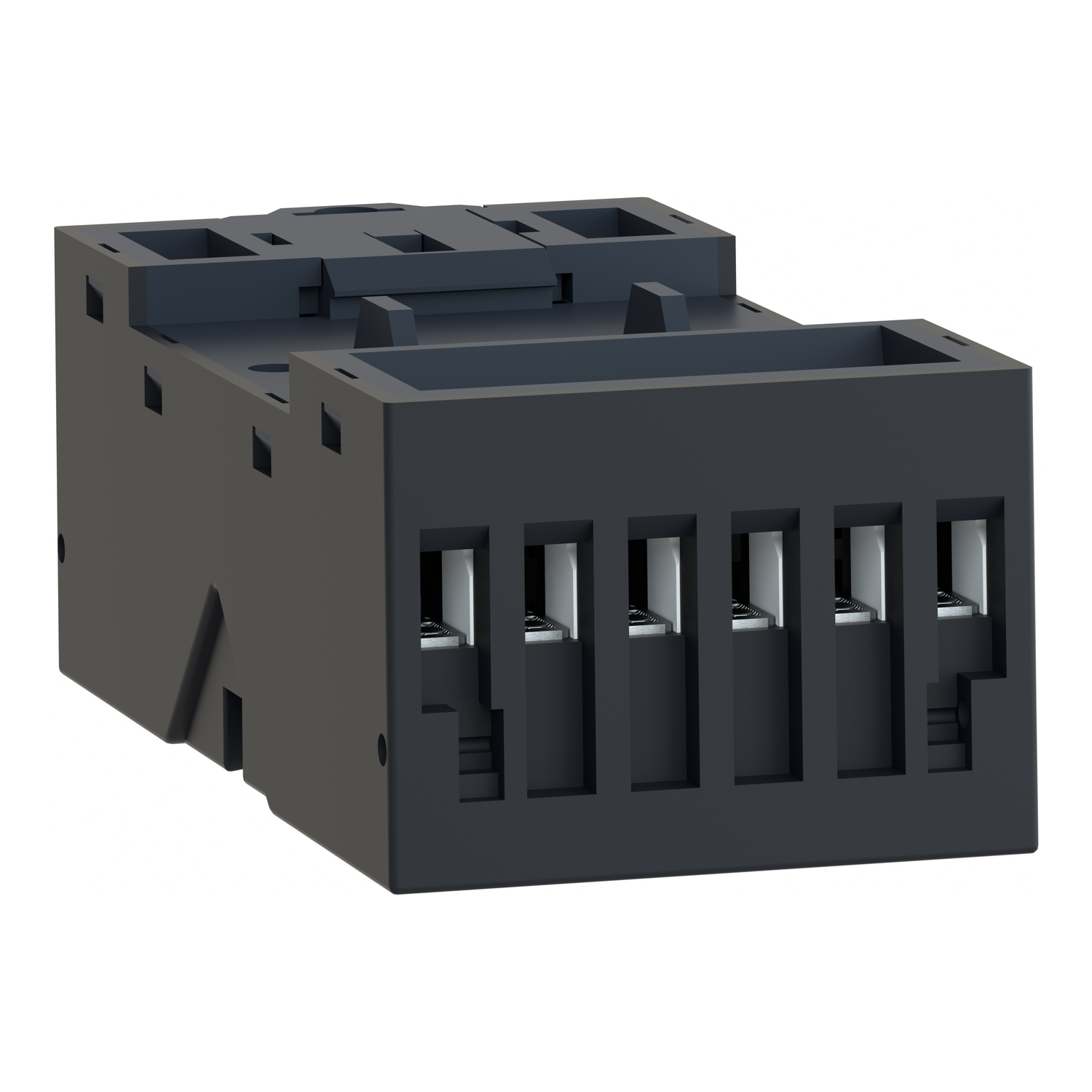

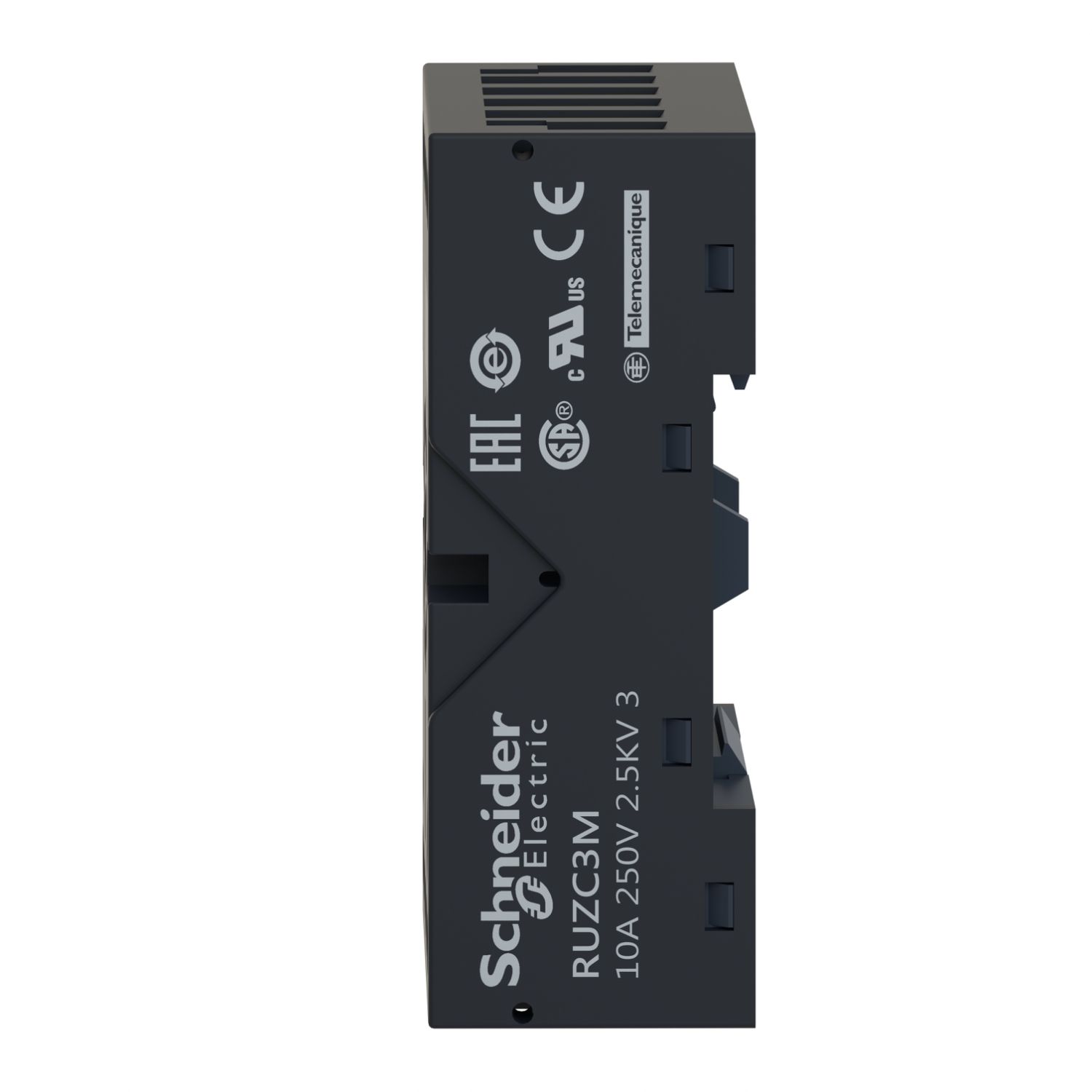

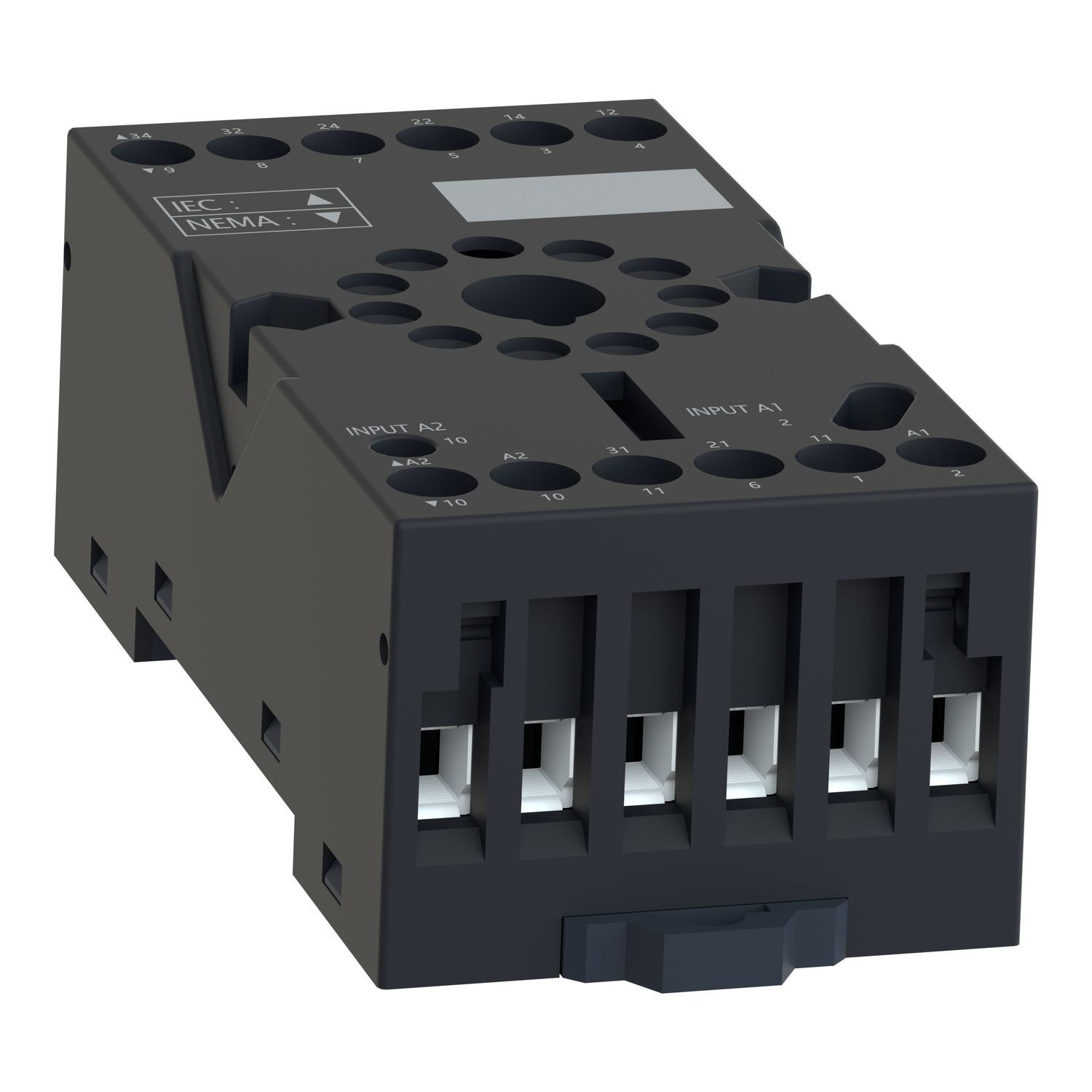

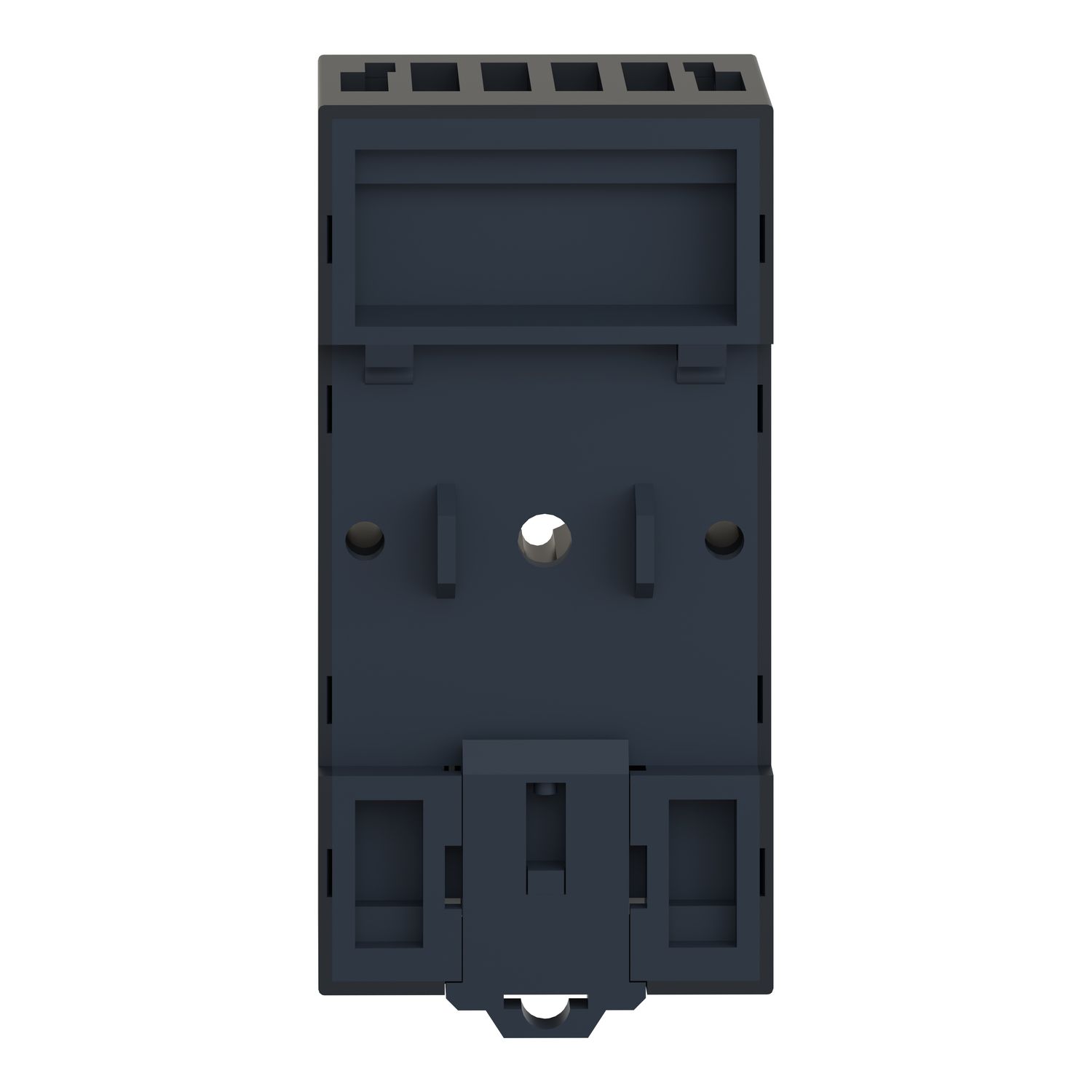

"This Harmony RUZ plug-in relay socket has a coil control voltage of 250V AC and has mixed contacts with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | RUZ |
| Product compatibility | plug-in relay RE48A with 2 C/O contact, plug-in relay RUM with 3 C/O contact |
| Range of product | Harmony Timer Relays, Harmony Electromechanical Relays |
| [Ith] conventional free air thermal current | 10 A |
| [Ue] rated operational voltage | < 250 V |
| Output type | relay |
| [In] rated current | 10 A |
| Contacts type and composition | 3 C/O |
| Product or component type | socket |
| Complementary | |
| Group of product | RUM_3_C/O_CON_MIX_CYL |
| Compatibility code | RUZ |
| Sale per indivisible quantity | 10 |
| Fixing mode | clip-on (35 mm symmetrical DIN rail), by screw (panel) |
| Contact terminal arrangement | mixed |
| Shape of pin | cylindrical |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Width | 38 mm |
| Connections - terminals | connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end, connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end, screw connectors |
| Net weight | 0.054 kg |
| Tightening torque | < 1 N.m for M3.5 screw(s) |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Marking | CE |
| Ambient air temperature for operation | -40-55 °C |
| Standards | IEC 61984 |
| Product certifications | UL, CSA |
