| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | RSZ |
| Range of product | Harmony Electromechanical Relays |
| [Ith] conventional free air thermal current | 12 A |
| [In] rated current | 12 A |
| Contacts type and composition | 1 C/O |

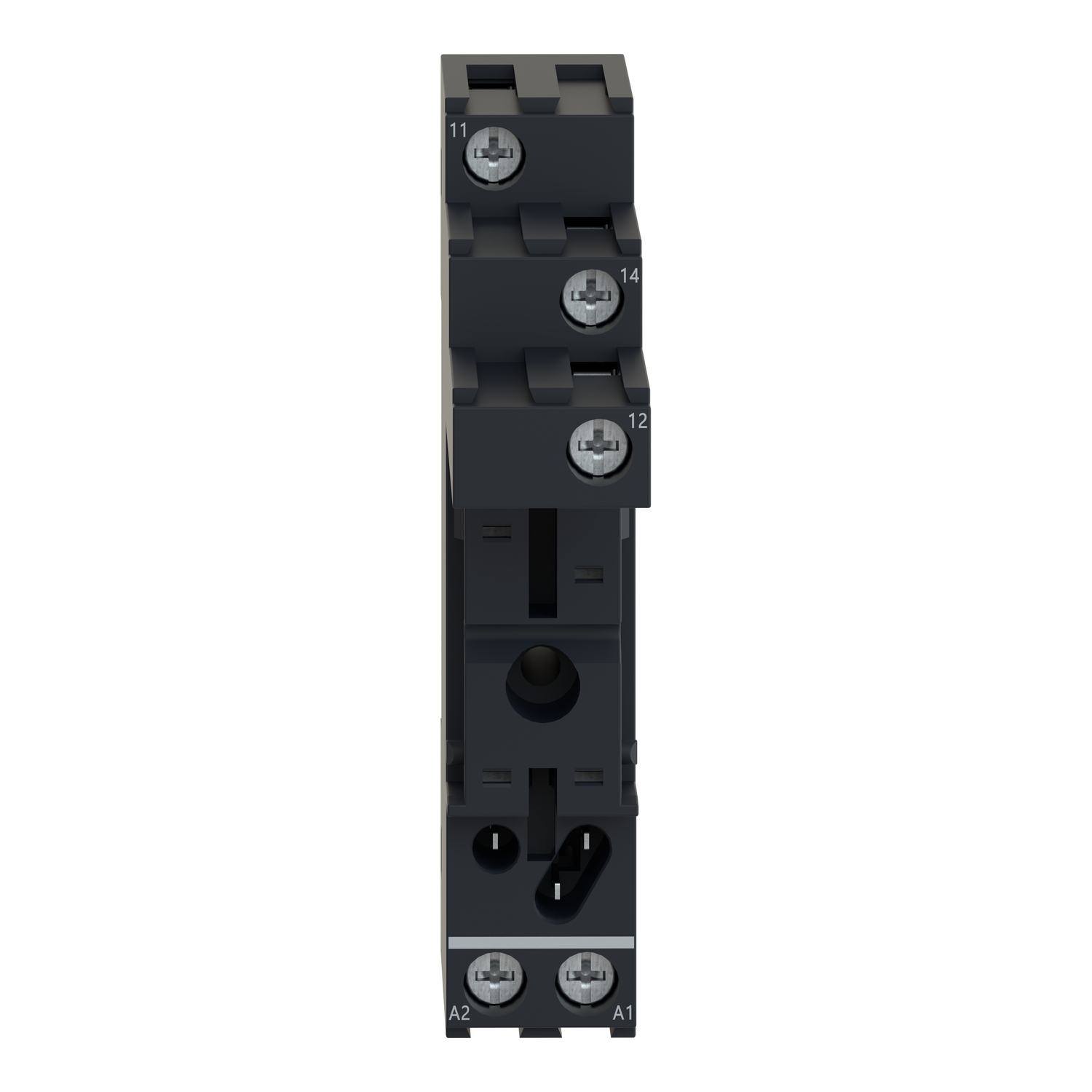

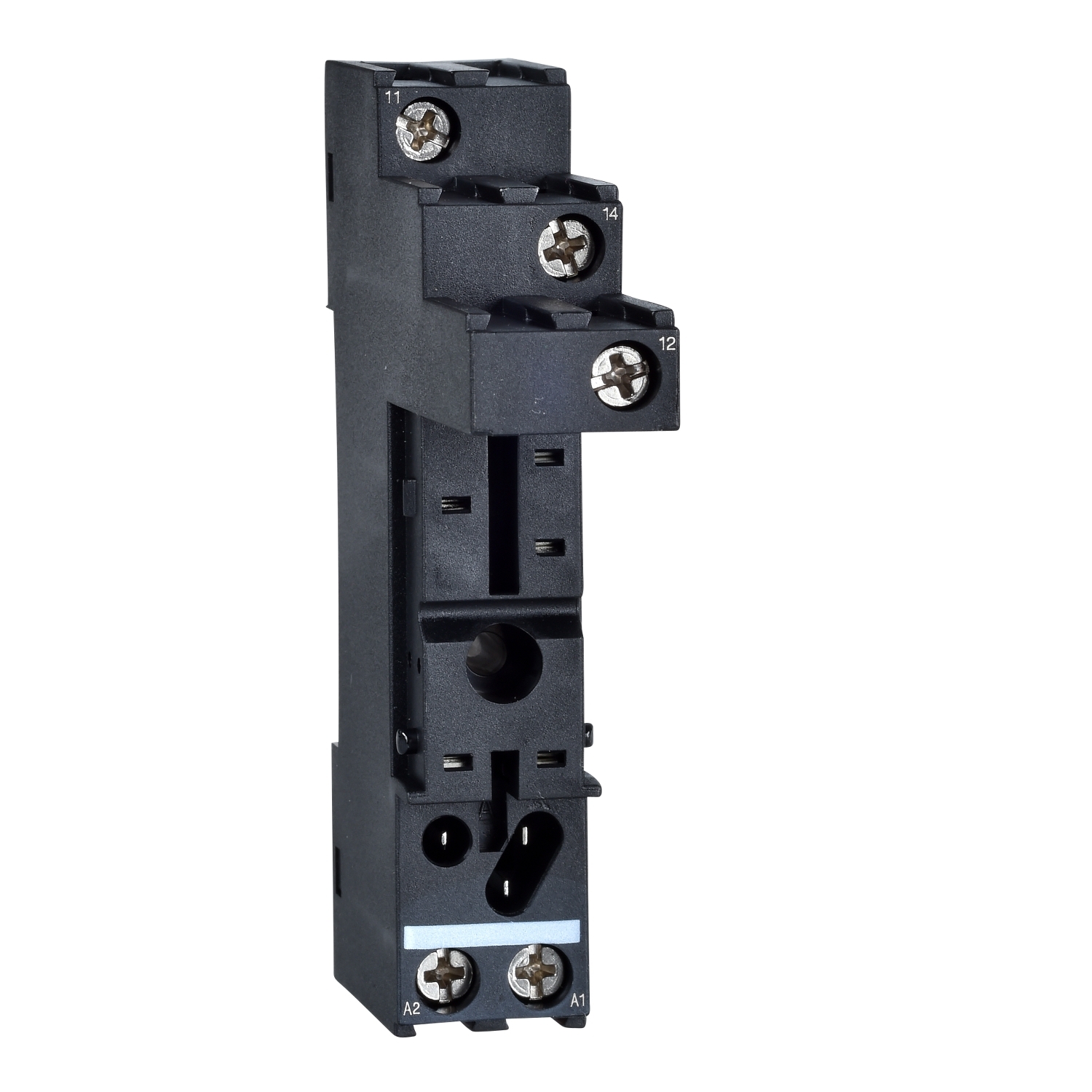

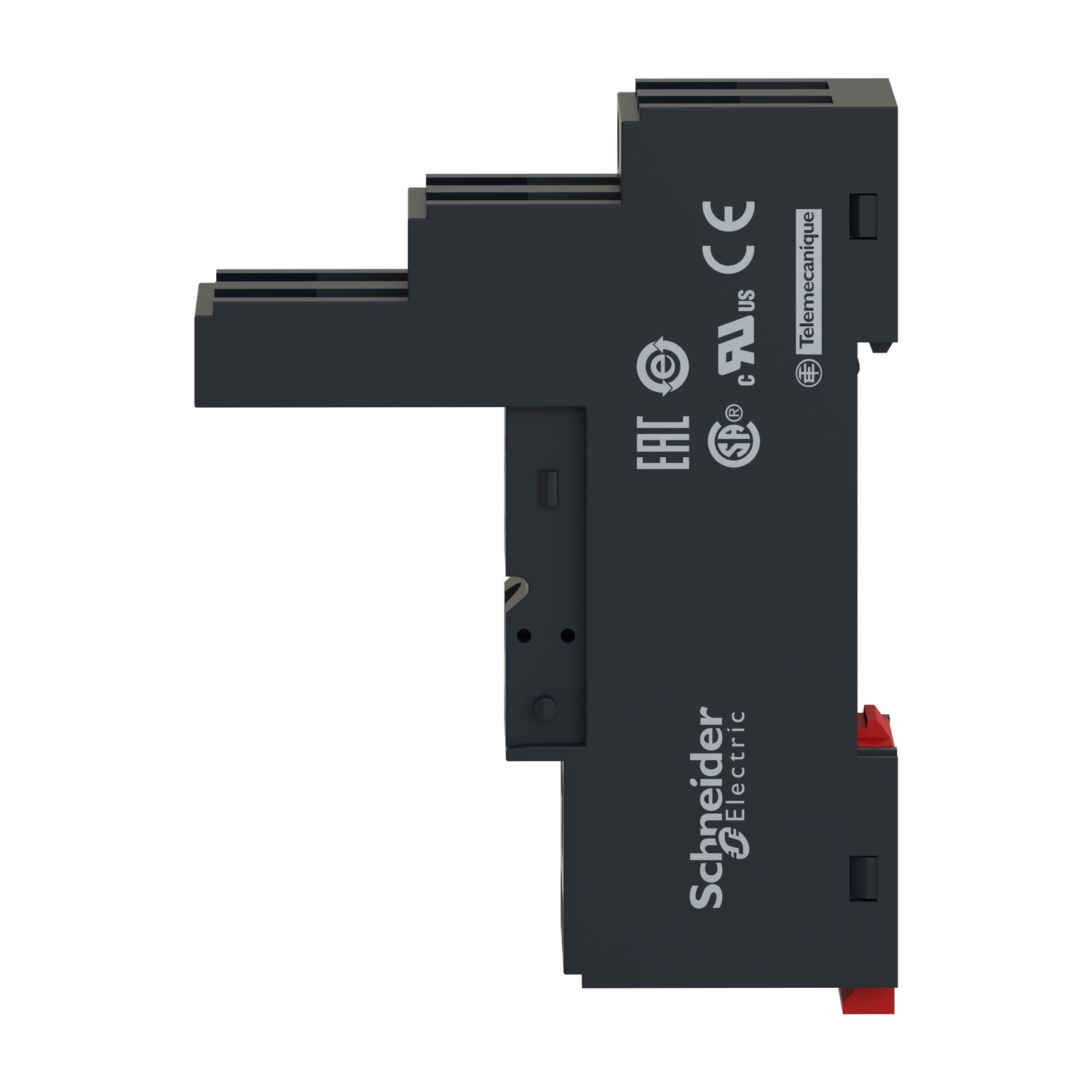

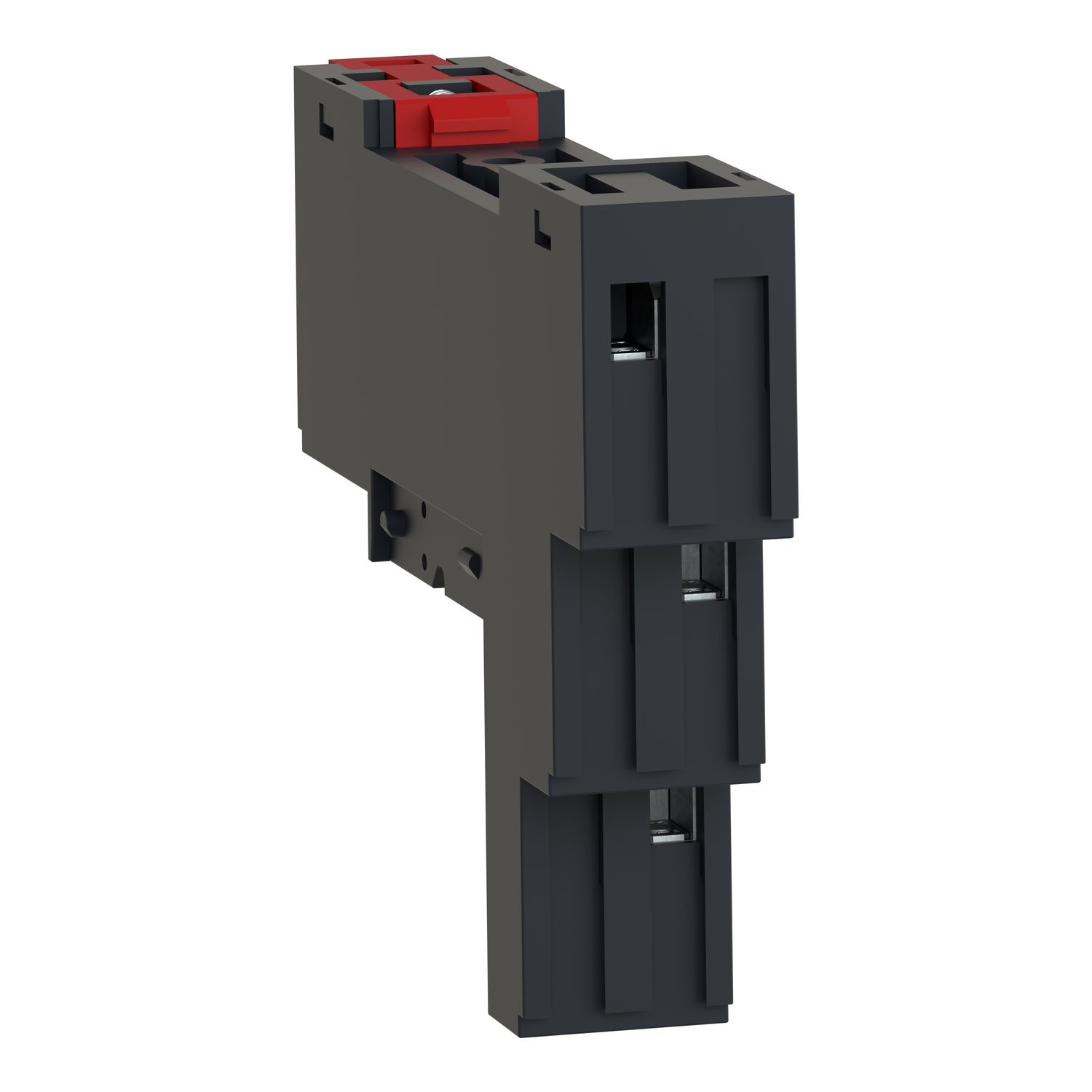

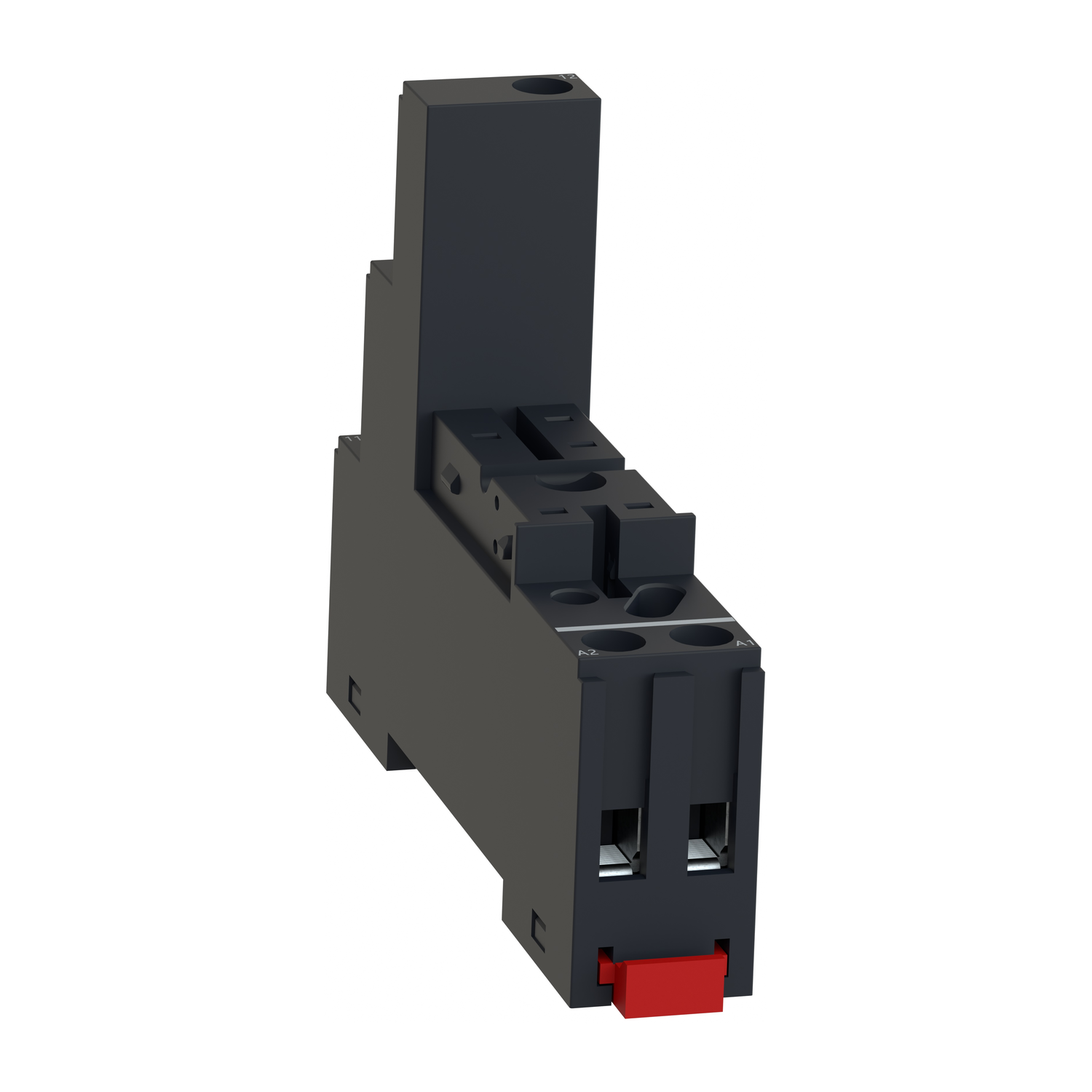

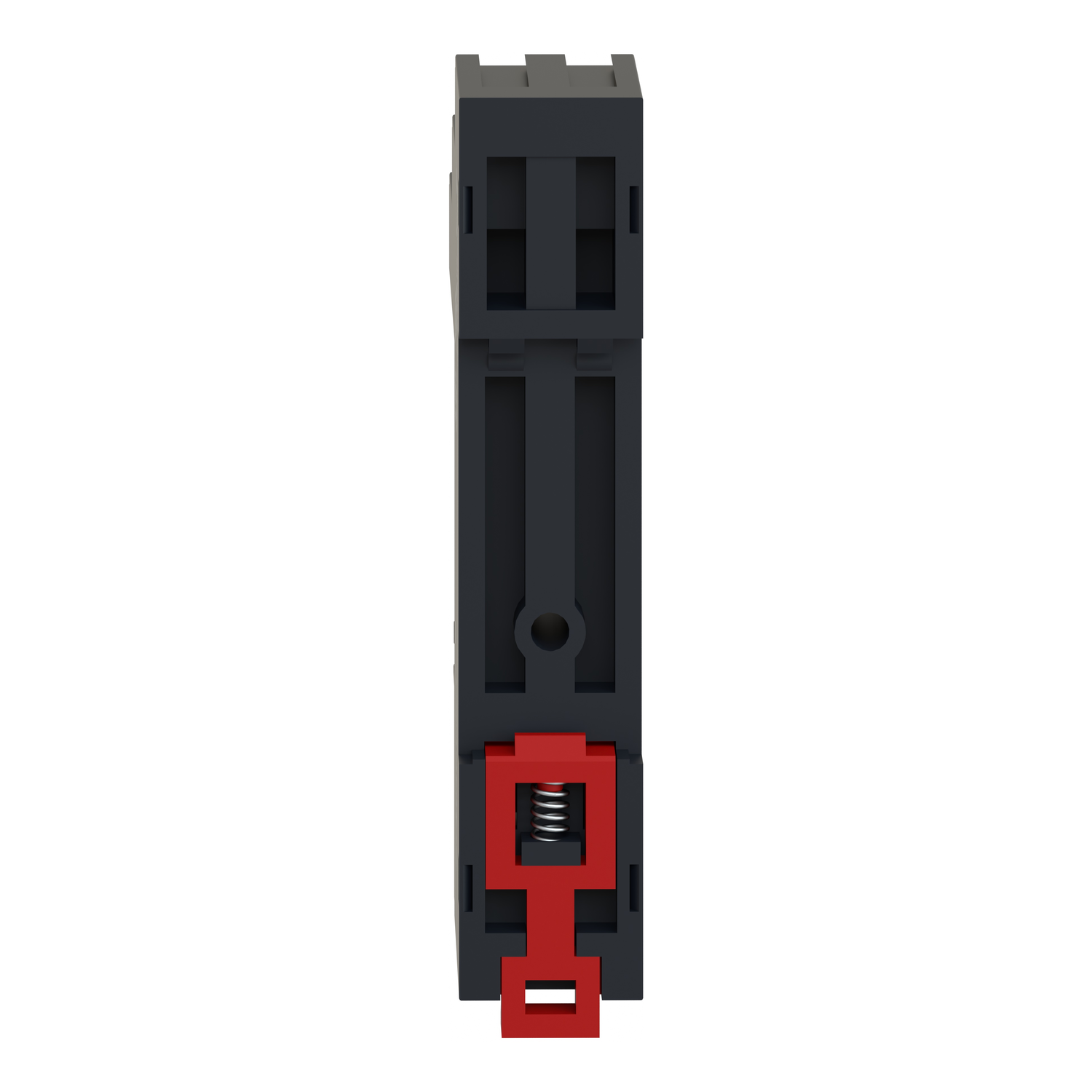

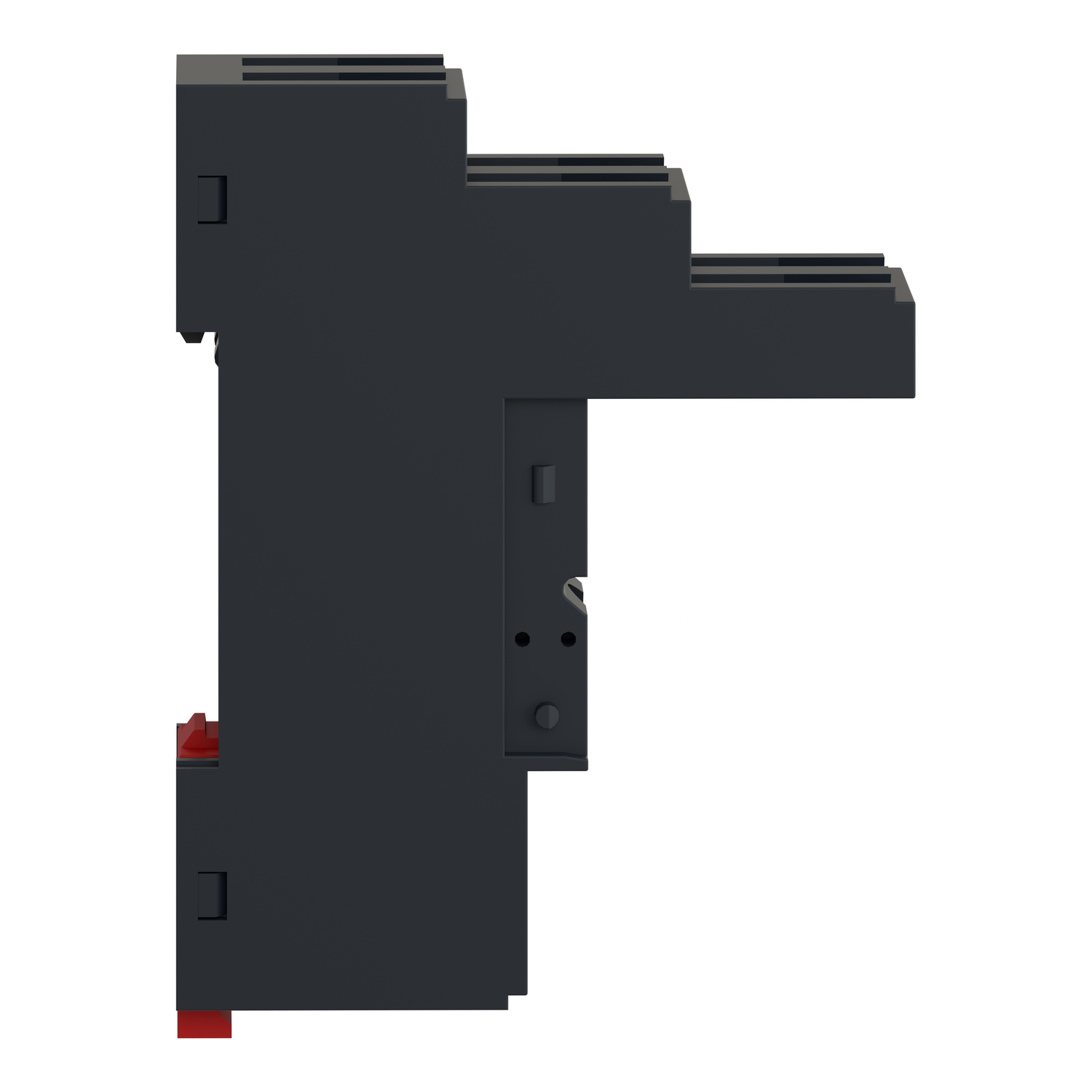

| Product or component type | socket |
| Product compatibility | plug-in relay RSB with 1 C/O contact at 12 A |
| Complementary | |
| Group of product | RSB_1_C/O_SC_CONS_SEP_FLAT_12 |
| Compatibility code | RSZ |
| Sale per indivisible quantity | 10 |
| Fixing mode | clip-on (35 mm symmetrical DIN rail), by screw (panel) |
| Contact terminal arrangement | separate |
| Shape of pin | flat |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 3.6 kV |
| Overvoltage category | III |
| Width | 15.5 mm |
| Connections - terminals | screw connectors, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, screw connectors, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, screw connectors, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end, screw connectors, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end, screw connectors |
| [Ue] rated operational voltage | < 250 V AC |
| Tightening torque | < 0.8 N.m for M3 screw(s) |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Marking | CE |
| Ambient air temperature for operation | -25-85 °C |
| Standards | IEC 61984 |
| Product certifications | CSA, UL |
