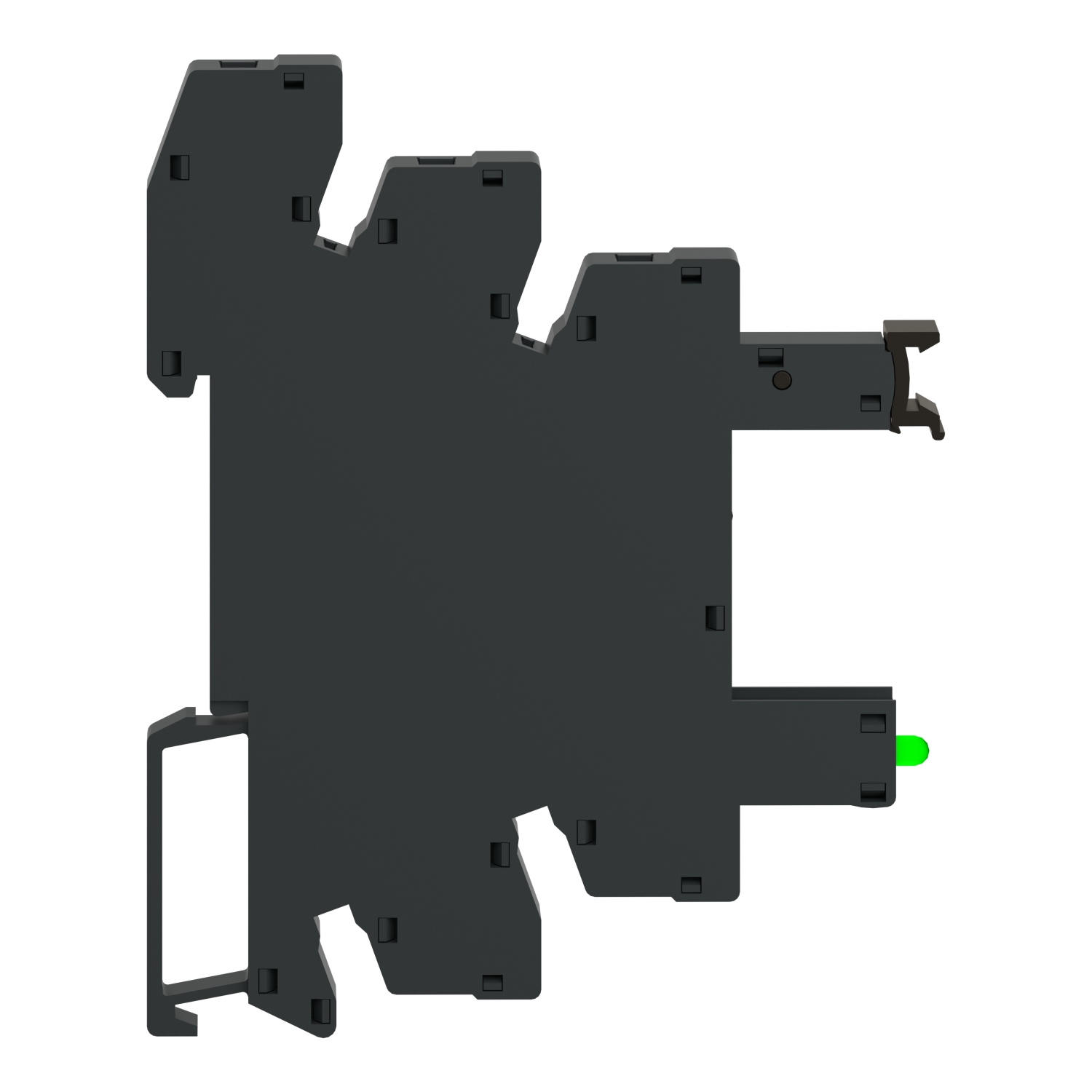

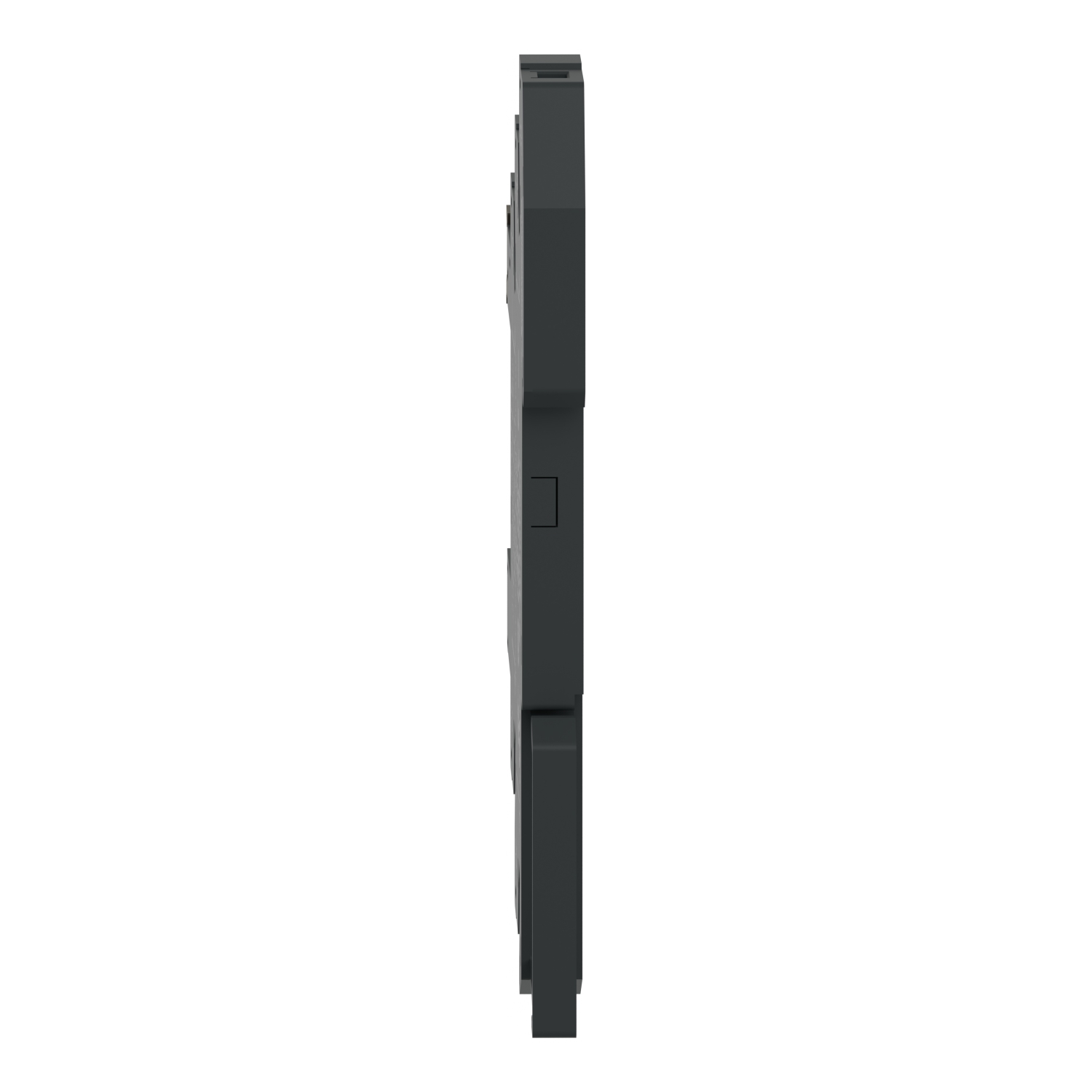

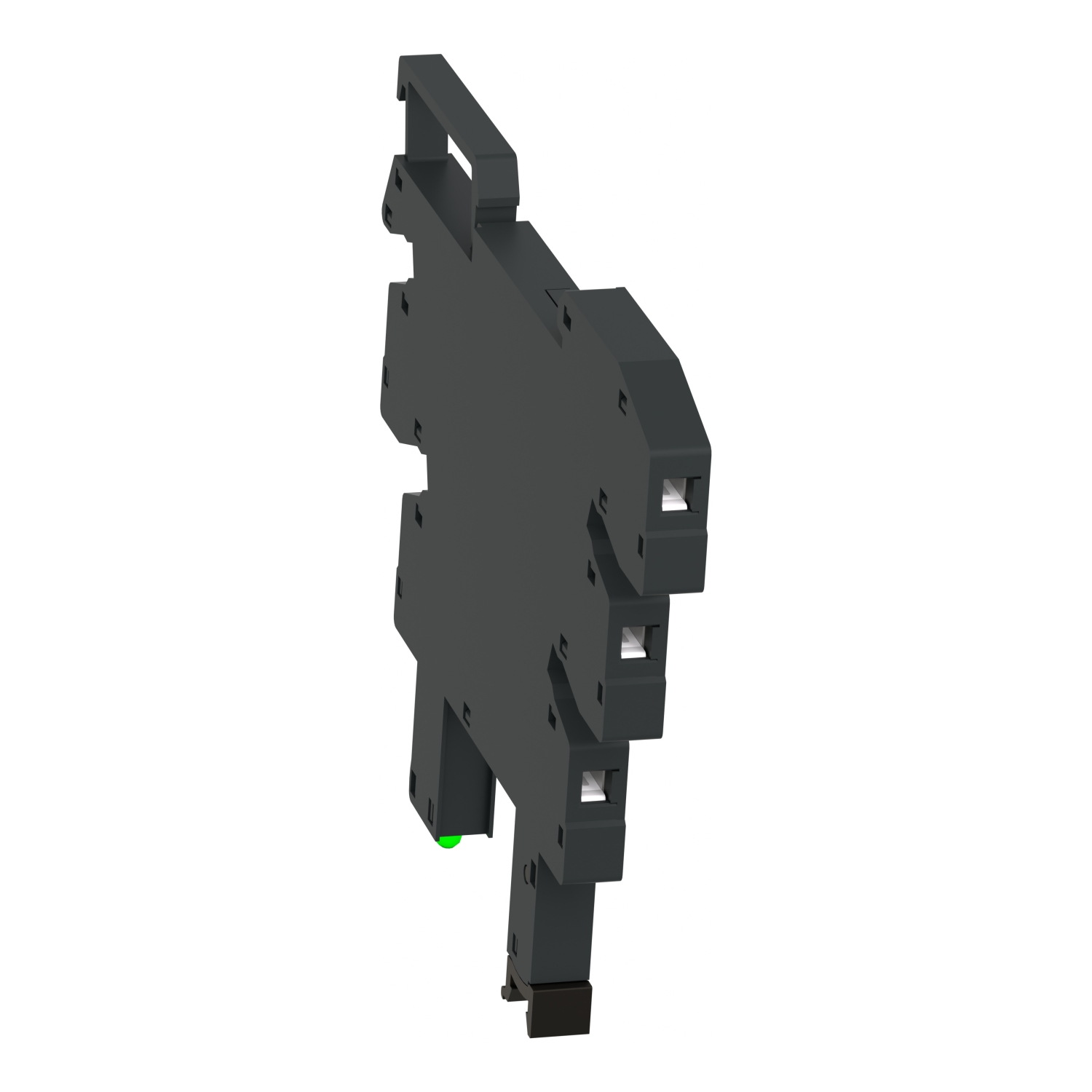

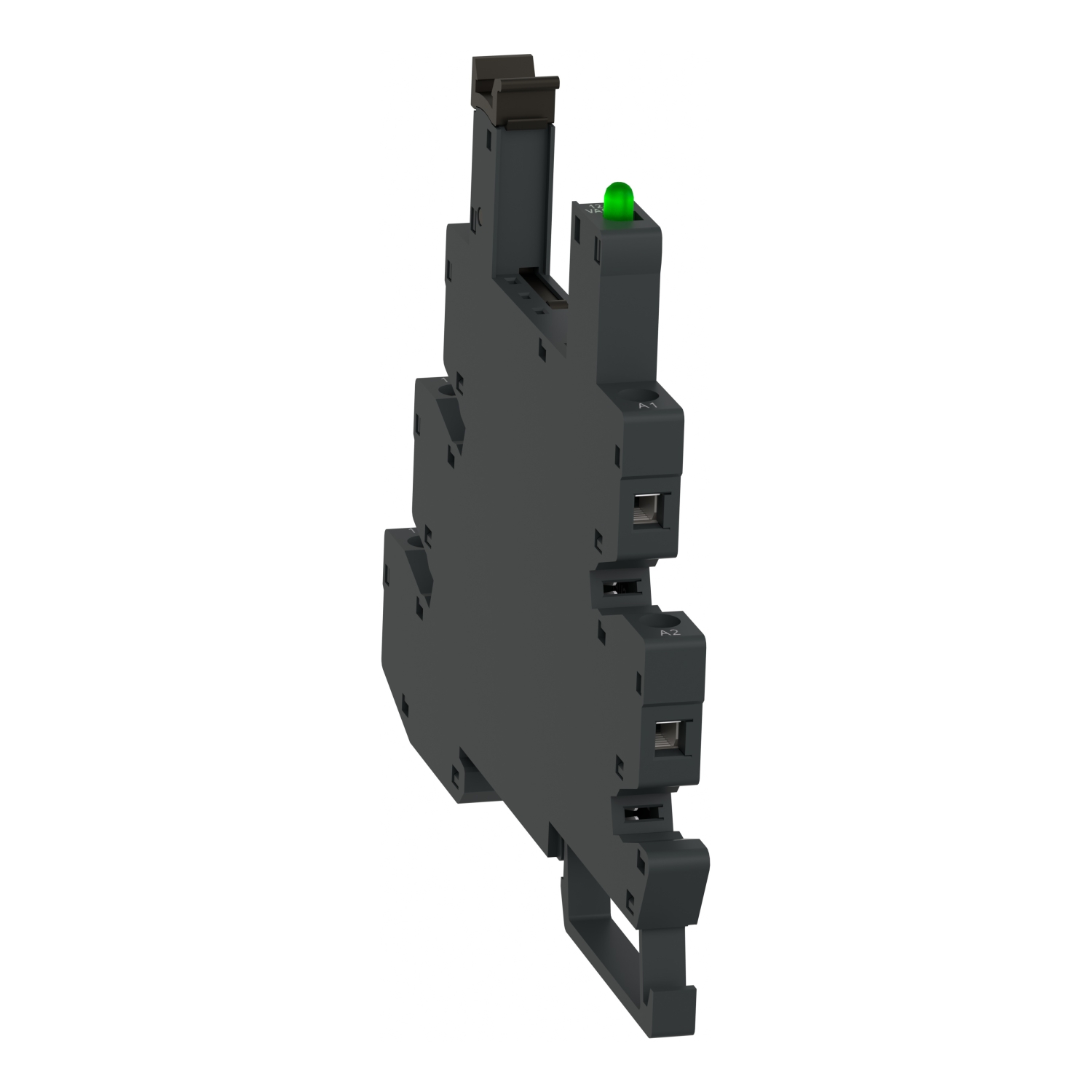

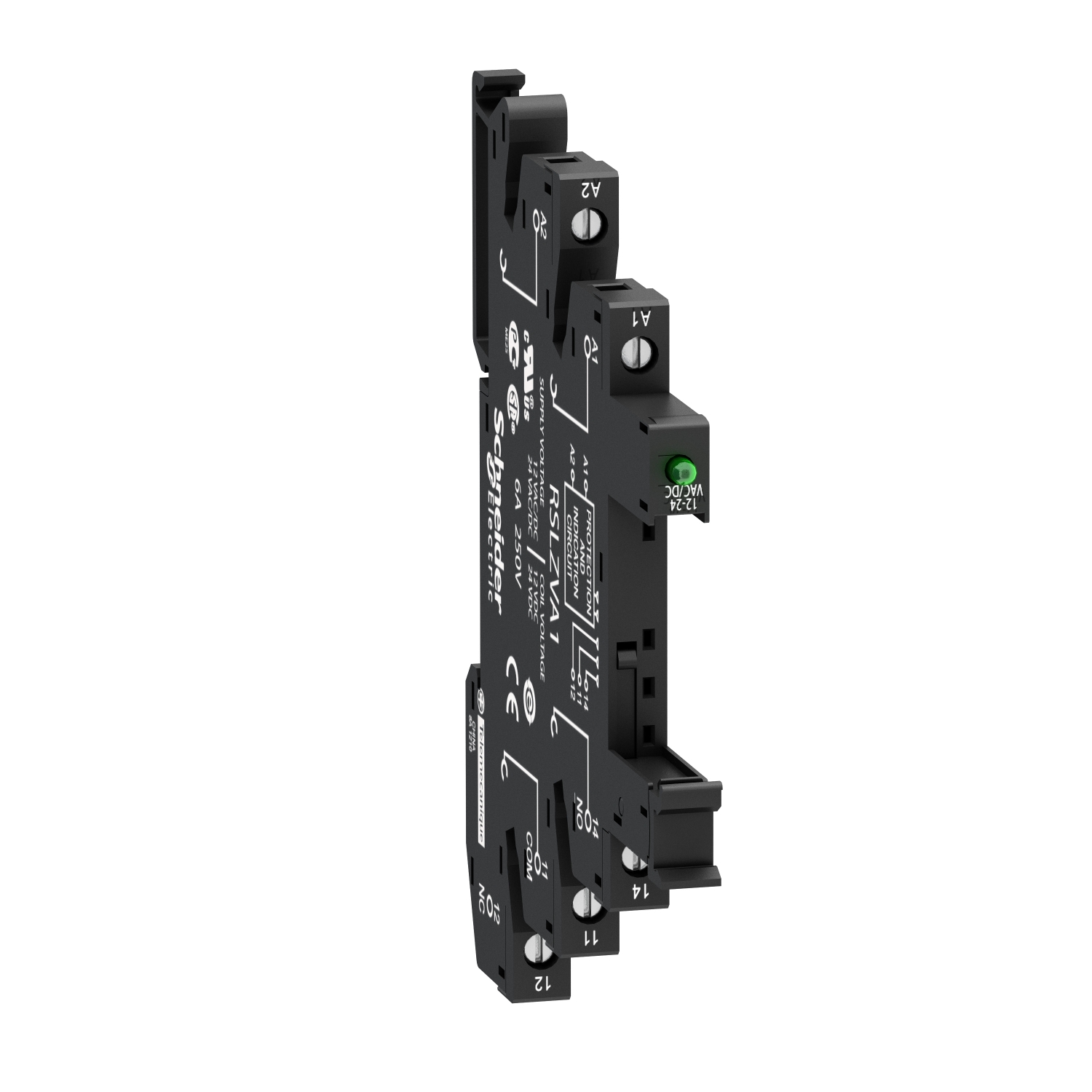

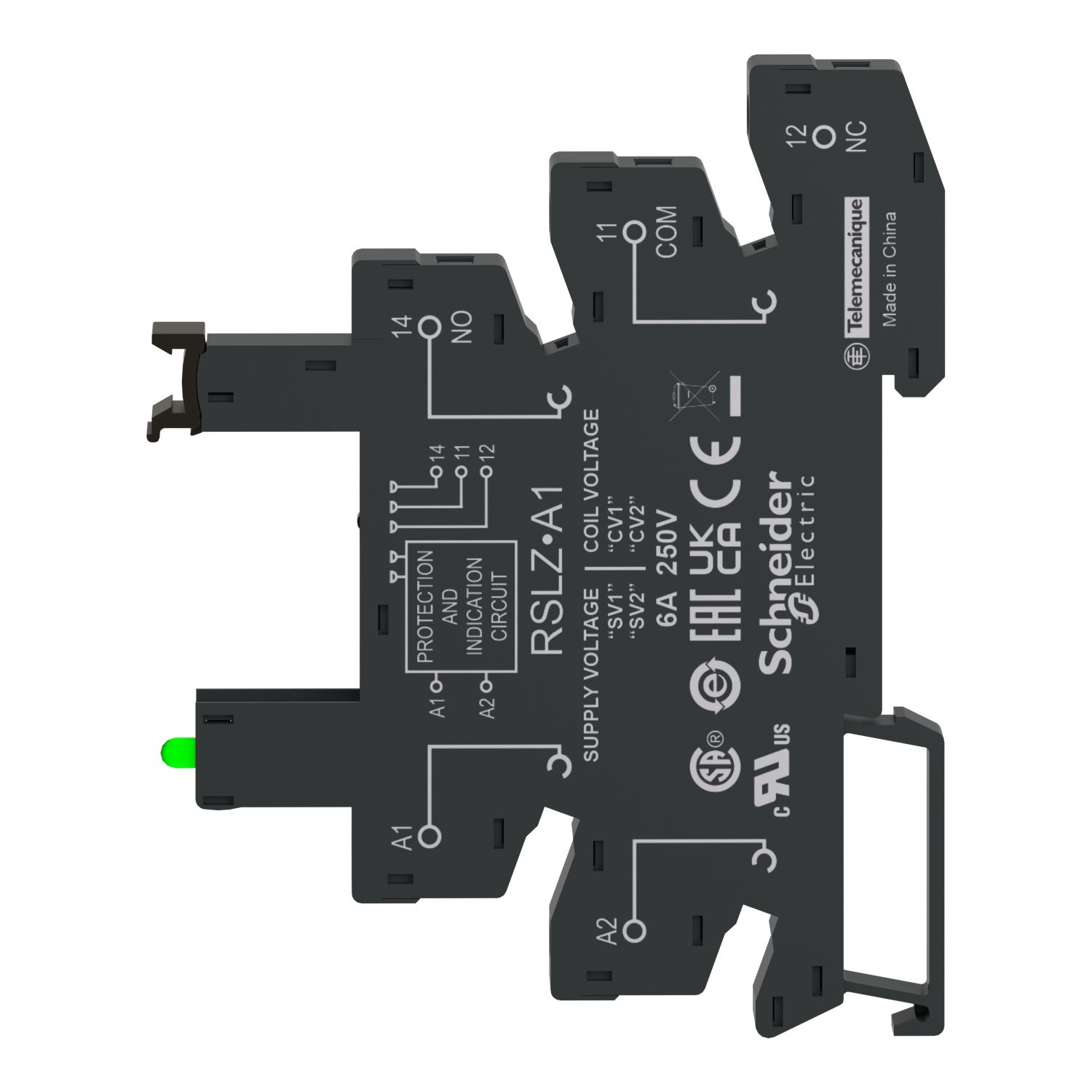

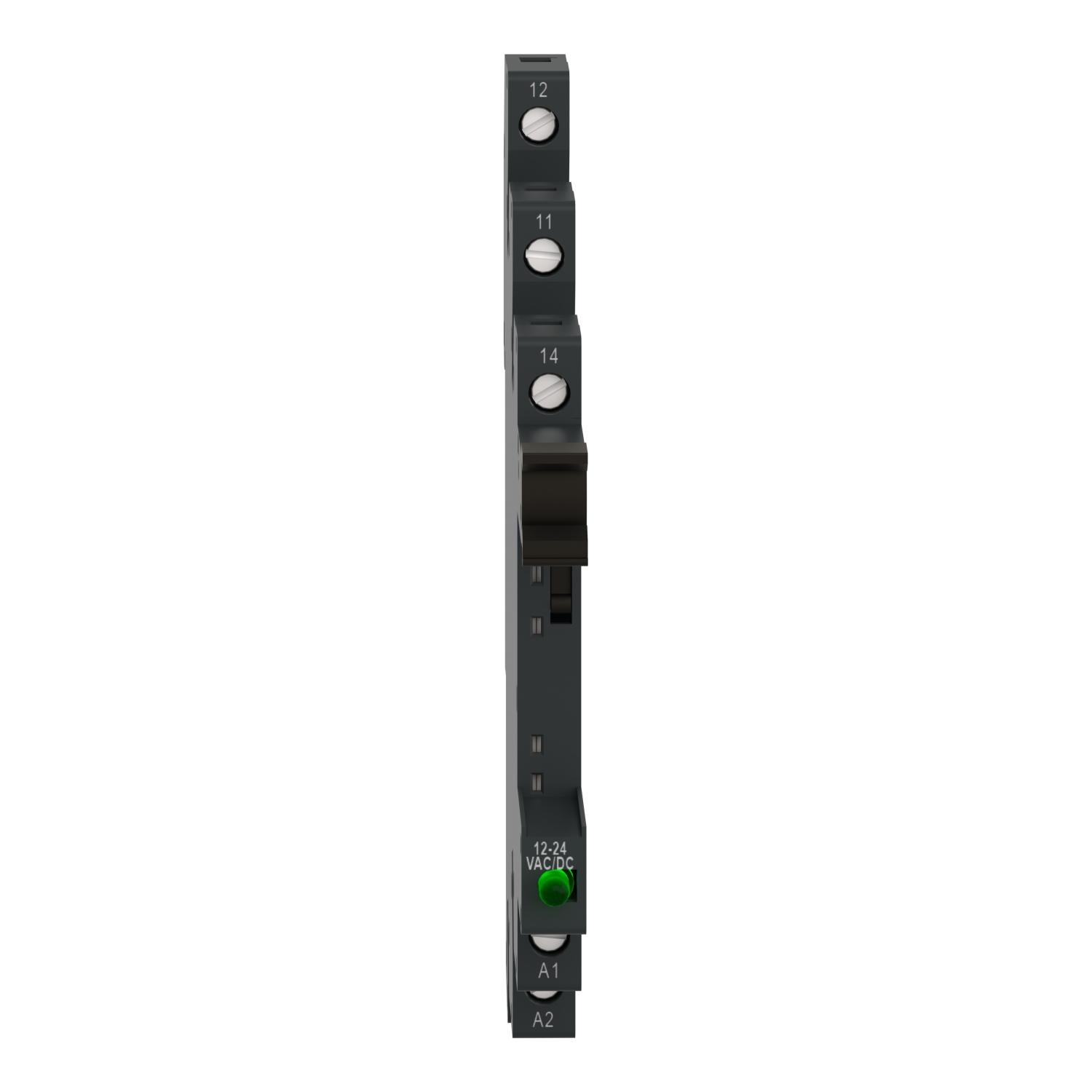

"This Harmony RSL plug-in socket with LED indicator has a rated voltage of 110V AC/DC." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | RSLZ |
| [Uc] control circuit voltage | 110 V |
| Product compatibility | plug-in relay RSL, plug-in relay RSL with 1 C/O contact at 60 V DC |
| Device presentation | basic element |
| Rated operational voltage limits | 88...126.5 V |
| Range of product | Harmony Electromechanical Relays |
| [Ith] conventional free air thermal current | 6 A |
| [Ue] rated operational voltage | < 300 V AC |
| Switching voltage | 110 V AC/DC |
| [In] rated current | 6 A |
| Contacts type and composition | 1 C/O |
| Product or component type | socket |
| Complementary | |
| Group of product | RSL_CON_110 |
| Compatibility code | RSLZ |
| Sale per indivisible quantity | 10 |
| CAD overall height | 78.6 mm |
| Fixing mode | plastic compression spring (35 mm symmetrical DIN rail) |
| Contact terminal arrangement | separate |
| Shape of pin | flat |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 3.6 kV |
| CAD overall depth | 95 mm |
| CAD overall width | 6.2 mm |
| Overvoltage category | III |
| Connections - terminals | connector, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end, connector, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw connectors |
| Net weight | 0.023 kg |
| Tightening torque | < 0.4 N.m for M2.5 screw(s) |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Marking | CE |
| Ambient air temperature for operation | -40-55 °C |
| Standards | UL 508, IEC 61984 |
| Product certifications | CSA, GOST |
