| Attribute name | Attribute value |
|---|---|
| Main | |

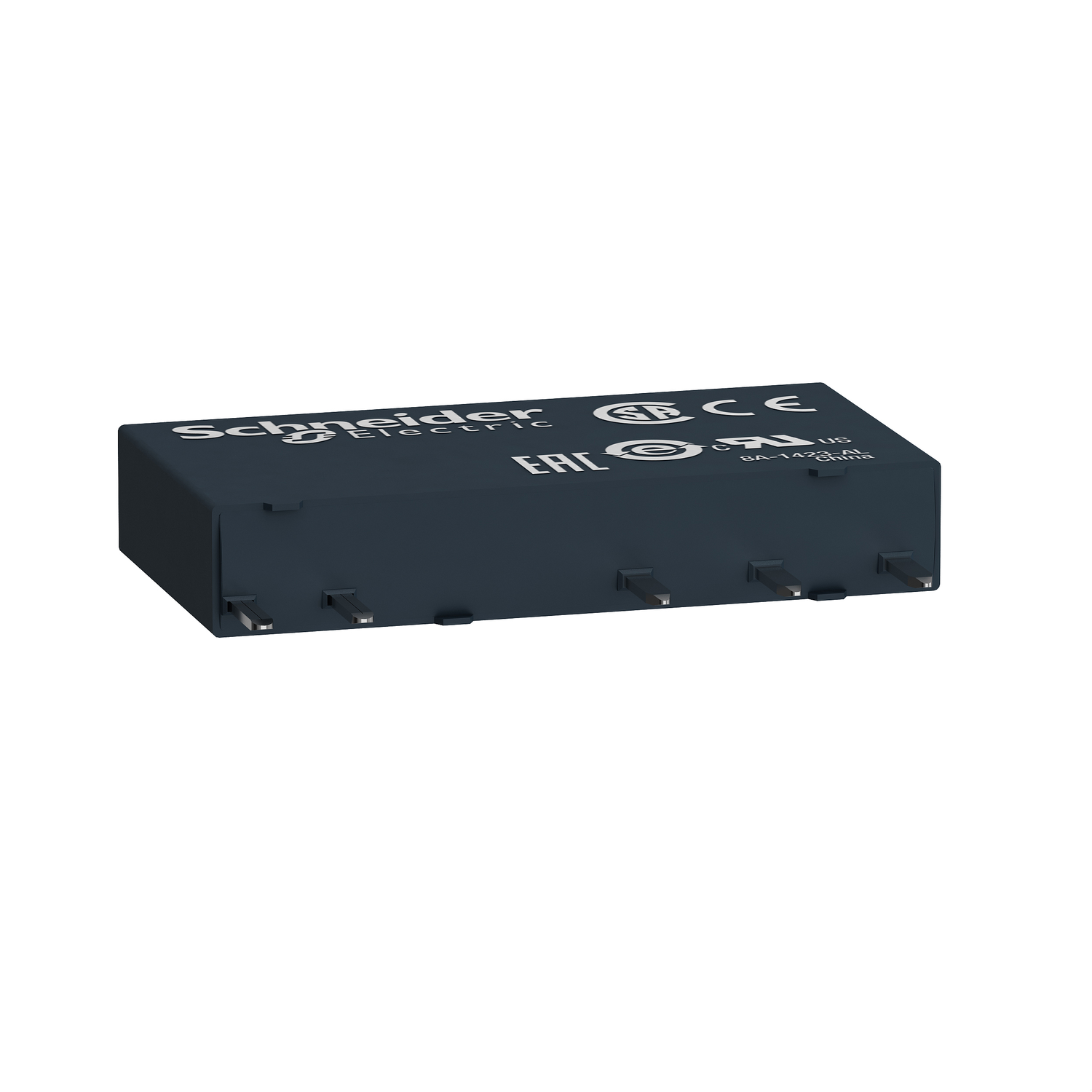

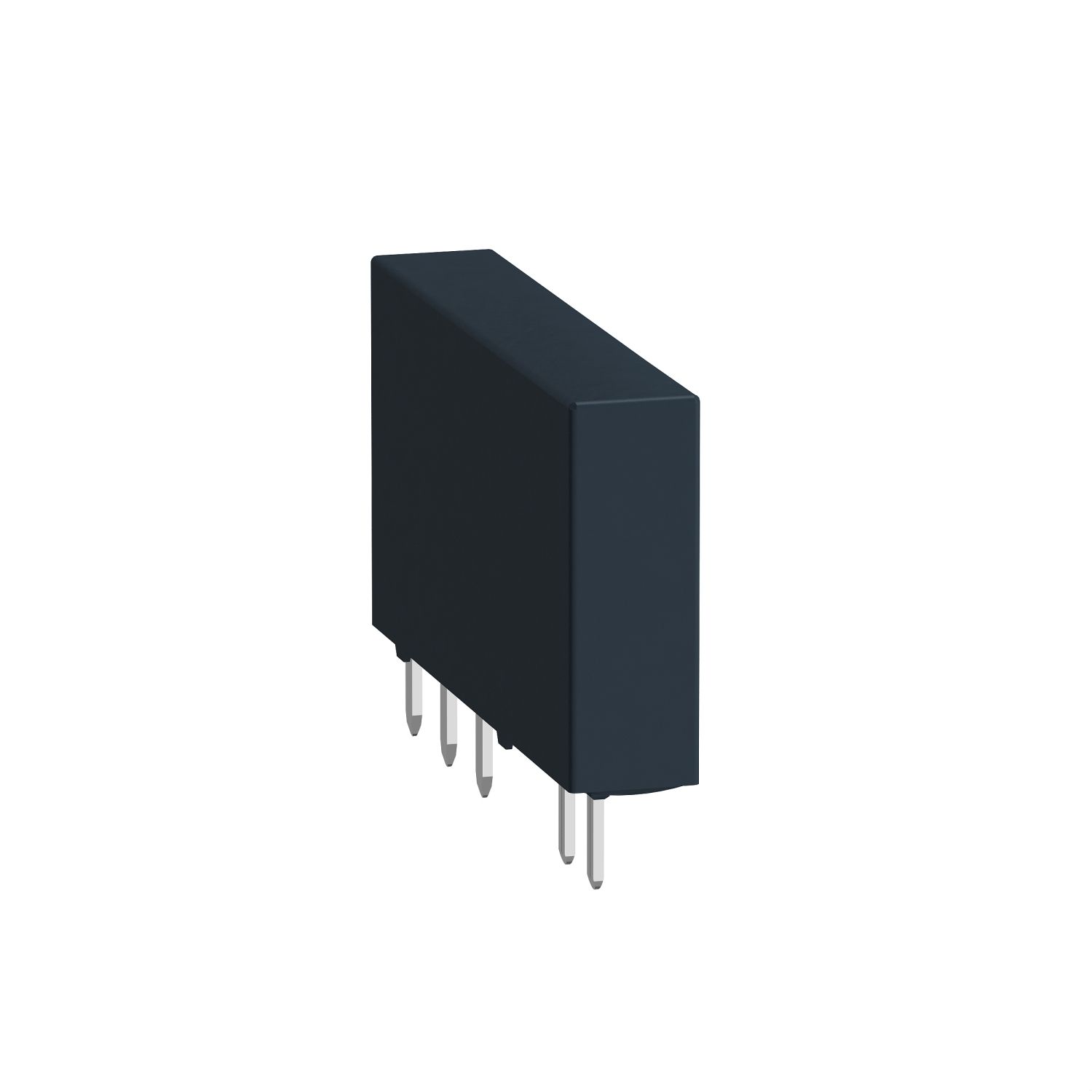

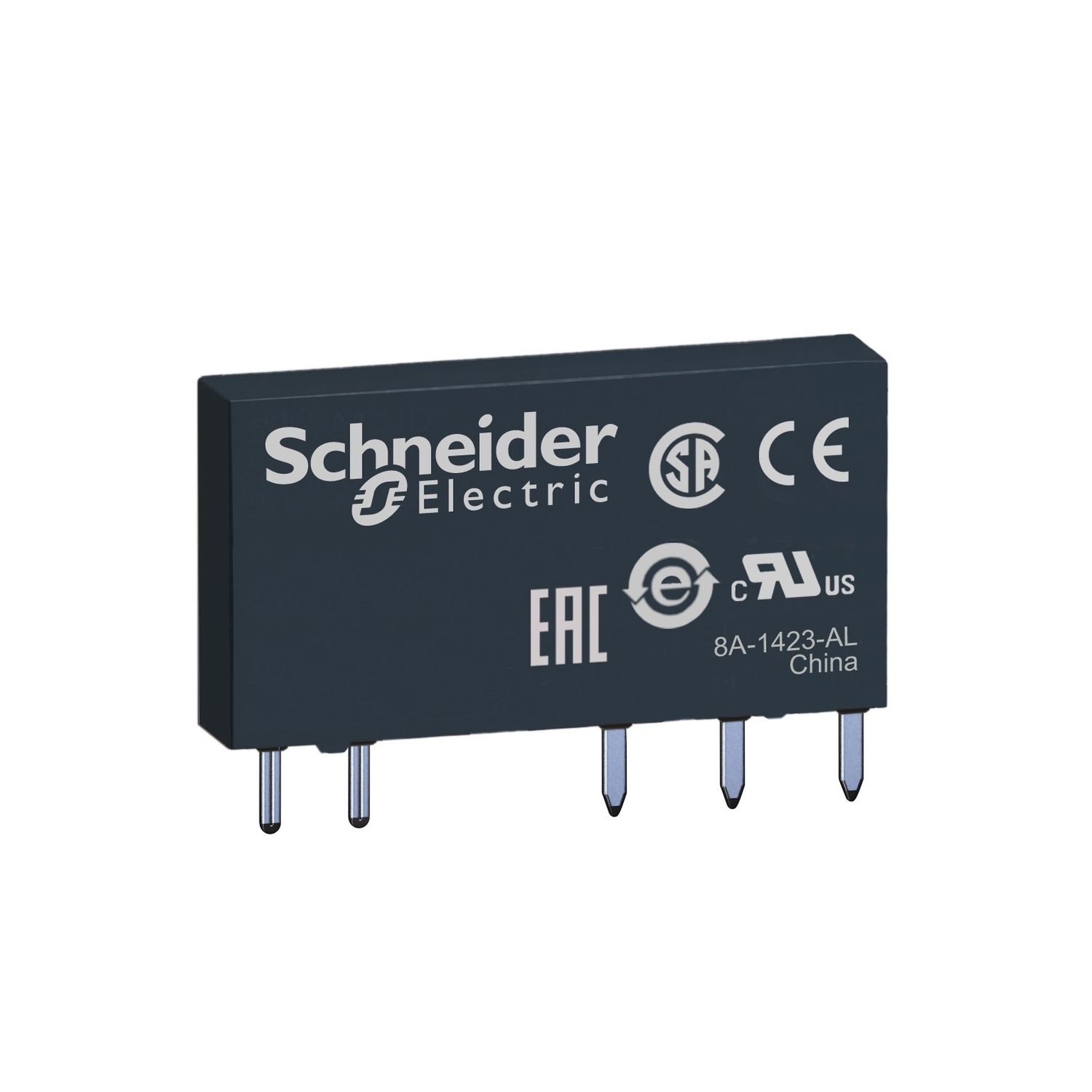

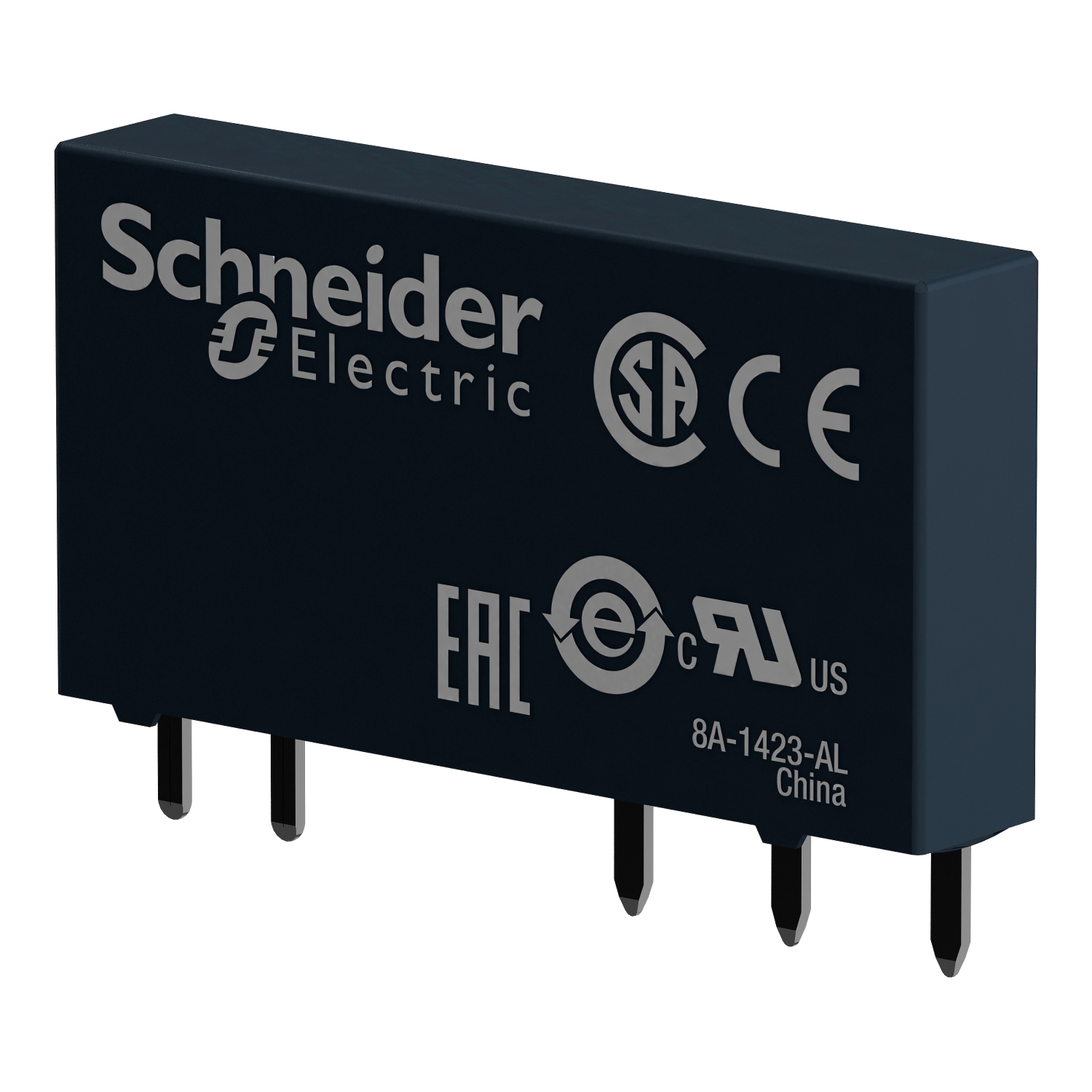

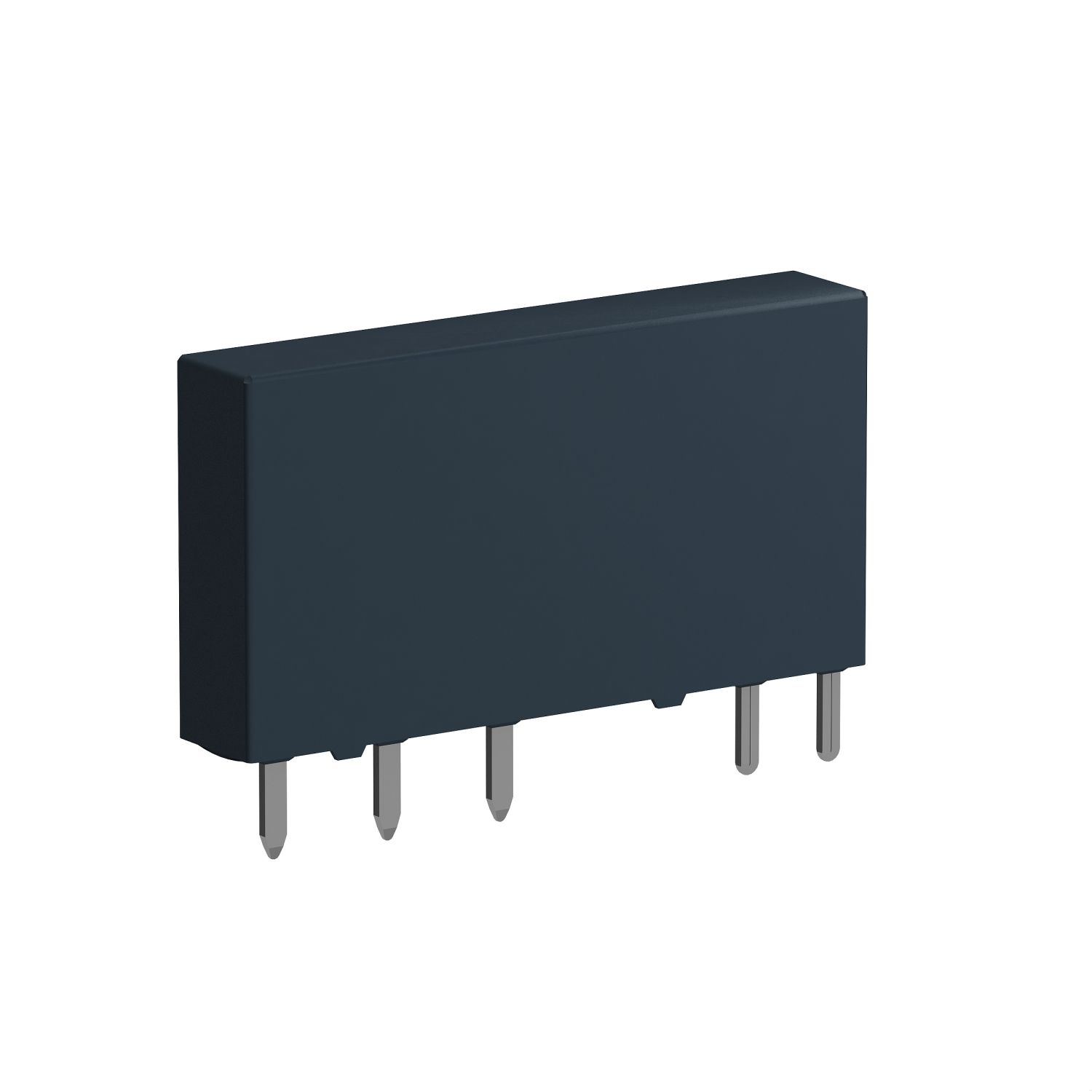

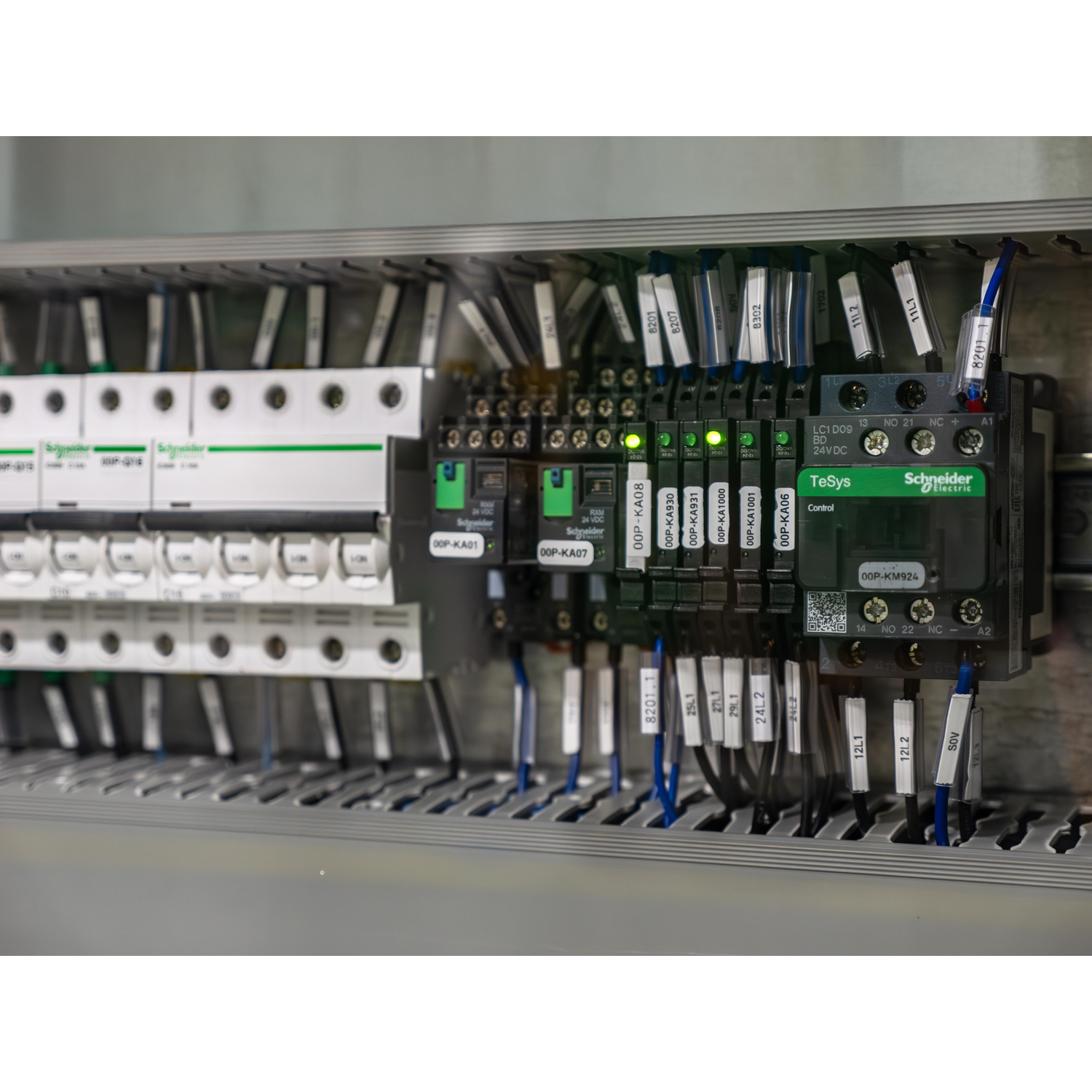

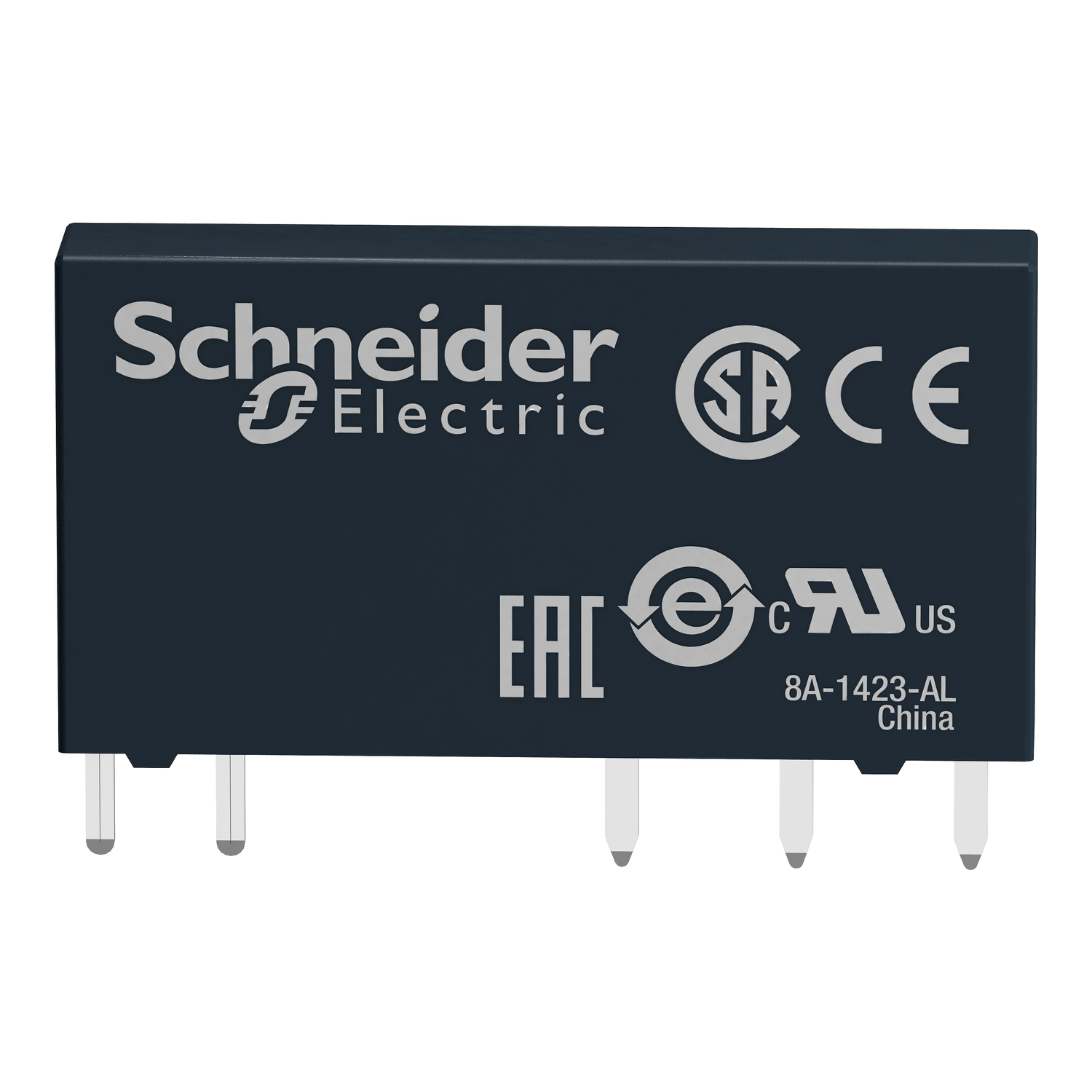

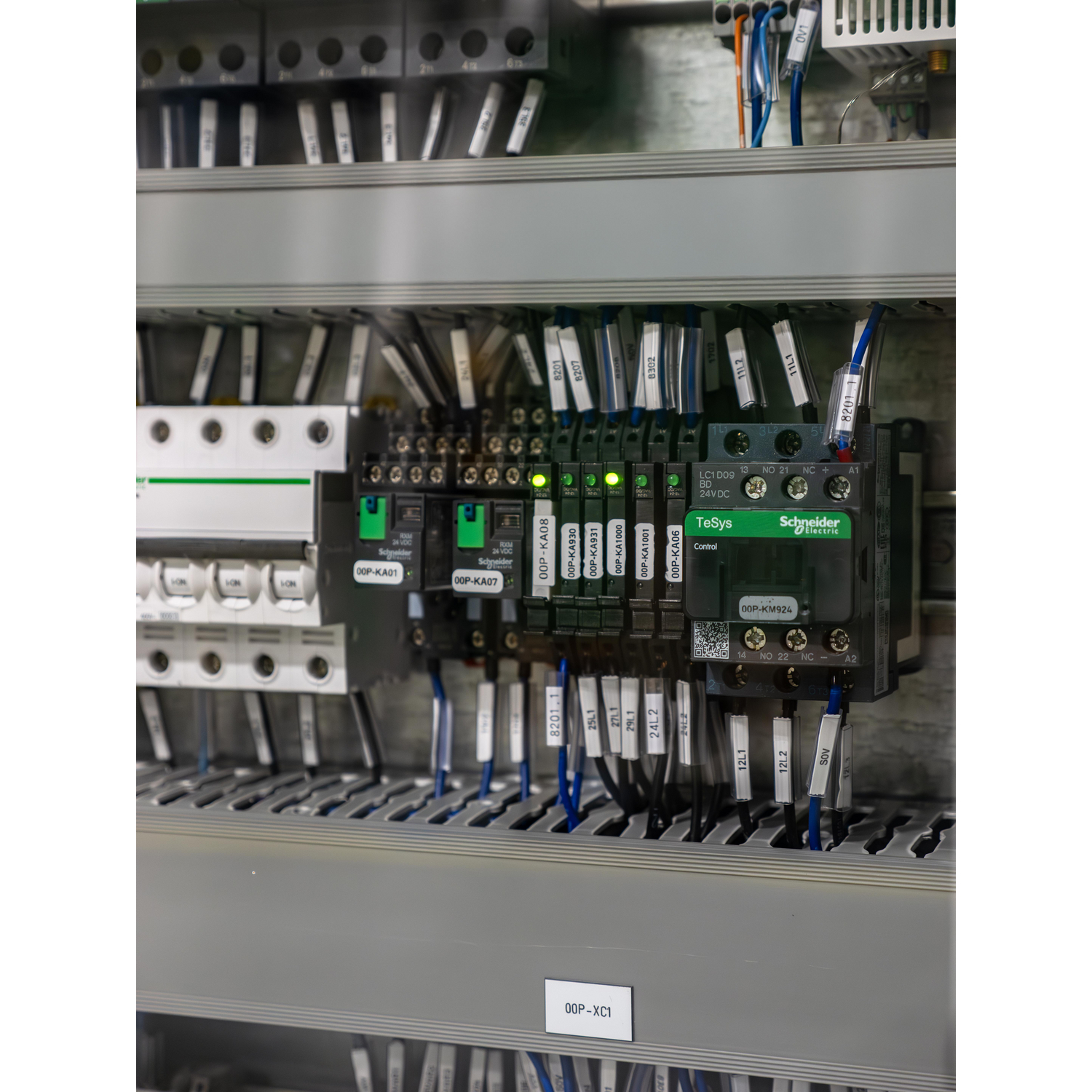

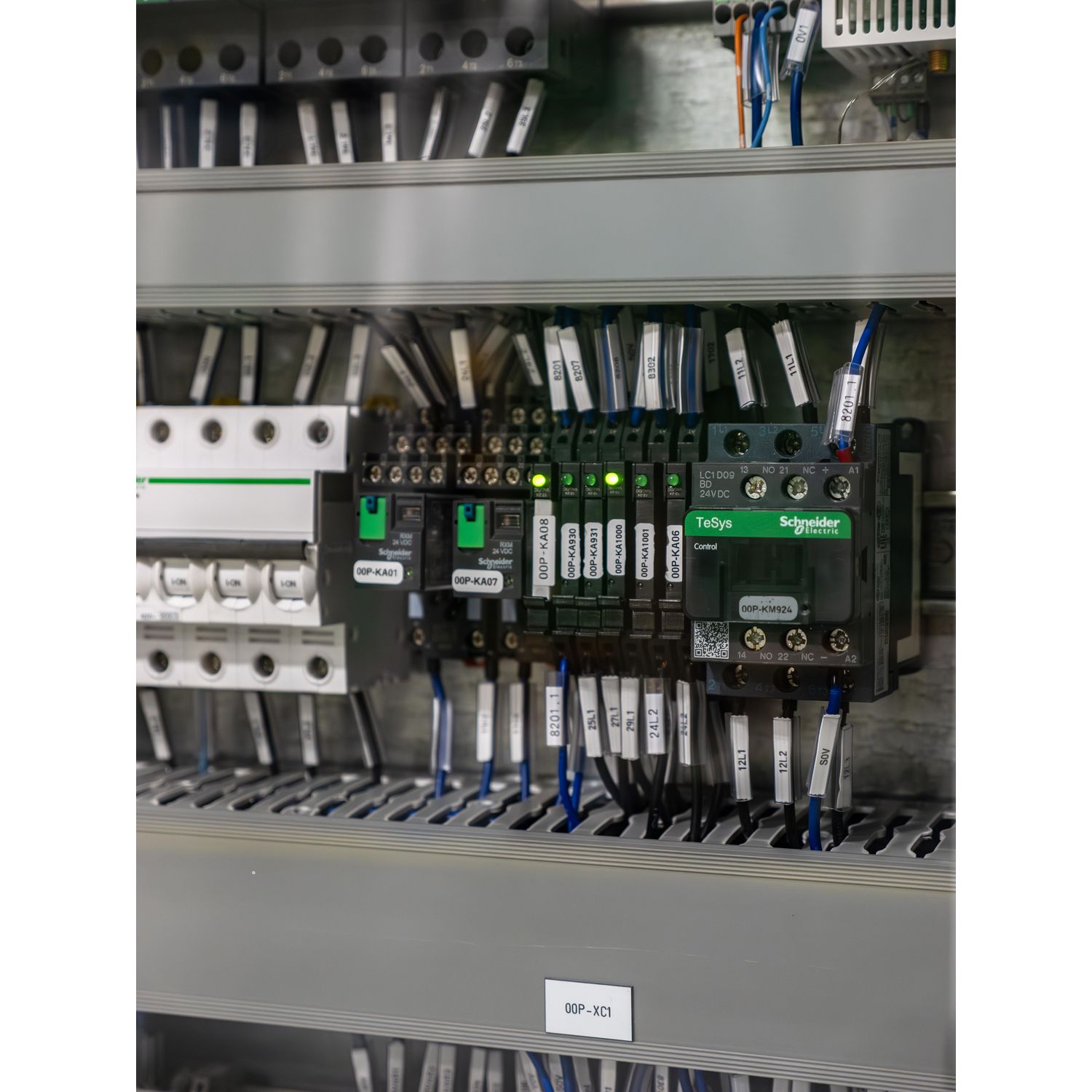

| Device short name | RSL |
| [Uc] control circuit voltage | 60 V, 60 V DC |
| Contact operation | standard |
| Control type | without push-button |
| Range of product | Harmony Electromechanical Relays |
| [Ithe] conventional enclosed thermal current | 6 A at -40-55 °C |
| [In] rated current | 6 A |
| Contacts type and composition | 1 C/O |
| Series name | slim interface relay |
| Status LED | without |
| Product or component type | plug-in relay |
| Complementary | |
| Drop-out voltage threshold | >= 0.05 Uc |
| Load current | 6 A at 250 V AC 0.5 mm mounting distance |
| Operating position | any position |
| Compatibility code | RSL |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 60000 cycles, 6 A at 250 V, AC-1 C/O |
| Average coil consumption | 0.21 W |
| Device presentation | complete product |
| Average resistance | 16600 Ohm at 23 °C +/- 15 % |
| Shape of pin | flat (PCB type) |
| Contacts material | silver alloy (AgSnO2) |
| Height | 28 mm |
| Safety reliability data | B10d = 60000 |
| Maximum switching capacity | 50 W, 1500 VA |
| Minimum switching voltage | 12 V |
| Depth | 18.5 mm |
| Width | 5 mm |
| Operating time | 12 ms, 5 ms reset |
| Minimum switching current | 10 mA |
| [Ui] rated insulation voltage | 277 V conforming to cUL, 250 V conforming to IEC |
| [Ie] rated operational current | 6 A (AC-1/DC-1) conforming to IEC/UL |
| Rated operational voltage limits | 45...84 V DC |
| Minimum switching capacity | 120 mW |
| Maximum switching voltage | 277 V |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC |
| Net weight | 0.0054 kg |
| Mounting support | socket or PCB |
| Test levels | level A group mounting |
| Protection category | RT III |
| Operating rate | <= 18000 cycles/hour no-load, <= 360 cycles/hour under load |
| Terminals description ISO n°1 | (A1-A2)CO, (11-12-14)OC |
| Environment | |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Ambient air temperature for operation | -40-55 °C |
| Vibration resistance | +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6 |
| Dielectric strength | 4000 V AC between coil and contact, 1000 V AC between contacts |
| Shock resistance | 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27, 5 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27 |
| Standards | IEC 61810-1, UL 508, CSA C22.2 No 14 |
| Product certifications | EAC, UL, CSA |
