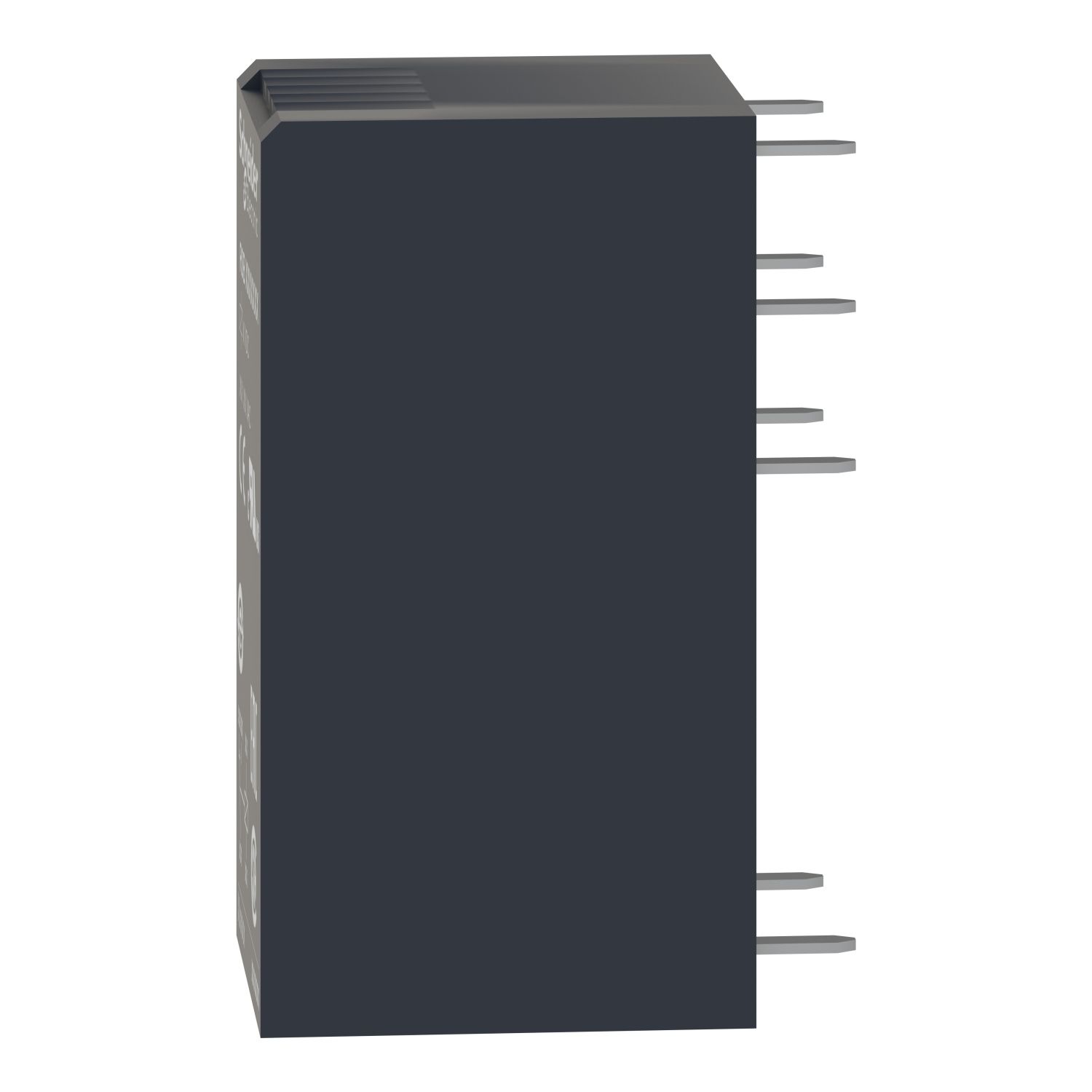

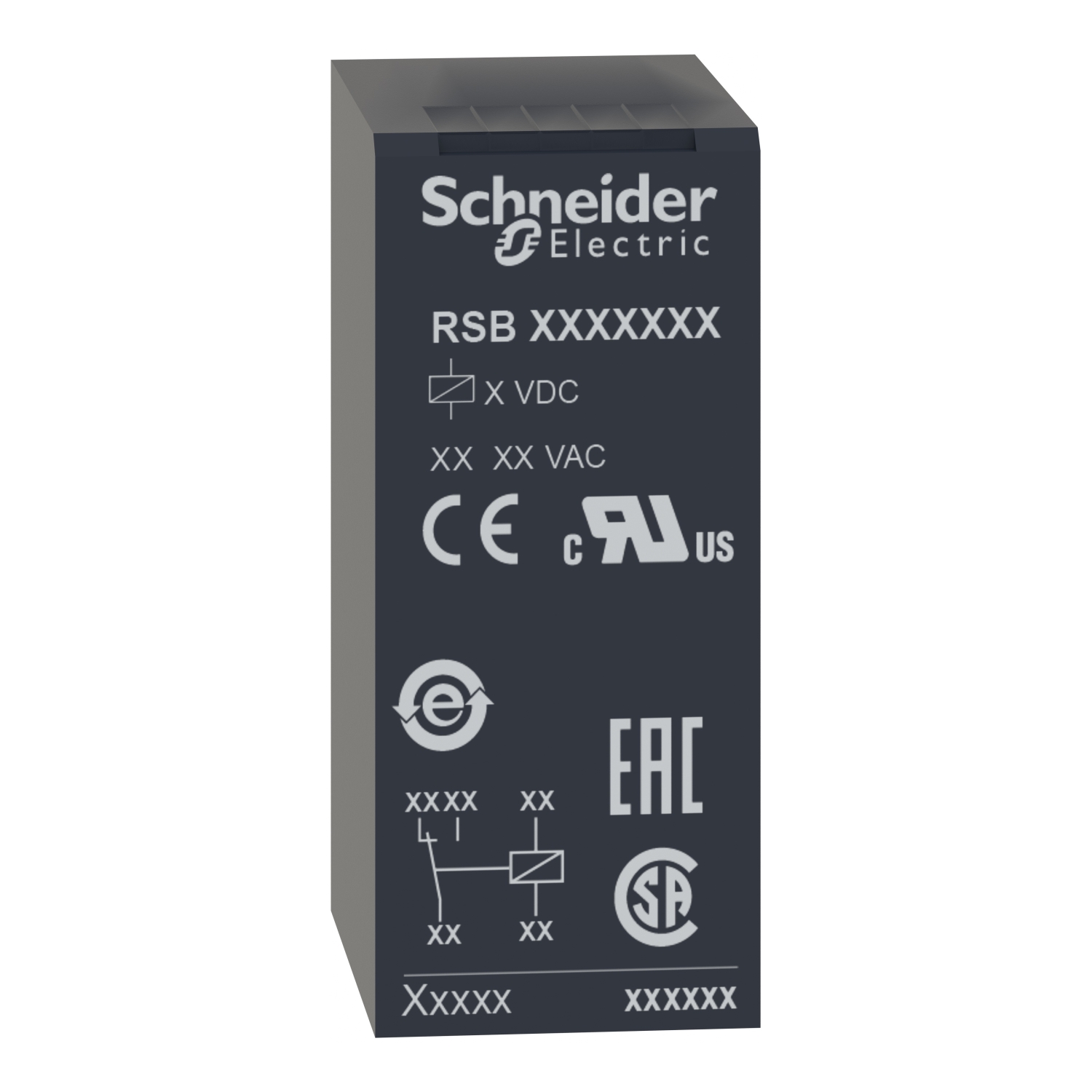

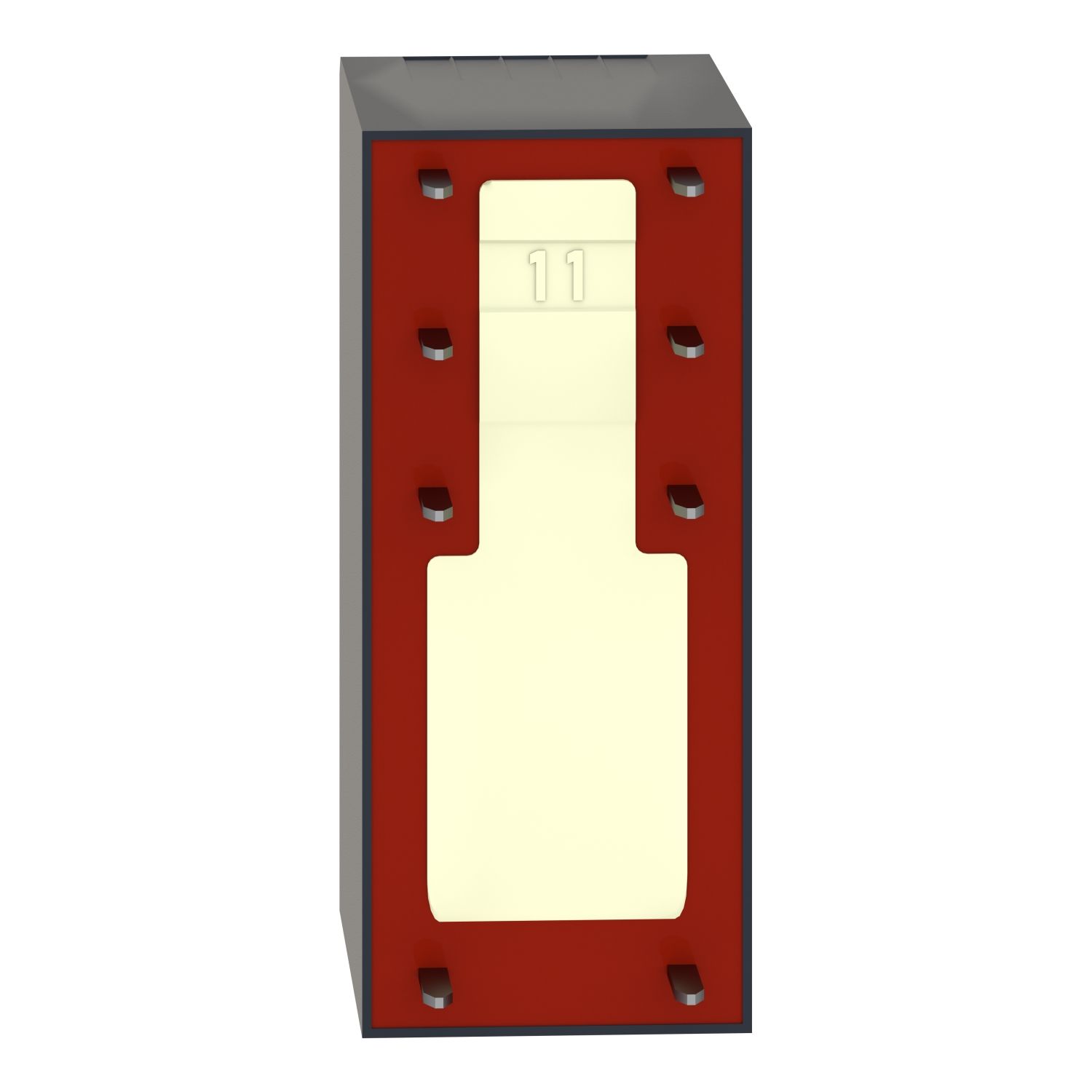

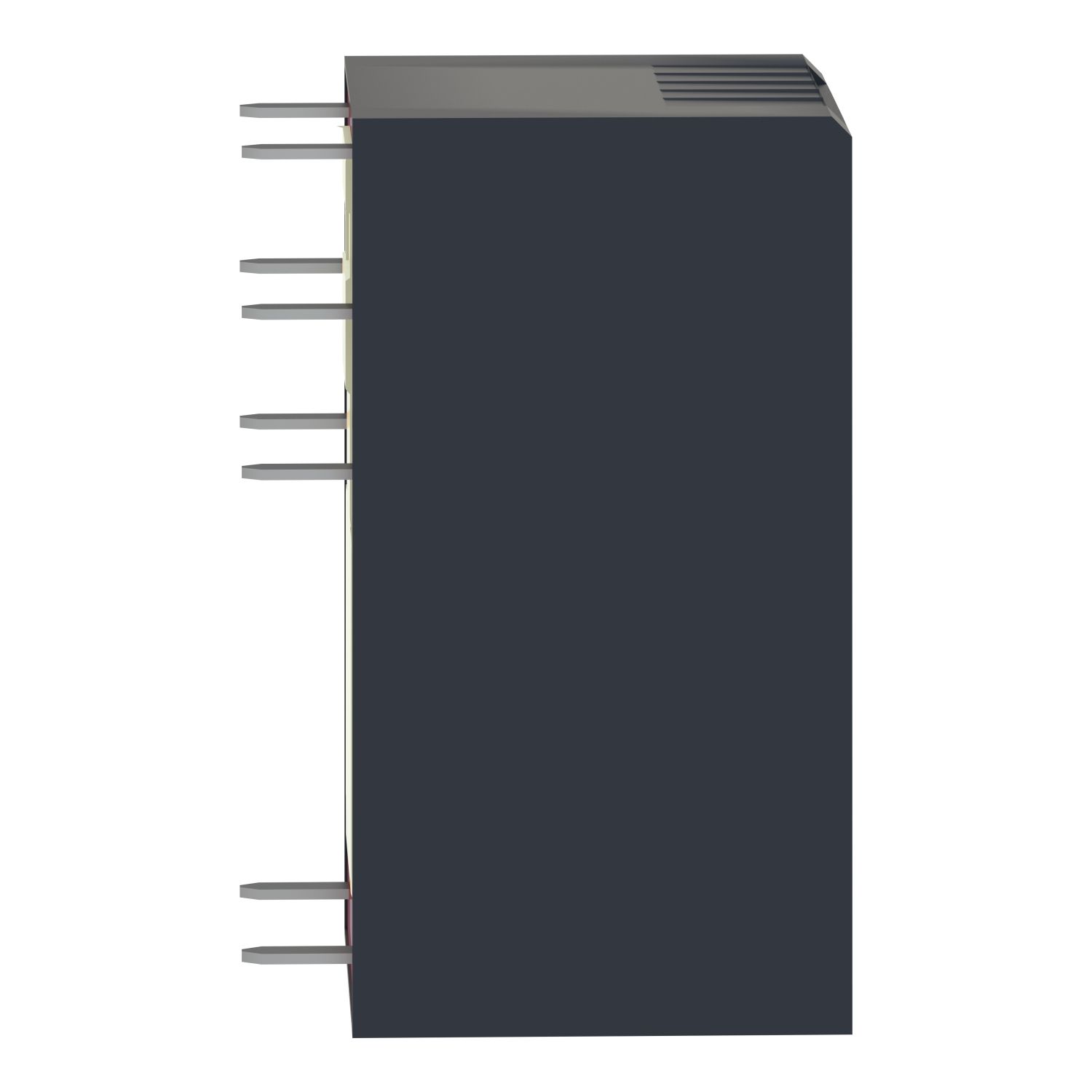

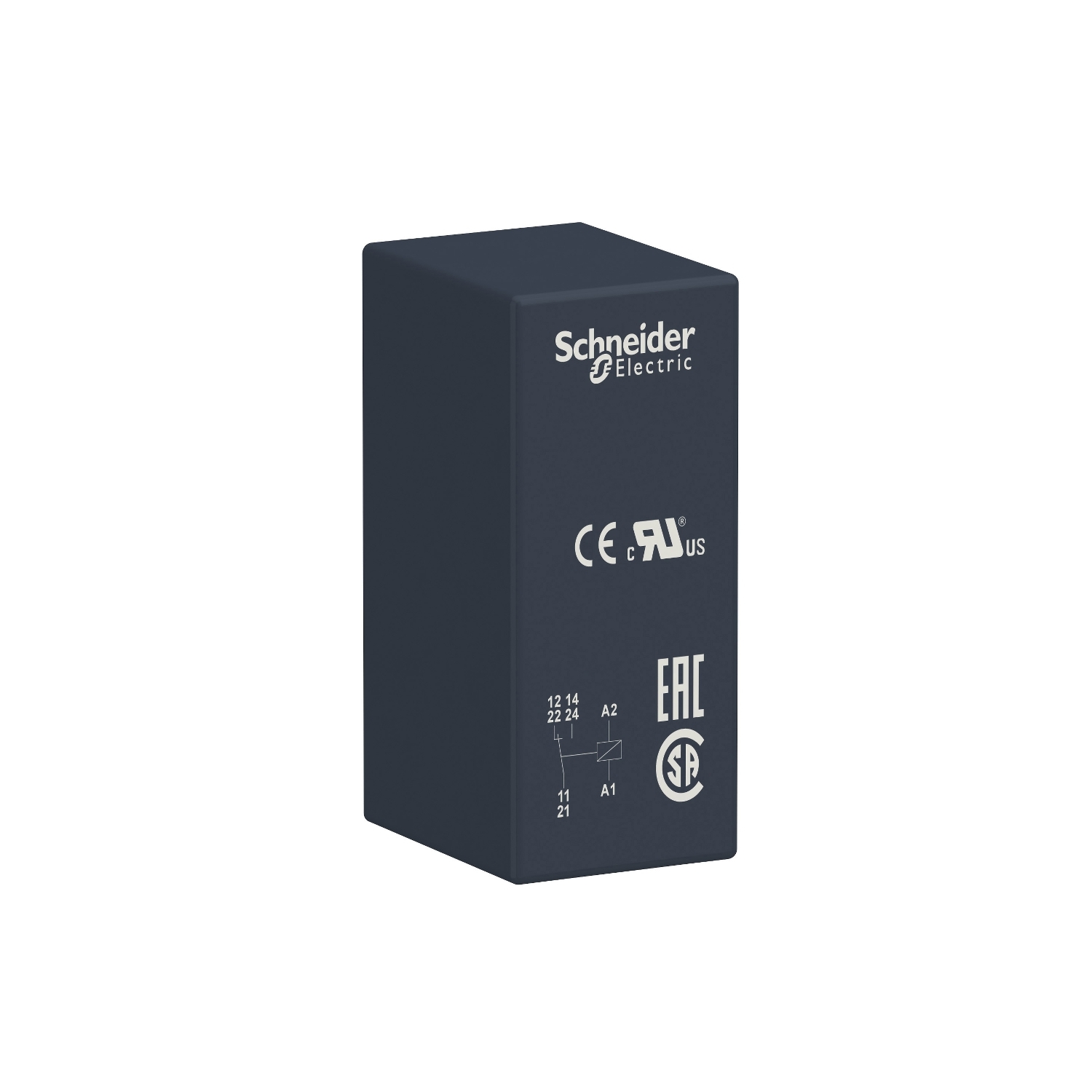

"This Harmony RSB interfacing plug-in relay has a control coil voltage of 120V AC and has 1 changeover contact single pole double throw with a rating of 16A." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "Plug in type allows easy installation and maintenance." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." 0 0 0 0 0 0 0 0 0 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Contact operation | standard |
| [Ithe] conventional enclosed thermal current | 16 A at -40-40 °C |
| Contacts type and composition | 1 C/O |
| Series name | interface relay |
| Device short name | RSB |
| [Uc] control circuit voltage | 120 V, 120 V AC 50/60 Hz |
| Control type | without push-button |
| Range of product | Harmony Electromechanical Relays |
| [In] rated current | 16 A |
| Status LED | without |
| Product or component type | plug-in relay |
| Complementary | |
| Drop-out voltage threshold | >= 0.15 Uc AC |
| Operating position | any position |
| Compatibility code | RSB |
| Electrical durability | 100000 cycles, 8 A at 250 V, AC-1 NC, 100000 cycles, 16 A at 250 V, AC-1 NO |
| Sale per indivisible quantity | 10 |
| Average coil consumption | 0.75 VA AC |
| Device presentation | complete product |
| Average resistance | 8360 Ohm network: AC at 20 °C +/- 10 % |
| Shape of pin | flat (PCB type) |
| Safety reliability data | B10d = 100000 |
| Minimum switching capacity | 120 mW at 10 mA, 12 V |
| Operating time | 20 ms reset, 20 ms operating |
| Minimum switching current | 10 mA |
| [Ui] rated insulation voltage | 400 V conforming to IEC 60947 |
| [Ie] rated operational current | 8 A (AC-1/DC-1) NC conforming to IEC, 16 A (AC-1/DC-1) NO conforming to IEC |
| Maximum switching voltage | 300 V DC conforming to IEC |
| Net weight | 0.014 kg |
| Test levels | level A group mounting |
| Protection category | RT I |
| Load current | 16 A at 28 V DC, 16 A at 250 V AC |
| Mechanical durability | 10000000 cycles |
| Contacts material | silver alloy (AgNi) |
| Maximum switching capacity | 4000 VA/448 W |
| Switching voltage | 12 V |
| [Uimp] rated impulse withstand voltage | 3.6 kV conforming to IEC 61000-4-5 |
| Operating rate | <= 18000 cycles/hour no-load, <= 600 cycles/hour under load |
| [Ue] rated operational voltage | 96...180 V AC 50/60 Hz |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| Product certifications | UL, CSA, EAC |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Ambient air temperature for operation | -40-70 °C (AC) |
| Vibration resistance | +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6 |
| Dielectric strength | 5000 V AC between coil and contact, 2500 V AC between poles, 1000 V AC between contacts |
| Shock resistance | 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27, 10 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27 |
| Standards | CSA C22.2 No 14, IEC 61810-1, UL 508 |
Only registered users can write reviews
Related products

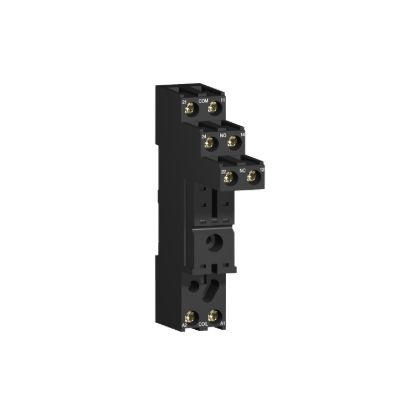

Socket, Harmony Electromechanical Relays, for RSB1A RSB2A relays, 10A, screw connectors, separate contact
