| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | RPZ |

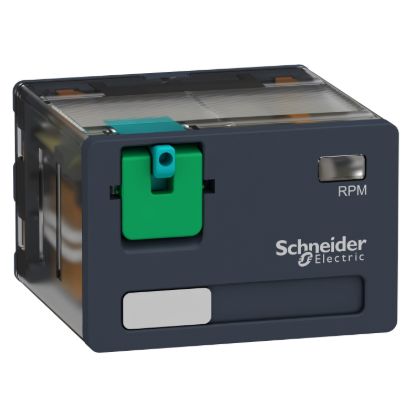

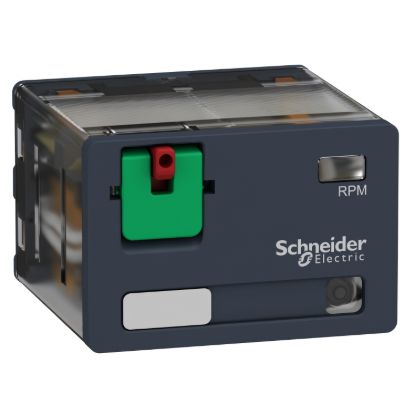

| Product compatibility | plug-in relay RPM with 4 C/O contact |
| Range of product | Harmony Electromechanical Relays |
| [Ith] conventional free air thermal current | 16 A |
| [Ue] rated operational voltage | < 250 V |
| [In] rated current | 16 A |
| Contacts type and composition | 4 C/O |

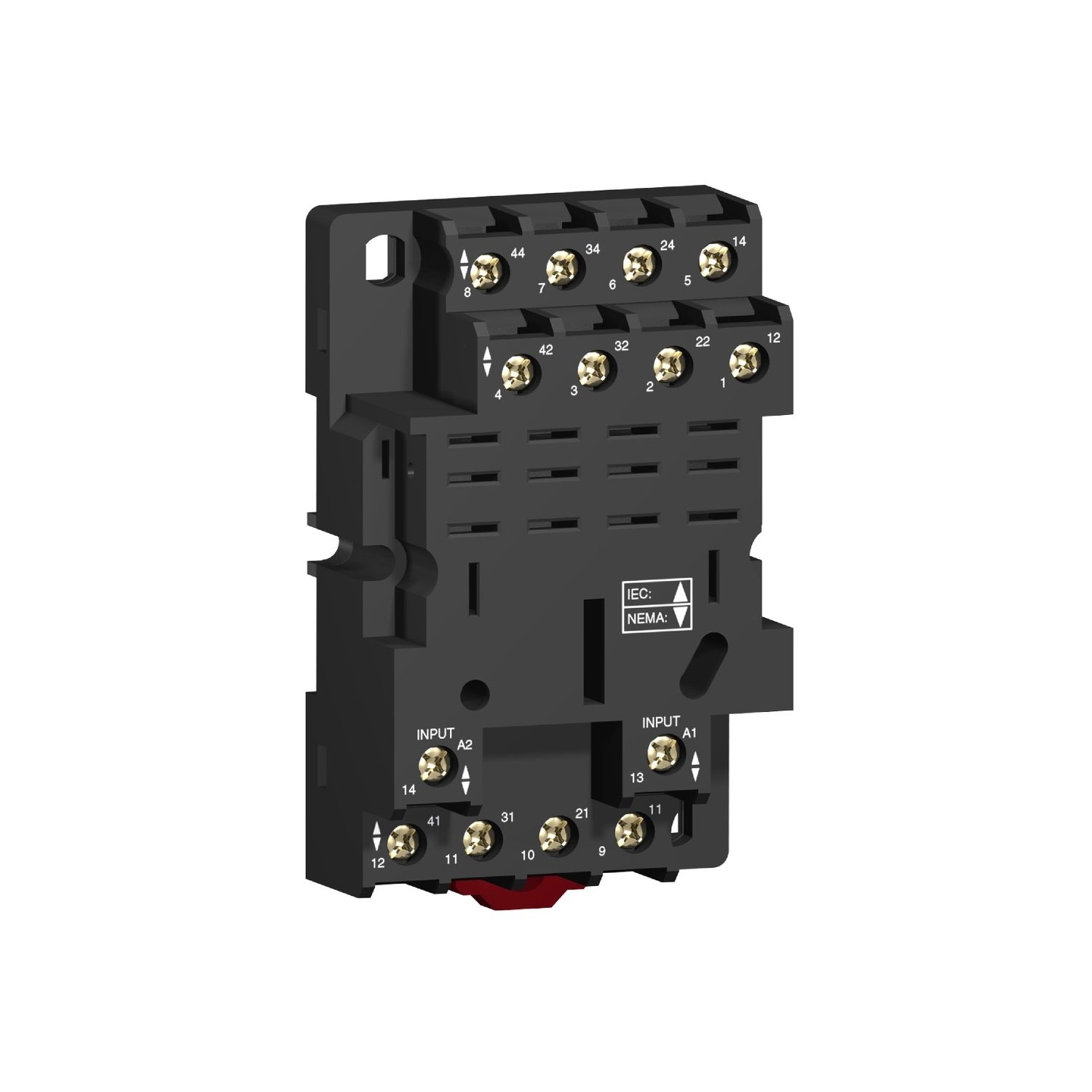

| Product or component type | socket |
| Complementary | |
| Group of product | RPM_4_C/O_SC_TER_MIX_FLAT |
| Compatibility code | RPZ |
| Sale per indivisible quantity | 10 |
| Fixing mode | clip-on (35 mm symmetrical DIN rail), by screw (panel) |
| Contact terminal arrangement | mixed |
| Shape of pin | flat |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Width | 50 mm |
| Net weight | 0.094 kg |
| Tightening torque | < 1 N.m for M3.5 screw(s) |
| Connections - terminals | screw clamp terminals |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Marking | CE |
| Connections - terminals | - screw clamp terminals, solid cable without cable end 2 x 0.5...2 x 1.5 mm² / AWG 20...AWG 16, - screw clamp terminals, flexible cable with cable end 2 x 0.5...2 x 2.5 mm² / AWG 20...AWG 14, - screw clamp terminals, solid cable without cable end 1 x 0.5...1 x 1.5 mm² / AWG 20...AWG 16, - screw clamp terminals, flexible cable with cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14 |
| Ambient air temperature for operation | -40-55 °C |
| Dielectric strength | 2500 V |
| Standards | IEC 61984 |
| Product certifications | CSA, UL |
