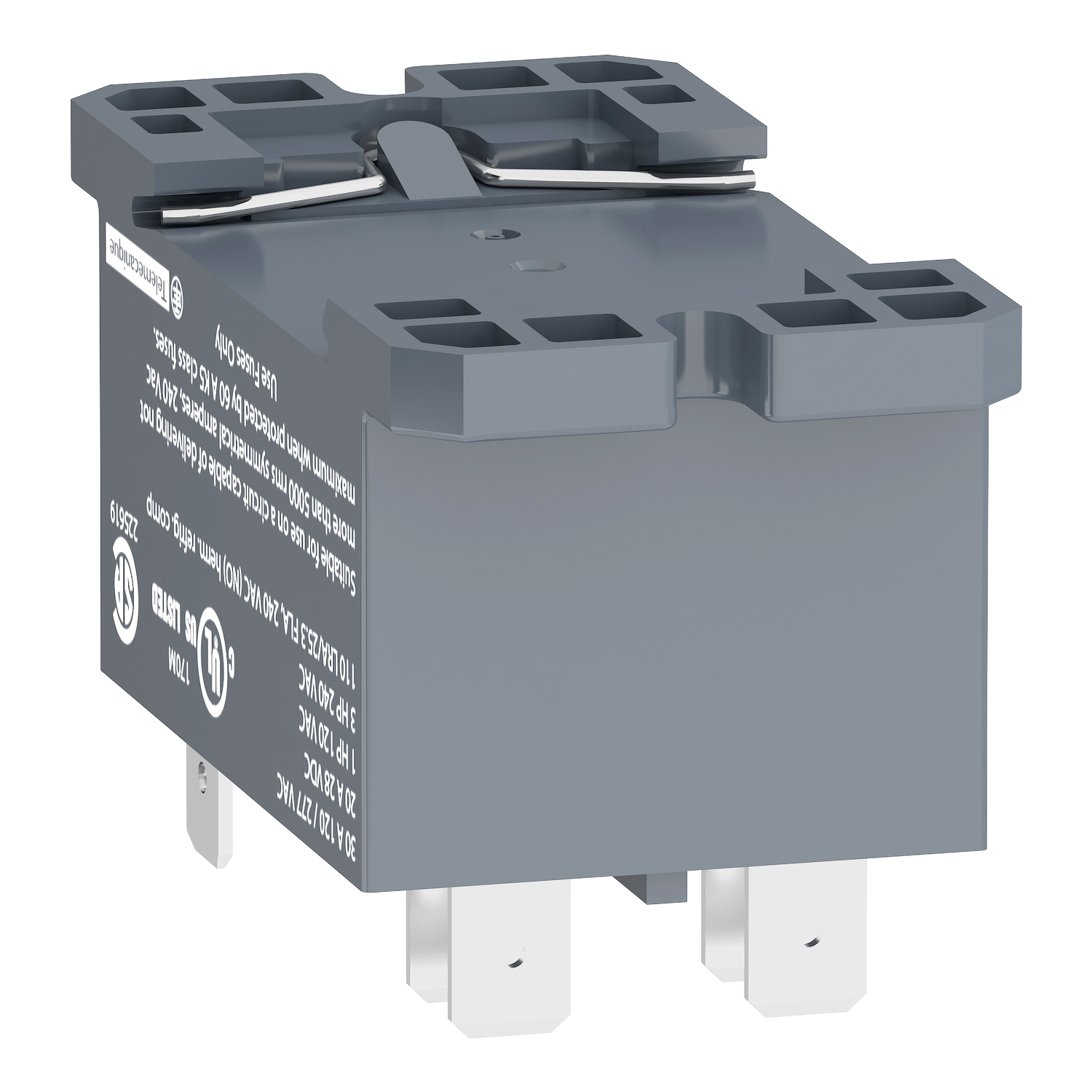

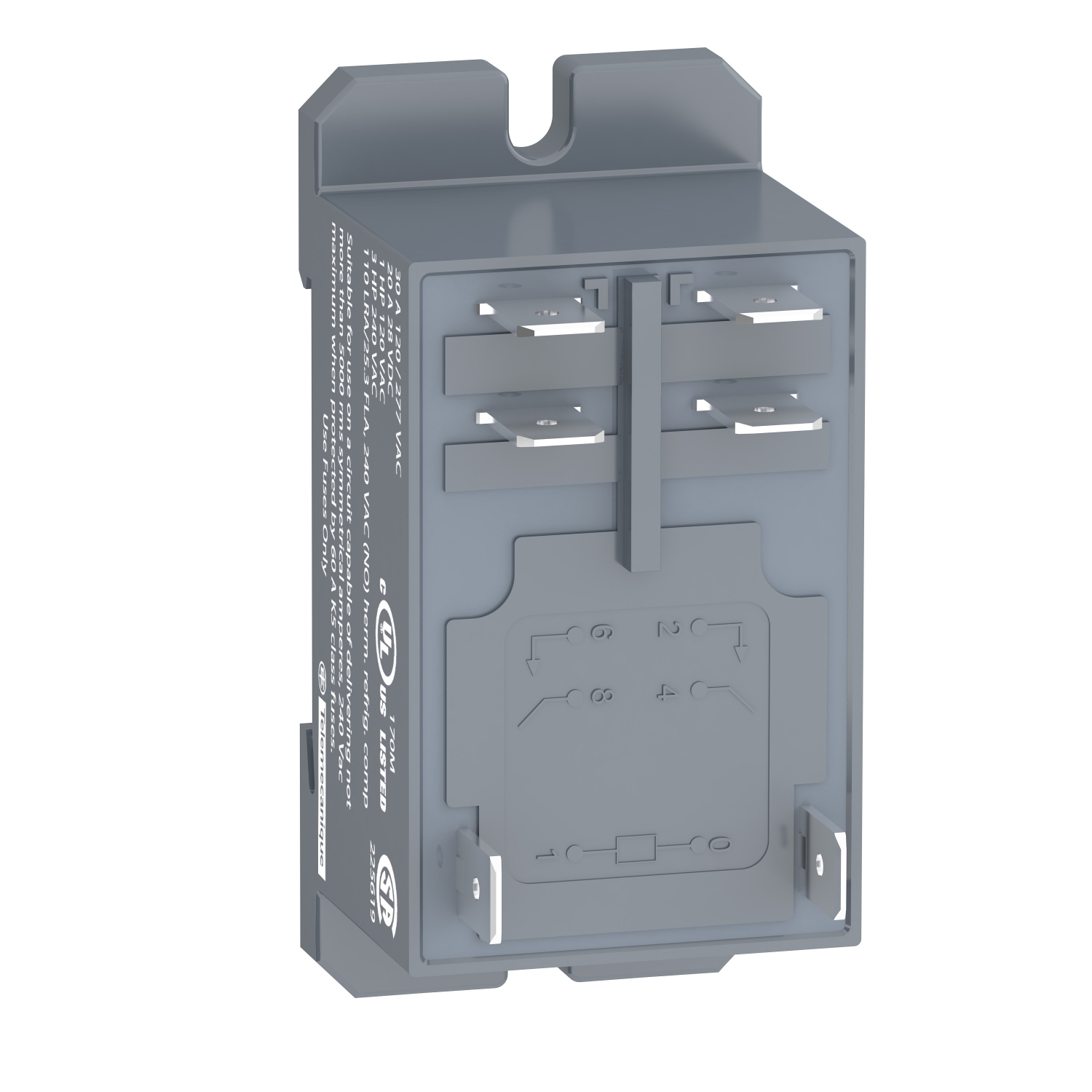

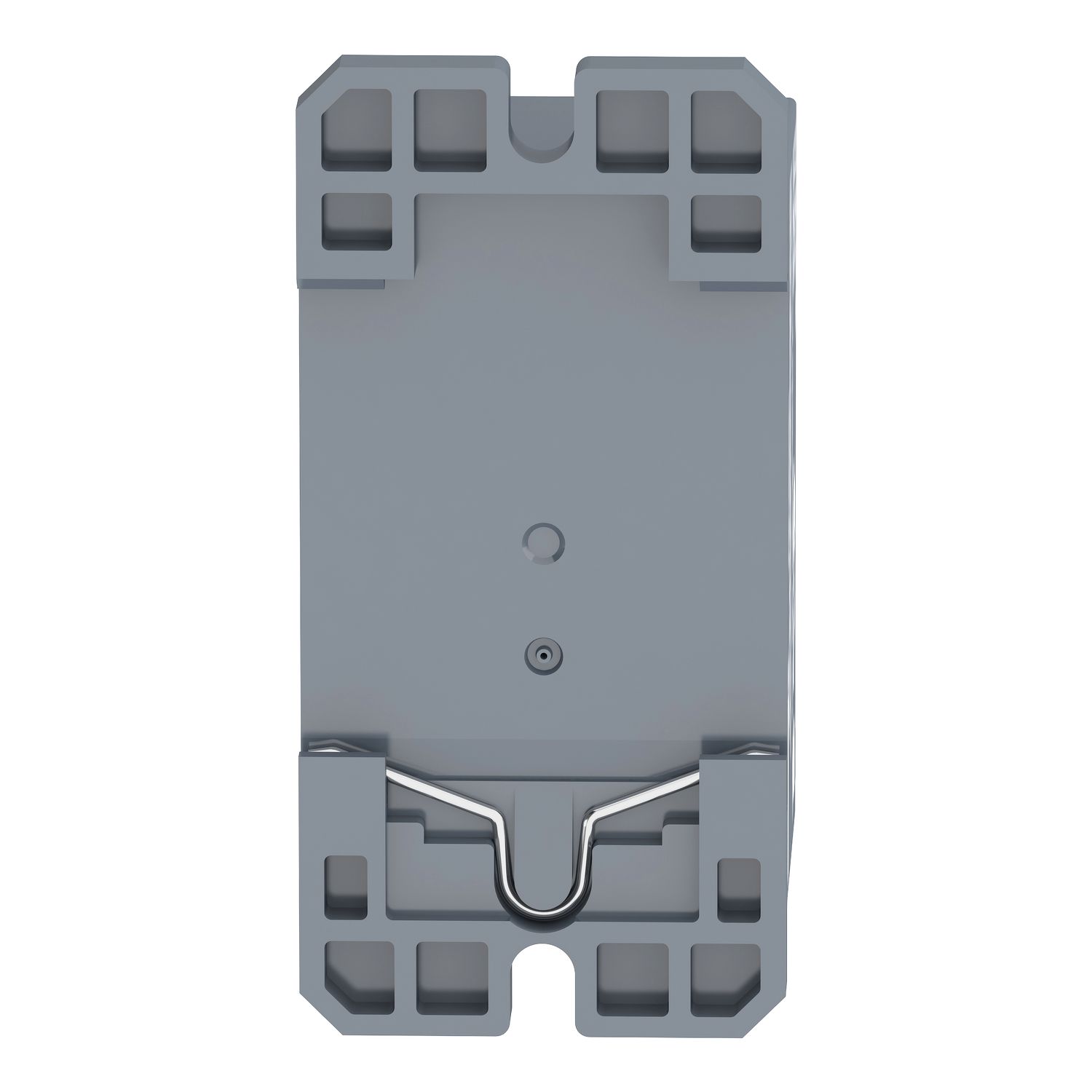

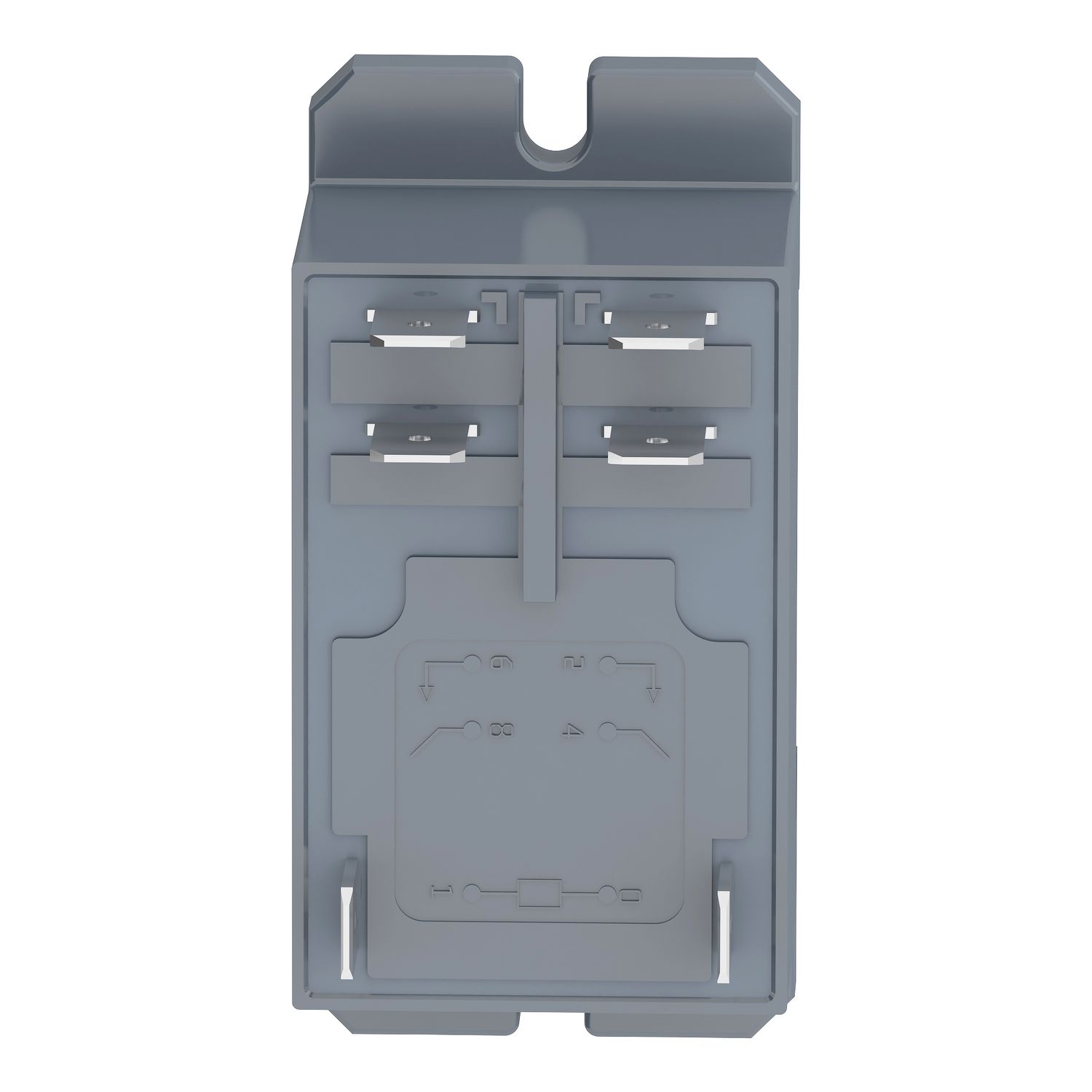

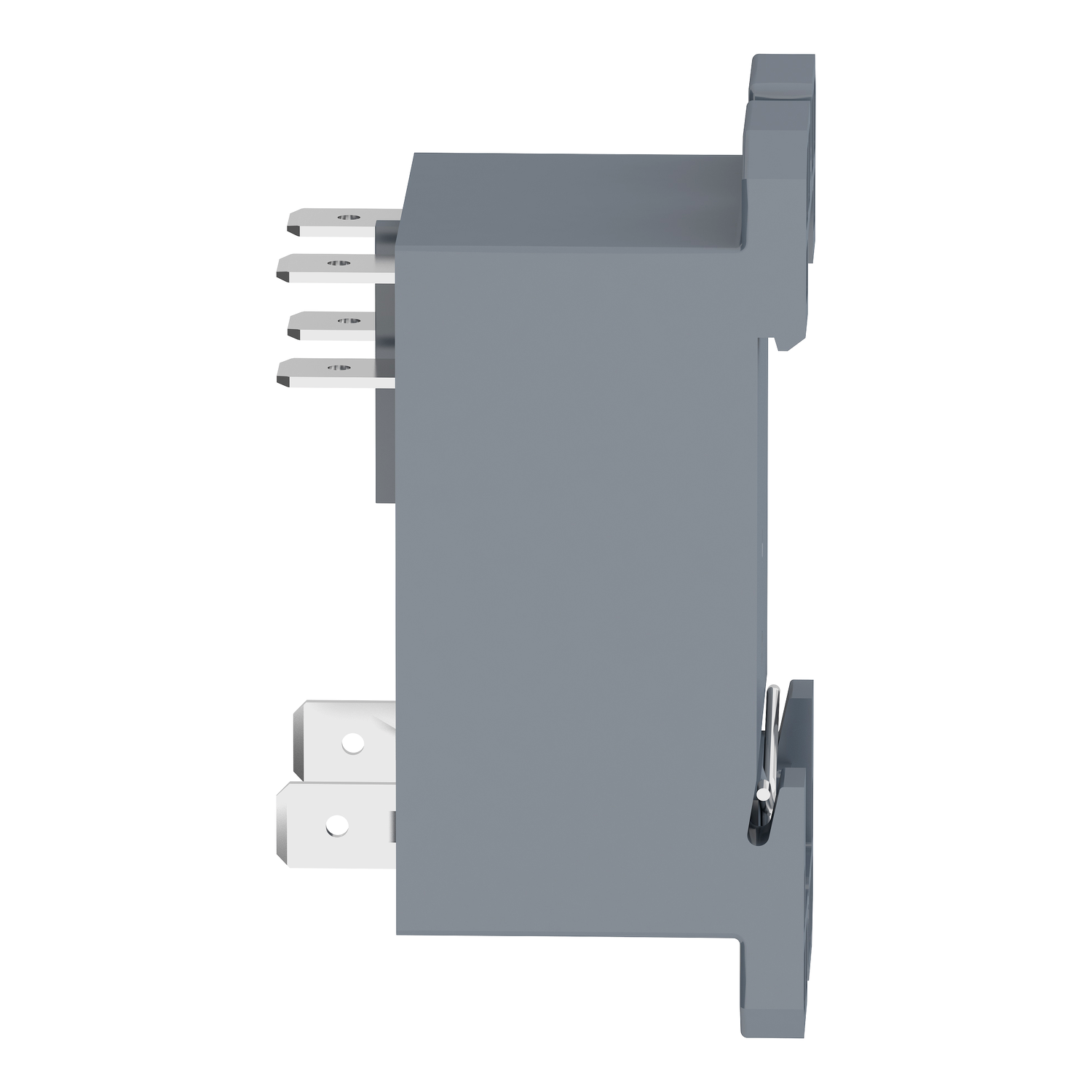

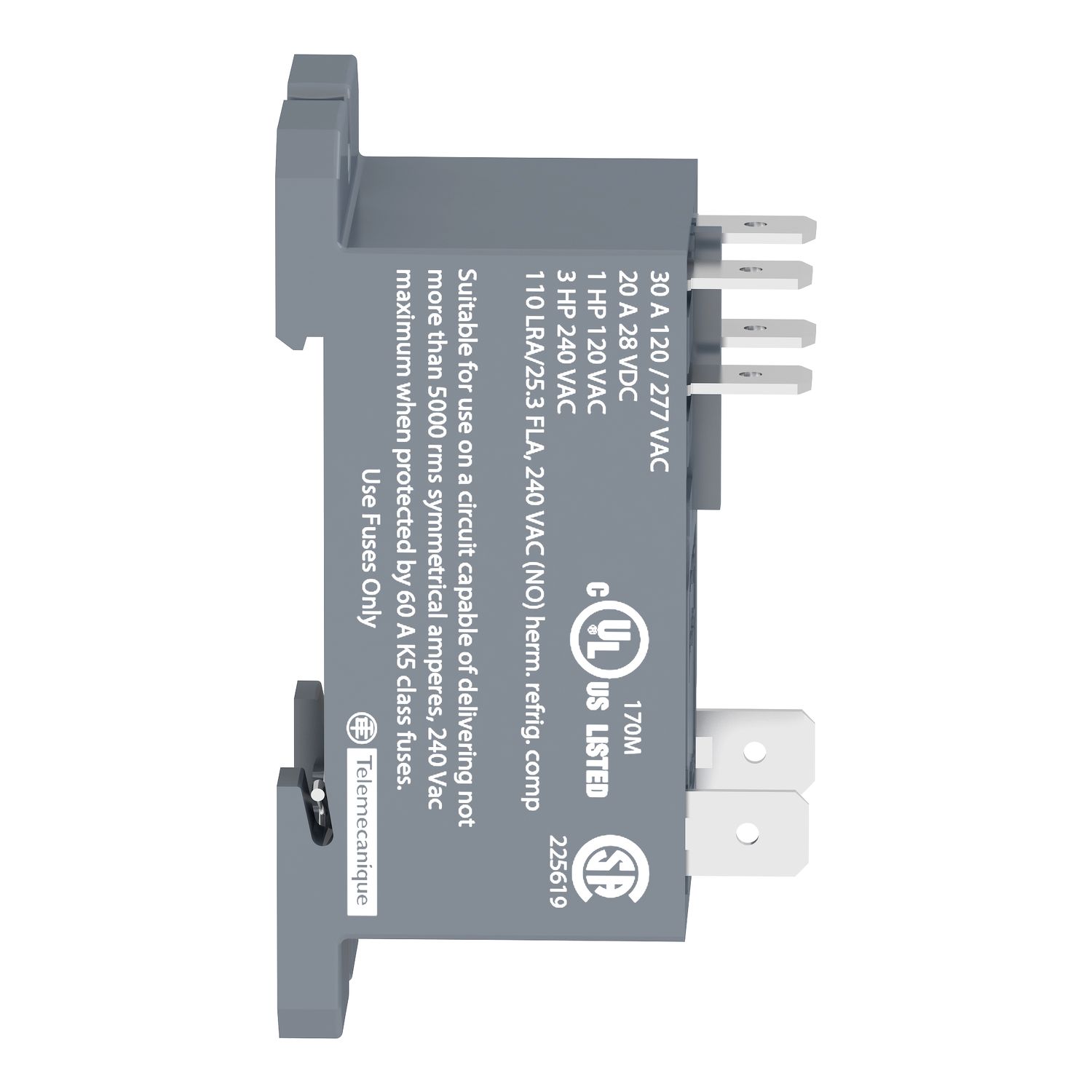

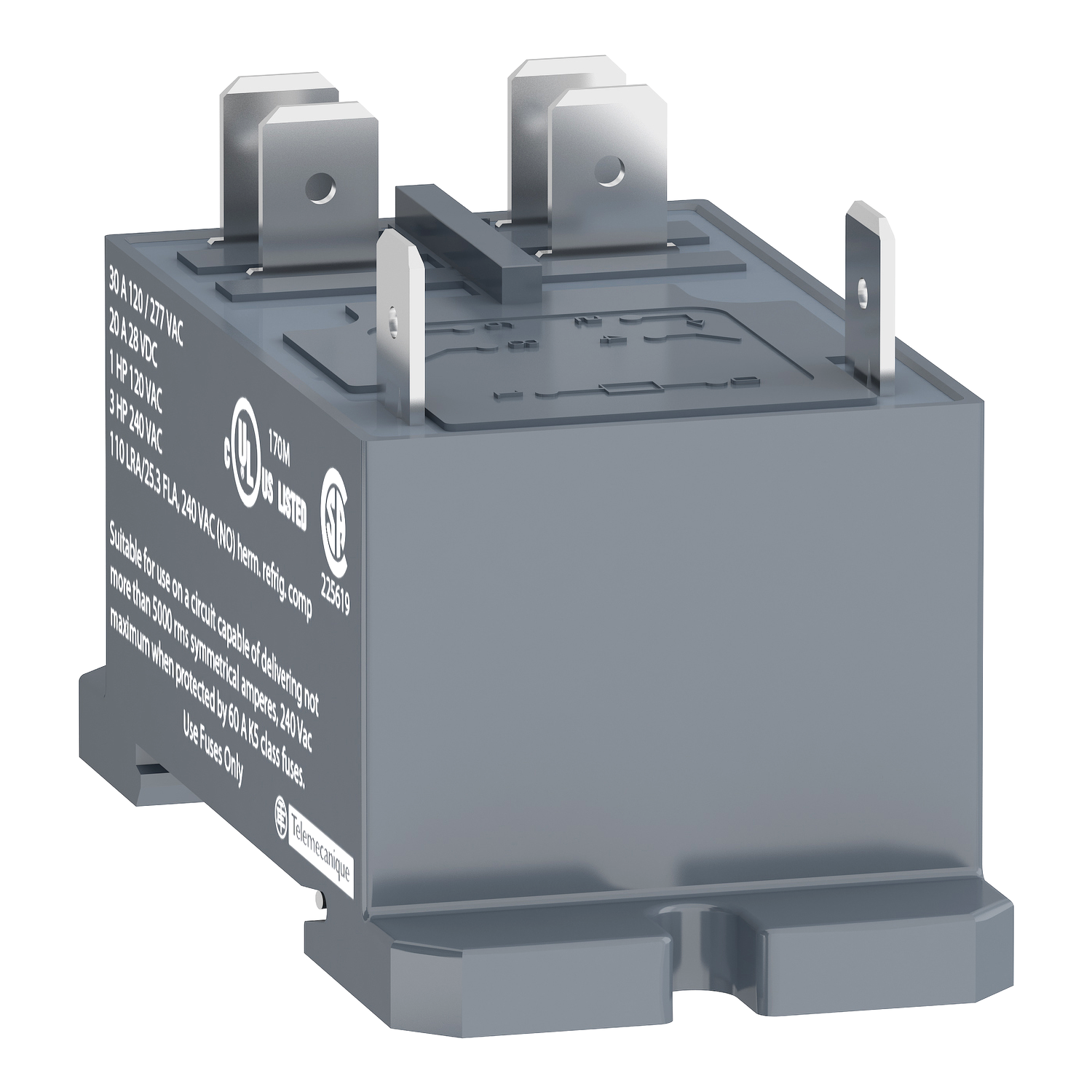

This Harmony RPF panel mounting power relay with fast-on terminals has a coil control voltage of 120V AC and has 2 normally open contacts with a rating of 30A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | RPF |
| [Uc] control circuit voltage | 120 V, 120 V AC 50/60 Hz |
| Load current | 30 A at 250 V AC, 25 A at 28 V DC |
| Control type | without lockable test button |
| Shape of pin | flat |
| Contacts material | silver tin oxide |
| Range of product | Harmony Electromechanical Relays |
| Utilisation coefficient | 10 % |
| [Ithe] conventional enclosed thermal current | 30 A at -40-55 °C 13 mm gap between two relays, 25 A at -40-55 °C relays side by side without a gap |
| [In] rated current | 30 A |
| Contacts type and composition | 2 NO |
| Series name | Power |
| Product or component type | DIN rail/panel mount relay |
| Connections - terminals | quick-connect terminal |
| Complementary | |
| Drop-out voltage threshold | >= 0.15 Uc |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs |
| Control circuit voltage limits | 96...132 V |
| Operating position | any position |
| Compatibility code | RPF |
| Mechanical durability | 5000000 cycles |
| Device presentation | complete product |
| Average resistance | 4250 Ohm at 20 °C +/- 15 % |
| CAD overall height | 68.5 mm |
| Electrical durability | 100000 cycles for resistive load |
| Safety reliability data | B10d = 100000 |
| Maximum switching capacity | 7500 VA/700 W |
| Minimum switching capacity | 6000 mW 500 mA / 12 V for NO |
| CAD overall depth | 39.2 mm |
| CAD overall width | 33.7 mm |
| Operating time | 25 ms |
| Minimum switching current | 500 mA |
| [Ui] rated insulation voltage | 300 V conforming to UL, 250 V conforming to IEC |
| [Ie] rated operational current | 25 A at 28 V (DC) NO conforming to IEC, 30 A at 250 V (AC) NO conforming to IEC, 20 A at 28 V (DC) NO conforming to UL, 30 A at 277 V (AC) NO conforming to UL |
| Maximum switching voltage | 250 V conforming to IEC |
| Net weight | 0.082 kg |
| Reset time | 25 ms |
| Mounting support | panel, DIN rail |
| Test levels | level A group mounting |
| Protection category | RT II |
| Operating rate | <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load |
| Average consumption | 4 VA at 60 Hz |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Ambient air temperature for operation | -40-55 °C |
| Pollution degree | 3 |
| Shock resistance | 30 gn for not operating, 10 gn for in operation |
| Vibration resistance | 10 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles not operating, 3 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles in operation |
| Dielectric strength | 1500 V AC between contacts with micro disconnection, 4000 V AC between coil and contact with reinforced, 2000 V AC between poles with basic |
| Standards | IEC 61810-1, UL 508, CSA C22.2 No 14 |
| Product certifications | CE, GOST, CSA, UL |
