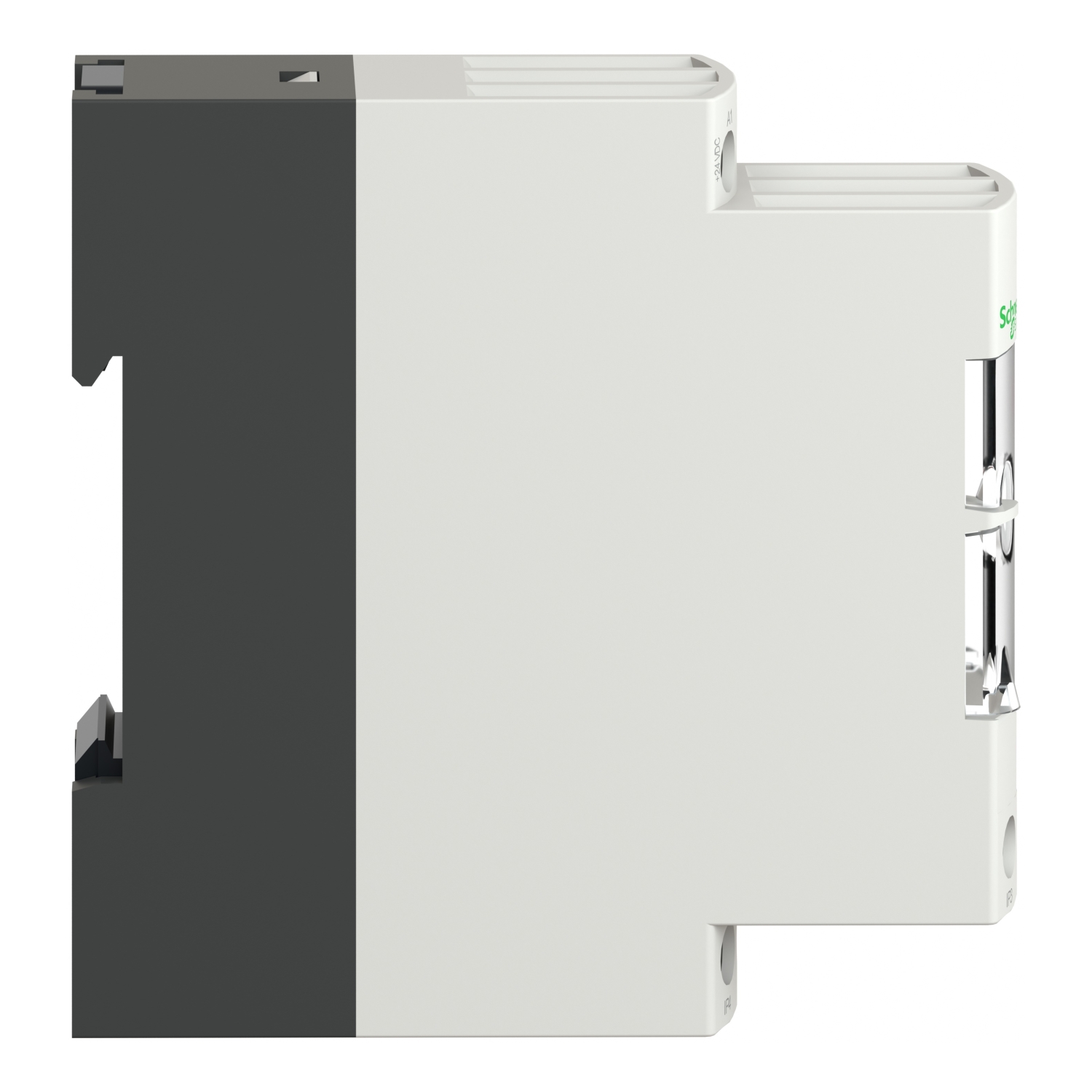

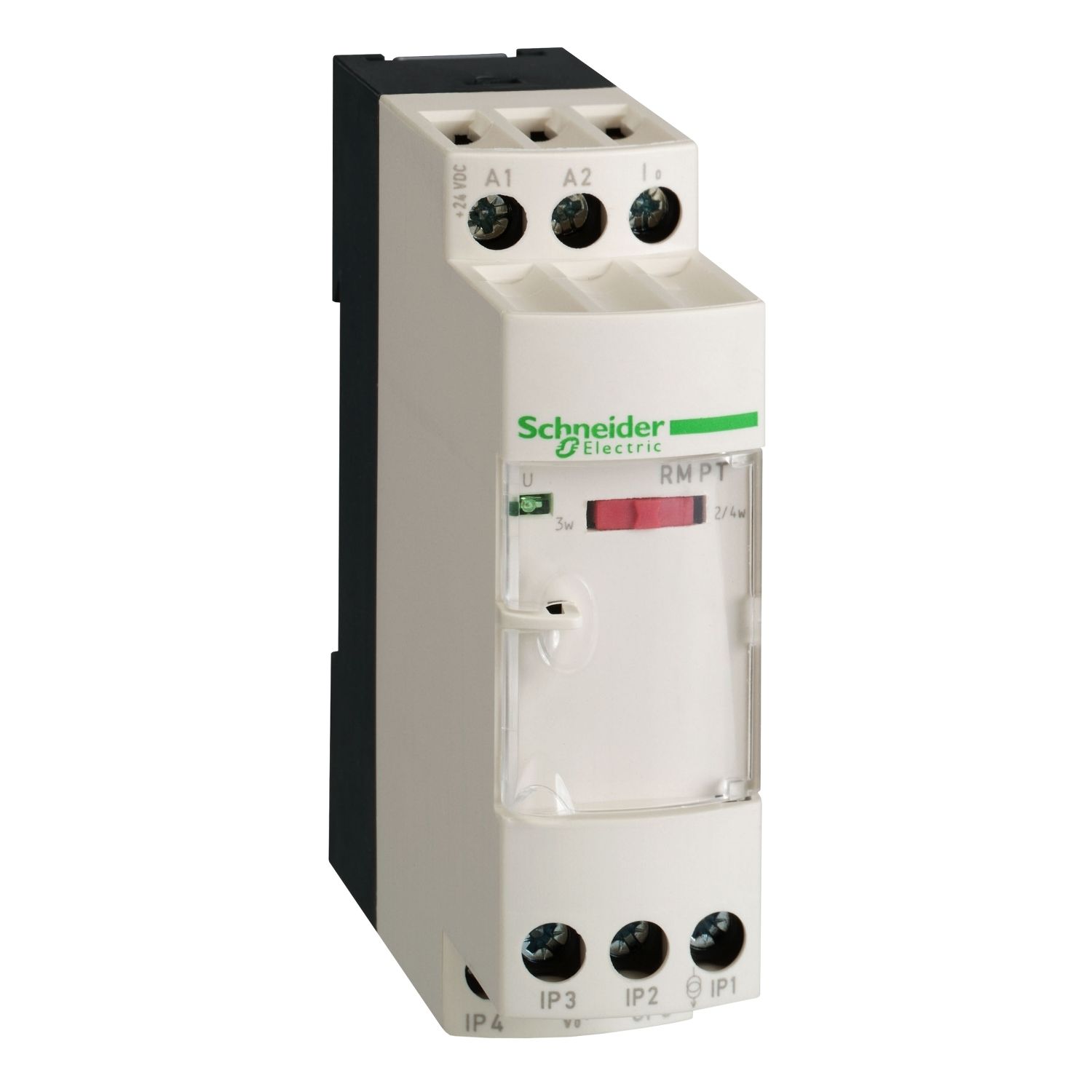

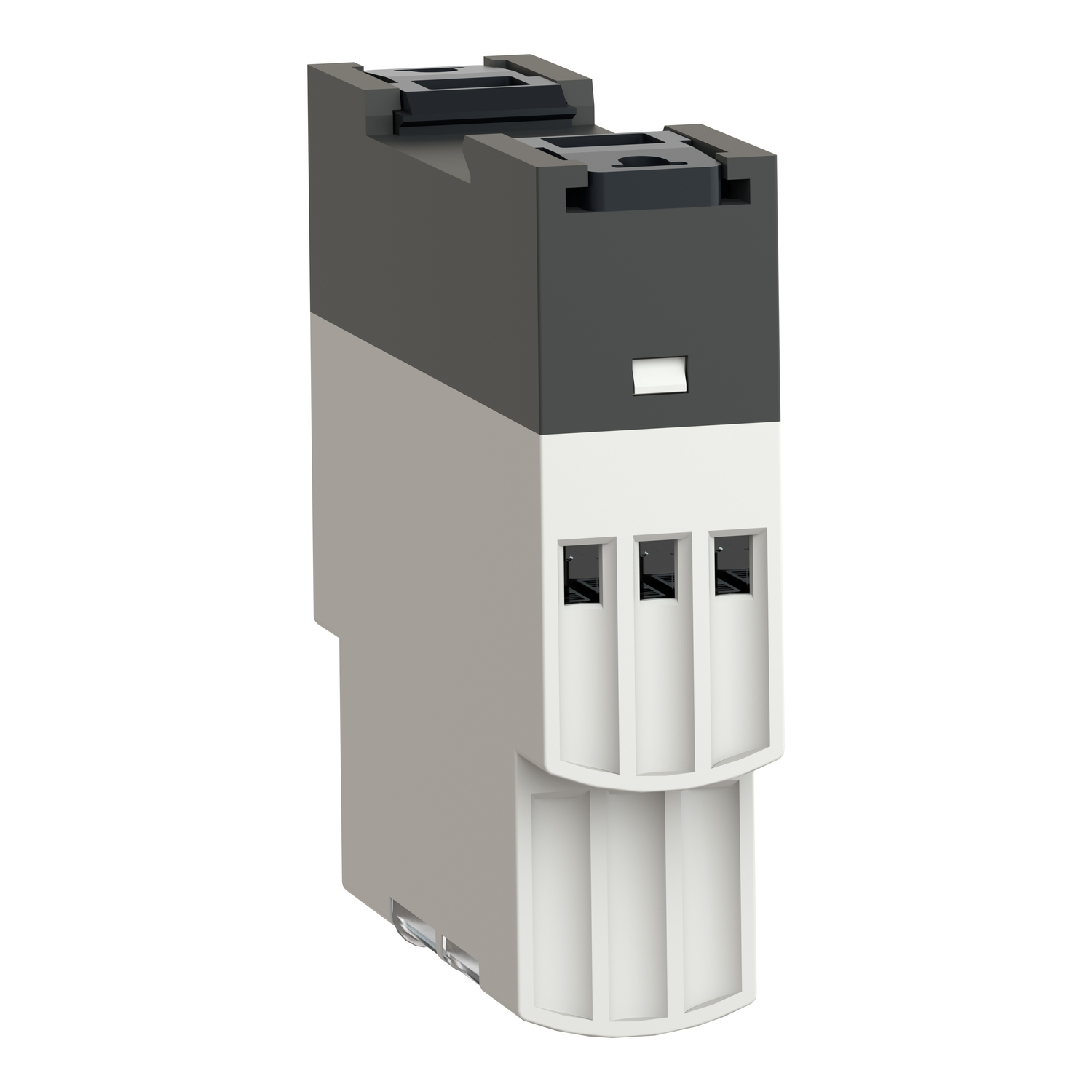

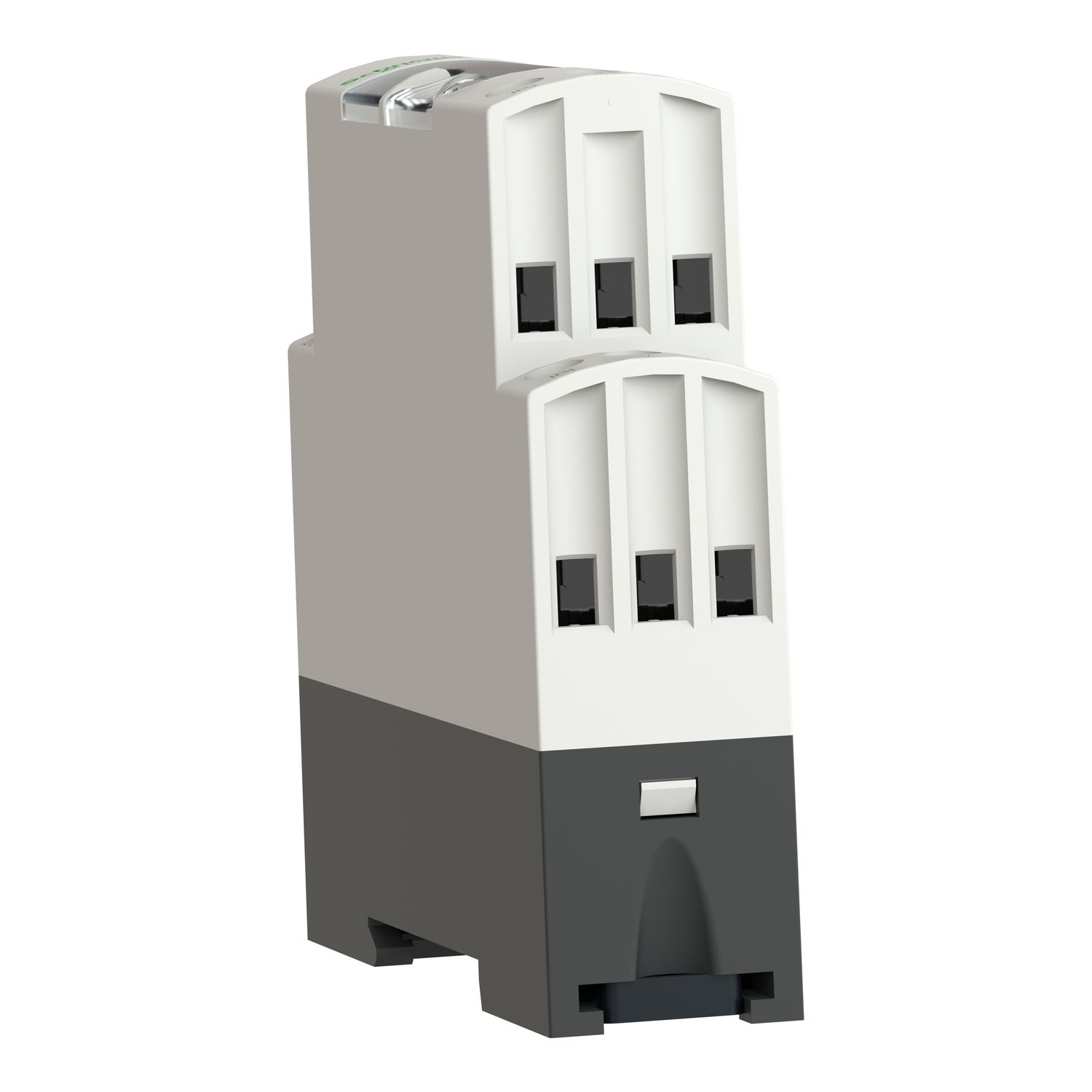

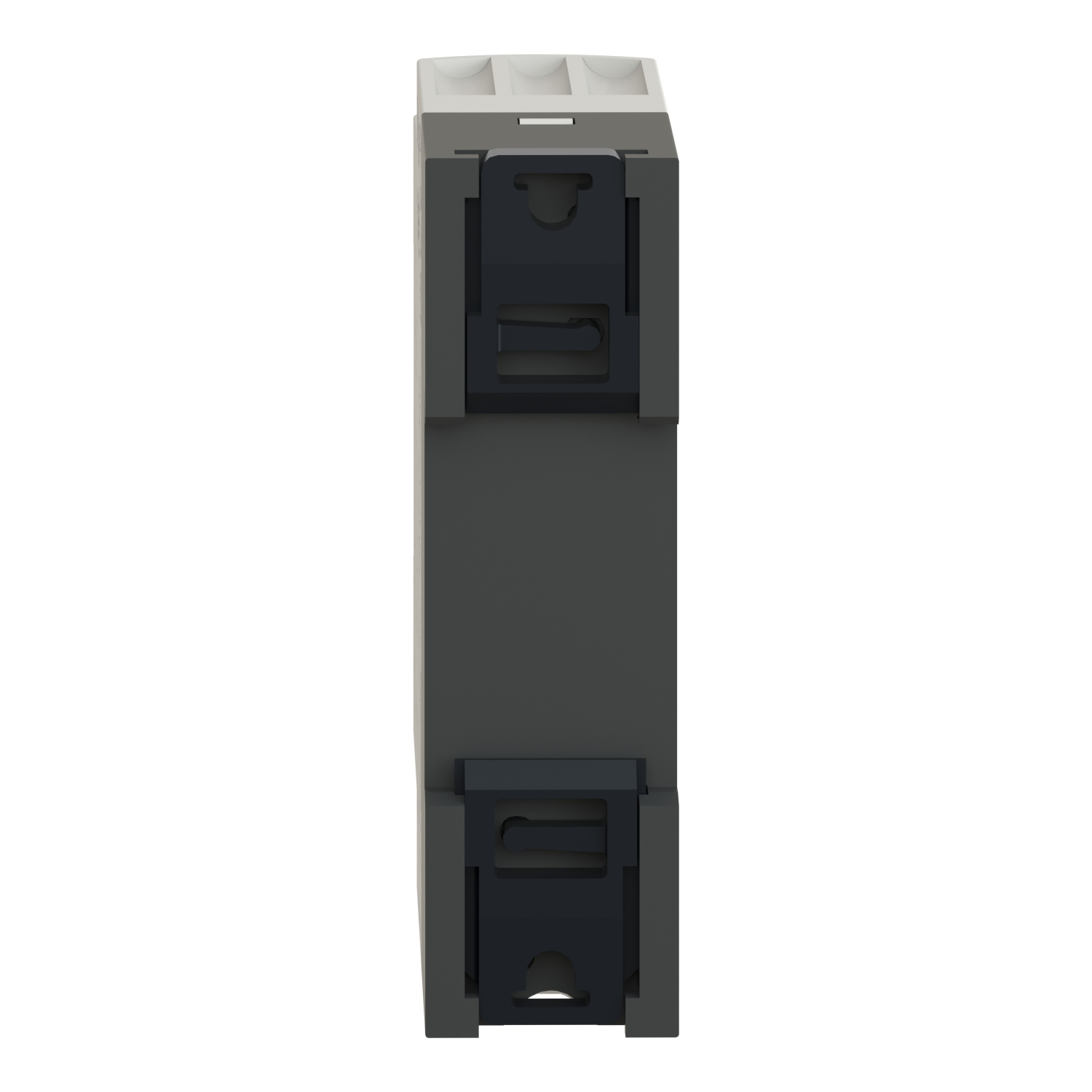

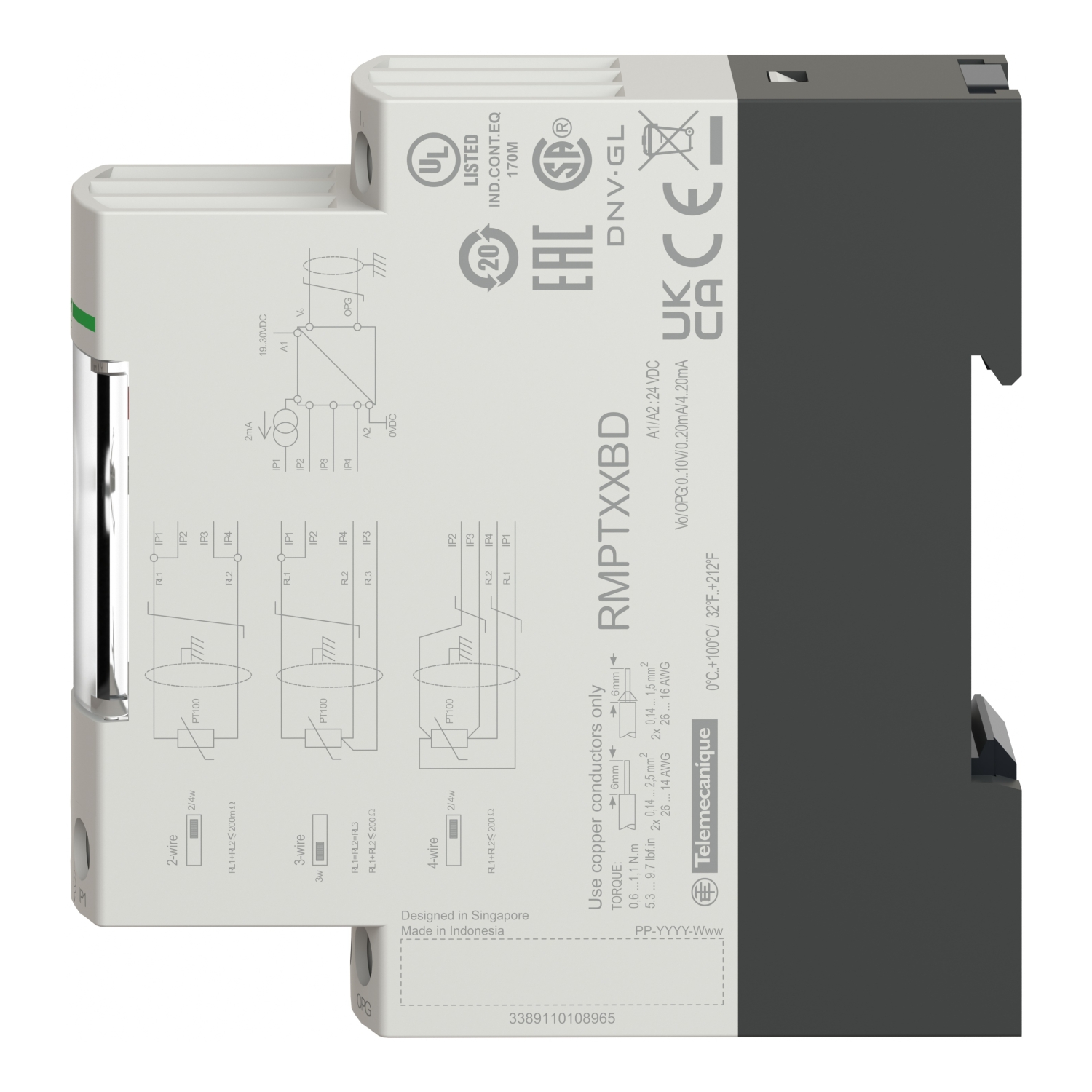

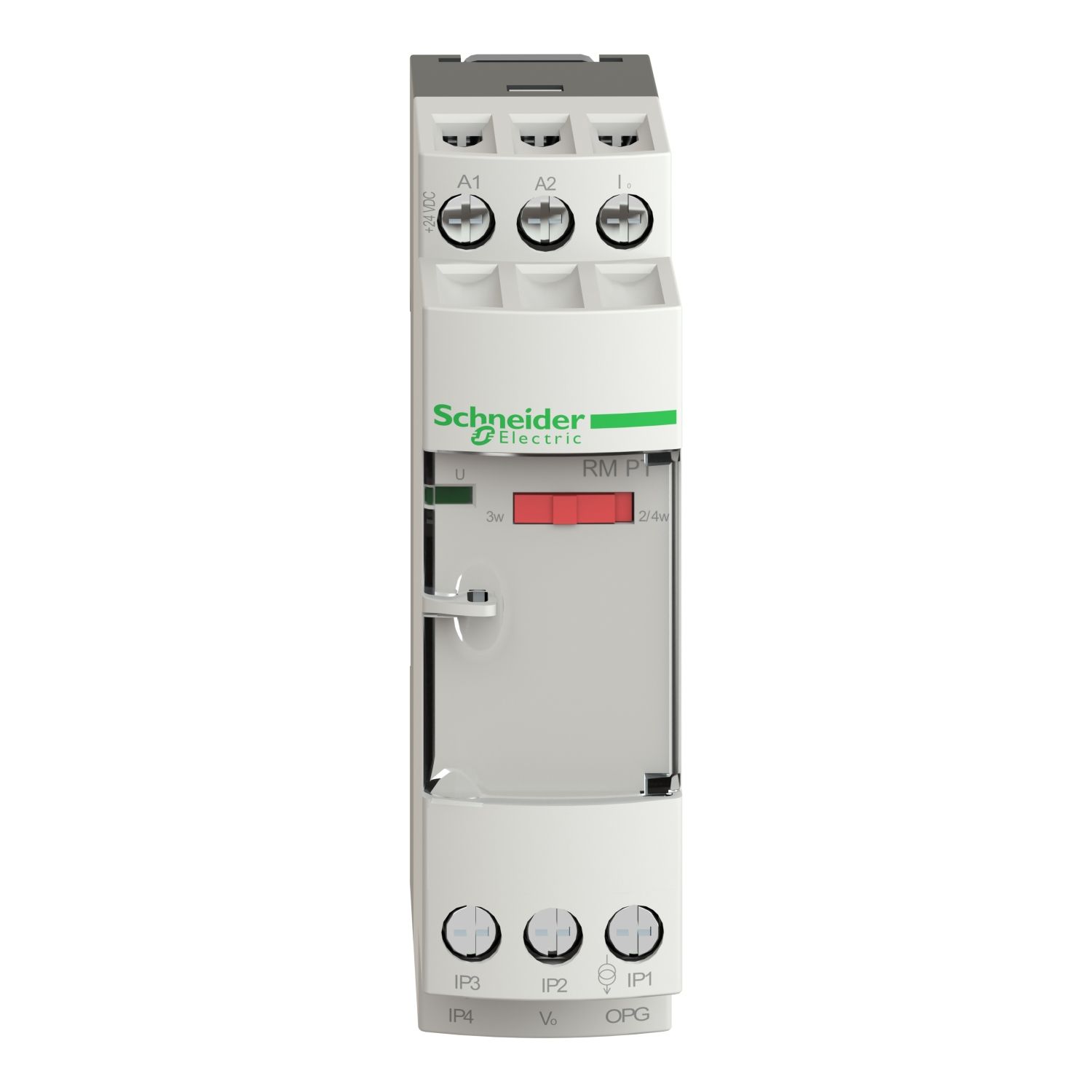

This temperature transmitter is part of the range of Harmony Analog interfaces. It is designed to convert signal of Pt100 probe into standard electrical signal which is compatible with automation platforms, controllers. Its supply voltage is 24V DC, non isolated. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. The cables used to connect the converters to process equipment (PLCs) are standard cables, which are more cost effective than extension cables or compensation cables suitable for low level signals for Pt100 probes or thermocouples. Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 0 0 0 0 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Analogue input type | temperature probe 0...100 °C/32..212 °F Pt 100 2, 3 or 4 wires |
| Range of product | Harmony Analog |
| Product or component type | converter for Universal Pt100 probes |
| Analogue output type | voltage 0...10 V >= 100 kOhm, current 4...20 mA <= 500 Ohm, current 0...20 mA <= 500 Ohm |
| Complementary | |
| Surge withstand | 0.5 kV during 1.2/50 µs conforming to IEC 61000-4-5 |
| Clamping connection capacity | 2 x 1.5 mm², 1 x 2.5 mm² |
| Safety reliability data | B10d = 30437, MTTFd = 32.9 years |
| Repeat accuracy | +/- 0.6 % full scale at 60 °C, +/- 0.2 % full scale at 20 °C |
| Maximum wiring resistance | 0.2 Ohm connection in 2 wires |
| Net weight | 0.12 kg |
| Analogue output voltage | 11...15 V when no input or input wire broken, -15...-11 V when no input or input wire broken |
| Current consumption | <= 60 mA for current output, <= 40 mA for voltage output |
| Protection type | reverse polarity protection on output, overvoltage protection on output (+/- 30 V), short-circuit protection on output, reverse polarity protection on power supply |
| Fixing mode | fixed (mounting plate), clip-on (35 mm symmetrical DIN rail) |
| Marking | CE |
| Measurement error | +/- 10 % of full scale at 20 °C (electromagnetic interference of 10 V/m), +/- 1 % of full scale (2 wires) at 20 °C, +/- 0.5 % of full scale (3 or 4 wires) at 20 °C |
| Analogue output current | 22-30 mA when no input or input wire broken, -30-0 mA when no input or input wire broken |
| Tightening torque | 0.6-1.1 N.m |
| Temperature coefficient | 150 ppm/°C |
| Local signalling | LED (green) for power ON |
| [Ui] rated insulation voltage | 2000 V |
| [Us] rated supply voltage | 24 V DC non isolated +/- 20 % |
| Environment | |
| Resistance to fast transients | 2 kV (on power supply) conforming to IEC 61000-4-4, 1 kV (on input-output) conforming to IEC 61000-4-4 |
| Fire resistance | 850 °C conforming to UL, 850 °C conforming to IEC 60695-2-1 |
| Ambient air temperature for storage | -40-85 °C |
| Ambient air temperature for operation | 0-60 °C 2 cm spacing, 0-50 °C mounting side by side |
| Product certifications | CSA, UL, GL |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Disturbance radiated/conducted | CISPR 11, CISPR 22 group 1 - class B |
| IP degree of protection | IP50 (housing), IP20 (terminal block) |
| Electromagnetic compatibility | electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 |
| Vibration resistance | 5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Standards | EN/IEC 60584-1, EN/IEC 60947-1, EN/IEC 60751, DIN 43760 |
