Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Analogue input type | temperature probe - 40...40 °C/- 40...104 °F Pt 100 2, 3 or 4 wires |

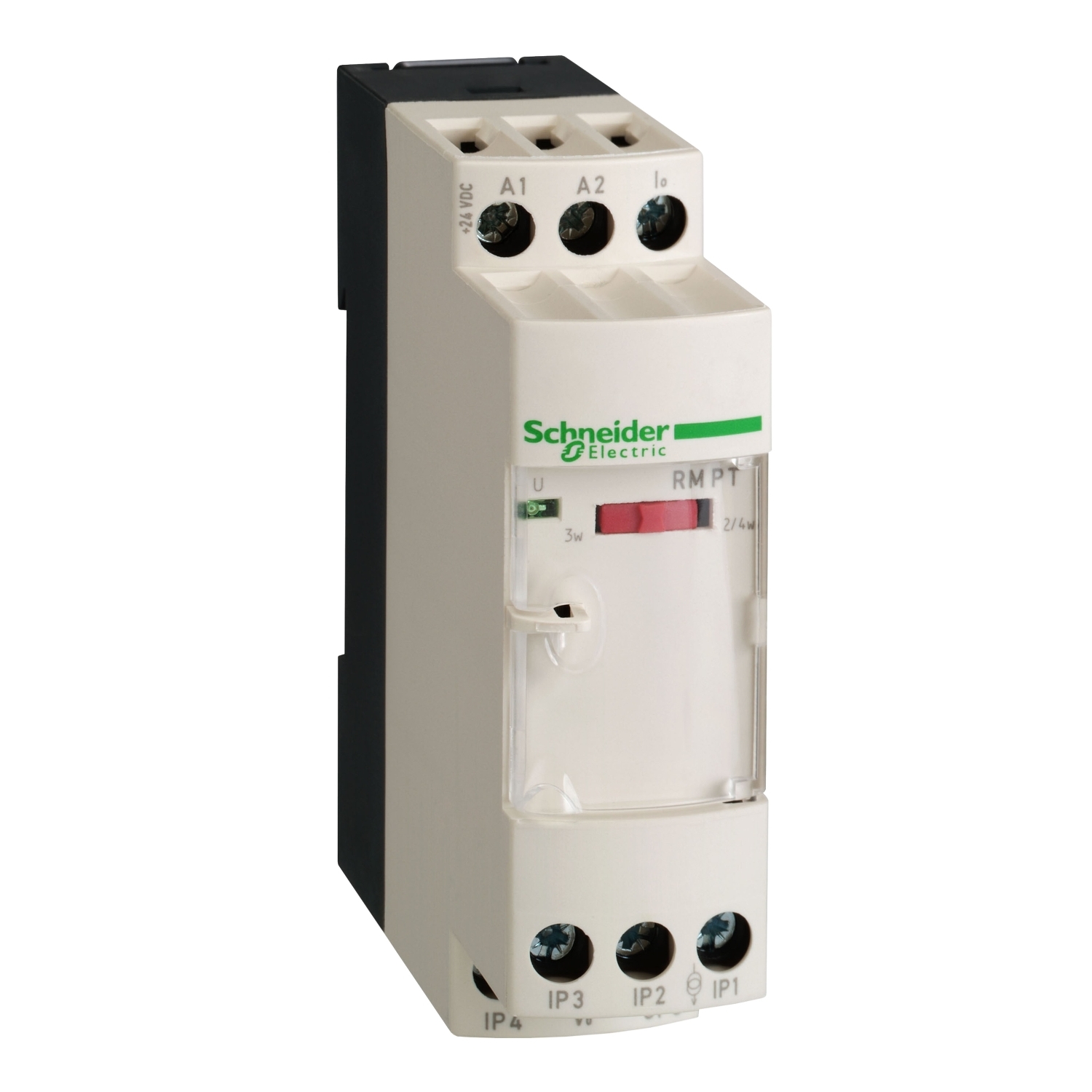

| Product or component type | converter for Universal Pt100 probes |
| Analogue output type | voltage 0...10 V >= 100 kOhm, current 4...20 mA <= 500 Ohm, current 0...20 mA <= 500 Ohm |
| Range of product | Harmony Analog |
| Complementary | |
| Repeat accuracy | +/- 0.6 % full scale at 60 °C, +/- 0.2 % full scale at 20 °C |
| Analogue output current | 22-30 mA when no input or input wire broken, -30-0 mA when no input or input wire broken |
| Tightening torque | 0.6-1.1 N.m |
| Protection type | reverse polarity protection on power supply, short-circuit protection on output, reverse polarity protection on output, overvoltage protection on output (+/- 30 V) |
| Temperature coefficient | 150 ppm/°C |
| Local signalling | LED (green) for power ON |
| Maximum wiring resistance | 0.2 Ohm connection in 2 wires |
| Surge withstand | 0.5 kV during 1.2/50 µs conforming to IEC 61000-4-5 |
| Fixing mode | clip-on (35 mm symmetrical DIN rail), by screws (mounting plate) |
| Net weight | 0.12 kg |
| Analogue output voltage | 11...15 V when no input or input wire broken, -15...-11 V when no input or input wire broken |
| Marking | CE |
| [Ui] rated insulation voltage | 2000 V |
| Clamping connection capacity | 2 x 1.5 mm², 1 x 2.5 mm² |
| Measurement error | +/- 10 % of full scale at 20 °C (electromagnetic interference of 10 V/m), +/- 1 % of full scale (2 wires) at 20 °C, +/- 0.5 % of full scale (3 or 4 wires) at 20 °C |
| Safety reliability data | MTTFd = 32.9 years, B10d = 30437 |
| Current consumption | <= 60 mA for current output, <= 40 mA for voltage output |
| [Us] rated supply voltage | 24 V DC non isolated +/- 20 % |
| Environment | |
| Resistance to fast transients | 2 kV (on power supply) conforming to IEC 61000-4-4, 1 kV (on input-output) conforming to IEC 61000-4-4 |
| Fire resistance | 850 °C conforming to UL, 850 °C conforming to IEC 60695-2-1 |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Disturbance radiated/conducted | CISPR 22 group 1 - class B, CISPR 11 |
| IP degree of protection | IP50 (housing), IP20 (terminal block) |
| Vibration resistance | 5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Electromagnetic compatibility | electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 |
| Ambient air temperature for operation | 0-60 °C 2 cm spacing, 0-50 °C mounting side by side |
| Standards | EN/IEC 60751, EN/IEC 60947-1, EN/IEC 60584-1, DIN 43760 |
| Product certifications | CSA, GL, UL |
