Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Number of functions | 3 |
| Network type | AC |
| Variant | compact |

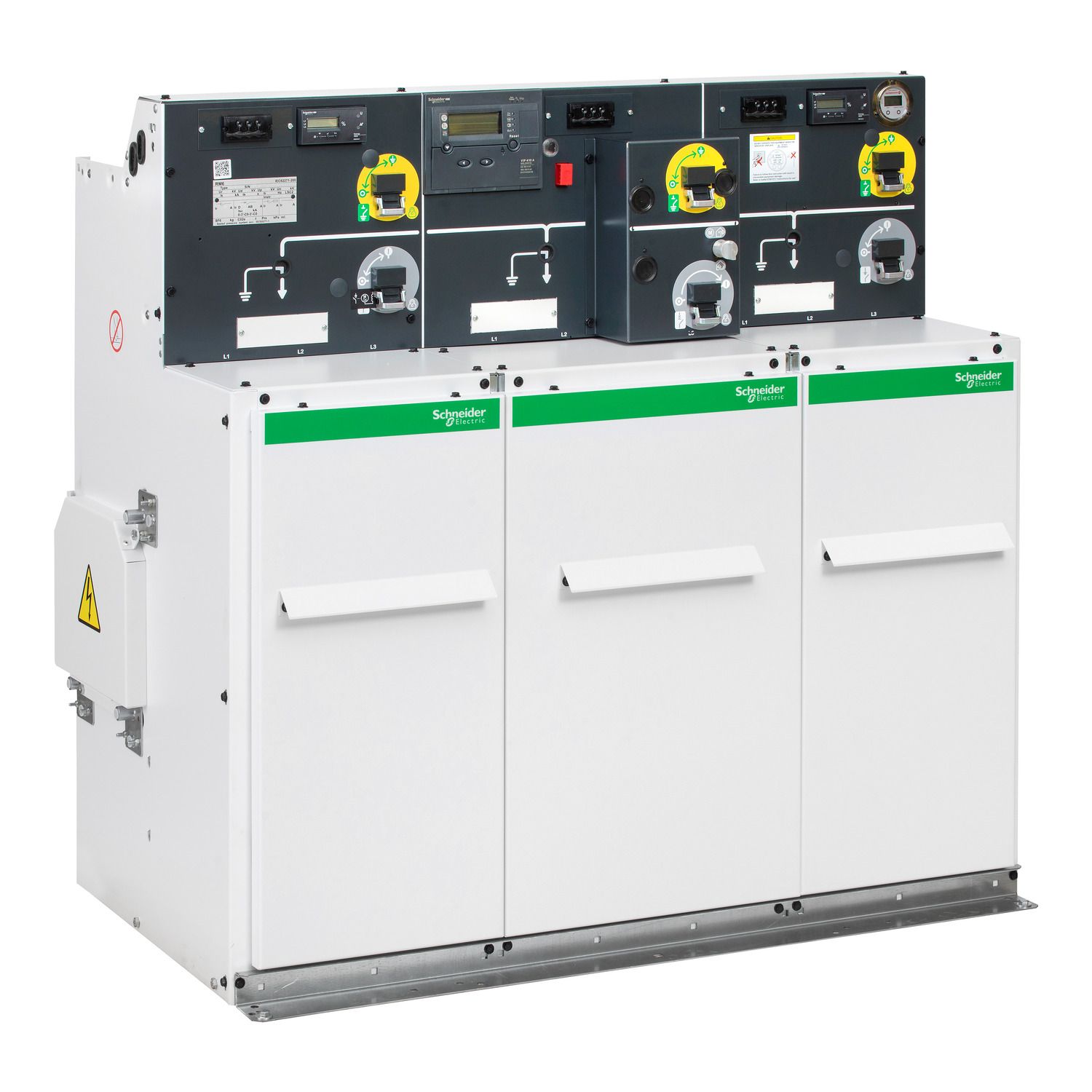

| Product or component type | gas insulated switchgear |
| Device composition | 2 x switch 630 A (I), 1 x circuit-breaker 200 A (D) |
| Technology type | SF6 gas |
| Rated voltage (Ur) | 24 kV |
| Extensibility kit | not provided |
| Provided equipment | earthing switch |
| Rated continuous current (Ir) | 630 A |
| Rated short-time withstand current (Ik) | 20 kA rms 1 s |
| Rated lightning impulse withstand voltage (Up) | 125 kV peak |
| Range of product | RM6 |
| Standards | IEC 62271-200 |
| Remote control type | without |
| Enclosure type | NE (not extensible) |
| [Us] rated supply voltage | 22 kV |
| Rated frequency (fr) | 50 Hz |
| Device application | switch |
| Enclosure name | IDI |
| Complementary | |
| [Iu] rated interrupted current | 630 A |
| Local signalling | F21D |
| Internal arc classification | AFLR |
| Depth | 710 mm |
| Control type | motor mechanism 24 V DC O – 3 min - CO – 3 min - O (D) |
| Primary current | 100...200 A |
| Number of cables | 1.0 single core 0-300 mm² per phase |
| Integral instant protection | 20 kA for 1 s |
| Primary voltage | 22 kV/V3 |
| Locking options description | without keylocks |
| User language | English |
| Pressure sensor type | standard manometer |
| Bus rated current | 630 A |
| IK degree of protection | IK07 |
| Relay type | current control relay VIP 40 CUAR |
| Height | 1142 mm |
| Width | 1186 mm |
| Bushing type | type C, 630 A |
| Product weight | 240 kg |
| IP degree of protection | front face: IP3x, tank with HV parts: IP67 |
| Electrical endurance class | E2 |
| Auxiliary contact composition | 2 NO + 2 NC for switch, 1 NO + 1 NC for earthing switch (I) |
| Type of operating handle | 1.0 long |
| Mechanical durability | 2000 cycles M1 circuit-breaker |
| Environment | |
| Product certifications | IEC |
| Operating altitude | <= 1000 m |
| Ambient air temperature for operation | -25-40 °C |
| Ambient air temperature for storage | -40-40 °C |
| Contractual warranty | |
| Warranty | 18 |
