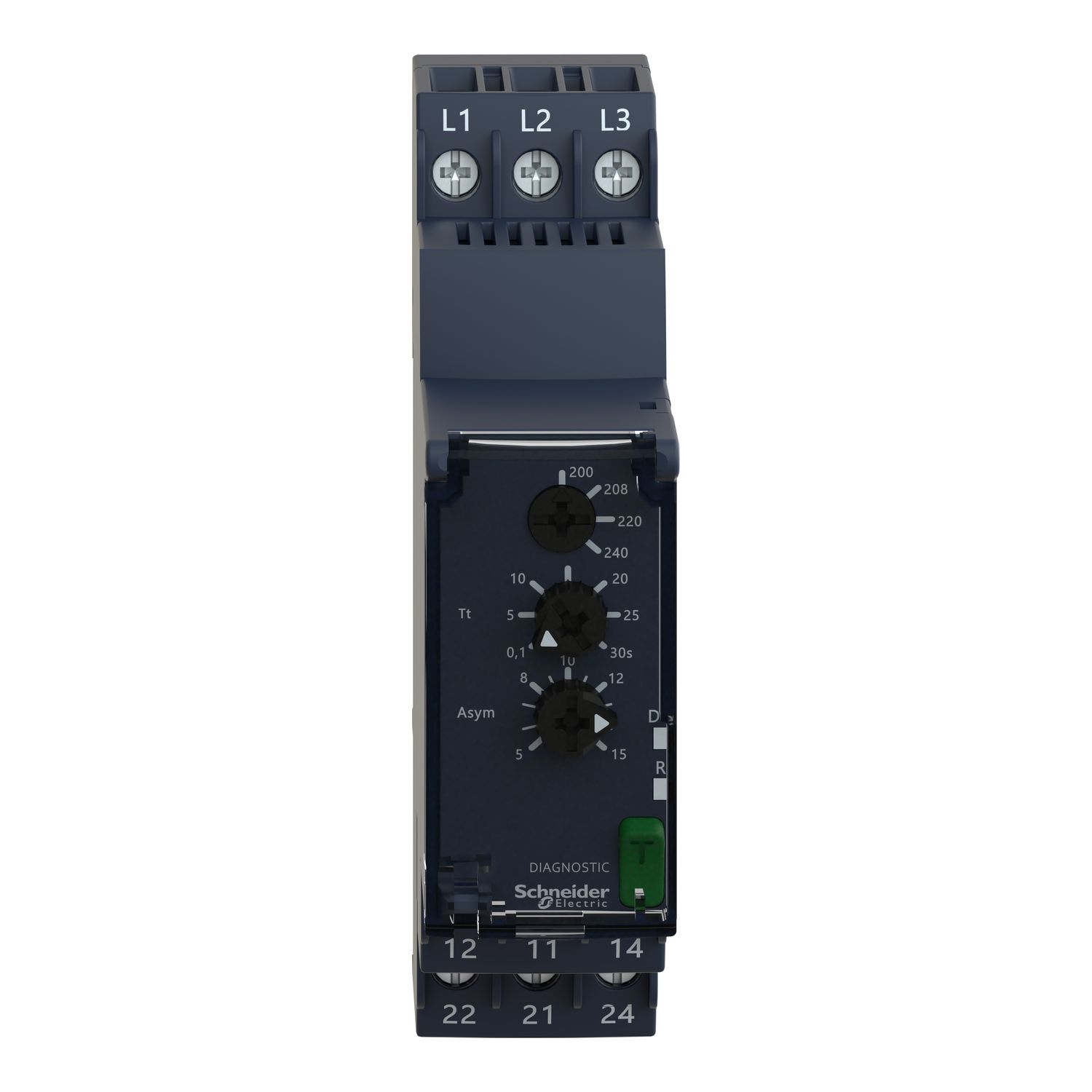

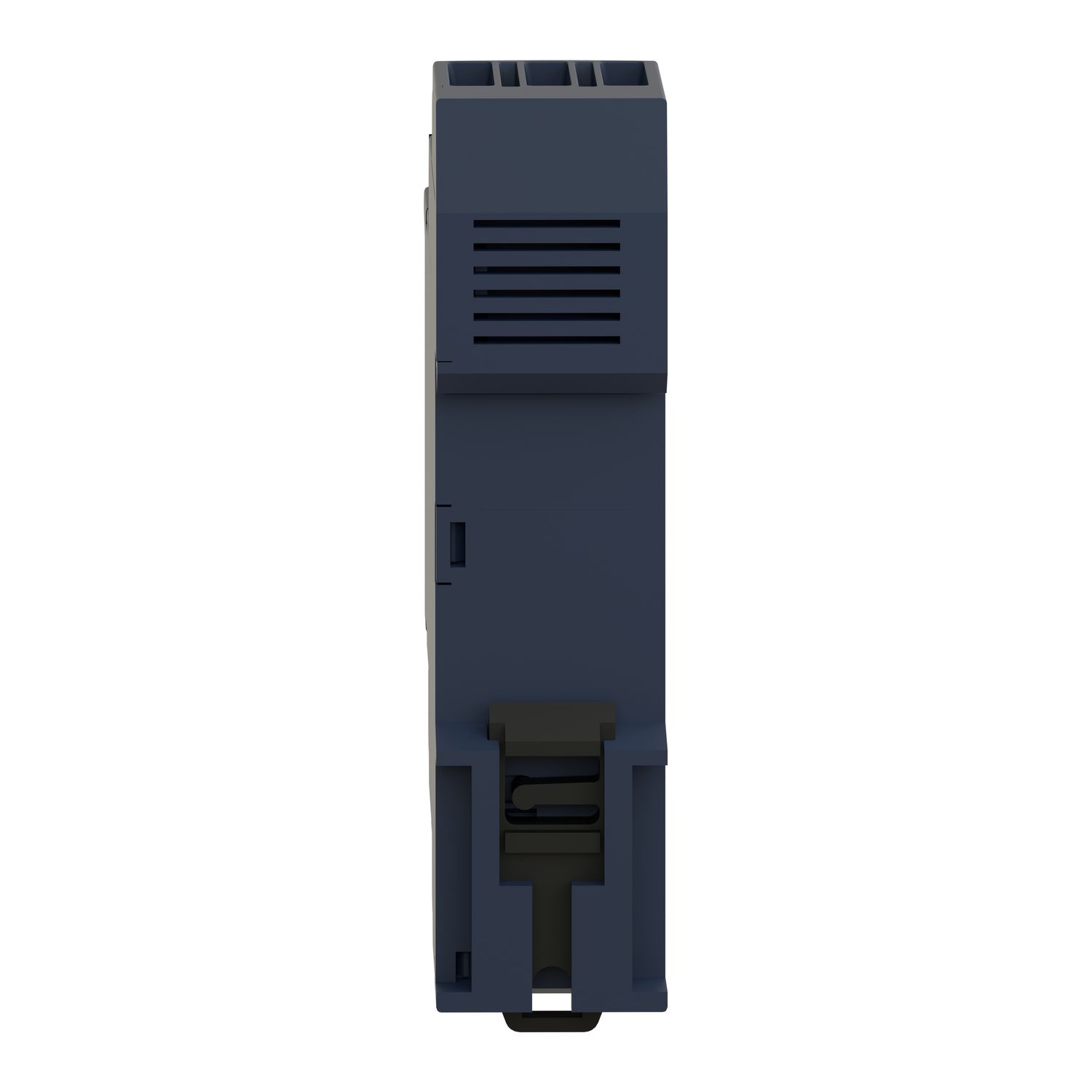

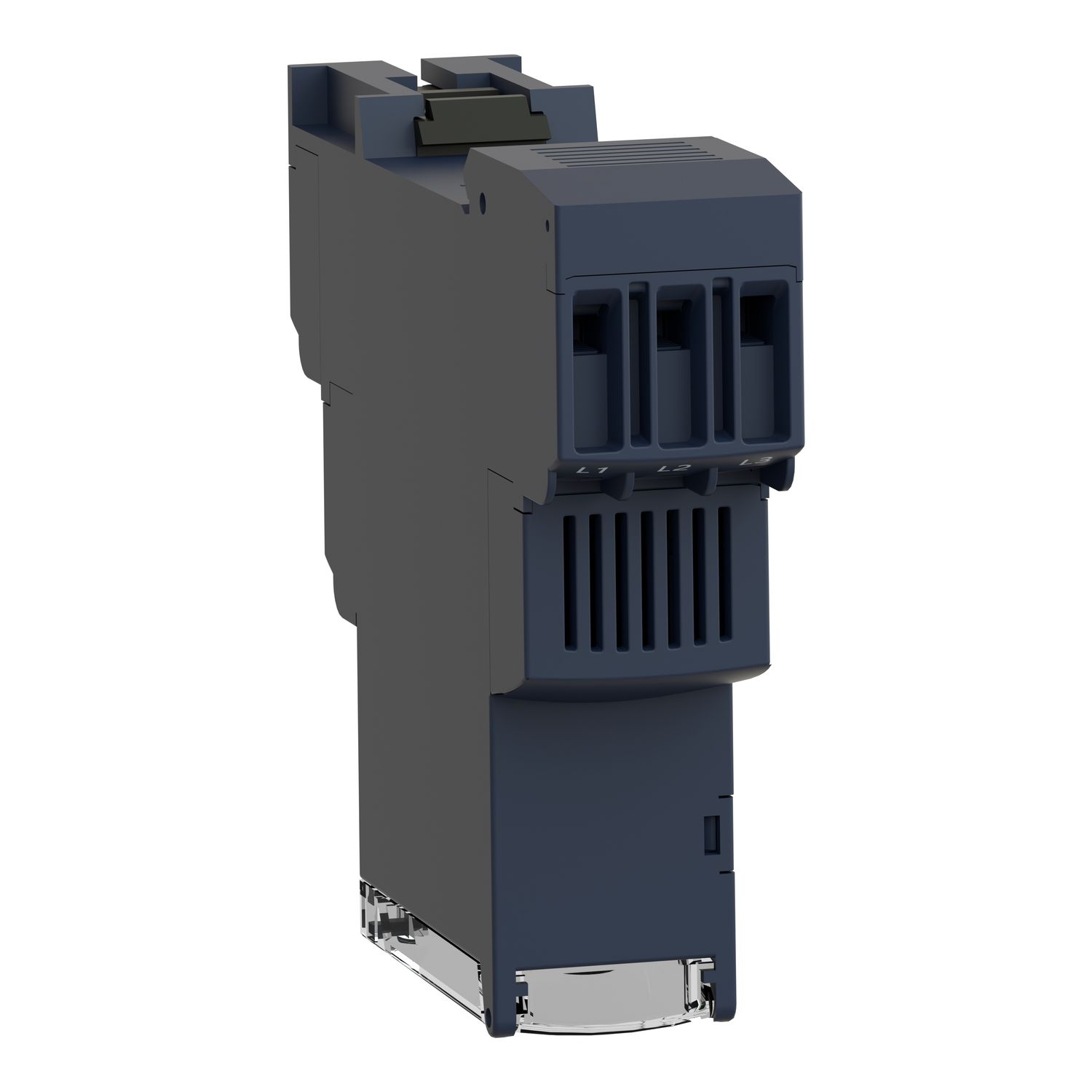

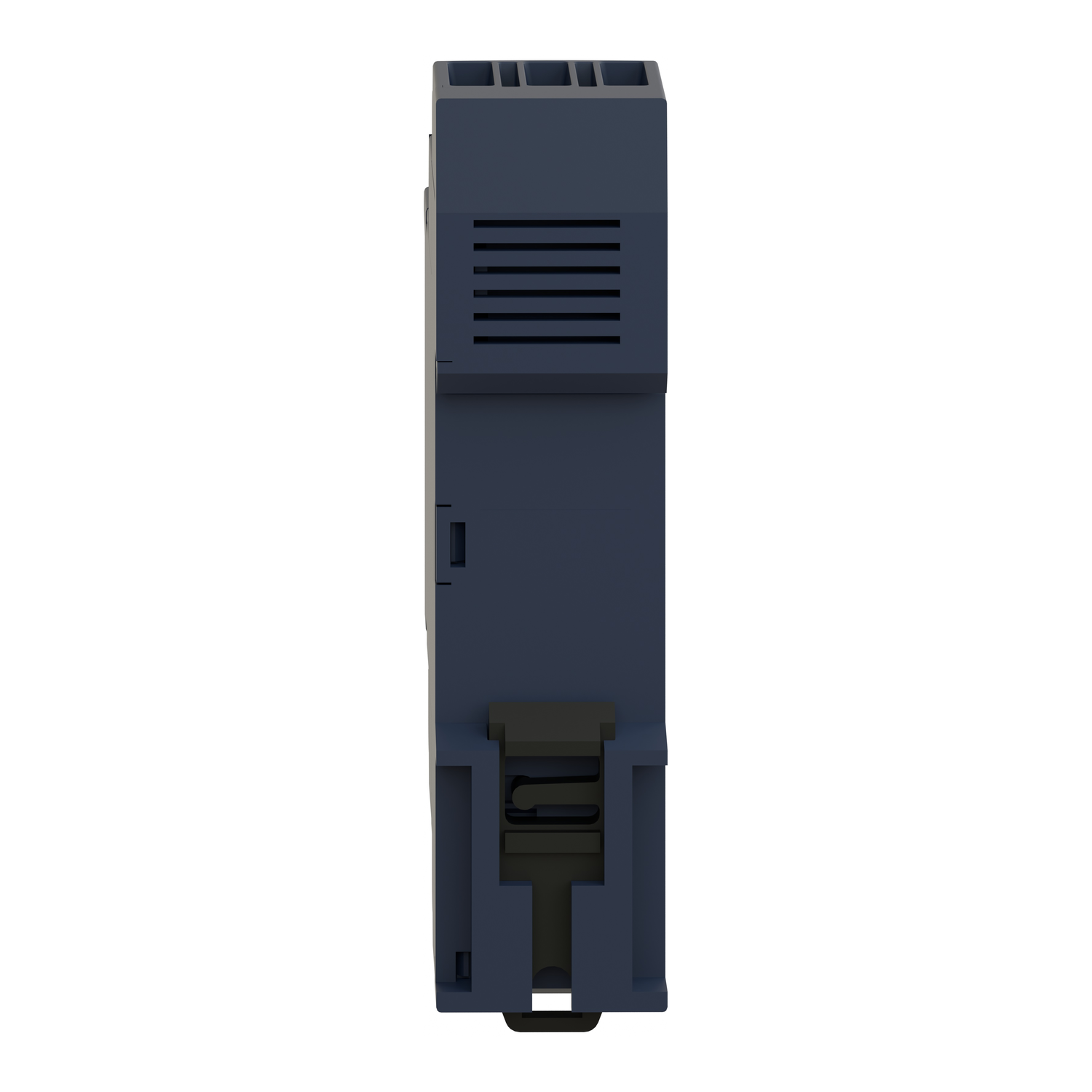

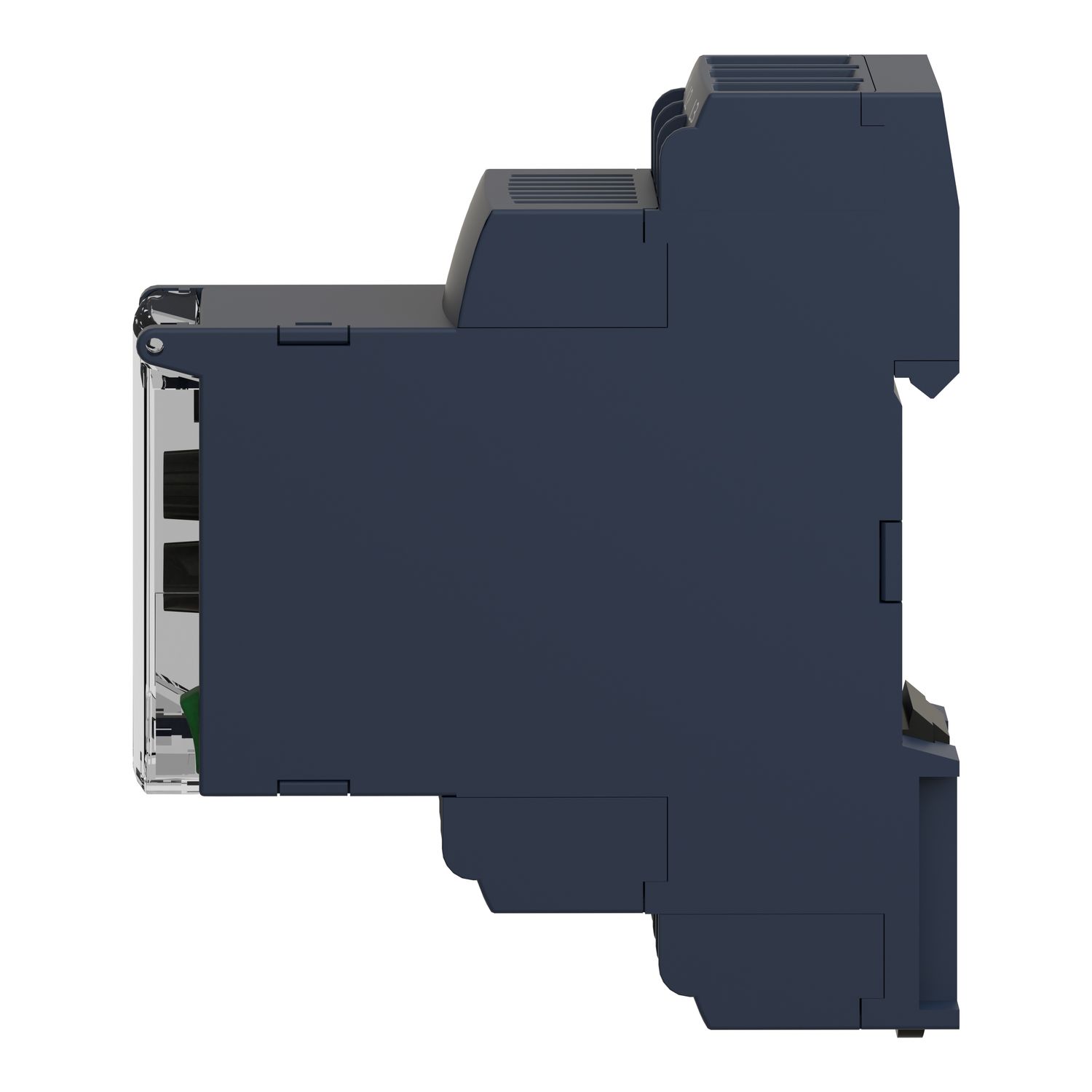

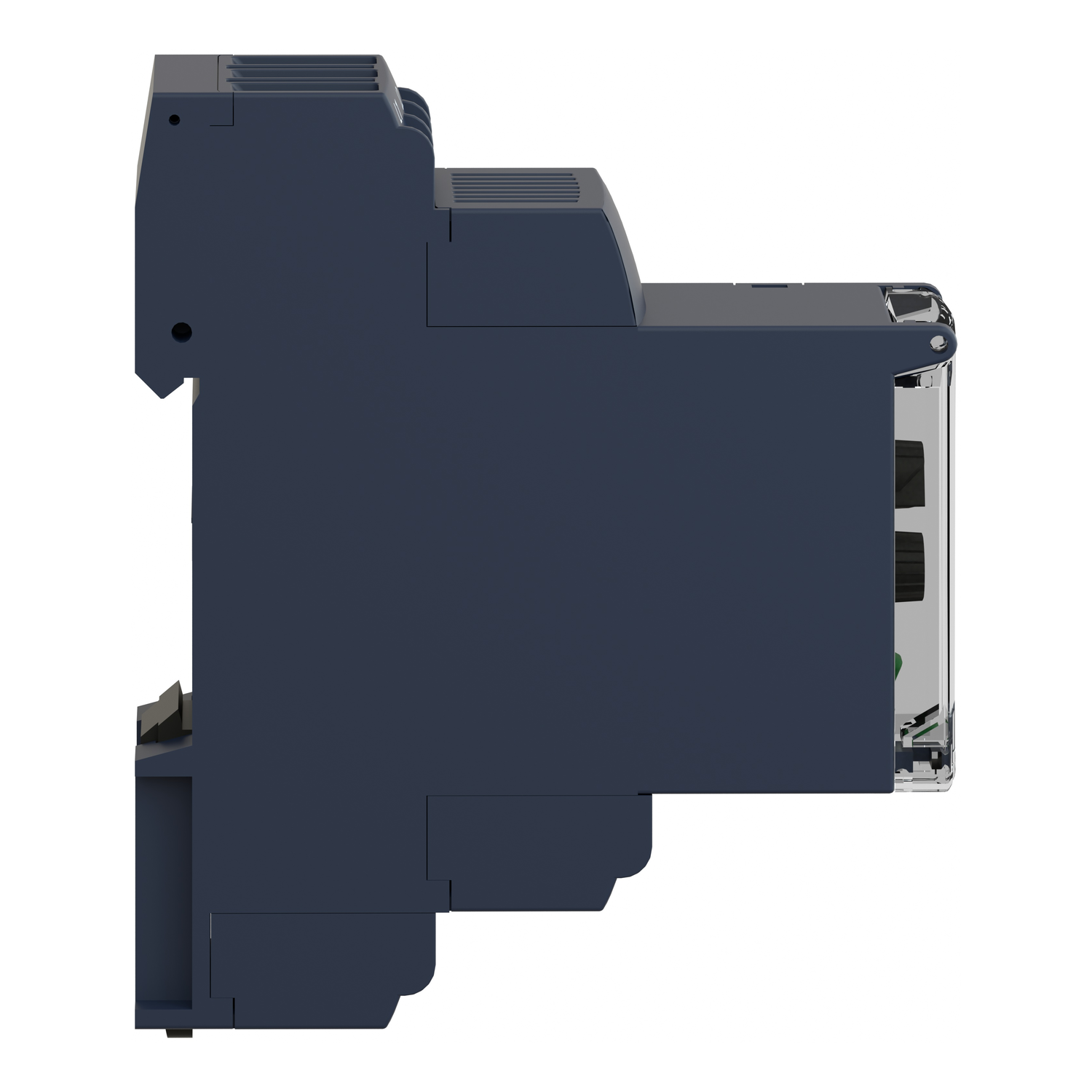

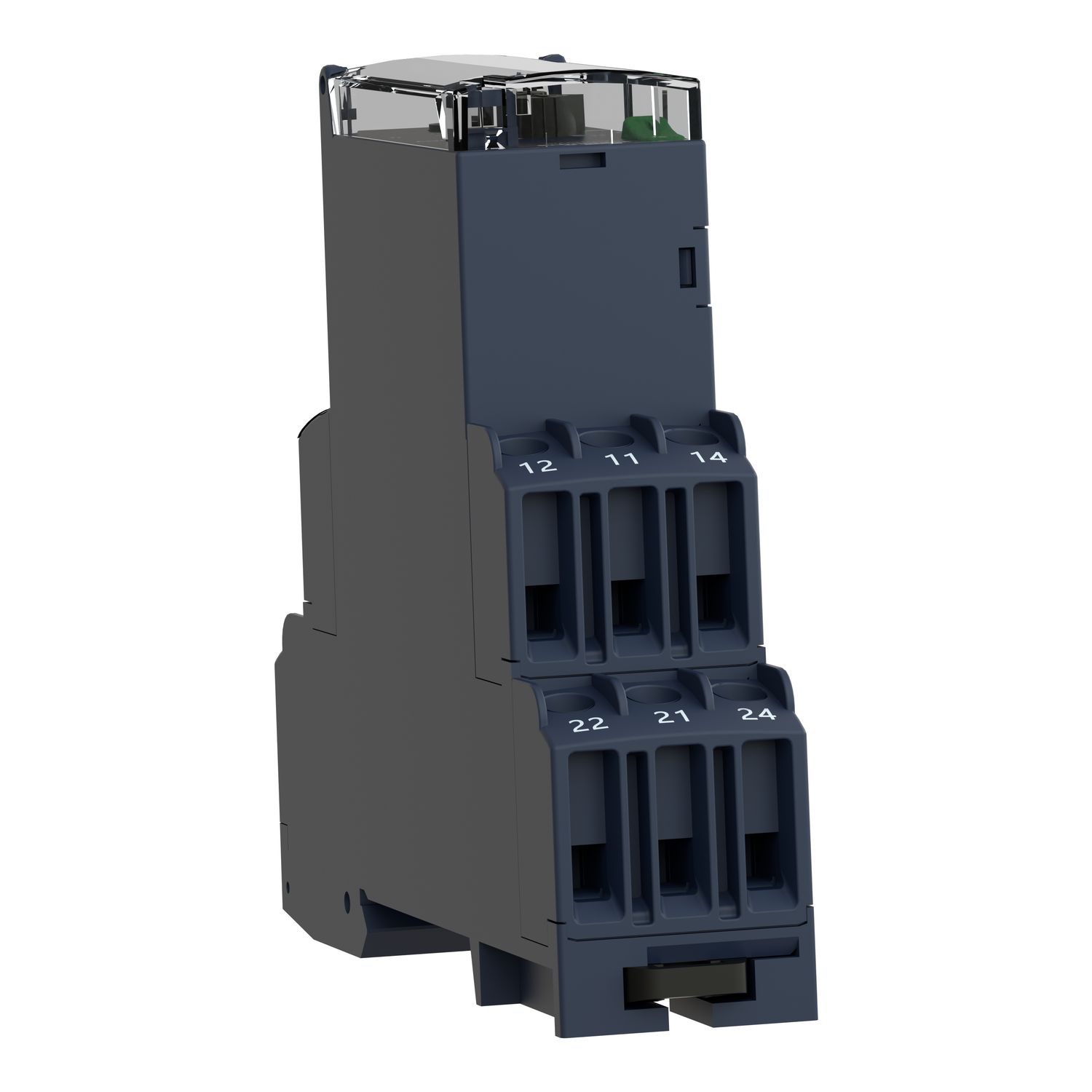

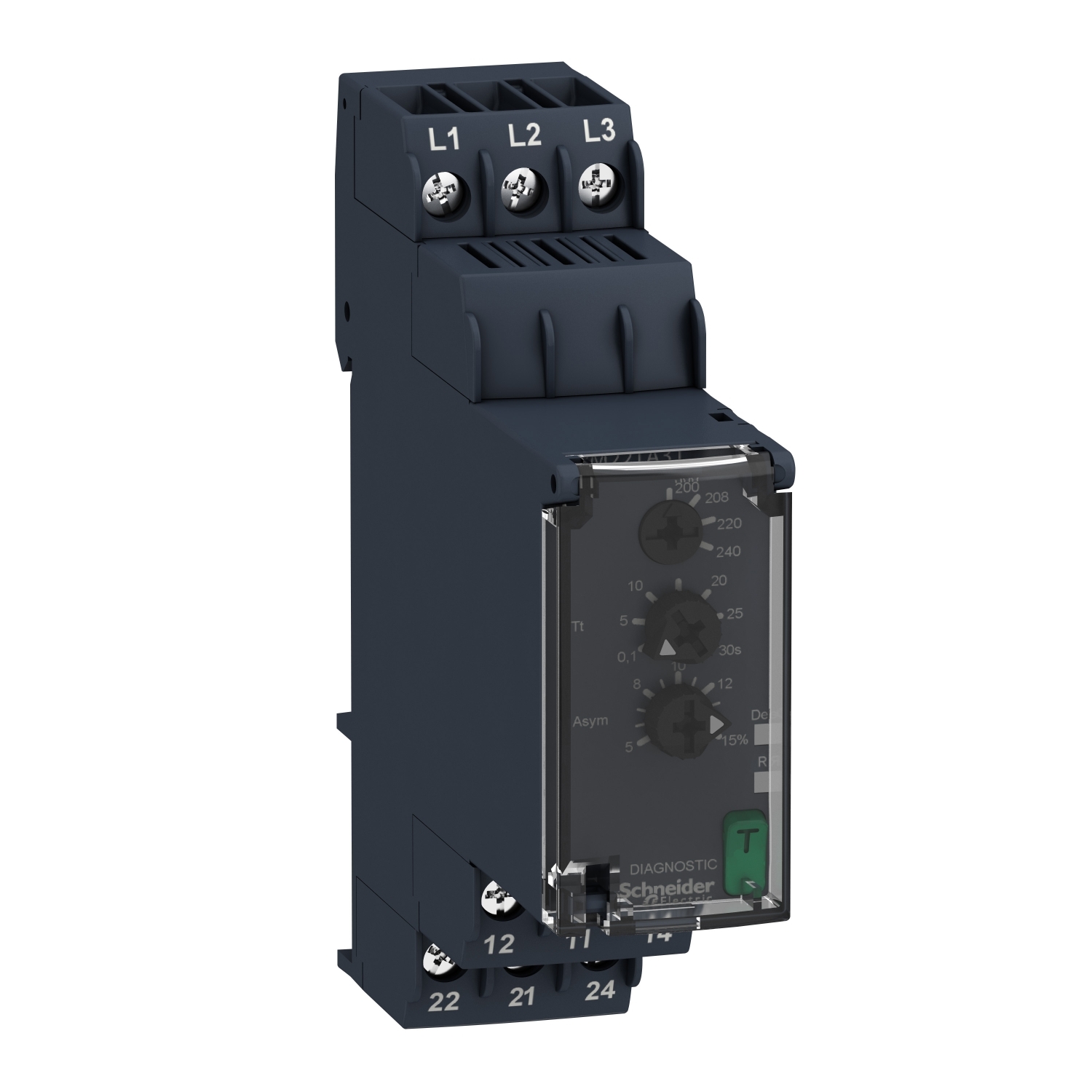

This Harmony RM22TA asymmetry control relay allows monitoring of power supply circuits in 3-phase networks. This modular 3-phase control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Uc] control circuit voltage | 200...240 V |
| Relay type | control relay |
| Relay name | RM22TA |
| Measurement range | 200...240 V voltage AC |
| Range of product | Harmony Control Relays |
| [In] rated current | 8 A |
| Relay monitored parameters | phase sequence, phase failure detection, asymmetry |
| Time delay type | adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault |
| Contacts type and composition | 2 C/O |
| Network number of phases | 3 phases |
| Product or component type | 3-phase control relay |
| Switching capacity in VA | 2000 VA |
| Connections - terminals | screw connectors |
| Complementary | |
| Run-up delay at power-up | 650 ms |
| Tightening torque | 0.6-1 N.m conforming to IEC 60947-1 |
| Control circuit voltage limits | - 20 % + 20 % Un |
| Compatibility code | RM22 |
| Mechanical durability | 10000000 cycles |
| Supply voltage limits | 160-288 V AC |
| Time delay drift | <= 1 % within the supply voltage range, <= 0.05 % per degree centigrade depending permissible ambient air temperature |
| Control type | with test button |
| Setting accuracy of the switching threshold | +/- 10 % of the full scale |
| Adjustment of asymmetry threshold | 5...15 % of Un selected |
| Voltage detection threshold | < 100 V AC |
| Contacts material | cadmium free |
| Power consumption in VA | 10-10 VA at 240 V AC 60 Hz |
| Status LED | LED (green) power ON, LED (yellow) relay ON |
| Measurement error | < 0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation |
| Maximum switching current | 8 A AC |
| Switching threshold drift | <= 1 % within the supply voltage range, <= 0.05 % per degree centigrade depending permissible ambient air temperature |
| Safety reliability data | B10d = 350000, MTTFd = 388.1 years |
| Repeat accuracy | +/- 3 % for time delay, +/- 0.5 % for input and measurement circuit |
| Supply frequency | 50...60 Hz +/- 10 % |
| Electrical durability | 100000 cycles |
| Width | 22.5 mm |
| Mounting position | any position |
| Housing material | self-extinguishing plastic |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Setting accuracy of time delay | 10 P |
| Overvoltage category | III conforming to UL 508, III conforming to IEC 60664-1 |
| Connections - terminals | screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end |
| Reset time | 1500 ms at maximum voltage |
| Insulation resistance | > 100 MOhm at 500 V DC conforming to IEC 60255-27 |
| Maximum switching voltage | 250 V AC |
| Net weight | 0.09 kg |
| Utilisation category | DC-1 conforming to IEC 60947-4-1, AC-1 conforming to IEC 60947-4-1, DC-13 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1 |
| Response time | <= 300 ms |
| Output contacts | 2 C/O |
| [Us] rated supply voltage | self-powered, AC/DC |
| Hysteresis | 2-2 % fixed of selectable |
| Maximum measuring cycle | 150 ms measurement cycle as true rms value |
| Minimum switching current | 10 mA at 5 V DC |
| Voltage range | 200...240 V phase to phase |
| Environment | |
| Relative humidity | 93-97 % at 25-55 °C conforming to IEC 60068-2-30 |
| Ambient air temperature for storage | -40-70 °C |
| Pollution degree | 3 conforming to UL 508, 3 conforming to IEC 60664-1 |
| IP degree of protection | IP50 (front panel) conforming to IEC 60529, IP40 (housing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529 |
| Ambient air temperature for operation | -20-60 °C at 50 Hz AC/DC, -20-50 °C at 60 Hz |
| Electromagnetic compatibility | conducted and radiated emissions class B conforming to CISPR 22, conducted and radiated emissions class B group 1 conforming to CISPR 11, surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5, electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, emission standard for industrial environments conforming to IEC 61000-6-4, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, immunity for industrial environments conforming to IEC 61000-6-2, immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 |
| Vibration resistance | 0.5 gn (f= 58.1-150 Hz) in operation conforming to IEC 60068-2-6, 0.035 mm (f= 58.1-150 Hz) in operation conforming to IEC 60068-2-6, 1 gn (f= 10-58.1 Hz) not in operation conforming to IEC 60068-2-6, 0.075 mm (f= 10-58.1 Hz) not in operation conforming to IEC 60068-2-6 |
| Shock resistance | 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27, 15 gn (duration = 11 ms) for not in operation conforming to IEC 60068-2-27 |
| Immunity to microbreaks | 10 ms |
| Dielectric test voltage | 2.5 kV, 1 min AC 50 Hz conforming to IEC 60255-27 |
| Standards | IEC 60255-1 |
| Product certifications | CE, CCC, RCM, CSA, UL, EAC, GL |
