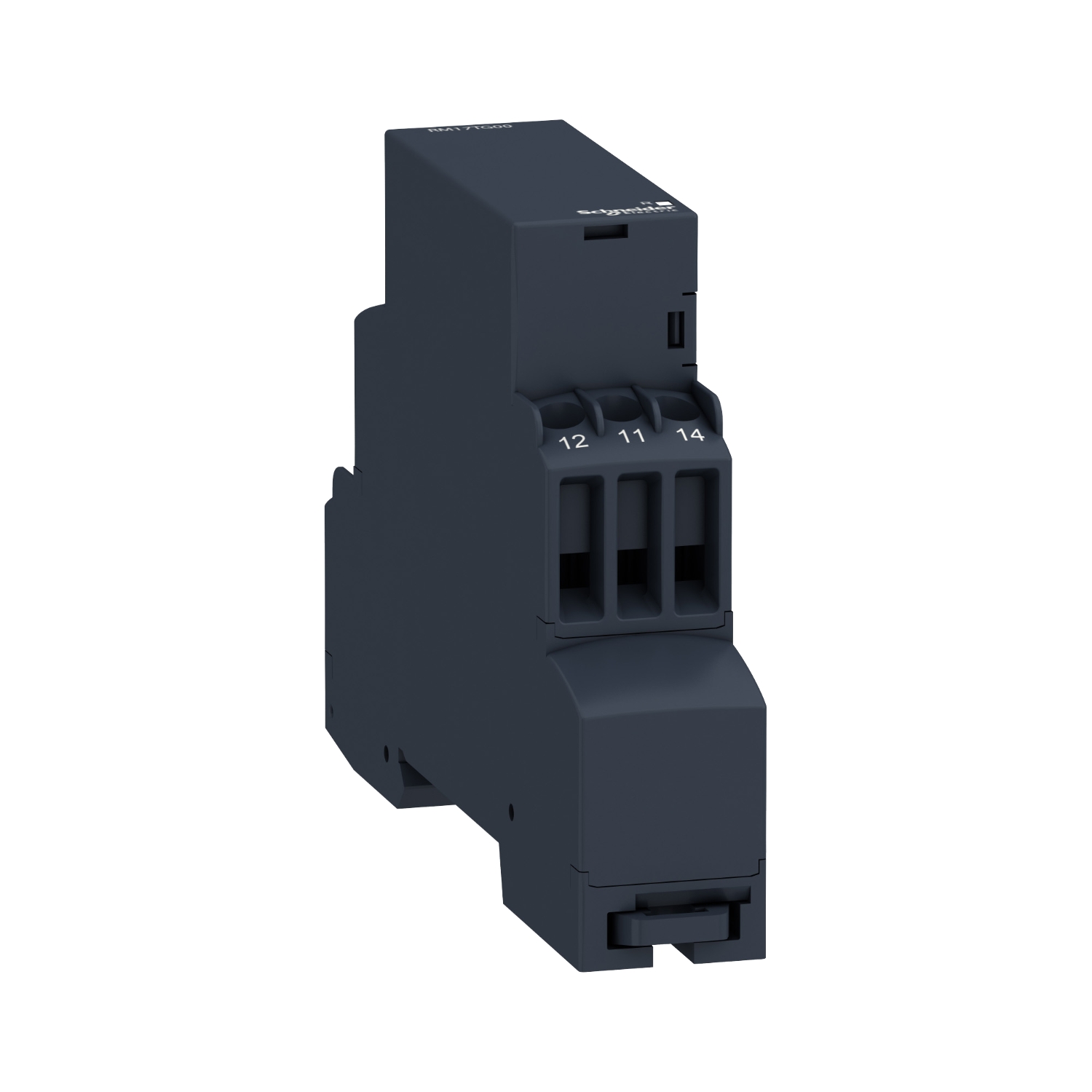

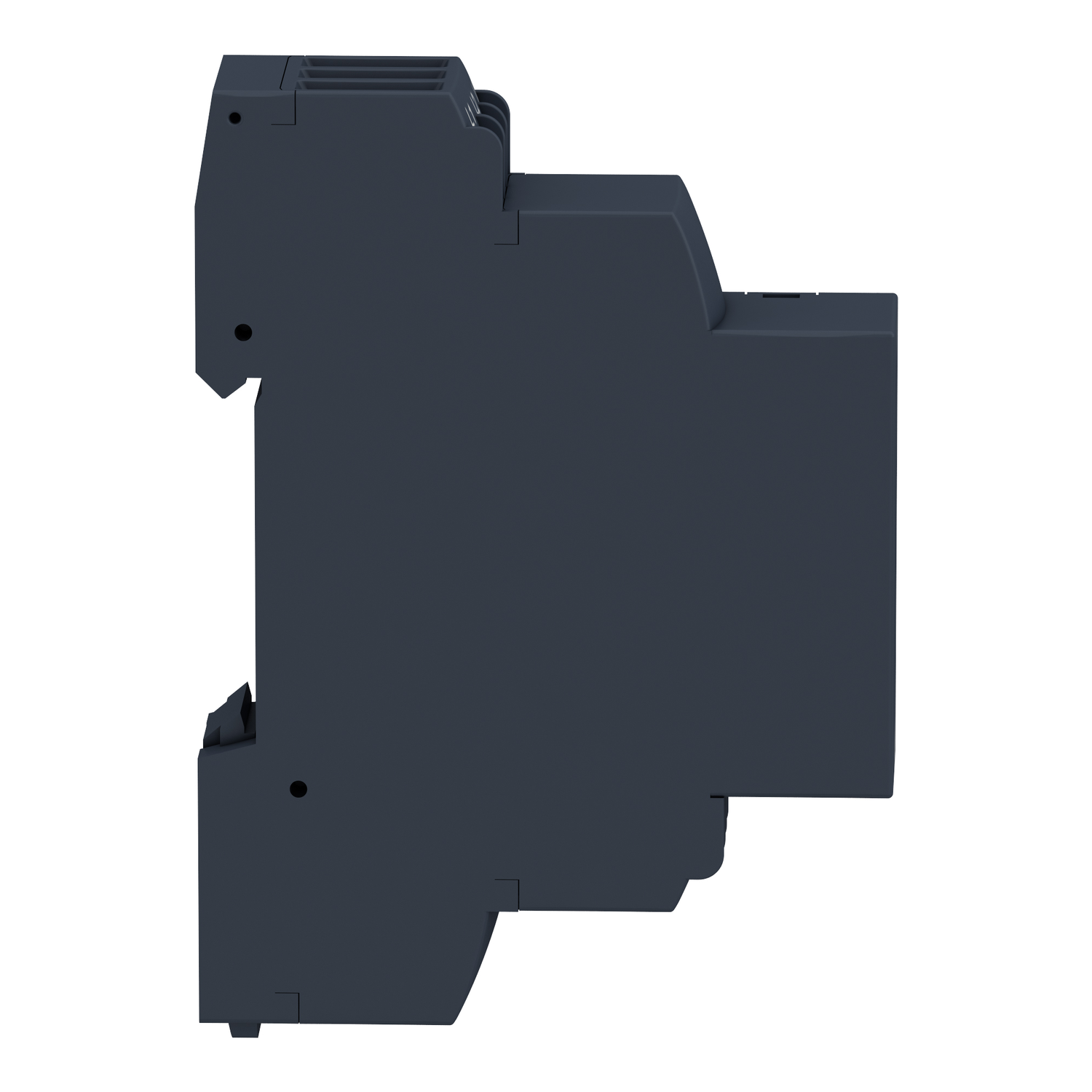

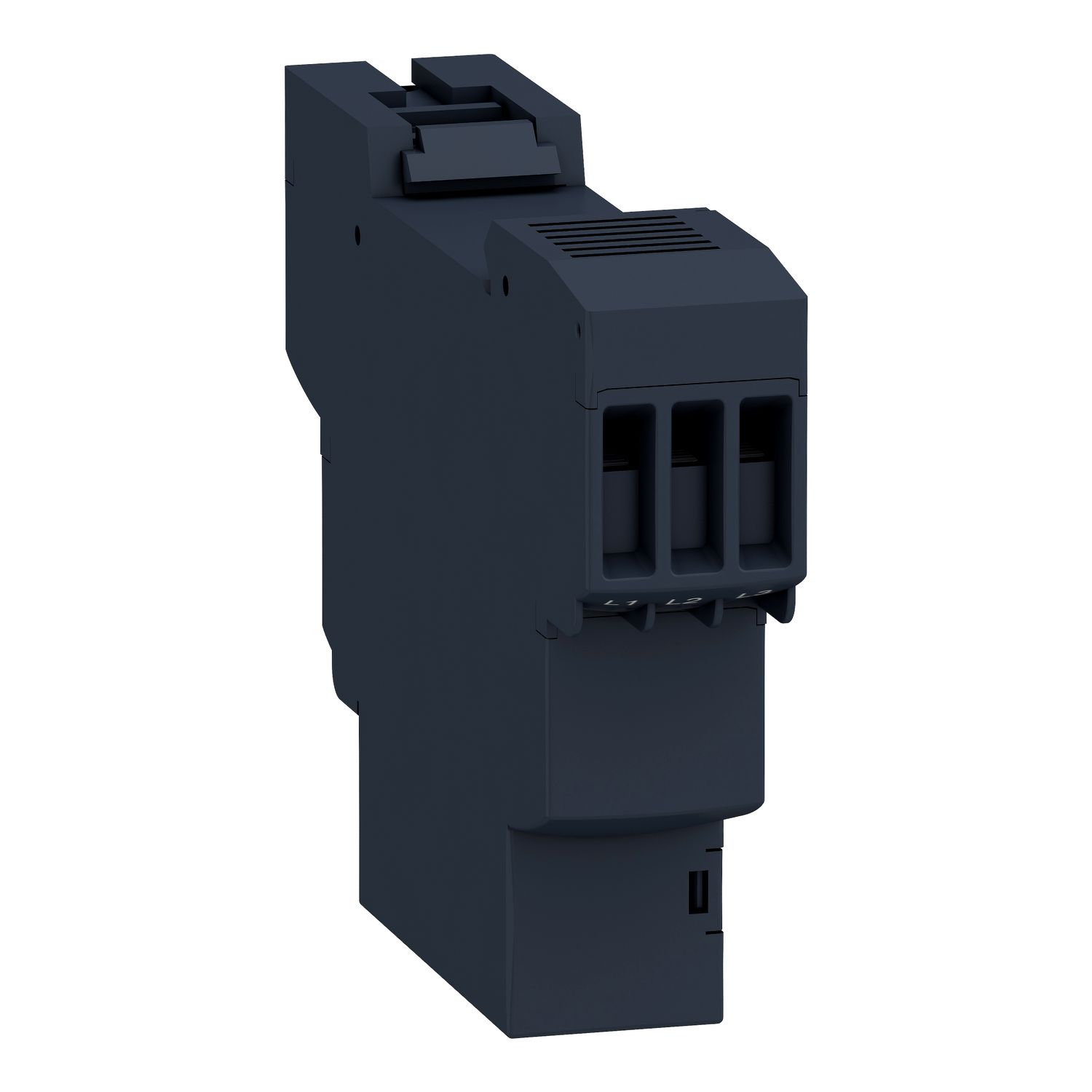

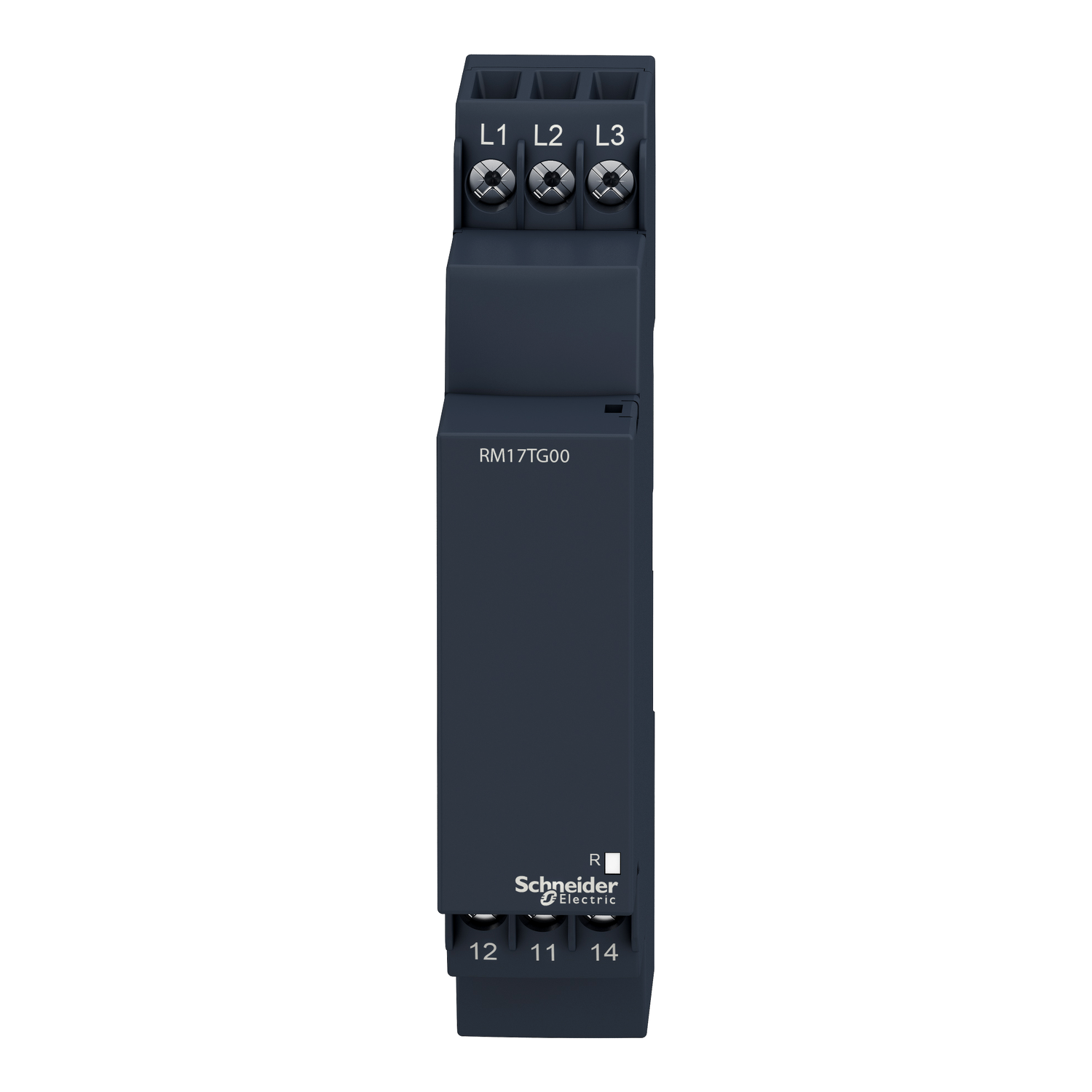

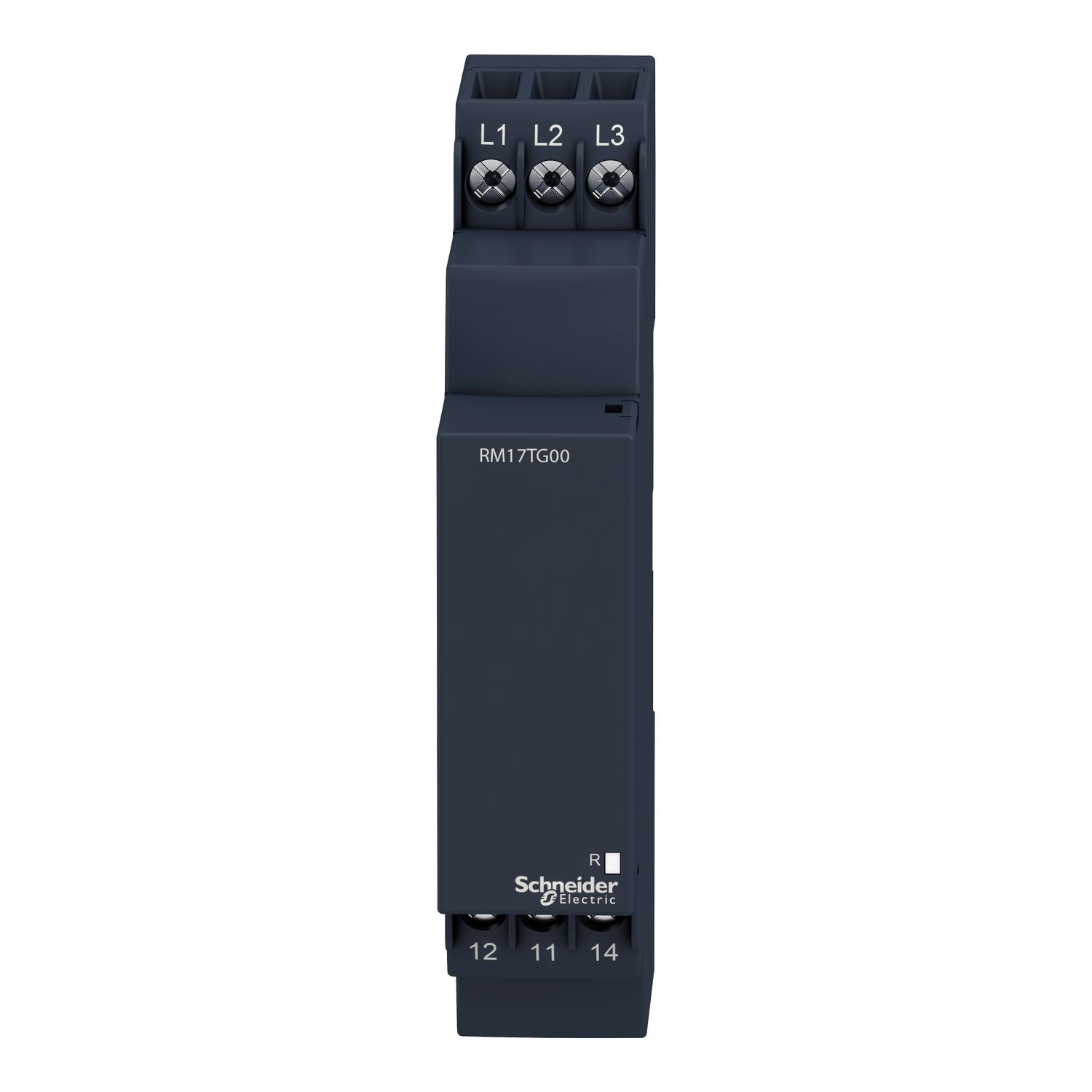

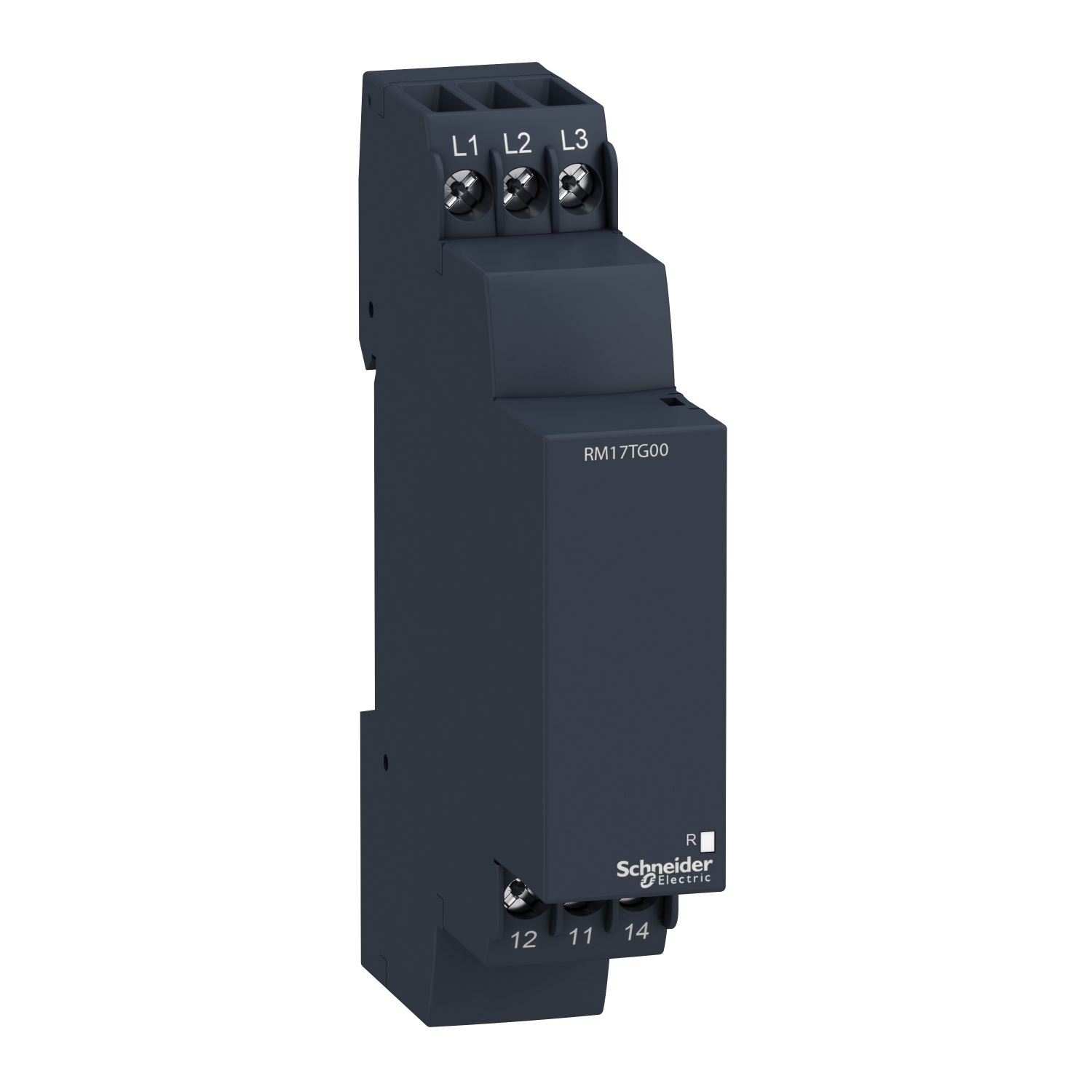

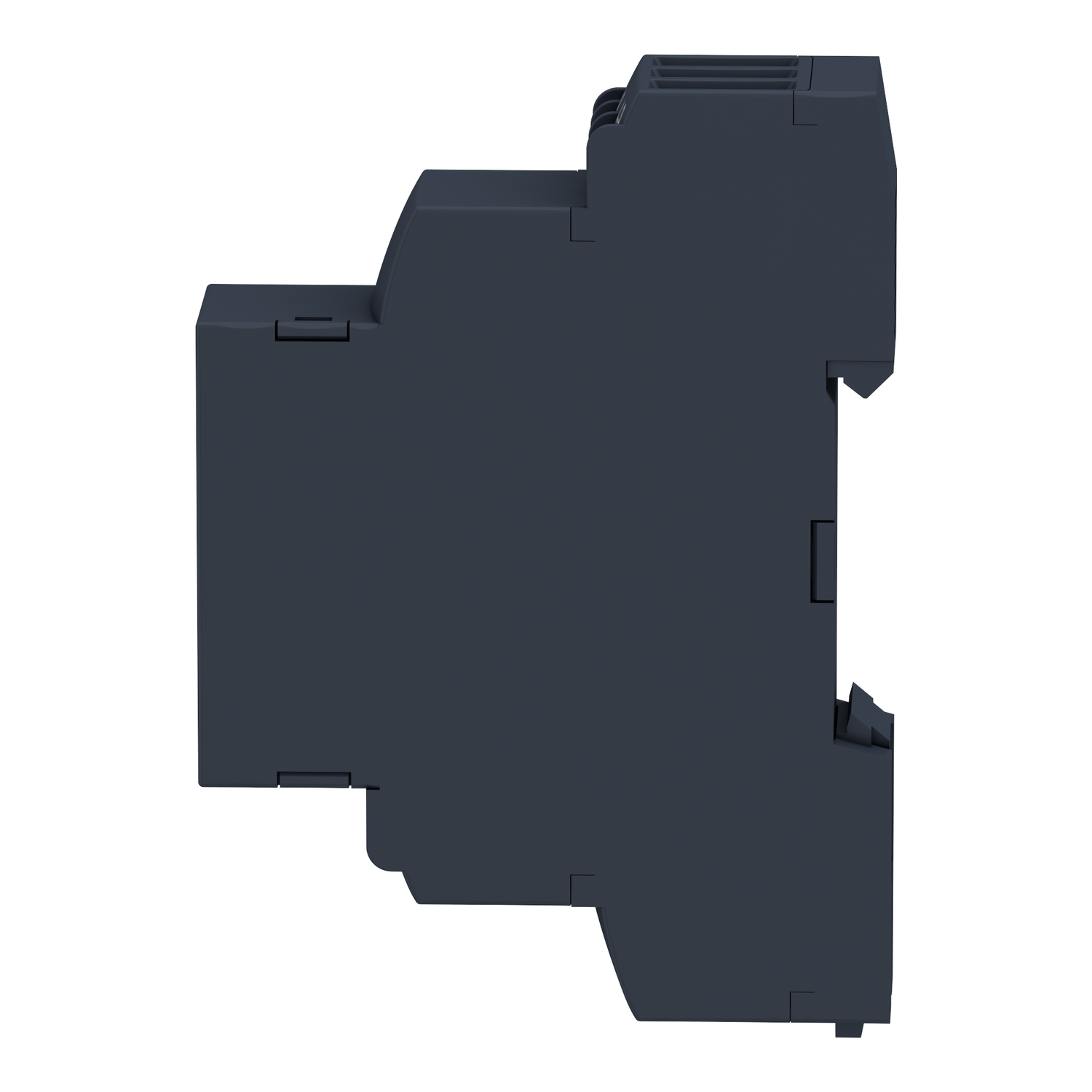

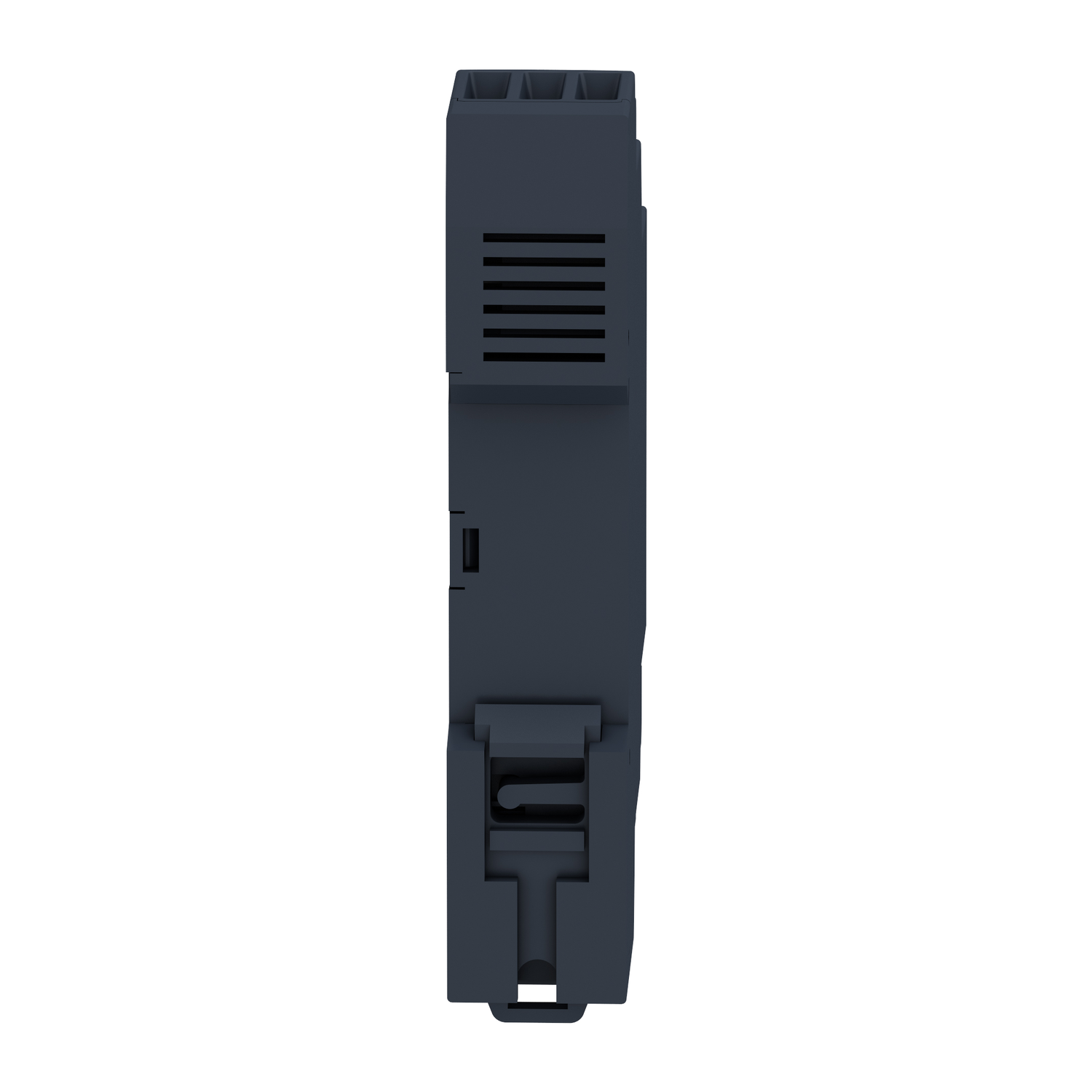

This Harmony RM17-TG relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. The product monitors its own power supply, when the power supply is abnormal, the output relay de-energizes. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Relay type | control relay |
| Product specific application | for 3-phase supply |
| Contacts type and composition | 1 C/O |
| Switching capacity in VA | 1250 VA |
| [Uc] control circuit voltage | 208...480 V |
| Relay name | RM17TG |
| Measurement range | 208...480 V voltage AC |
| Range of product | Harmony Control Relays |
| [In] rated current | 5 A |
| Relay monitored parameters | phase failure detection (2 or more phase cut), phase sequence |
| Time delay type | without |
| Product or component type | 3-phase control relay |
| Connections - terminals | screw connectors |
| Complementary | |
| Run-up delay at power-up | 650 ms |
| Compatibility code | RM17 |
| Insulation resistance | > 500 MOhm at 500 V DC conforming to IEC 60664-1, > 500 MOhm at 500 V DC conforming to IEC 60255-5 |
| Control circuit voltage limits | - 12 % + 10 % Un |
| Safety reliability data | B10d = 850000, MTTFd = 924.6 years |
| Electrical durability | 100000 cycles |
| Housing material | self-extinguishing plastic |
| Nominal output current | 5 A |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| [Ui] rated insulation voltage | 400 V conforming to IEC 60664-1 |
| Connections - terminals | screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end |
| Maximum switching voltage | 250 V DC, 250 V AC |
| Net weight | 0.13 kg |
| Minimum switching current | 10 mA at 5 V DC |
| Supply frequency | 50/60 Hz +/- 10 % |
| Tightening torque | 0.6-1 N.m conforming to IEC 60947-1 |
| Control circuit frequency | 50...60 Hz +/- 10 % |
| Mechanical durability | 30000000 cycles |
| Supply voltage limits | 183-528 V AC |
| Control type | without test button |
| Marking | CE |
| Voltage detection threshold | < 100 V AC |
| Power consumption in VA | 0-22 VA at 400 V AC 50 Hz |
| Width | 17.5 mm |
| Local signalling | LED (yellow) for relay ON |
| Overvoltage category | III conforming to IEC 60664-1 |
| Measurement voltage limits | 183-528 V AC |
| Utilisation category | DC-13 conforming to IEC 60947-5-1, DC-12 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1, AC-14 conforming to IEC 60947-5-1, AC-13 conforming to IEC 60947-5-1, AC-12 conforming to IEC 60947-5-1 |
| Operating position | any position without derating |
| Response time | <= 130 ms (in the event of a fault) |
| Output contacts | 1 C/O |
| Operating rate | <= 360 operations/hour full load |
| [Us] rated supply voltage | self-powered |
| Voltage range | 183...528 V |
| Environment | |
| Relative humidity | 95-95 % at 55-55 °C conforming to IEC 60068-2-30 |
| Ambient air temperature for storage | -40-70 °C |
| Non-dissipating shock wave | 4 kV |
| Dielectric test voltage | 2 kV, 1 min AC 50 Hz |
| Product certifications | GOST, UL, CSA, GL, C-Tick |
| Directives | 89/336/EEC - electromagnetic compatibility, 73/23/EEC - low voltage directive |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP30 (casing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529 |
| Ambient air temperature for operation | -20-50 °C |
| Electromagnetic compatibility | immunity for industrial environments conforming to IEC 61000-6-2, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, emission standard for industrial environments conforming to IEC 61000-6-4 |
| Vibration resistance | 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1, 0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60255-21-1 |
| Standards | IEC 60255-1 |
