Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Us] rated supply voltage | 48...127 V DC tolerance: - 20...10 %, 48...127 V AC 50/60 Hz tolerance: - 20...10 %, 24...30 V DC tolerance: - 20...10 %, 24...30 V AC 50/60 Hz tolerance: - 20...10 % |

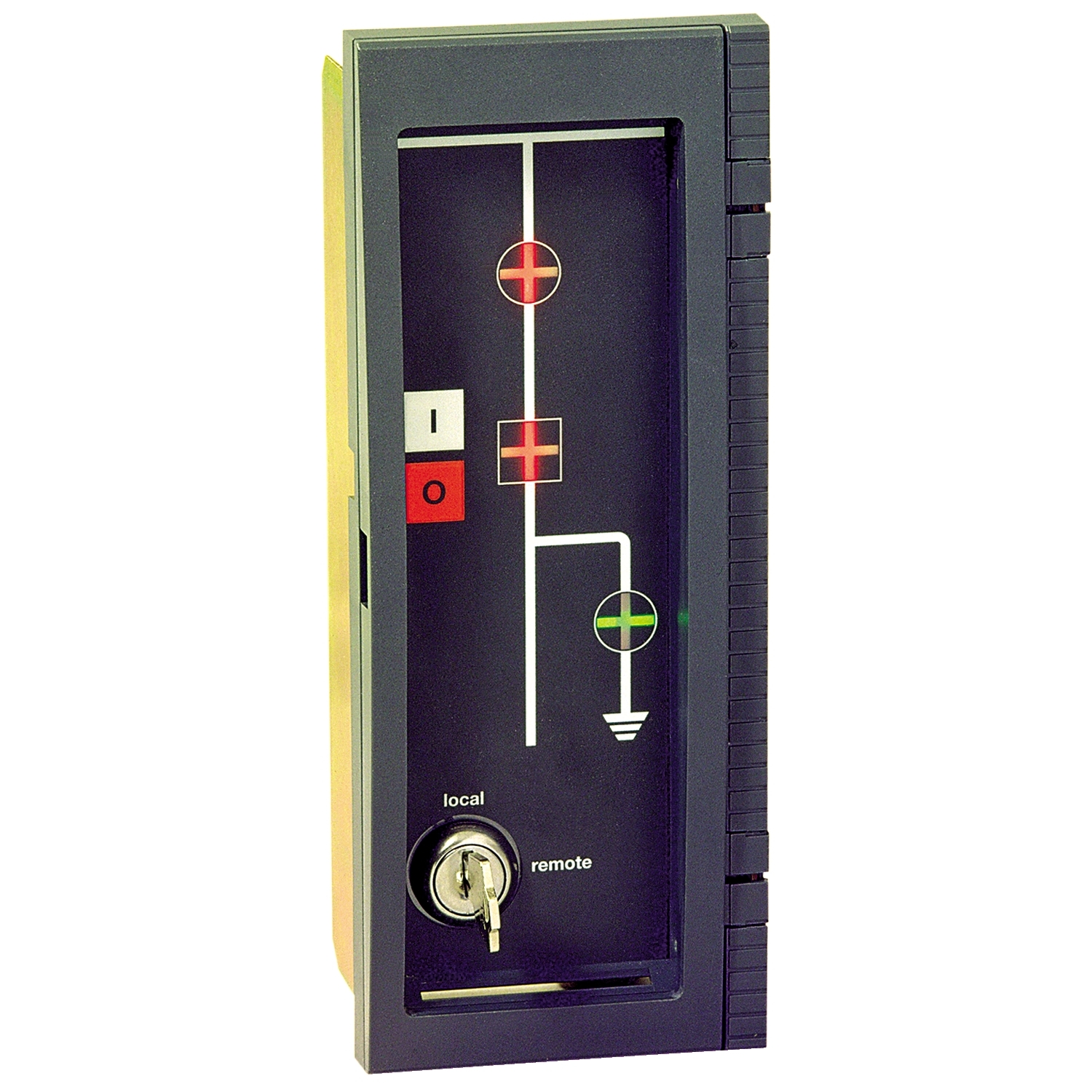

| Device short name | X00 |
| Power consumption in VA | 18 VA at 110 V, 4 VA at 48 V, 7.7 VA 24...30 V (maximum at 33 V) |
| Relay application | mimic for incomer with earthing disconnector, mimic for outgoer with earthing disconnector |
| Local signalling | signal lamp for earthing disconnector closed (front face), signal lamp for earthing disconnector open (front face), signal lamp for isolating disconnector closed (front face), signal lamp for isolating disconnector open (front face) |
| Range of product | Sepam 100MI |
| Mounting mode | flush-mounted |
| Input output max capacity | 4 inputs |
| Logic input number | 4 48...127 V AC/DC 34 mA, 4 24...30 V AC/DC 35 mA |
| Complementary | |
| Net weight | 0.85 kg |
| Depth | 75 mm |
| Width | 88 mm |
| Electrical durability | 10000 cycles at on load |
| Height | 222 mm |
| Environment | |
| [Uimp] rated impulse withstand voltage | 5 kV (1.2/50 µs) conforming to IEC 60255-4 |
| Fire resistance | 650 °C conforming to NF C 20-455 |
| IP degree of protection | front face: IP51 conforming to IEC 60529 |
| Electromagnetic compatibility | fast transient bursts: (immunity tests-conducted disturbances), class IV, 5 ns, conforming to IEC 60255-22-4, damped oscillatory wave: (immunity tests-conducted disturbances), class III, 1 MHz, conforming to IEC 60255-22-1, electrostatic discharge: (immunity tests-radiated disturbances), class III, conforming to IEC 60255-22-2, radiated RF fields: (immunity tests-radiated disturbances), class X, 30 V/m, conforming to IEC 60255-22-3 |
| Climatic withstand | exposure to dry heat (in storage) : - 25...70 °C conforming to IEC 60068-2, exposure to dry heat (in operation) : - 10...70 °C conforming to IEC 60068-2, exposure to damp heat (in operation) : 95 % RH at 40 °C conforming to IEC 60068-2 |
| Power frequency dielectric withstand | 2 kV during 60 s conforming to IEC 60255-4 |
| Mechanical robustness | fire resistance glow wire: 650 °C conforming to NF C 20-455, seismic tests (level: class I) conforming to IEC 60255-21-3, shocks (level: class I) conforming to IEC 60255-21-2, vibrations (level: class I) conforming to IEC 60255-21-1 |
| Product certifications | CE |
