Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Analogue output number | 0 |
| Connections - terminals | screw removable (digital input/output), ring lugs removable (current transformer), pin removable (voltage transformer) |
| Network and machine diagnosis type | event recording, disturbance recording, tripping context |
| Transmission support medium | copper cable external module, fiber optic cable external module |
| Number of outputs | 1 watchdog, 8 |
| Relay application | universal |
| Product or component type | protection relay |
| Single line diagram | 4 controlled + 8 displayed |
| Analogue input number | 0 |
| Control type | switchgear control and monitoring, programmable switchgear interlocking, local control on single-line diagram, local control with I/O keys, local/remote control, 2 function keys, mobile application with Easergy SmartApp, web-server, programmable logic |
| Setting | 4 |
| Integrated connection type | USB port 1 front, RS485 1 rear |
| Cybersecurity | password protection, port hardening |
| Number of sensors | 0 temperature sensor(s) , 0 arc sensor(s) |
| Switchgear diagnosis type | CT/VT supervision ANSI code: 60, CT supervision, trip circuit supervision ANSI code: TCS |
| Arc flash protection | no |
| [Us] rated supply voltage | 48...230 V AC/DC |
| Input type | : 1/5 A CT phase current 3 , : 1/5 A CT residual current 1 , : 100 V/110 V VT voltage 4 |
| Range of product | PowerLogic P3 |
| Protection type | phase overcurrent 50/51, directional phase overcurrent 67, earth fault overcurrent 50N/51N, directional earth fault 67N, transient earth fault 67NI, capacitor bank unbalance 51C, broken conductor 46 I2/I1, cold load pick-up, switch ON to fault (SOTF), breaker failure 50BF, directional active underpower 37P, fault locator 21FL, recloser 79, phase undercurrent 37, excessive starting time, locked rotor 48/51LR, motor restart inhibition 66, capacitor overvoltage 59C, negative sequence overcurrent 46, overvoltage 59, undervoltage 27, positive sequence undervoltage 27P, earth fault overvoltage 59N, underfrequency 81/81N, rate of change of frequency 81R, synchro-check 25, lockout relay 86, CT supervision 60, VT supervision 60, H2 detection 68H2, H5 detection 68H5, programmable stages 99, programmable curve |
| Communication port protocol | IEC 60870-5-101, IEC 60870-5-103, DNP3, Modbus RTU, DeviceNet, SPAbus |
| Mounting case size | 30TE |
| Monitoring function | trip circuit supervision 74, circuit breaker monitoring, relay self-monitoring |
| Digital input number | 16 |
| Type of measurement | current 3-phase, current zero sequence, current positive sequence, current negative sequence, current ratio of negative and positive, voltage phase to earth, voltage phase to phase, voltage zero sequence, voltage positive sequence, voltage negative sequence, voltage ratio of negative and positive, short circuit fault reactance, fault location current, earth fault reactance, frequency, active power, RMS active power, reactive power, RMS reactive power, apparent power, RMS apparent power, active energy, reactive energy, cos φ, tan φ, power angle, power factor, voltage phasor diagram view, current phasor diagram view, current 2nd, 15th harmonics with THD, voltage 2nd, 15th harmonics with THD, voltage interruption, condition monitoring CB wear |

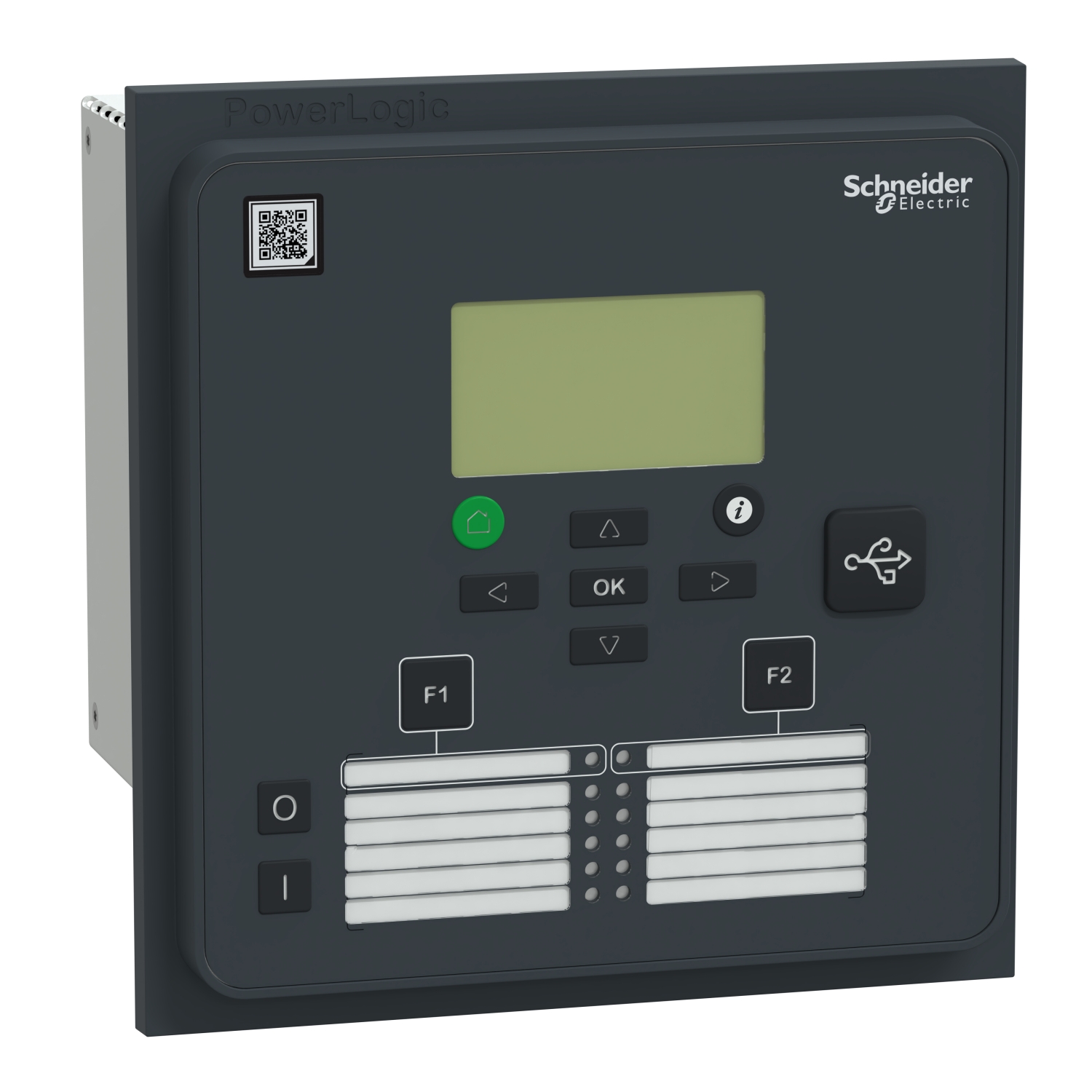

| Device short name | P3U30-6AAA1BBAA |
| Complementary | |
| Number of key | 2 customizable |
| Local signalling | 4 LEDs, 8 LEDs programmable |
| Height | 169.5 mm |
| Standards | IEC |
| Depth | 205 mm |
| Operating threshold | 24...230 V AC/DC |
| Width | 170 mm |
| Display type | LCD 128 x 64 pixels with single line diagram |
| Net weight | 2.5 kg maximum |
| Software name | EcoStruxure Power Device, eSetup Easergy Pro |
| Web server | embedded HTTP server |
| Environment | |
| Environmental characteristic | exposure to dry heat Bb tests conforming to EN/IEC 60068-2-2, exposure to cold Ad tests conforming to EN/IEC 60068-2-1, exposure to damp heat in service Db tests conforming to EN/IEC 60068-2-30, exposure to damp heat in service Cab tests conforming to EN/IEC 60068-2-78 |
| Operating altitude | 2000 m |
| Mechanical robustness | vibrations (level: class II) conforming to IEC 60255-21-1, vibrations: Fc conforming to IEC 60068-2-6, shocks (level: class II) conforming to IEC 60255-21-2, shocks: Ea conforming to IEC 60068-2-27, seismic tests method A (level: class II) conforming to IEC 60255-21-3, bumps (level: class II) conforming to IEC 60255-21-2, bumps: Ea conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -40-65 °C |
| IP degree of protection | IP54 conforming to IEC 60529 |
| Electromagnetic compatibility | emission tests conforming to IEC/EN 60255-26 ed. 3, emission tests conforming to CISPR 11, emission tests conforming to CISPR 22, EMC immunity conforming to IEC/EN 60255-26 ed. 3, EMC immunity conforming to EN/IEC 61000-4-18, EMC immunity level 4 conforming to EN/IEC 61000-4-2, EMC immunity level 3 conforming to EN/IEC 61000-4-3, EMC immunity level 4 conforming to EN/IEC 61000-4-4, EMC immunity level 3 conforming to EN/IEC 61000-4-5, EMC immunity level 3 conforming to EN/IEC 61000-4-6, EMC immunity conforming to EN/IEC 61000-4-8, EMC immunity level 5 conforming to EN/IEC 61000-4-9, EMC immunity conforming to EN/IEC 61000-4-29, EMC immunity conforming to EN/IEC 61000-4-11, EMC immunity conforming to EN/IEC 61000-4-17 |
| Ambient air temperature for storage | -40-70 °C |
| Relative humidity | 0-95 %, without condensation |
| Protective treatment | conformal coating |
| Contractual warranty | |
| Warranty | 24 |
