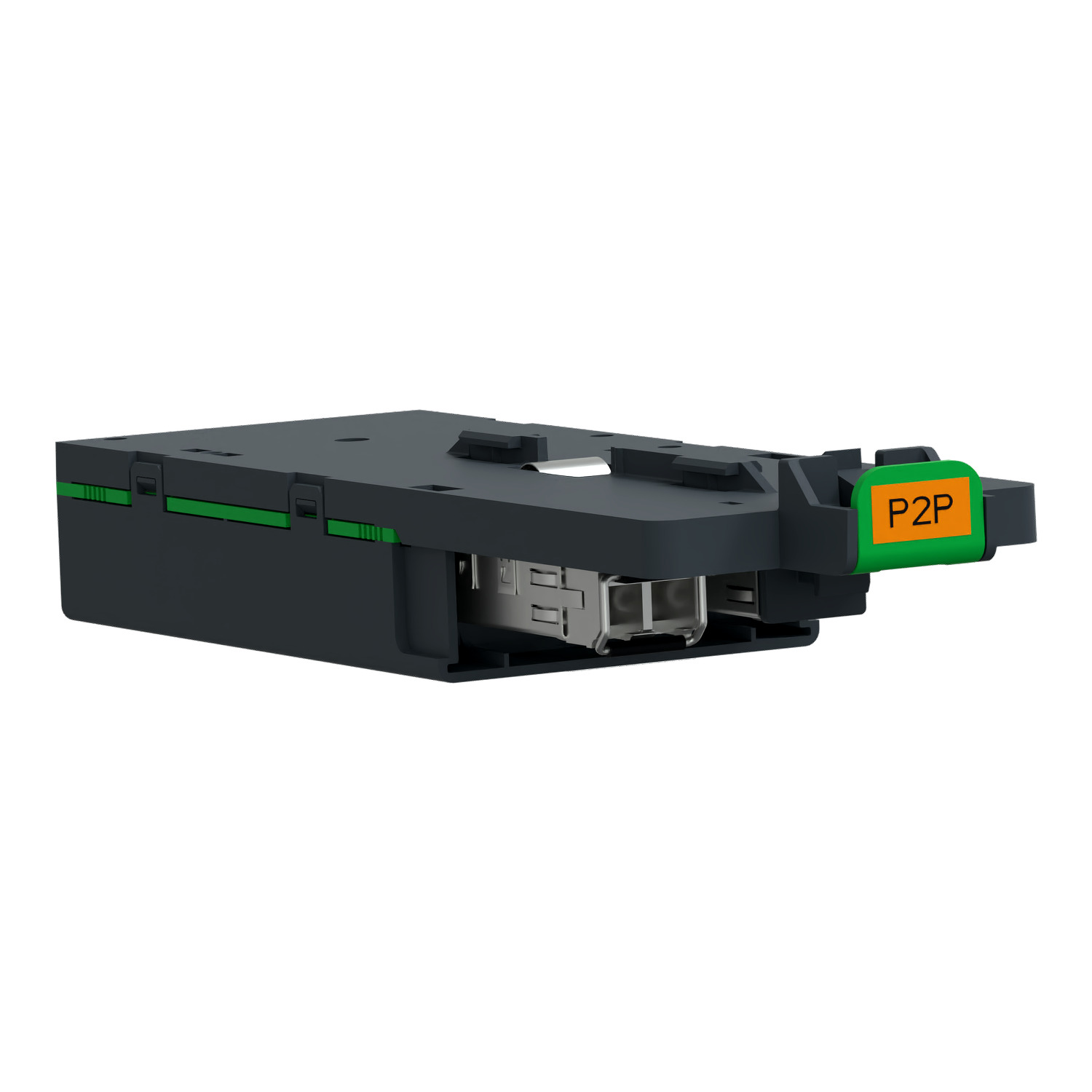

InterRelay fiber optic module single mode 1310nm 40km for slot L - accessory for PowerLogic P5
  • Enables reliable relay-relay communication
  • For distances up to 40 km
  • Easy to install in the shopfloor or on-site
  • Auto-recognition by PowerLogic P5
  • Available from centralised stock
Manufacturer: Schneider Electric
SKU: REL51043
GTIN: 3606485869674
Plug and play communication module for Schneider Electric's PowerLogic P5 withdrawable protection and control relay. This is InterRelay module providing relay-relay direct protection communication between two P5x30 relays. Plug and play communication modules allow late versionizing for Partners and assure evolutivity of communication profile of PowerLogic P5 for End Users. This plug and play communication module offers 2 serial fiber optic, single-mode ports of 1310nm wavelenght. It ensures reliable communication over SDLC protocol for distances up to 40 km. The product dimensions are 176 mm in height (6.93 in) 35 mm in width (1.38 in) and 26 mm in depth (1.02 in) for a net weight of 56 g (0.123 lbs). PowerLogic P5 is compliant with EN 60255-26, EN 60255-27 standard and with UL/CSA Standard. This product can be installed in slot L of the PowerLogic P5 protection relay. It can be installed to PowerLogic P5 any time: during installation, commissioning or even during maintenance.
Availability: Out of stock
Old price: $2,120.17 inc GST
$1,717.34 inc GST
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Range of product PowerLogic P5
Accessory / separate part category modules and interfaces
Product or component type communication module
Complementary
Integrated connection type inter-relay
Environment
Height 176 mm
Ambient air temperature for operation -40-70 °C
Net weight 0.073 kg
Width 53 mm
Depth 26 mm
Contractual warranty
Warranty 18
