Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Analogue output number | 0 |
| Connections - terminals | pin terminal (digital input/output), ring lugs (analog inputs and outputs) |
| Network and machine diagnosis type | event recording, disturbance recording, tripping context, relay maintenance |
| Device mounting | flush |
| Number of outputs | 8 DO, 1 watchdog |
| Relay application | universal |

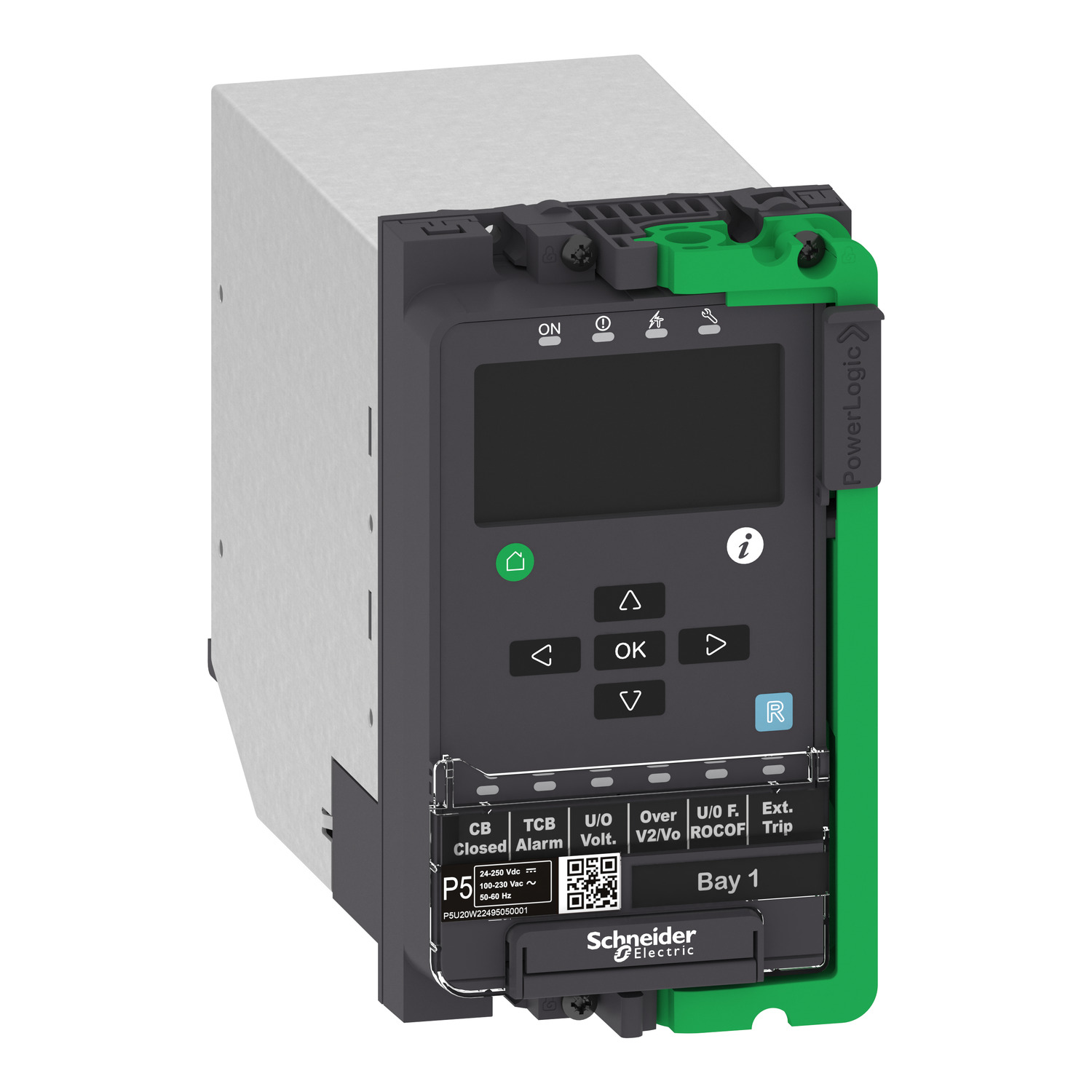

| Product or component type | protection and control relay |
| Single line diagram | 6 controlled + 2 monitored objects |
| Analogue input number | 0 |
| Control type | switchgear control and monitoring, programmable switchgear interlocking, local/remote control |
| Setting | 4 |
| Integrated connection type | USB port 2 front |
| Cybersecurity | port hardening, firmware signature, client IP address filter, secured communication with assciated tools, security policy management, role-based access control, security log, LDAP, RADIUS based user authentication, IEC 62443-4-2 SL1 |
| Number of sensors | 0 temperature sensor(s) |
| Switchgear diagnosis type | CT supervision ANSI code: 60, trip circuit supervision ANSI code: 74 |
| Arc flash protection | no |
| [Us] rated supply voltage | 24...250 V DC, 100...230 V AC |
| Input type | : 1/5 A CT phase current 3 , : 1/5 A CT residual current 1 , : 1 A CT residual current 1 |
| Range of product | PowerLogic P5 |
| Protection type | phase overcurrent 50/51, earth fault overcurrent 50N/51N, capacitor bank unbalance 51C, broken conductor 46 I2/I1, current unbalance 46 I2/I1, cold load pick-up, switch ON to fault (SOTF), H2 detection, H5 detection, breaker failure 50BF, recloser 79, thermal overload protection 49, phase undercurrent 37, negative sequence overcurrent 46, excessive starting time, locked rotor 48/51LR, motor restart inhibition 66, capacitor overvoltage 59C, lockout relay 86, CT supervision 60, programmable stages 99, programmable logic, programmable curve |
| Communication port protocol | - |
| Mounting case size | 20TE |
| Monitoring function | trip circuit supervision 74, circuit breaker monitoring, relay self-monitoring |
| Mounting mode | withdrawable |
| Digital input number | 9 |
| Type of measurement | current 3-phase, current zero sequence, current positive sequence, current negative sequence, current ratio of negative and positive, frequency, phasor diagram of currents or voltages, current 2nd, 15th harmonics with THD |
| Device short name | P5U20-AABD-BAAAA-BAEA |
| Complementary | |
| Number of key | 1 customizable |
| Local signalling | 4 x LED, 6 x LED tri-colour programmable |
| Height | 176 mm |
| Depth | 219 mm |
| Width | 102 mm |
| Display type | LCD 192 x 96 pixels |
| Net weight | 2.5 kg |
| Software name | eSetup Easergy Pro: virtual simulation test |
| Environment | |
| Environmental characteristic | exposure to cold conforming to IEC 60068-2-1, exposure to dry heat conforming to IEC 60068-2-2, exposure to damp heat in service conforming to IEC 60068-2-78, exposure to damp heat in service conforming to IEC 60068-2-30, temperature variation conforming to IEC 60068-2-14, salt mist conforming to IEC 60068-2-52, influence of corrosion/gas test 2 conforming to IEC 60068-2-60, influence of corrosion/gas test 4 conforming to IEC 60068-2-60, influence of corrosion/gas test 2 conforming to IEC 60721-3-3, influence of corrosion/gas test 4 conforming to IEC 60721-3-3 |
| Operating altitude | 2000 m |
| Mechanical robustness | vibrations (level: class 2) conforming to IEC 60255-21-1, vibrations conforming to GOST 17516.1, vibrations conforming to IACS E10, shocks (level: class 2) conforming to IEC 60255-21-2, earthquakes (level: class 2) conforming to IEC 60255-21-3 |
| Ambient air temperature for operation | -40-85 °C ( 16 h ) , -40-70 °C ( 96 h ) |
| IP degree of protection | IP54 conforming to IEC 60529 |
| Electromagnetic compatibility | emission tests class A conforming to CISPR 11, emission tests class A conforming to CISPR 32, emission tests conforming to IACS E10, EMC immunity class 4 conforming to IEC 61000-4-2, EMC immunity class 4 conforming to ANSI C37.90.3, EMC immunity level 3 conforming to IEC 61000-4-3, EMC immunity conforming to ANSI C37.90.2, EMC immunity conforming to GOST 32137, EMC immunity conforming to GOST 30804.4.3, EMC immunity conforming to IACS E10, EMC immunity level 5 conforming to IEC 61000-4-8, EMC immunity level 5 conforming to IEC 61000-4-9, EMC immunity level 5 conforming to IEC 61000-4-10, EMC immunity level 3 conforming to IEC 61000-4-6, EMC immunity level 3 conforming to IEC 61000-4-18, EMC immunity conforming to ANSI C37.90.1, EMC immunity conforming to IEC 61000-4-12, EMC immunity conforming to GOST 30804.4.12, EMC immunity level 4 conforming to IEC 61000-4-16, EMC immunity level 4 conforming to IEC 61000-4-4, EMC immunity level 4 conforming to IEC 61000-4-5 |
| Ambient air temperature for storage | -40-85 °C |
| Relative humidity | 0-93 % at 40-40 °C, without condensation, 56 days, 93-95 % at 25-55 °C, 6 cycles, 12 + 12 hours |
| Protective treatment | conformal coating conforming to IEC 60068-2-52:Kb/1, conformal coating conforming to IEC 60068-2-60:Ke, conformal coating conforming to IEC 60721-3-3:3C2 |
| Contractual warranty | |
| Warranty | 24 |
