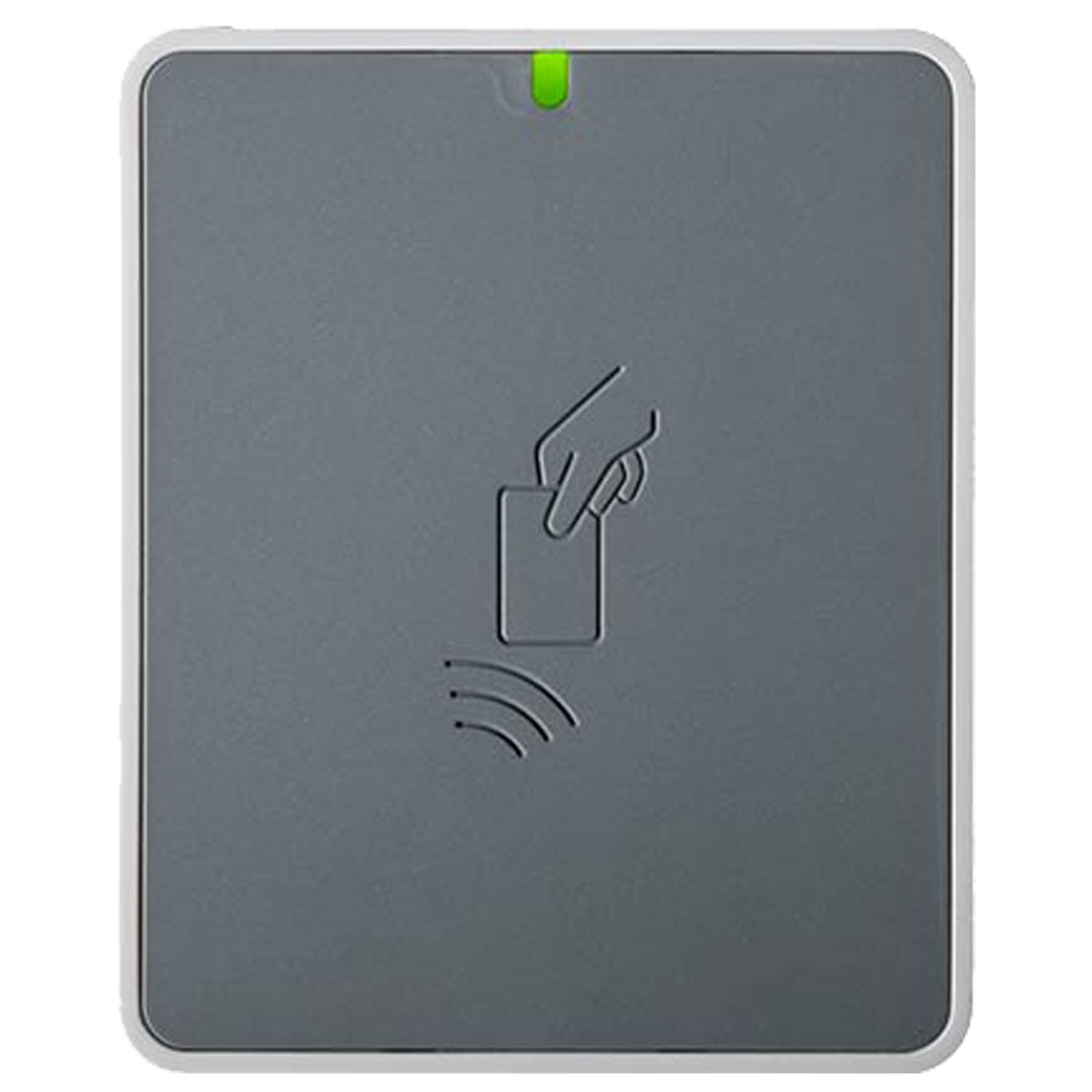

Security Expert proximity card encoder desktop USB connection
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range | EcoStruxure Security Expert |
| Operating system | linux, Android, Mac OS X 10.12.x, Mac OS X 10.11.x, Mac OS X 10.10.x, Windows Server 2012, Windows Server 2008, Windows Server 2003, Windows 10, Windows 8.1 32/64 bit, Windows 8 32/64 bit, Windows 7 32/64 bit |
| Product or component type | card encoder |
| Colour tint | grey |
| Product brand | Schneider Electric |
| Antenna type | integrated |
| Complementary | |
| Product compatibility | RFID microchip NFC Forum type (1/2/3/4), RFID microchip Calypso (CD21), RFID microchip NXP (MIFAIRE DESFire, DESFire EV1 2K/4K/8K), RFID microchip NXP (MIFAIRE Plus), RFID microchip NXP (MIFAIRE Ultralight, Ultralight C), RFID microchip NXP (Mifare classic 1K/4K) |
| Depth | 12 mm |
| Width | 75 mm |
| Function available | firmware update |
| Connector type | USB 2.0 type A |
| Current consumption | 50 mA |
| Net weight | 44 g |
| Nominal read/write distance | 40 mm |
| Communication port protocol | NFC ,106 kbps, 212 kbps, 424 kbps or 848 kbps at 13.56-13.56 MHz |
| Cable length | 1.5 m |
| Height | 91 mm |
| Ambient air temperature for operation | 0-50 °C |
| MTBF reliability | 10000000 H |
| Environment | |
| Ambient air temperature for storage | -25-85 °C |
| Relative humidity | 0-95 % |
| Product certifications | CE, FCC, UL 60950, UL 94, RFJL, VCCI |
