Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Accuracy class | class 1 active energy conforming to IEC 61557-12, class 0.5 voltage conforming to IEC 61557-12, class 1 current conforming to IEC 61557-12 |

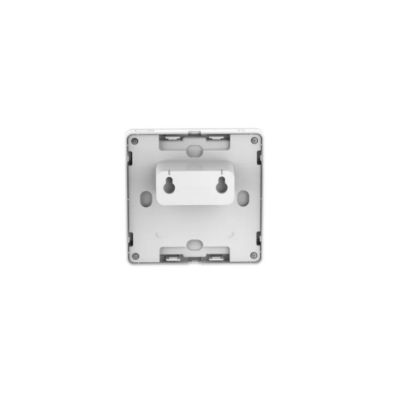

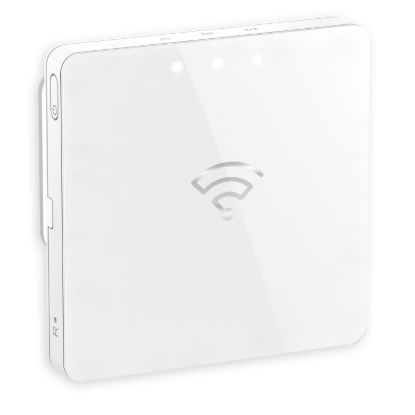

| Concentrator compatibility | Wiser IP module |
| Poles description | 1P + N |
| Product specific application | energy management, energy production monitoring (photovoltaic), overload alarm, circuit monitoring, load monitoring |
| Transmission support medium | radio frequency 2.4-2.4835 GHz conforming to IEEE 802.15.4 |
| Mounting location | top or bottom |
| Range | PowerLogic |
| Event management | voltage loss with measured current at voltage loss |
| Product destination | switchboard |

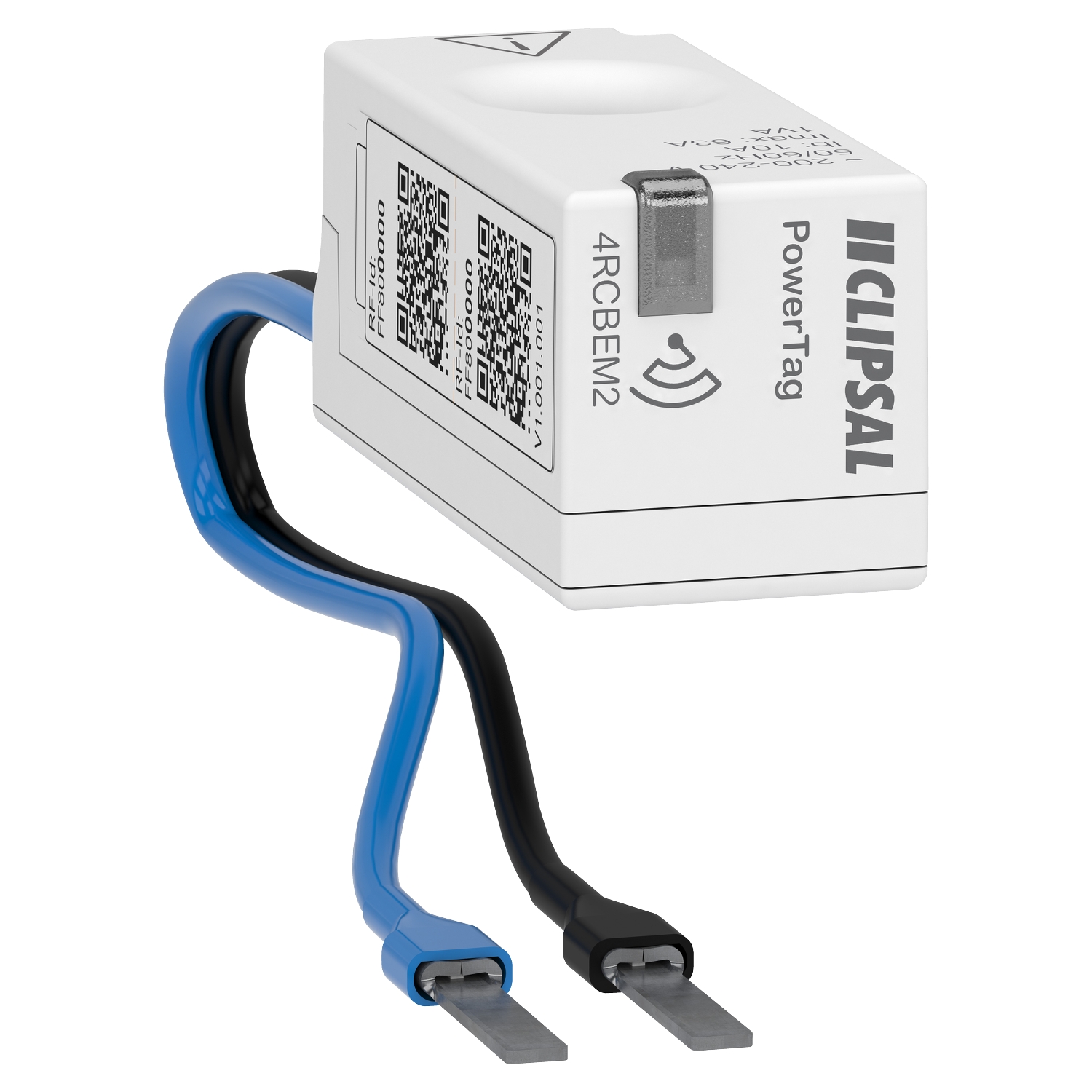

| Product name | PowerTag Wiser F63 |
| Market segment | residential: overload alarm, residential: breaker voltage monitoring |
| Max current | 63 A |
| Product or component type | energy sensor |
| Emission power | 10 mW |
| Type of measurement | active energy, voltage, current |
| Mounting support | on circuit breaker |
| Range compatibility | Resi MAX & MAX4 |
| Product brand | Clipsal |
| Complementary | |
| Colour | white (RAL 9003) |
| Cable composition | 1 x 0.33 mm² |
| Electrical connection | wires with cable end |
| Cable cross section | 1 stranded cable 1.5-16 mm², 2 rigid cable 1.5-2.5 mm², 2 stranded cable 1.5-2.5 mm², 1 rigid cable 1.5-16 mm² |
| Width | sensor element: 18 mm |
| Height | sensor element: 20 mm |
| Power consumption in VA | 1 VA |
| Net weight | 16 g |
| Depth | sensor element: 44.5 mm |
| Form factor | flex |
| Standards | ETSI EN 301 487-1, ETSI EN 300 328, IEC 61326-1, IEC 61010-2-030, IEC 61010-1, IEC 61557-12 |
| [Ue] rated operational voltage | 200...240 V AC, +/- 20 % |
| Network frequency | 60 Hz, 50 Hz |
| Mounting mode | by screws (terminals) |
| Cable length | 0.25 m |
| Environment | |
| Operating altitude | 0...2000 m |
| Measurement category | category III conforming to IEC 61010-2-030 |
| Relative humidity | 0-95 % at 45-45 °C conforming to IEC 60721-3-3 |
| Quality labels | CE |
| Overvoltage category | III conforming to IEC 61010-1 |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/53/EU - radio equipment directive |
| Pollution degree | 3 |
| Vibration resistance | 3M4 conforming to IEC 60721-3-3 |
| Electromagnetic compatibility | electromagnetic emission conforming to IEC 62311, radiated EMC conforming to ETSI EN 301 489-17, residential electromagnetic environment conforming to IEC 61326-1 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Environmental characteristic | indoor use, salt mist class 3C2 conforming to IEC 60721-3-3, dustproof class 3S3 conforming to IEC 60721-3-3 |
| Ambient air temperature for operation | -25-60 °C |
| IK degree of protection | IK05 |
