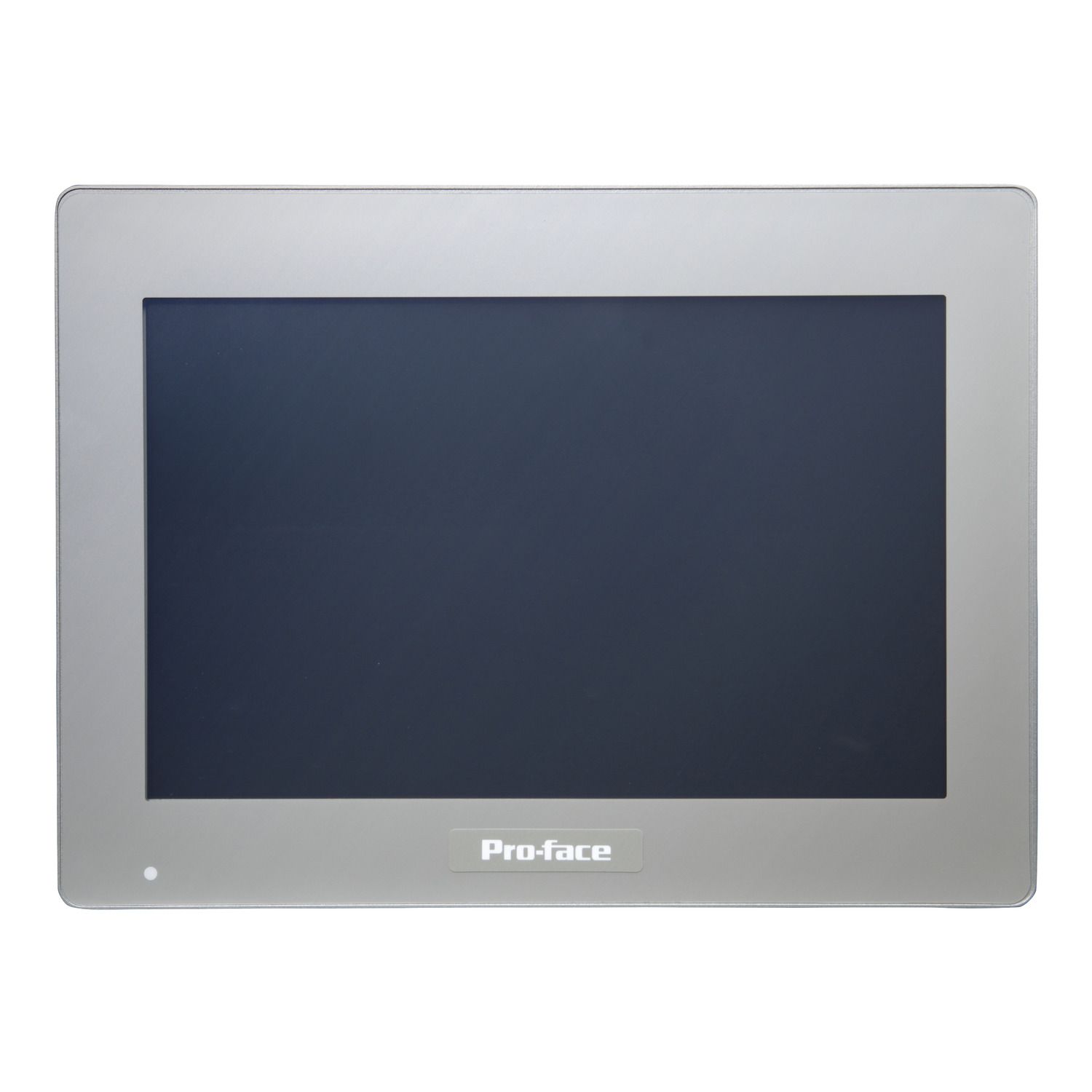

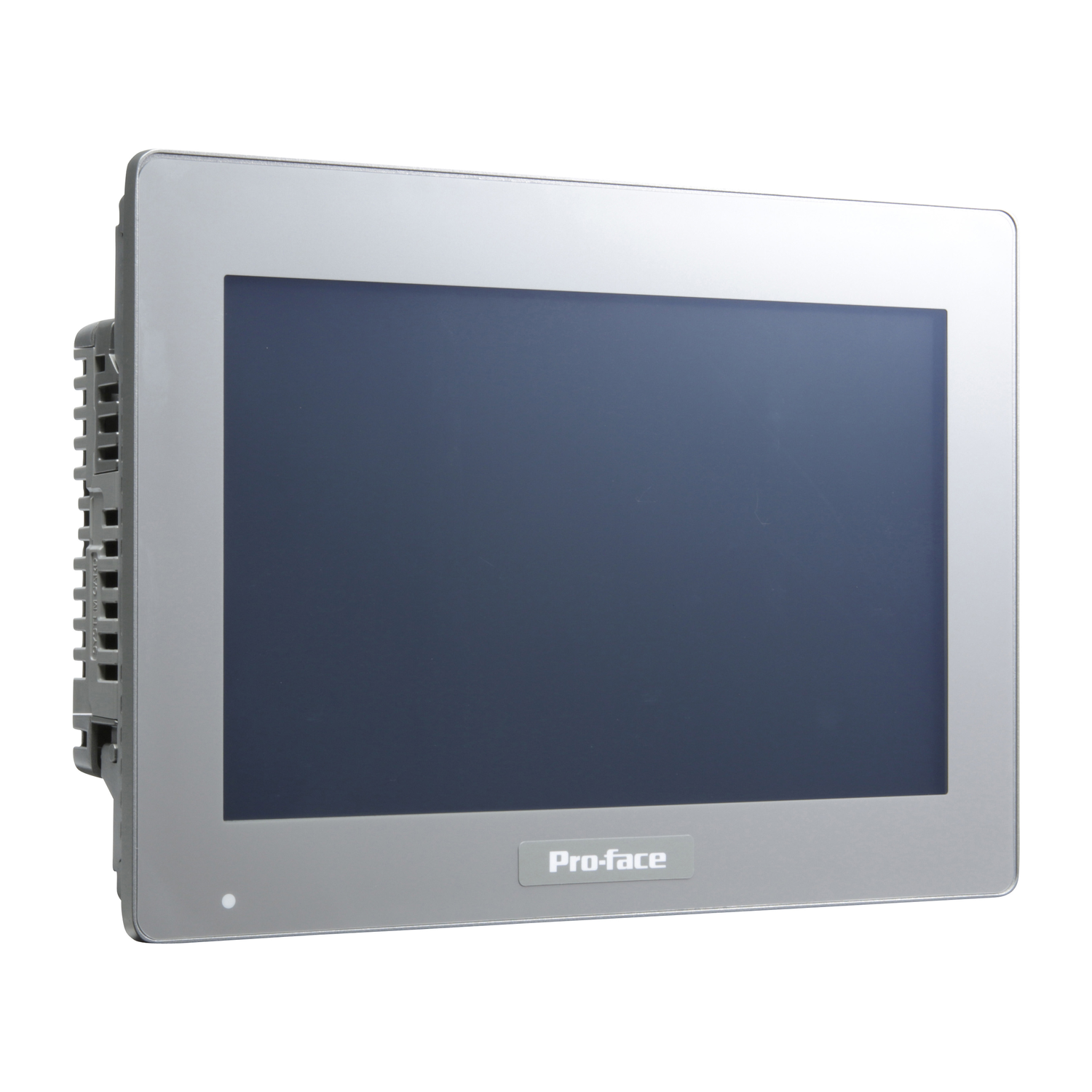

10W touch panel display, WXGA, Analog-Single, Modular, 12-24VDC

Manufacturer: ProFace

SKU: PFXSP5500WAD

GTIN: 3606489671976

User guide

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $3,137.20 inc GST

Price: $2,831.32 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This product belongs to Pro-face Advanced HMI, SP5000 Series. SP5000 Series provides a Smart Portal, a window that optimally displays information in response to a demand for increasingly sophisticated information utilization as a new solution. It has a 10" TFT color LCD with 1280 x 800 pixels (WXGA) resolution and 262K colors. The touch panel type is a single-touch analog resistive film. The screen displays text messages and graphic objects and mimics diagrams, control, and configuration of data. This product works at a power consumption of 8.5W and a rated voltage from 12V to 24V DC. It also offers a LED indicator and a lock button to attach the box module and display. Its dimensions are 268.5mm (width) x 198.5mm (height) x 67mm (depth) and weighs 2.5kg. It is suitable for complex machines in food/beverages, water, wastewater, mining, mineral and metal packaging, and conveying applications. It is CE certified and conforms to UL 61010-2-201 and CSA C22.2 No 61010-2-201 standards for Industrial Control Equipment, and Marine standards such as ABS, BV, CCS, DNV-GL, LR, RINA and NK. It is also certified with ANSI/ISA 12.12.01 and CSA C22.2 No213, Electrical Equipment for Use in Class I, Division 2 Hazardous (Classified) Locations, and IECEx / ATEX for use in zones 2/22. It supports panel mount for indoor installation.

Products specifications

Attribute name	Attribute value
Main
Range of product	Pro-face SP5000
Product or component type	touch panel screen
Complementary
Display type	colour TFT LCD
Display colour	16 million colours
Type of cooling	AN (air natural)
Input voltage limits	10.8…28.8 V DC
Backlight lifespan	50000 hours with white
Fixing mode	by 4 screws, mounting on 1.6...5 mm thick panel
Electrical connection	cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Height	198.5 mm
Depth	67 mm
Width	268.5 mm
Touch panel	single touch analogue resistive
Rated short-duration power frequency withstand voltage	1000 V AC during 1 min
Net weight	2.5 kg
Display resolution	1280 x 800 pixels WXGA
Cut-out dimensions	255 x 185 mm panel cut dimension
Inrush current	30 A
[Us] rated supply voltage	12...24 V DC
Power consumption in W	5 W, 2.5 W (stand by), 8.5 W (max (display module only)), 43 W (max (including box module))
Environment
Relative humidity	10-90 % non-condensing
Environmental characteristic	corrosive gas free
Ambient air temperature for storage	-20-60 °C
Directives	2014/53/EU - radio equipment directive, 2014/34/EU - ATEX directive, 1907/2006/EC - REACH directive, 2015/863/EU - RoHS directive, 2011/65/EU - RoHS, 2012/19/EU - WEEE directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
IP degree of protection	IP65f
Electromagnetic compatibility	electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Pollution degree	2
Ambient air temperature for operation	0-60 °C
Operating altitude	2000 m
Shock resistance	147 m/s² (X, Y, Z directions for 10 cycles (approx. 100 min)) conforming to IEC 61131-2
Vibration resistance	3.5 mm constant amplitude (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2
Insulation resistance	>= 10 MOhm
Standards	CSA C22.2 No 213 Class I Division 2, ANSI/ISA 12.12.01, CSA C22.2 No 61010-2-201, UL 61010-2-201
Storage Relative Humidity	10-90 % non-condensing
Product certifications	NK, RINA, LR, DNV, CCS, BV, ABS, IECEx, ATEX, EAC, RCM, KC, UKCA, CE, cUL, UL
