Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

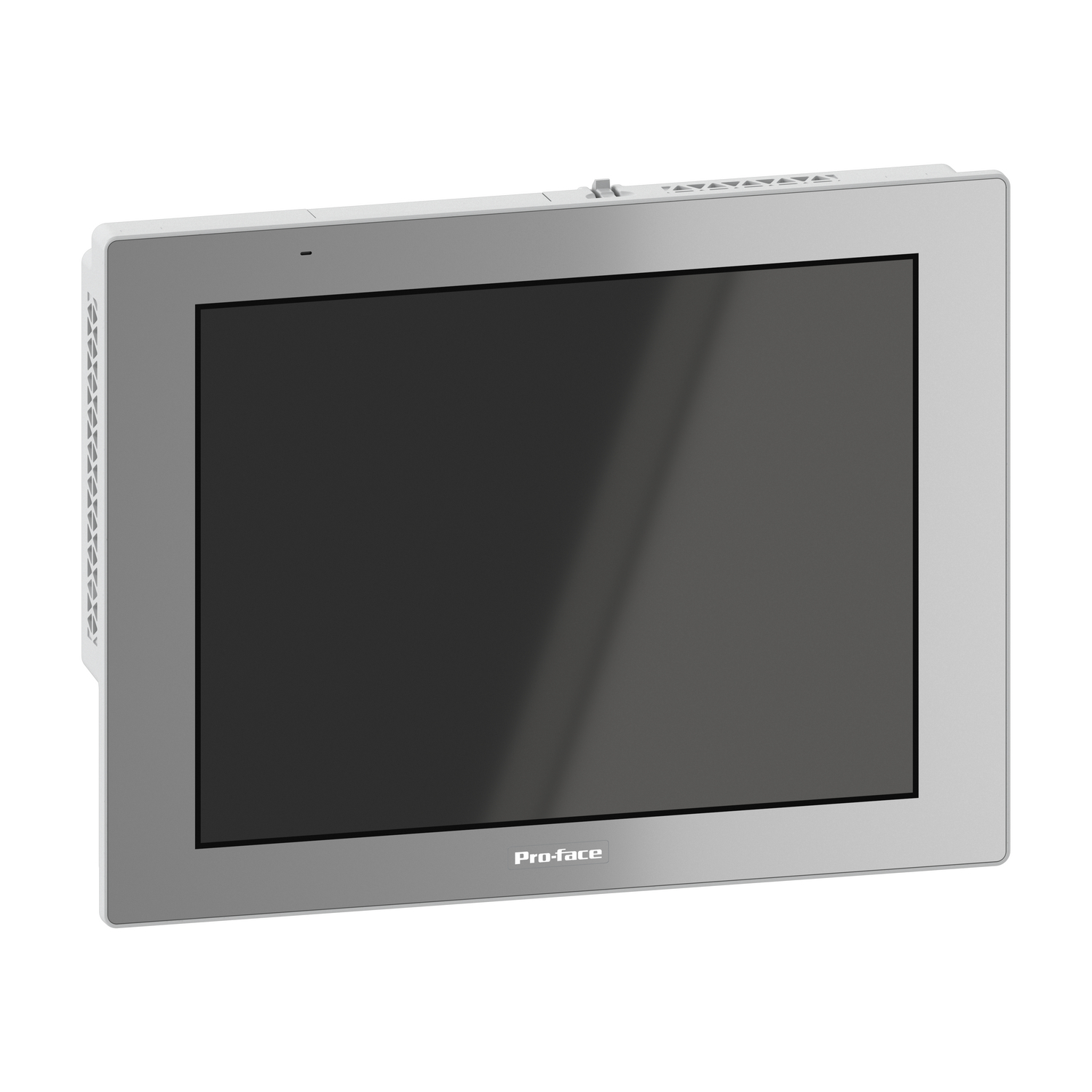

| Product or component type | touch panel screen |
| Range of product | Pro-face GP6000 |
| Software package | GP-Pro EX |
| Processor name | ARM Cortex-A53 |
| Complementary | |
| [Us] rated supply voltage | 24 V DC |
| Brightness | 101 levels via touch panel, 101 levels by software |
| Inrush current | 30 A |
| Cut-out dimensions | 301.5 x 227.5 mm panel cut dimension |
| Display resolution | 1024 x 768 pixels XGA |
| Rated short-duration power frequency withstand voltage | 1000 V AC during 1 min |
| Touch panel | matrix |
| Local signalling | status LED green, steady for operating, status LED green, steady for operating status (RUN), status LED orange, flashing for software starting up, status LED red, steady for power ON, status LED red, flashing for ERR (Error), status LED green, flashing for backlight and display off |
| Width | 315 mm |
| Depth | 60 mm |
| Maximum power consumption in W | 13.5 W maximum, 10.2 W when power is not supplied to external devices, 4.8 W backlight off (standby mode) |
| Electrical connection | cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding |
| Fixing mode | by 4 installation fasteners, mounting on 1.6...5 mm thick panel |
| Backlight lifespan | 50000 hours with white |
| Input voltage limits | 19.2...28.8 V DC |
| Net weight | 2.4 kg |
| Integrated connection type | COM1 serial link 1 SUB-D 9-pin male, interface: RS232C, transmission rate: 2400...115200 bps, COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 2400...115200 bps, COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 187.5 kbps, USB 2.0 type A, USB 2.0 type micro B, Ethernet 2 RJ45, interface: 10BASE-T/100BASE-TX, SD/SDHC/SDXC |
| Height | 241 mm |
| Type of cooling | AN (air natural) |
| Display size | 12.1 inch |
| Display colour | 16 million colours |
| Display type | colour TFT LCD |
| Character font | Japanese, ASCII, Chinese (simplified Chinese), Chinese (traditional Chinese), Korean, Cyrillic, Thai |
| Memory description | built in flash memory 4 GB, backup memory NVRAM 512 KB |
| Environment | |
| Storage Relative Humidity | 10-90 % non condensing |
| Standards | EN 61000-6-4, EN 61000-6-2, EN 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201 |
| Vibration resistance | 3.5 mm (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2, 9.8 m/s² (f = 9-150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2 |
| Shock resistance | 147 m/s² (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2 |
| Ambient air temperature for operation | 0-55 °C |
| Pollution degree | 2 |
| Electromagnetic compatibility | electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3 |
| IP degree of protection | IP65f (front panel (in enclosure)) conforming to UL 50, conforming to UL 50 E |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2012/19/EU - WEEE directive, 2011/65/EU - RoHS, 2015/863/EU - RoHS directive |
| Environmental characteristic | corrosive gas free |
| Product certifications | CE, UKCA, KC, RCM, cULus, UKEX, RoHS, REACH, WEEE |
| Insulation resistance | > 10 MOhm |
| Operating altitude | 2000 m |
| Ambient air temperature for storage | -20-60 °C |
| Relative humidity | 10-90 % non condensing |
