| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | FP6000 |

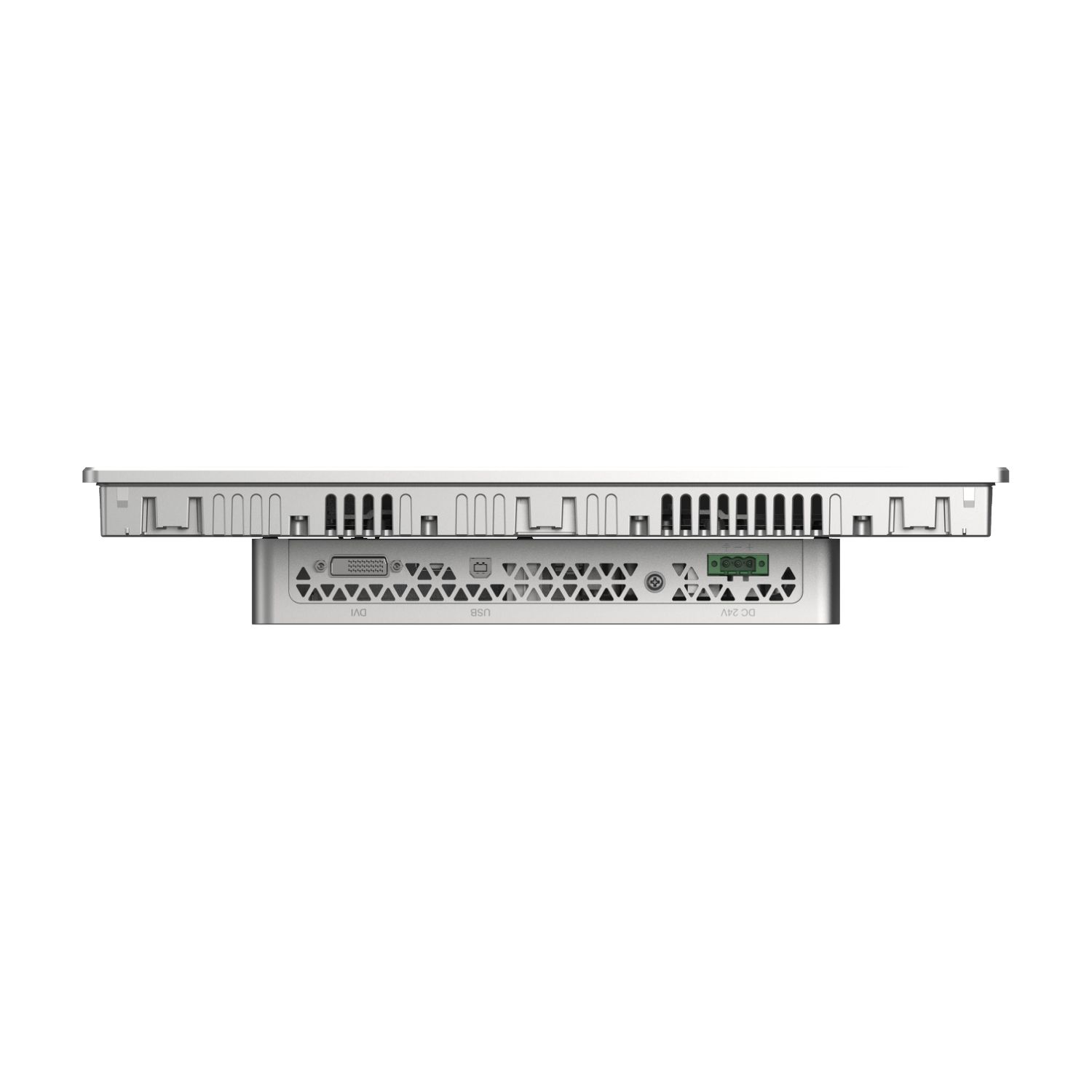

| Integrated connection type | USB 2.0 connector USB type A at 1.5 Mbit/s, USB 2.0 connector USB type B, DVI-D video port |
| Terminal type | touchscreen display |
| Product or component type | touch panel screen |
| Complementary | |
| Operating system | Windows 10 (version 1809) |

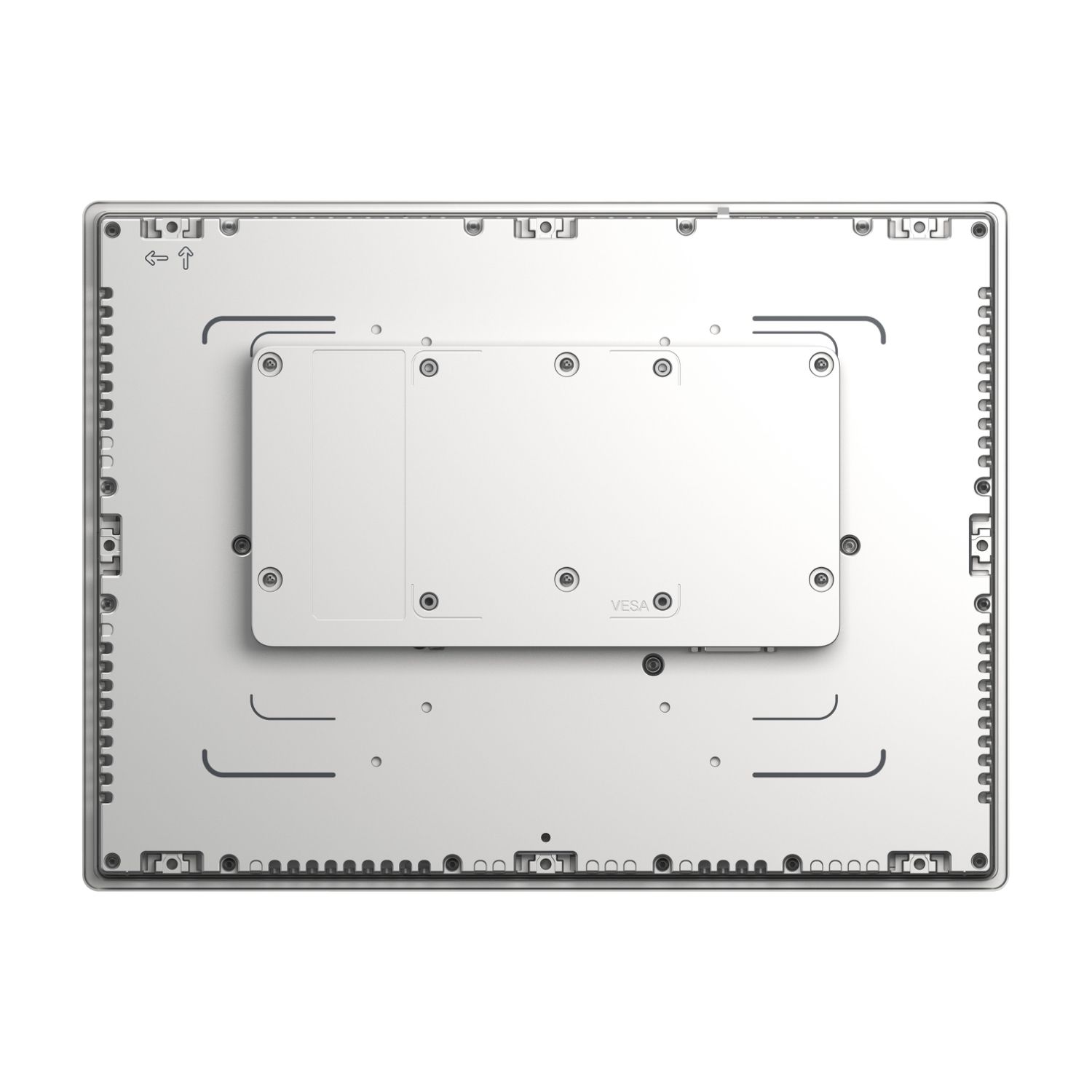

| Device mounting | direct mounting VESA, panel mounting |
| Display colour | 16 million colours |
| Supply voltage limits | 18-31.2 V DC |
| Display size | 15 inch |
| Touch panel | multi touch analogue resistive |
| Display type | colour TFT LCD, LED not replaceable |
| Type of cooling | natural |
| Cut-out dimensions | 383.5 (+ 1/- 0) x 282.5 (+ 1/- 0) mm |
| Backlight lifespan | 50000 hours at 25 °C |
| Depth | 67.5 mm enclosure: |
| Height | 296 mm |
| Aspect ratio | 4:3 |
| Width | 397 mm |
| Type of installation | indoor installation |
| Net weight | 4.9 kg |
| Environmental characteristic | corrosive gas free, dust resistant 0.1 mg/m3 (non-conductive) |
| Display resolution | 1024 x 768 pixels XGA |
| Inrush current | 30 A |
| Pixel resolution | 1024 x 768 |
| [Us] rated supply voltage | 24 V DC power supply |
| Power consumption in W | 22.4 W (maximum) |
| Environment | |
| Ambient air temperature for storage | -20-60 °C |
| Electromagnetic compatibility | electrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4, electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 level 3, electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3 |
| Product certifications | IECEx zone 22 (DC model, front USB cover must be locked with screw), IECEx zone 2 (DC model, front USB cover must be locked with screw), cULus Class 1 Division 2, ATEX zone 22 dust, ATEX zone 2, EAC, DNV (except 22" wide display), UKCA, KC, RCM |
| Pollution degree | 2 |
| Standards | CSA C22.2 No 61010-2-201, UL 61010-2-201, FCC part 15, CE |
| Ambient air temperature for operation | 0-55 °C |
| Operating altitude | 2000 m |
| Vibration resistance | 1 gn X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2, 1 gn (f = 9-150 Hz) fixed amplitude conforming to IEC 61131-2, 1 gn (f = 5-9 Hz) single amplitude conforming to IEC 61131-2 |
| Shock resistance | 147 m/s² 3 shocks in each direction X, Y and Z, 147 m/s² conforming to IEC 61131-2 |
| Storage Relative Humidity | 10-90 % without condensation |
