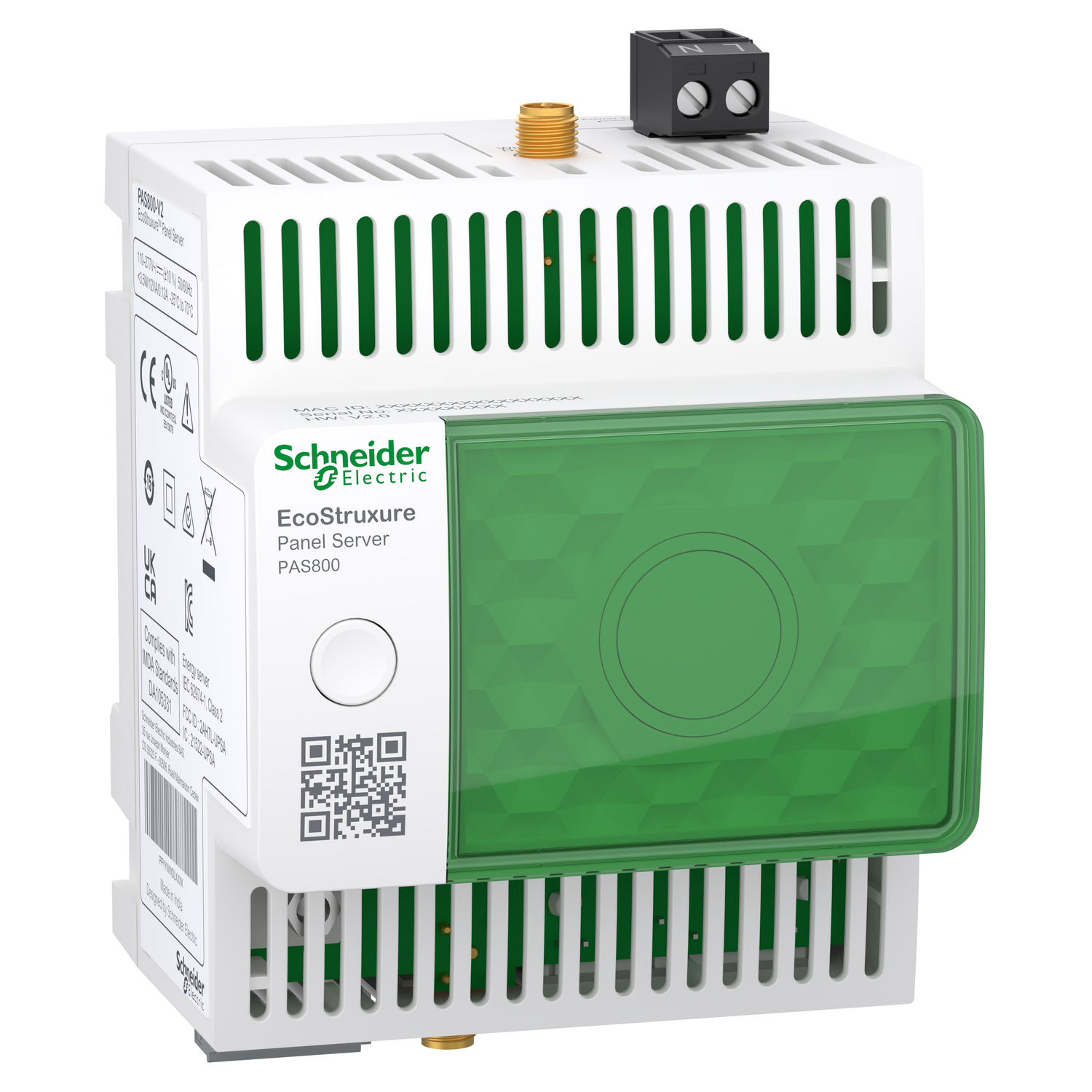

EcoStruxure Panel Server is a gateway, providing connection of wired or unwired smart IoT devices to edge control software or cloud application. Connect wireless devices from Schneider Electric such as PowerTag Energy, PowerLogic HeatTag, Power Tag Ambiant, Power Tag control and others. Connect most of Modbus/RS485 and Modbus/TCP devices from the market including PowerMeters and Protection devices from Schenider Electric. Three years data-logger with user friendly web-pages offering energy dahsboarding, trending analysis of the measurements and view of logged alarms. Simple troubleshooting or the sytem through embedded web-pages with advanced diagnostic informations and logs . Easy commissioning through embedded web-pages or with EcoStruxure Power Commissionig that will offer commissioning reports and advanced features. Product dimensions are as follows: width 71,8 millimetres, depth 70,2 millimetres and height 85 millimetres. From 110 to 277 VAC/DC 50-60Hz 3W/10VA Max Power Supply. -25°C to +70°C Operating temperature. 5-95% relative humidity. Major certifications including CE, UL/CSA, IEC61010, UL61010, IEC61974-1, Marine certification, IEC61443-4-2, RCM, EAC and UKCA. The gateway can be DIN rail mounted in a modular enclosure. It has IP20 connectors, IM40 front face nose and IP30 on others faces. Two 10/100 Base-T ethernet RJ45 connectors. Connector for external Wi-Fi/Bluetoth antenna. Modbus RS485 open-style connector. Connector for external antenna for wireless devices. Two connectors for Wi-Fi/Bluetooth external antenna and wireless devices external antenna. Direct cellular connection through external LTE router connected through Ethernet or Wi-Fi. Perfect fit for EcoStruxure Edge Software such as Power Monitoring Expert, Power Operations and EcoStruxure Building Operations. Designed for EcoStruxure Cloud Applications such as Facility Expert, Asset Advisor and Resource Advisor.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | PAS800 |
| Device application | data logger, energy server, gateway |
| [Us] rated supply voltage | 110...277 V DC, 110...277 V AC 50/60 Hz |
| Range | EcoStruxure |
| Communication gateway | Ethernet/serial, Ethernet TCP/IP to wireless devices |
| Product name | Panel Server Advanced |
| Product or component type | gateway |
| Complementary | |
| Number of slave | 40 slave(s)IEEE 802.15.4, 128 slave(s)Modbus TCP, 128 slave(s)Modbus RTU - with repeater, 32 slave(s)Modbus RTU - without repeater |
| Tightening torque | communication: 0.25-0.25 N.m, power supply: 0.6-0.6 N.m |
| Web services | HTTPS server |
| Realtime clock | without any user calibration, with RTC-battery set |
| Commissioning interface | web page, EcoStruxure Power Commission |
| Mounting mode | clip-on |
| Function available | CSV export, backup/restore configuration, configurable event, firmware update, with integrated web server, energy management, Event Logger, embedded data logger, diagnostics on communication, diagnostic report, diagnosis capabilities, embedded web page for configuration and upgrade |
| Topology | switched Ethernet network, separated Ethernet network |
| Memory capacity | 512 MB NAND, 32 GB eMMC |
| Wire stripping length | communication: 7 mm, power supply: 7 mm |
| Communication network type | Modbus RTU, Modbus RTU client even/odd or none parity, at 1.2...115.2 kbit/s, wireless, IEEE 802.15.4, Wi-Fi5 GHz, Wi-Fi2.4 GHz, Ethernet, 10/100BASE-T |
| Number of inputs | 0-0 |
| Communication service | web server (energy & operation efficiency), DHCP server, DHCP client, SNTP client, Modbus TCP server, Modbus TCP client, Device Profile for Web Services (DPWS) |
| Communication port protocol | TCP/IP, IPv6, IPv4, NTP/SNTP, HTTPS, DHCP, Modbus TCP |
| Height | 93 mm |
| Communication port support | screw terminal block: RS485, 2 RJ45: ETHERNET |
| Depth | 70.2 mm |
| Width | 72 mm |
| Data recording | 3 years data logs, historical dashbaording and trending |
| Product specific application | Wireless Schneider Electric devices ecosystem |
| Time synchronisation protocol | SNTP, NTP |
| Connector type | RP-SMA antenna |
| Connections - terminals | communication: screw terminal block (bottom) 0.14-1.5 mm² cable(s) , power supply: screw terminal block (top) 1.5-2.5 mm² cable(s) |
| Net weight | 206 g |
| Range compatibility | EcoStruxure Resource Advisor, EcoStruxure Energy Hub, EcoStruxure Asset Advisor, EcoStruxure Power Monitoring Expert, EcoStruxure Power Operation, EcoStruxure Building Operation, EcoStruxure Facility Expert |
| Mounting support | DIN rail |
| Maximum power consumption in W | 3.5 W 110...277 V |
| Standards | IEC 62311, EN 62311, FCC CFR 47 part 15 class A, IEEE 802.3 af/at, IEEE 802.11a/b/g/n, IEEE 802.15.4, ETSI EN 300 328, CISPR 11, EN 55032, EN 301-893, ETSI EN 301 489-17, ETSI EN 301 489-1, EN 61326-1, IEC 61326-1, IEC 62443-4-1, IEC 62974-1, CAN/CSA C22.2 No. 61010-2-201, CAN/CSA C22.2 No. 61010-1-12, EN 61010-2-201, EN 61010-1, UL 61010-2-201, UL 61010-1, UL 61010, IEC 61010-2-201, IEC 61010-1, IEC 61010 |
| Data retention time | 3 month(s) |
| Product certifications | ANSI RF, DNV Marine, IC, FCC, UKCA, RCM, CB, cULus, CE |
| Environment | |
| Relative humidity | 0-93 % |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | IP20 (casing), IP40 (front face) |
| Pollution degree | 2 |
| Ambient air temperature for operation | -25-70 °C |
| Operating altitude | < 2300 m |
