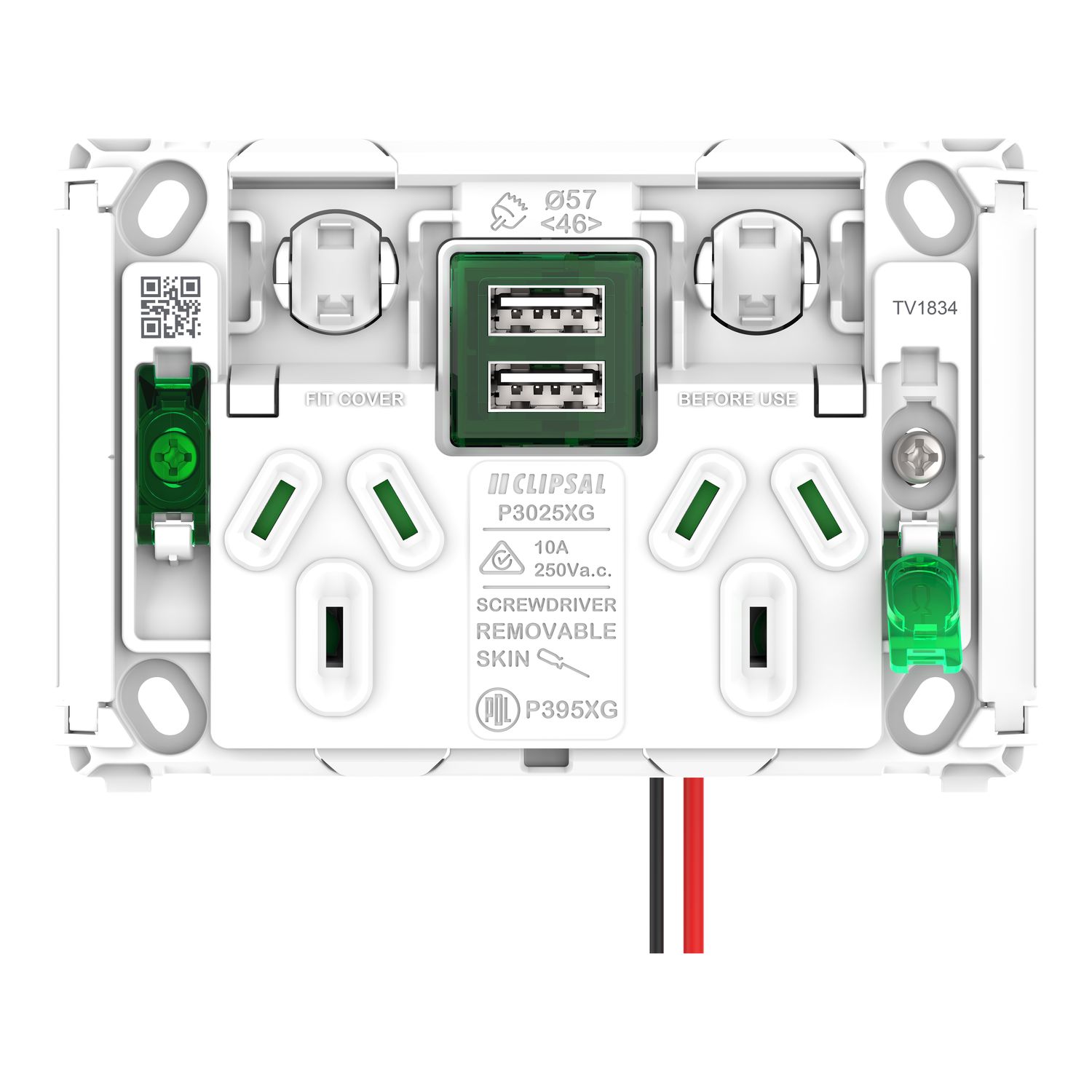

Featuring two USB Type A charging outlets, the Pro Series Horizontal Twin Switched Power Point Grid with Extra Outlet allows charging of smart devices without the need for bulky power packs. Suitable for use in commercial buildings and public places.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Outlet poles configuration | 2P + E with shutter |
| Device presentation | mechanism with fixing frame |
| Outlet standard | Australian |
| Range | Pro Series |
| Product or component type | switched socket |
| Complementary | |
| Number of power socket outlets | 2 |
| Quantity per set | set of 10 |
| Sale per indivisible quantity | 1 |
| Wire stripping length | 16 mm |
| Surface treatment | untreated |
| Height | 72 mm |
| Connections - terminals | 3 screw terminals |
| Number of rocker | 2 |
| Material | POM (polyoxymethylene): locking bar, POM (polyoxymethylene): shutter, PP (polypropylene), PC (polycarbonate): fixing frame |
| Device composition | 2 USB charger |
| Net weight | 0.078 kg |
| Type of packing | polybag |
| Clamping connection capacity | 3 x 4 mm² for rigid or stranded cable(s), 1 x 2.5...4 x 2.5 mm² for rigid or stranded cable(s) |
| Range compatibility | Pro Series |
| Device mounting | flush |
| Ground lug position | straight 180° position |
| Screwdriver shape | Philips No 2, square drive no 1 (SQ1) |
| Depth | 36 mm |
| Width | 112 mm |
| Installation direction | horizontal |
| Outlet standard description | with earthing contact |
| Outlet standard deviation | Australian/New Zealand |
| Rated current | 10 A at 250 V AC 50 Hz |
| Fixing mode | by screws |
| Colour tint | white |
| Environment | |
| Relative humidity | 10-95 % |
| Product certifications | RCM |
| Ambient air temperature for operation | 0-45 °C |
| Standards | AS/NZ 3112 |
