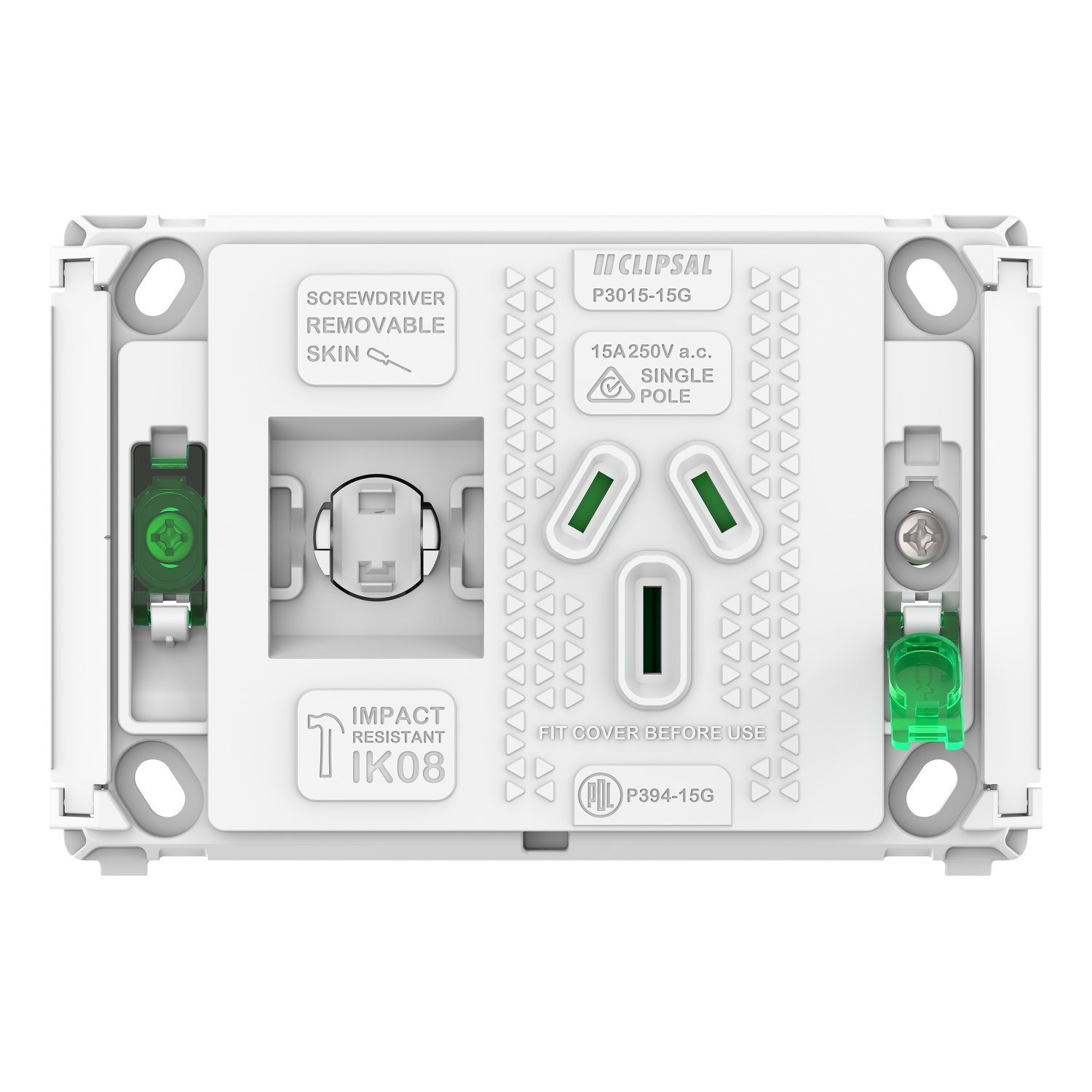

Single Power Point Grid, Pro Series, Horizontal Mount, 250V, 15A

Manufacturer: Clipsal

SKU: P3015-15G

GTIN: 9311554805647

Environmental Disclosure

Old price: $33.44 inc GST

Price: $48.15 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

The Clipsal Pro Series Single Switched Power Point 15A, 250V Grid is designed for horizontal mounting in commercial buildings. The heavy-duty switch grid plate features label adhesion panels so identification of the circuit is simple and consistent across sockets and switches.

Products specifications

Attribute name	Attribute value
Main
Outlet standard	Australian
Outlet poles configuration	2P + E with shutter
Device presentation	mechanism with fixing frame
Range	Pro Series
Product or component type	switched socket
Complementary
Ground lug position	straight 180° position
Number of power socket outlets	1
Quantity per set	set of 10
Sale per indivisible quantity	1
Wire stripping length	16 mm
Surface treatment	untreated
Height	72 mm
Screwdriver shape	Philips No 2, square drive no 1 (SQ1)
Connections - terminals	3 screw terminals
Depth	36 mm
Number of rocker	1
Width	112 mm
Material	POM (polyoxymethylene): shutter, PP (polypropylene), PC (polycarbonate): fixing frame
Installation direction	horizontal
Net weight	0.078 kg
Type of packing	polybag
Clamping connection capacity	3 x 4 mm² for rigid or stranded cable(s), 1 x 2.5...4 x 2.5 mm² for rigid or stranded cable(s)
Outlet standard description	with earthing contact
Outlet standard deviation	Australian/New Zealand
Rated current	15 A at 250 V AC 50 Hz
Fixing mode	by screws
Range compatibility	Pro Series
Device mounting	flush
Colour tint	white
Environment
Relative humidity	10-95 %
Product certifications	RCM
Ambient air temperature for operation	0-45 °C
Standards	AS/NZ 3112
