Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

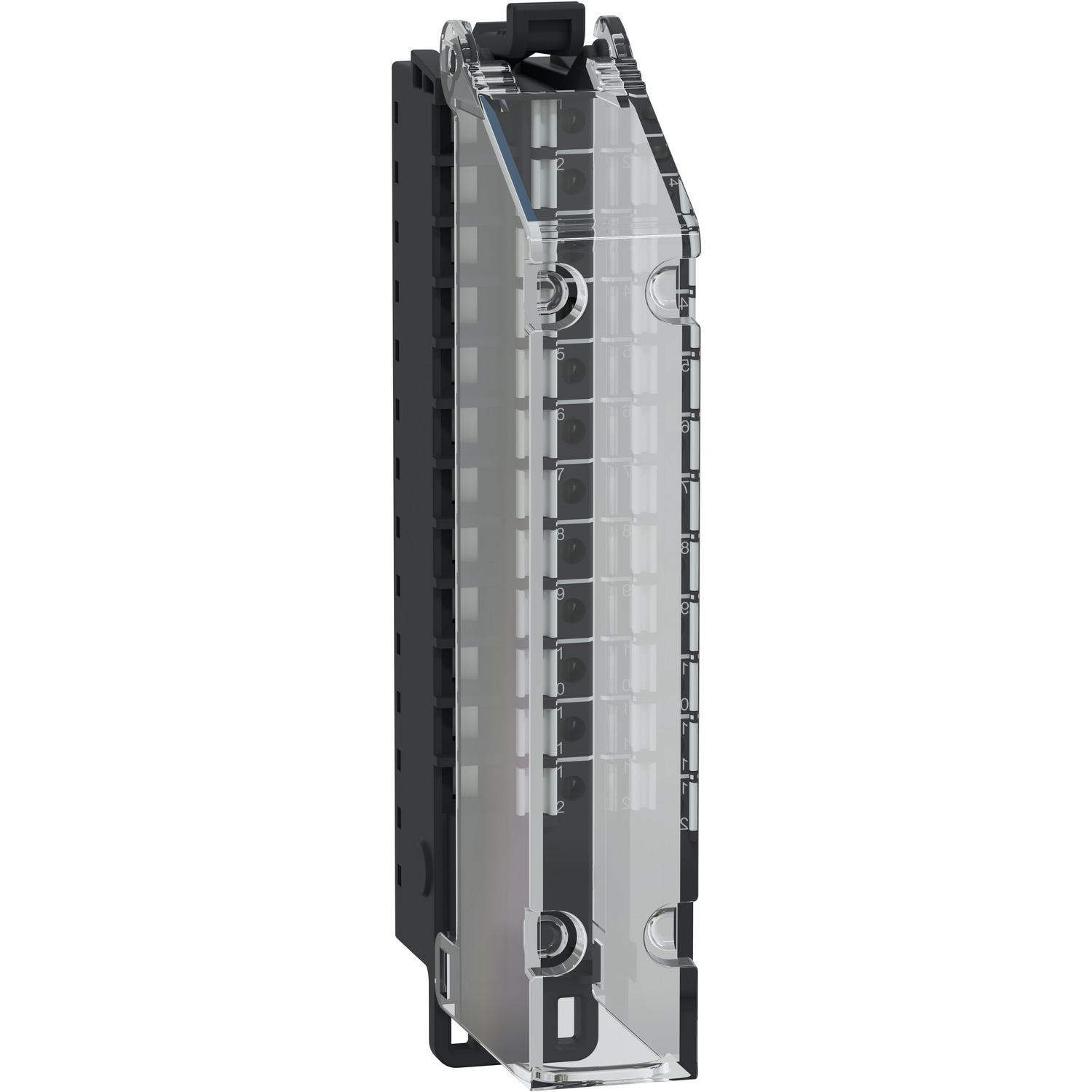

| Product or component type | terminal block |
| Width | 14 mm |
| Accessory / separate part type | terminal block |
| Range of product | Modicon Edge I/O NTS |
| Accessory / separate part destination | I/O module |
| Accessory / separate part designation | terminal block for low height I/O module |
| Net weight | 0.040 kg |
| Pin number | 12 |
| Height | 90 mm |
| Accessory / separate part category | connection accessories |
| Connector type | spring connector |
| Quantity per set | set of 1 |
| Complementary | |
| Colour | grey |
| Product compatibility | NTS low height I/O module |
| Environment | |
| Vibration resistance | 1 g without accessory, 2 g with accessory |
| Shock resistance | 15 g for 11 ms (with and without accessory) |
| Pollution degree | 2 |
| Product certifications | CE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Ambient air temperature for operation | -40-70 °C |
| Marking | cURus |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
| Protective treatment | none |
| IP degree of protection | IP20 |
| Operating altitude | 0...2000 m without derating, 2000 m...5000 m with derating |
| Standards | EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 & type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5 |
| Ambient air temperature for storage | -40-85 °C |
| Relative humidity | 5-95 % without condensation |
| Contractual warranty | |
| Warranty | 18 |
