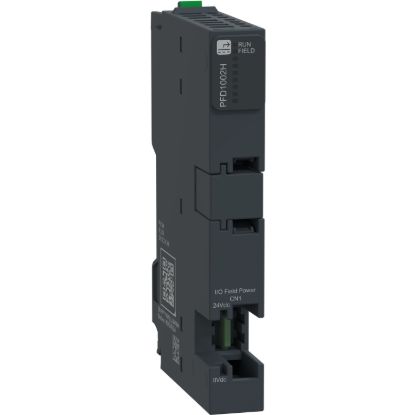

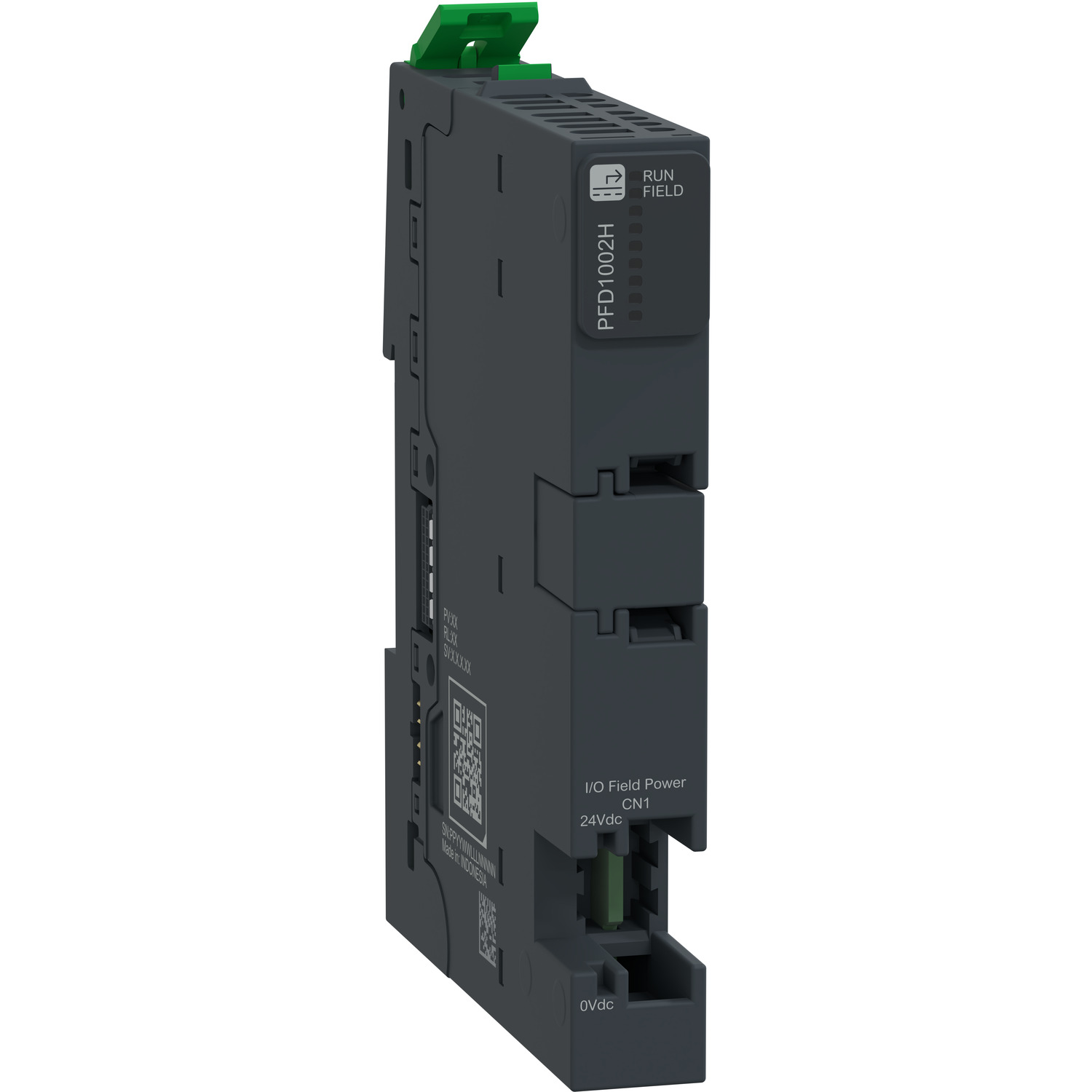

Power Supply Module + Base, 24V DC, Field, Hardened, Modicon Edge I/O NTS

Manufacturer: Schneider Electric

SKU: NTSPFD1002HK

GTIN: 3606486878163

PDF

Image of product

User guide

Promotional video

Instruction sheet

Declaration of conformity

Catalog

Technical illustration

Full Description

This power supply kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and a power supply module. Its Rated supply voltage is 24VDC, and it distributes 10.5A for field supply (network interface modules and modules) and has an automatic disjunction. It distributes Field Power supply in a cluster of modules. It functions within a temperature range of minus 40 to 70 degrees Celsius. It has an IP protection rating of IP20, and a Protective coating is applied to electronic components and circuit boards. It measures 116mm high, 15mm wide, 88mm deep, and weighs 0.078kg. It is compatible with I/O modules and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.

Availability: Out of stock

Old price: $177.91 inc GST

Price: $160.56 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Product or component type	power distribution module
Range compatibility	Logic/motion controller - Modicon M262, Modicon M580, third party
Range of product	Modicon Edge I/O NTS
[Us] rated supply voltage	24 V for DC
Product compatibility	NTSN.....
Device application	industrial application in severe environment
Complementary
Local signalling	1 LED green bus, 1 LED green external power supply
Width	15 mm
Depth	80 mm
Max. output current DC	10.5 A
Housing colour	grey
Hot swapping fallback	yes
Input voltage DC	24-28.8 V
Max. input current DC	10.5 A
Supply voltage limits	19.2-30 V DC
Protection type	Overvoltage protection for bus and field, undervoltage protection for bus and field, overload protection for bus and field, short-circuit protection for bus and field, Reverse polarity protection for bus and field, inrush current control for field, voltage surge protection for bus and field
Net weight	0.078 kg
Mounting support	top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Height	100 mm
Input current	10.5 mA for for field supply
Typical current consumption	3500 mA on the Bus current, 10500 mA on the field current
Maximum power dissipation in W	1.314 W
Output voltage DC	24-24 V
Environment
Shock resistance	15 g for 11 ms (with and without accessory)
Vibration resistance	1 g without accessory, 2 g with accessory
Pollution degree	2
Product certifications	CE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Ambient air temperature for operation	-40-70 °C
Marking	CE, UKCA, cULus, RCM
Directives	2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
Protective treatment	conformal coating
IP degree of protection	IP20
Operating altitude	0...2000 m, 2000 m...5000 m with derating
Standards	EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 & type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5
Ambient air temperature for storage	-40-85 °C
Relative humidity	5-95 % without condensation
Contractual warranty
Warranty	18
