Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

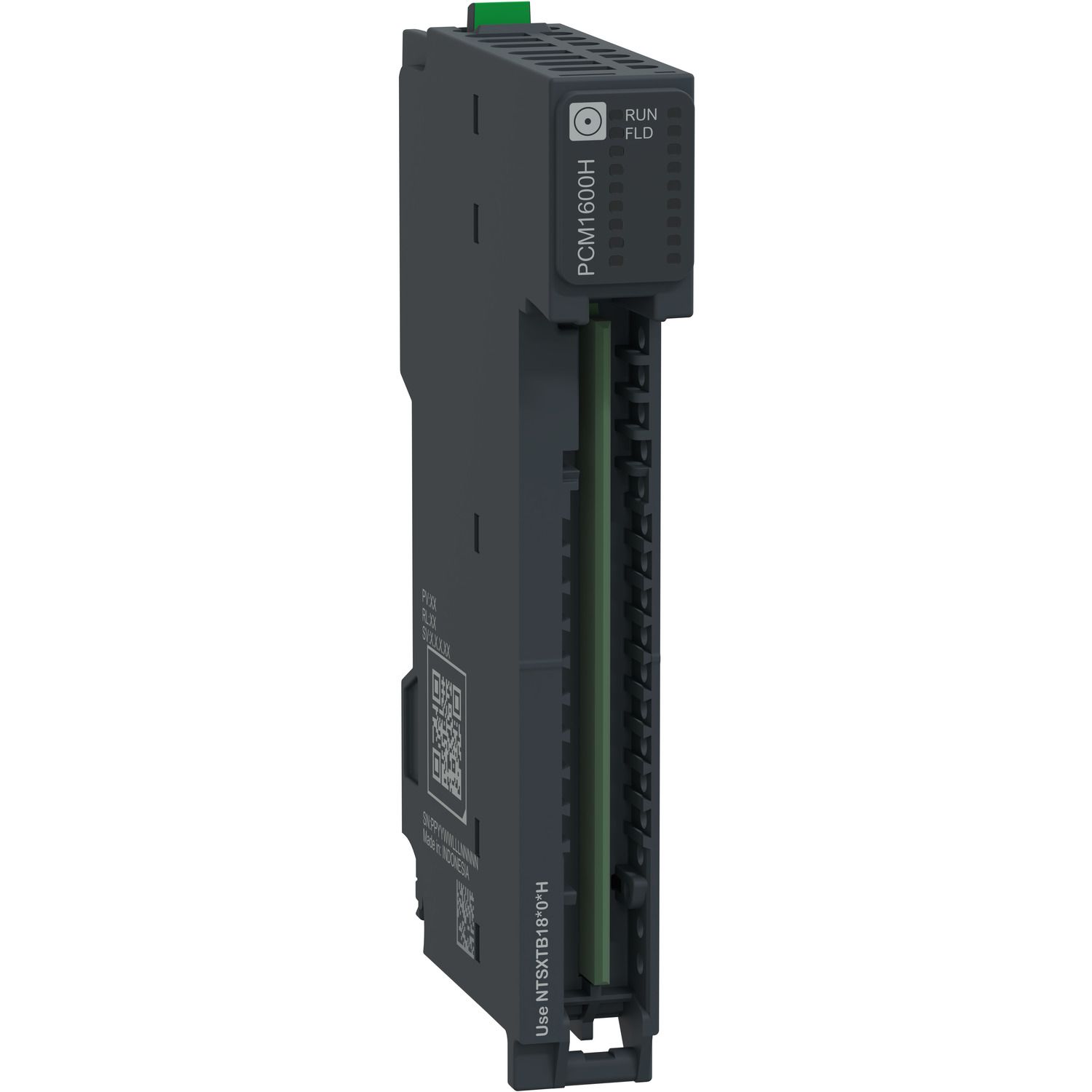

| Product or component type | common distribution module |
| Mandatory accessory | NTSXBA0100H base, NTSXTB18_0_H terminal block |
| Range compatibility | Logic/motion controller - Modicon M262, Modicon M580, third party |
| Range of product | Modicon Edge I/O NTS |
| [Us] rated supply voltage | 24 V for DC |
| Product compatibility | NTSN..... |
| Power supply output current | 10.5-10.5 A |
| Device application | industrial application in severe environment |
| Complementary | |
| Width | 15 mm |
| Depth | 69 mm |
| Max. output current DC | 10.5 A |
| Housing colour | grey |
| Hot swapping fallback | yes |
| Input voltage DC | 24-28.8 V |
| Max. input current DC | 10.5 A |
| Supply voltage limits | 20.4-28.8 V DC |
| Input voltage type | DC |
| Suitable for safety functions | false |
| Redundancy | no |
| Net weight | 0.048 kg |
| Mounting support | base |
| Height | 100 mm |
| Output voltage type | DC |
| Input current | 10.5 mA |
| Typical current consumption | 3 mA on the Bus current, 0 mA on the field current |
| Maximum power dissipation in W | 1.348 W |
| Output voltage DC | 24-24 V |
| Environment | |
| Shock resistance | 15 g for 11 ms (with and without accessory) |
| Vibration resistance | 1 g without accessory, 2 g with accessory |
| Pollution degree | 2 |
| Product certifications | CE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Ambient air temperature for operation | -40-70 °C |
| Marking | CE, UKCA, cULus, RCM |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
| Protective treatment | conformal coating |
| IP degree of protection | IP20 |
| Operating altitude | 0...2000 m without derating, 2000 m...5000 m with derating |
| Standards | EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 & type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5 |
| Ambient air temperature for storage | -40-85 °C |
| Relative humidity | 5-95 % without condensation |
| Contractual warranty | |
| Warranty | 18 |
