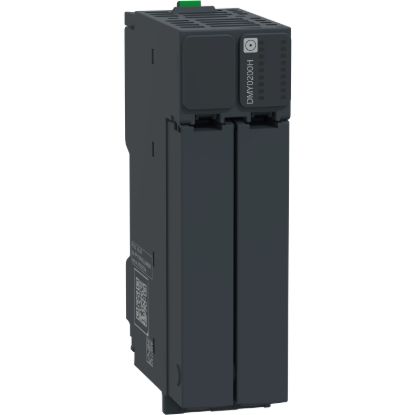

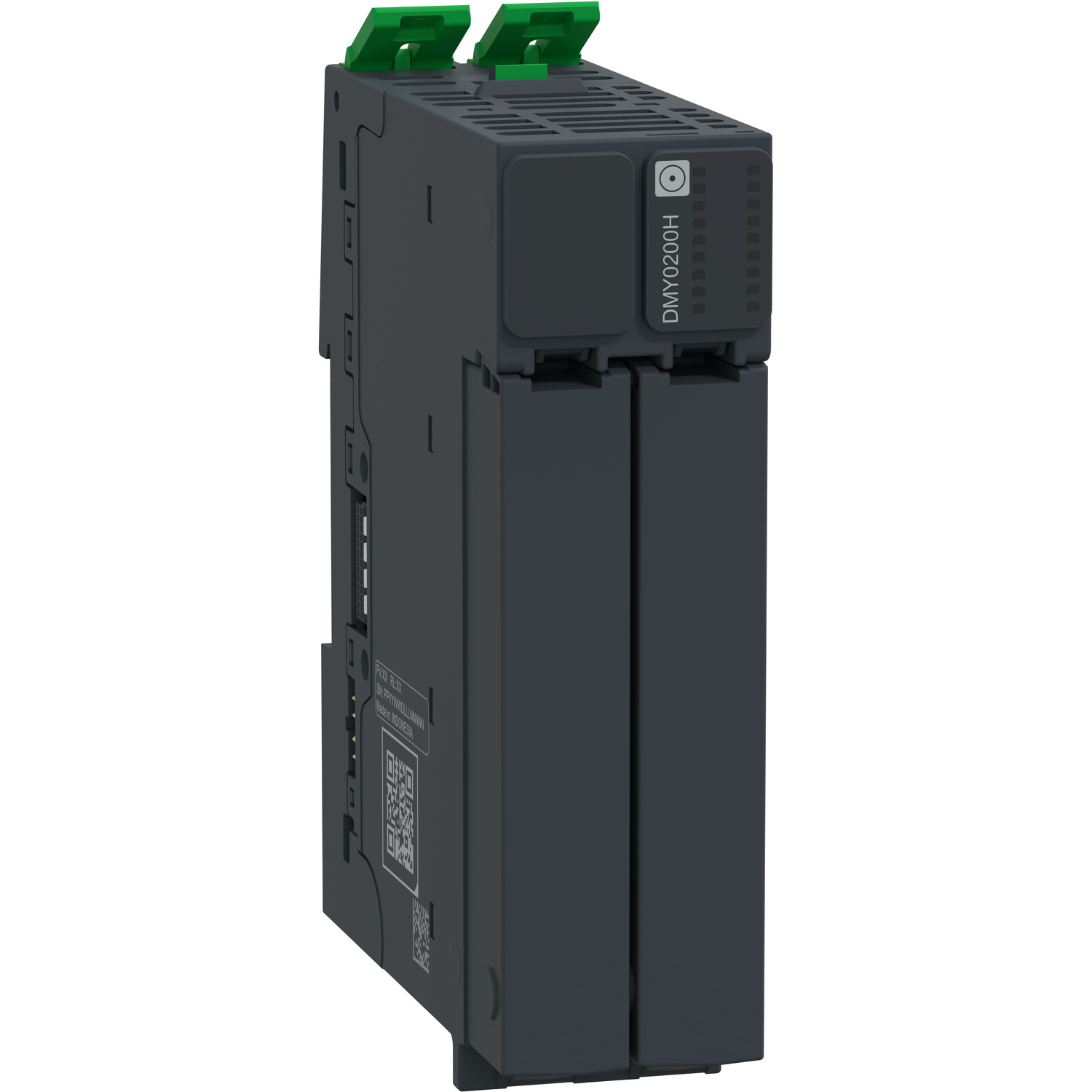

Dummy Module + Base, Double Slot, Hardened, Modicon Edge I/O NTS

Manufacturer: Schneider Electric

SKU: NTSDMY0200HK

GTIN: 3606486877777

PDF

Image of product

User guide

Promotional video

Instruction sheet

Declaration of conformity

Catalog

Technical illustration

Full Description

This dummy kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and a dummy module. It involves configuring a placeholder module to mimic the behavior of a real module, without performing any real input or output functions. It is used for testing, development, or as a temporary placeholder without a real module. It functions within a temperature range of minus 40 to 70 degrees Celsius. It has an IP protection rating of IP20, and a Protective coating is applied to electronic components and circuit boards. It measures 116mm High, 30mm wide, 88mm deep and weighs 0.142kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.

Availability: Out of stock

Old price: $177.91 inc GST

Price: $160.56 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Product or component type	dummy module kit
Range compatibility	Logic/motion controller - Modicon M262, Modicon M580, third party
Range of product	Modicon Edge I/O NTS
Product compatibility	NTSN.....
Kit composition	NTSDMY0200H module, NTSXBA0200H base
Device application	industrial application in severe environment
Complementary
Fieldbus connection over separate bus coupler possible	false
Number of HW interfaces PROFINET	0
DC supply voltage	20.4-28.8 V
Number of HW interfaces industrial Ethernet	0
IO-link master present	false
Radio standard Bluetooth	false
Short circuit protection outputs present	false
Supporting protocol for CAN	False
Number of HW interfaces parallel	0
Electrical connection	screw/spring terminal block
Width	30 mm
Supporting protocol for KNX	False
Depth	80 mm
Supporting protocol for other bus systems	False
System accessory	false
Housing colour	grey
Supporting protocol for SERCOS	False
Number of HW interfaces USB	0
Supporting protocol for ASI	False
Supporting protocol for PROFINET CBA	False
Front installation possible	false
Supporting protocol for EtherNet/IP	False
Bearing track assembly possible	false
Radio standard GPRS	false
Number of HW interfaces serial TTY	0
Number of HW interfaces other	0
Number of HW interfaces Wireless	0
Radio standard GSM	false
Network type	DC
Supporting protocol for INTERBUS	False
Suitable for safety functions	false
Net weight	0.112 kg
Supporting protocol for MODBUS	false
Supporting protocol for DeviceNet Safety	False
Wall mounting/direct mounting possible	false
Supporting protocol for EtherCAT	false
Output voltage limits	24 V
Mounting support	top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Rack-assembly possible	false
Supporting protocol for LON	False
Supporting protocol for PROFIsafe	False
Supporting protocol for Foundation Fieldbus	False
Digital outputs configurable	false
Supporting protocol for TCP/IP	False
Optical interface present	False
Number of HW interfaces serial RS422	0
Height	100 mm
Radio standard UMTS	false
Supporting protocol for AS-Interface Safety at Work	False
Supporting protocol for SafetyBUS P	False
Discrete output voltage type	DC
Supporting protocol for PROFIBUS	False
Number of HW interfaces serial RS485	0
Number of HW interfaces serial RS232	0
Supporting protocol for Data-Highway	False
Supporting protocol for PROFINET IO	False
Supporting protocol for DeviceNet	False
Supporting protocol for SUCONET	False
Environment
Appendant operation agent (Ex ib)	false
Appendant operation agent (Ex ia)	false
Vibration resistance	1 g without accessory, 2 g with accessory
Shock resistance	15 g for 11 ms (with and without accessory)
Certified for UL hazardous location division 1	false
Certified for UL hazardous location division 2	false
Pollution degree	2
Product certifications	CE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Ambient air temperature for operation	-40-70 °C
Marking	CE, UKCA, cULus, RCM
Certified for UL hazardous location group G (Non Conductive Dust)	false
Certified for UL hazardous location group C (ethylene))	false
Directives	2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU - directive basse tension
Certified for UL hazardous location class III	false
Certified for UL hazardous location group A (acetylene)	false
IP degree of protection	IP20
SILcl acc. to EN 62061	false
Certified for UL hazardous location group F (Carbonaceous Dust)	false
Certified for UL hazardous location group B (hydrogen)	false
Certified for UL hazardous location class I	false
Certified for UL hazardous location class II	false
Certified for UL hazardous location group E (metal dusts)	false
Operating altitude	0...2000 m without derating
Standards	EN/IEC 61131-2, EN 61010-2-201, location G, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5, interface type 1 and type 2
Ambient air temperature for storage	-40-85 °C
Relative humidity	5-95 % without condensation
Certified for UL hazardous location group D (propane))	false
Contractual warranty
Warranty	18
