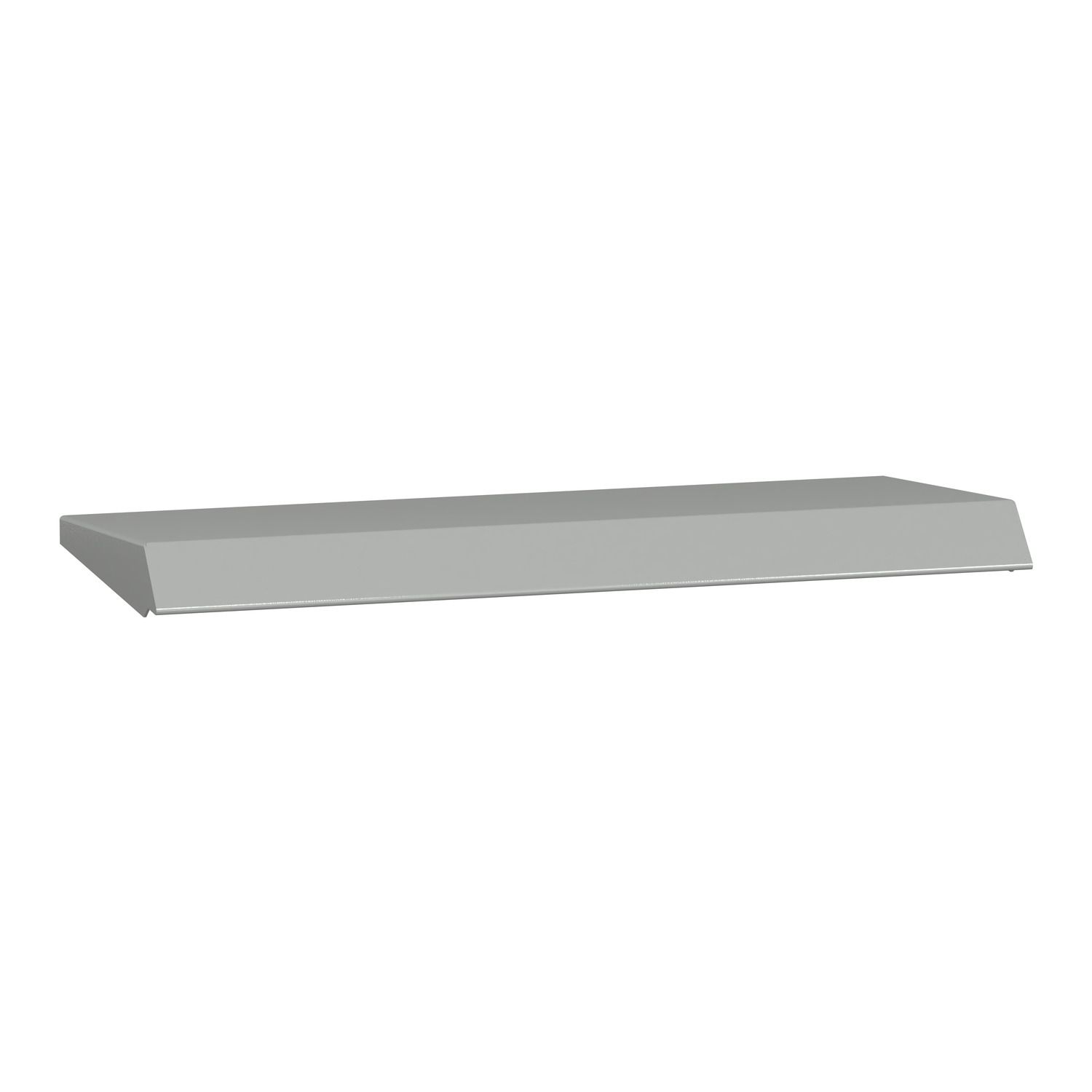

Multi-purpose canopy for PanelSeT CRN and PanelSeT S3D enclosures The canopy is to be installed on all enclosure models with 500mm width and 250mm depth The real width is 509mm and nominal width is 500mm The nominal depth is 250mm The height is 42mm Fixed by 4 screws - screw type M6 on top of enclosure The canopy is made from galvanised steel (color RAL 7035) Provides high resistance to impacts, temperature and bad weather The kit is made up of canopy, fixing elements and instruction sheet Net weight is 2,6kg Net weight is 2,6kg This product is qualified as a green premium, with minimal use of hazardous substances
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | multi-purpose |
| Mounting location | on top of enclosure |
| Range | Spacial |
| Device composition | instruction sheet, fixing elements, canopy |
| Product or component type | canopy |
| Accessory / separate part category | enclosure accessory |
| Range compatibility | Spacial Spacial S3D, Spacial Spacial CRN |
| Enclosure nominal dimensions | - |
| Complementary | |
| Colour | grey (RAL 7035) |
| Material | galvanised steel |
| Height | 42 mm |
| Width | 500 mm nominal: , 509 mm real: |
| Depth | 250 mm nominal: |
| Fixing mode | by 4 screws - screw type M6 |
| Net weight | 2.6 kg |
| Surface finish | epoxy-polyester powder |
| Mounting diameter | 8 mm |
