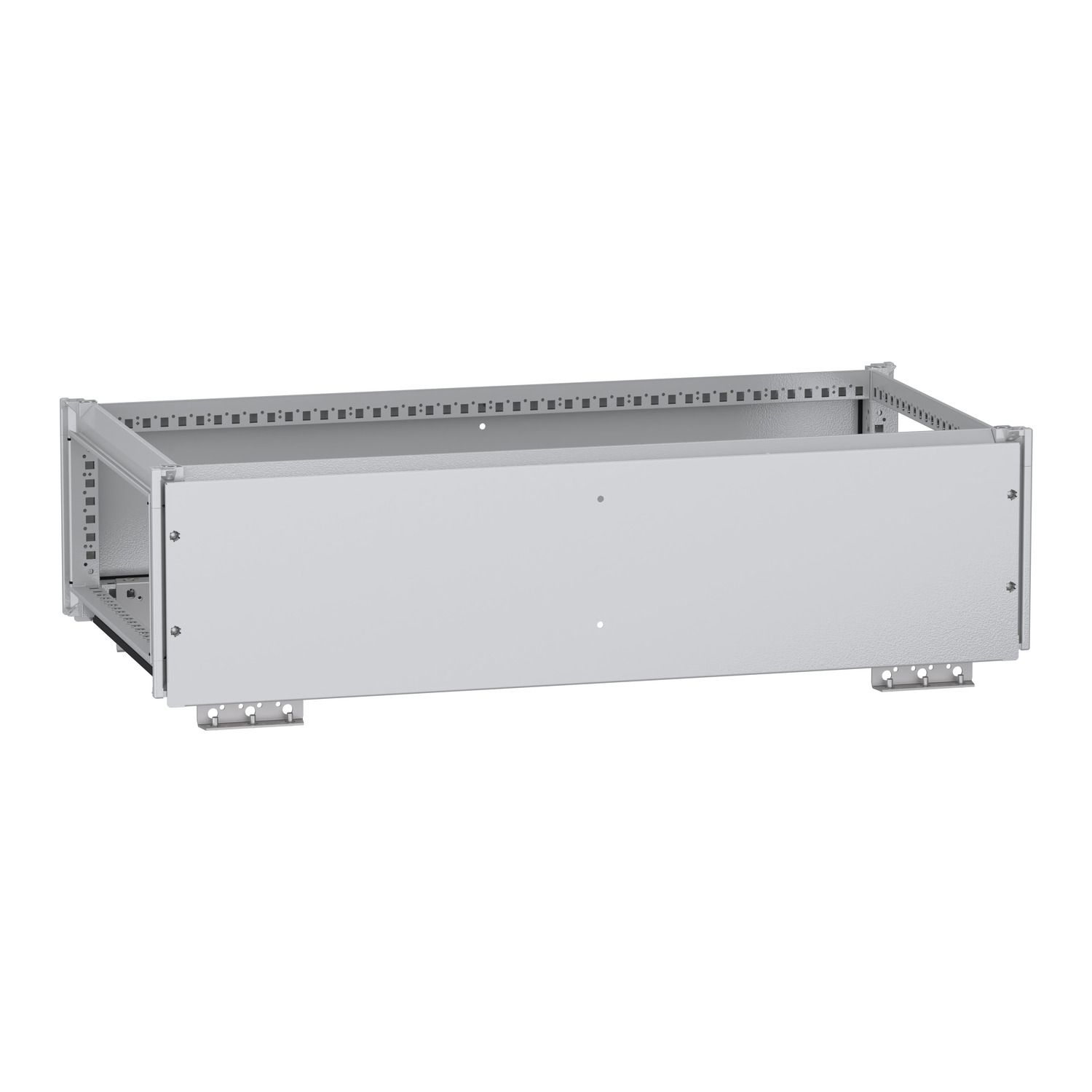

Top busbar chamber, PanelSeT SFN, for electrical enclosure W1200 D600mm, IP55
Manufacturer: Schneider Electric
SKU: NSYTBCN3126
GTIN: 3606486105054
This Top Bus Chamber is a power distribution accessory to be assembled on top of the PanelSeT SFN floor standing modular decarbonized steel electrical enclosure. It contains recycled steel, which is produced with renewable energy, resulting into a significant reduction of CO2 emissions. It has a nominal height, width, and depth of 300 mm, 1200 mm and 600 mm, respectively. The frame and uprights of the chamber are made of galvanized steel for durability. The panels are made of steel sheet. An epoxy-polyester powder finish provides a smooth appearance. The chamber has a grey (RAL 7035) color with a black (RAL 9005) handle. It comes with one sealing gasket, front and back panels and four eyebolts. The chamber has an IP55 rating, which makes it resistant to dust, water and oil ingress. The enclosure is also resistant to impacts, with an IK10 rating. Operation is convenient due to rear, front, and side access.
Availability: Out of stock
Old price: $1,605.21 inc GST
$1,300.22 inc GST
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Product or component type top busbar chamber
Enclosure nominal dimensions - W: 1200 mm D: 600 mm
Range PanelSeT
Range compatibility PanelSeT PanelSeT SFN
Device composition 1 busbar chamber, 1 sealing gasket, 2 front panel
Mounting location on top of enclosure
Material steel
Accessory / separate part category power distribution
Quantity per set set of 1
Device application multi-purpose
Complementary
Height 301 mm
Surface finish epoxy-polyester powder
IP degree of protection IP55 conforming to IEC 60529
Colour grey (RAL 7035)
Depth 600 mm
Width 1200 mm
Contractual warranty
Warranty 18
