Side panels for the plinth, PanelSeT SFN, SF, SM, for electrical enclosure W1200mm, set of 4, H200mm

Manufacturer: Schneider Electric

SKU: NSYSPS4200

GTIN: 3606485126722

PDF

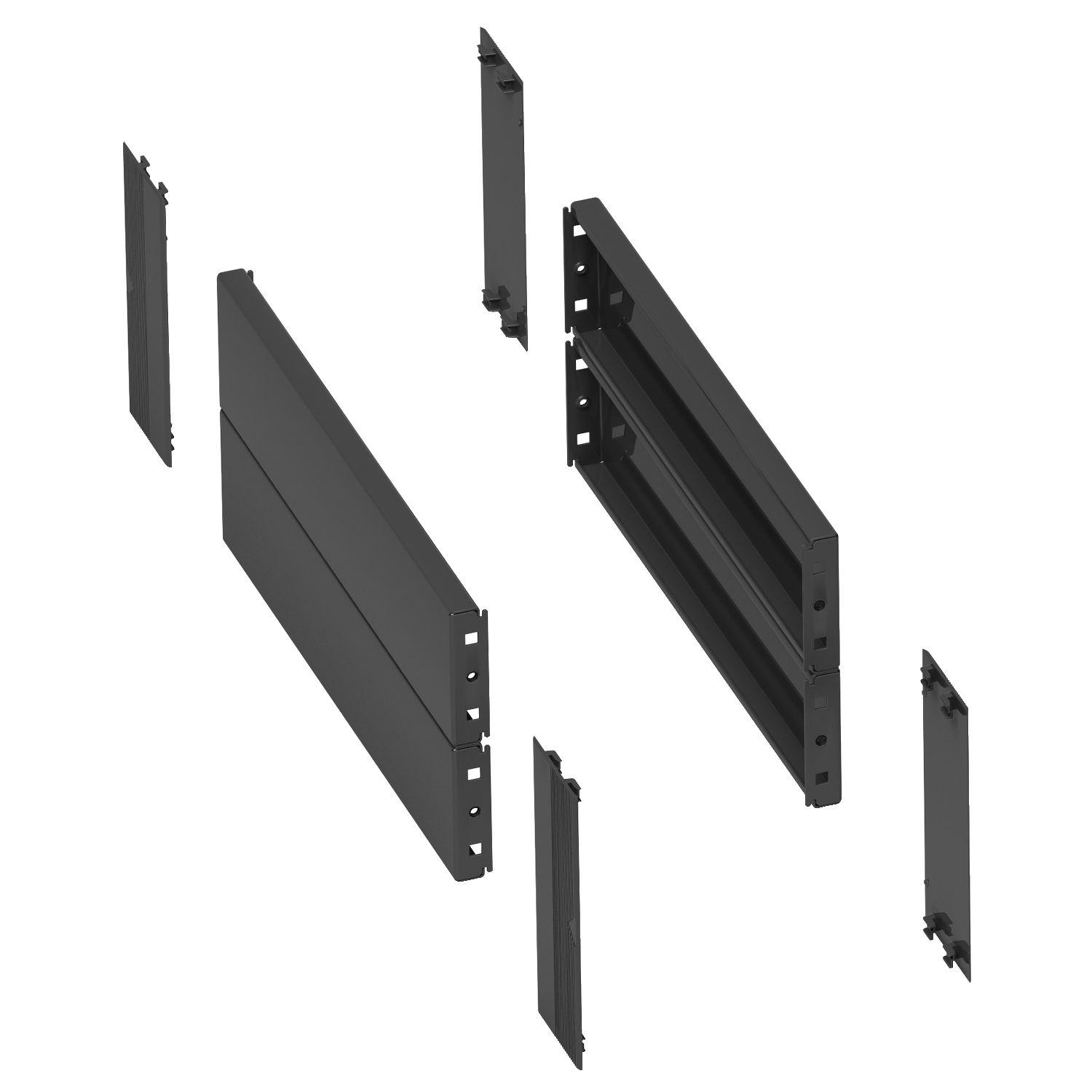

Image of product

Full Description

Plain side plinth panels for PanelSeT, PanelSeT and PrismaSeT electrical enclosures. The product is made of folded sheet steel. It is suitable for enclosures with a nominal depth of 400 mm and its height is 200 mm. The set contains 4 corners covers, 4 side panels and the fixing elements. The color is grey RAL7022. The ingress protection rating is IP30 (complete plinth) and the mechanical protection rating is IK10. The permanent permissible load is 1300kg. Anti-corrosion protection is ensured by an epoxy-polyester powder coating. This product is qualified as a green premium, with minimal use of hazardous substances.

Availability: Out of stock

Old price: $97.41 inc GST

Price: $78.90 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Product or component type	plinth side panel
Enclosure nominal dimensions	-
Range	PanelSeT
Range compatibility	PanelSeT SF, PanelSeT SM
Device composition	fixing elements, 4 corner cover, 4 side panel
Mounting support	front plinth
Accessory / separate part category	enclosure accessory
Device application	multi-purpose
Complementary
Height	200 mm
Surface finish	epoxy-polyester powder
Colour	grey (RAL 7022)
Fixing mode	by screws
Width	nominal: 400 mm
Environment
IK degree of protection	IK10
IP degree of protection	IP20 (complete plinth)
Contractual warranty
Warranty	18

Only registered users can write reviews

Side panels for the plinth, PanelSeT SFN, SF, SM, for electrical enclosure W1200mm, set of 4, H200mm

Name: Side panels for the plinth, PanelSeT SFN, SF, SM, for electrical enclosure W1200mm, set of 4, H200mm
SKU: NSYSPS4200
Price: 78.90 AUD
Availability: OutOfStock
