Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

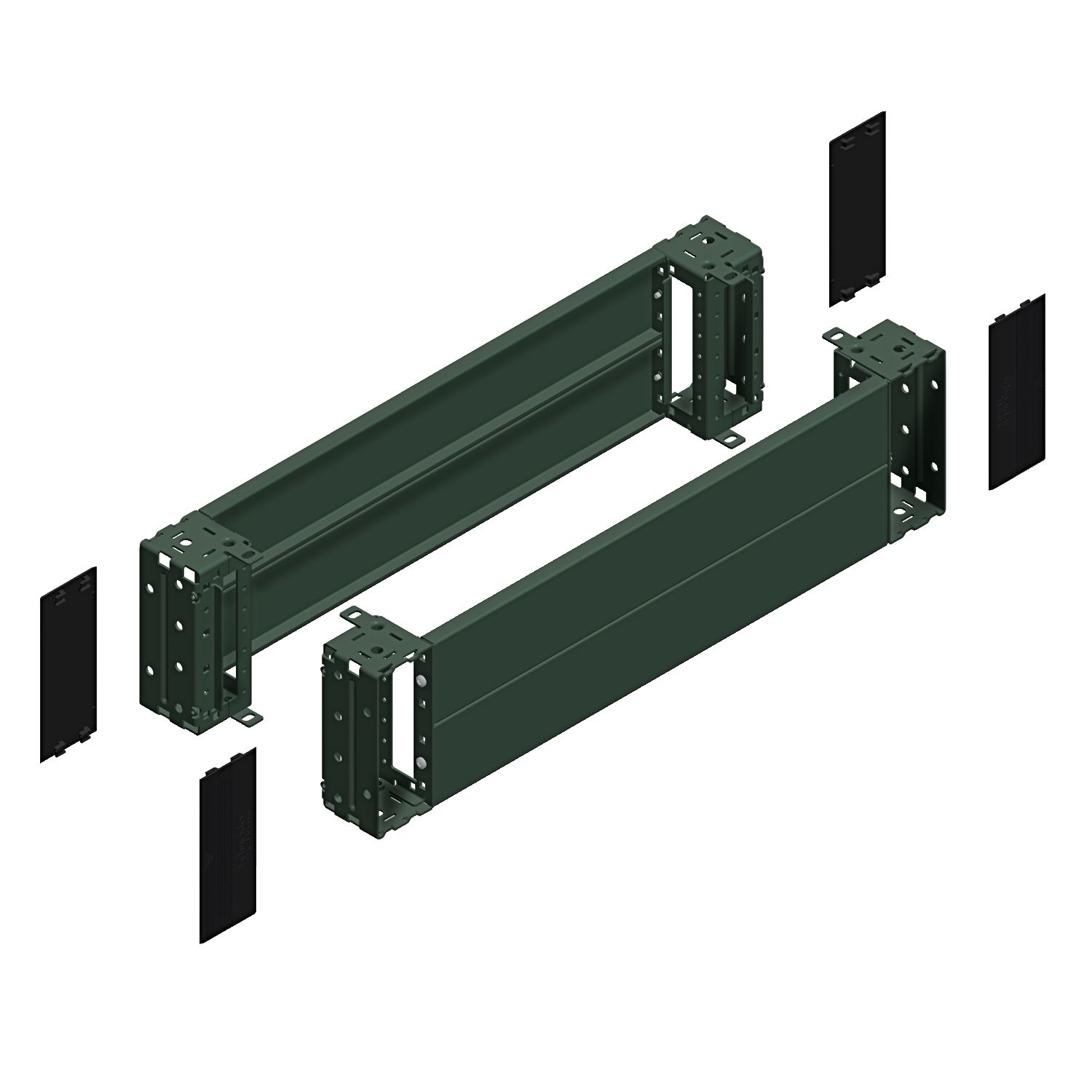

| Product or component type | plinth front |
| Enclosure nominal dimensions | - |
| Range | PanelSeT |
| Range compatibility | PanelSeT SF, PanelSeT SM, PanelSeT S3D, PanelSeT CRN, PanelSeT SFN |
| Device composition | fixing elements, 4 corner cover, 4 corner, 2 front panel, 2 rear panel |
| Mounting support | plinth side panels |
| Accessory / separate part category | enclosure accessory |
| Device application | multi-purpose |
| Complementary | |
| Height | 200 mm |
| Permanent permissible load | 1300 kg |
| Surface finish | epoxy-polyester powder |
| Colour | grey (RAL 7022) |
| Fixing mode | by fixing element - on structure location |
| Width | nominal: 1000 mm |
| Environment | |
| IK degree of protection | IK10 |
| IP degree of protection | IP20 (complete plinth) |
| Contractual warranty | |
| Warranty | 18 |
