Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

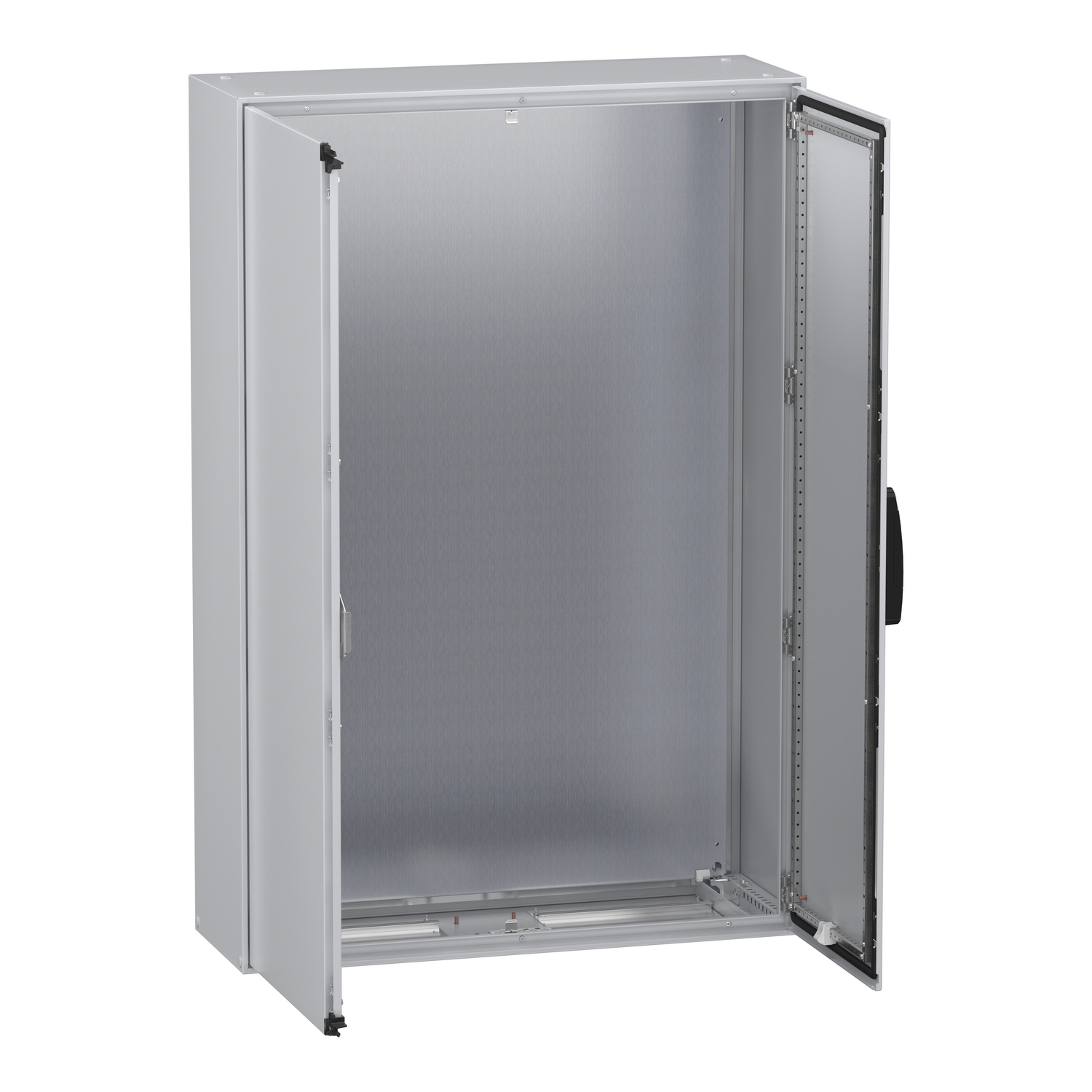

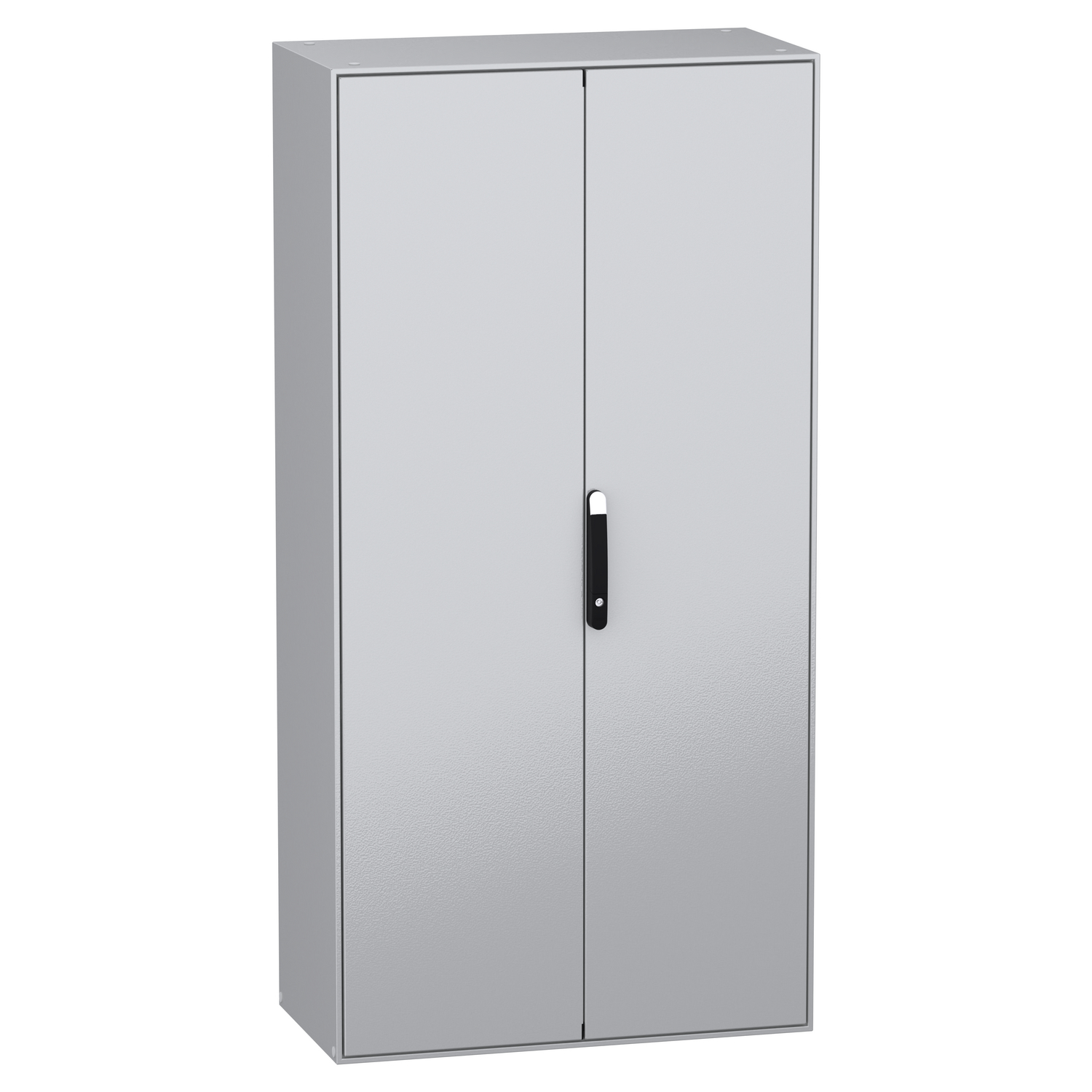

| Product or component type | compact enclosure |
| Product name | PanelSeT SM |
| Removable parts | door by screws hinge, mounting plate by screws mounting plate bracket, mounting plate bracket by screws |
| Range | PanelSeT |
| Enclosure nominal width | 1000 mm |
| Device composition | 1 body, 2 door, 1 cable gland plate, 1 locking system with handle: door, 1 blocking system: left door, 4 mounting plate bracket, 1 mounting plate |
| Enclosure nominal height | 2000 mm |
| Installation accessory type | floor-standing |
| Enclosure nominal depth | 500 mm |
| Device application | multi-purpose |
| Complementary | |
| Type of gland plate | standard |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Door opening side | left (120 °), right (120 °) |
| Body type | front part forming a rigid frame with welded corners, single piece body with welded rear panel |
| Cable entry | 1 entry |
| Mounting plate description | plain |
| Surface finish | epoxy-polyester powder |
| Colour | enclosure: grey (RAL 7035), handle: black (RAL 9005) |
| Net weight | 165 kg |
| Number of doors | front: 2 door(s) |
| Material | mounting plate: galvanised steel, body: sheet steel, door: sheet steel, hinge: zamak |
| Door type | plain |
| Accessibility for operation | front |
| Environment | |
| Standards | IEC 62208 |
| IK degree of protection | IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Product certifications | DNV, BV, UL |
| Contractual warranty | |
| Warranty | 18 |
Only registered users can write reviews
Related products

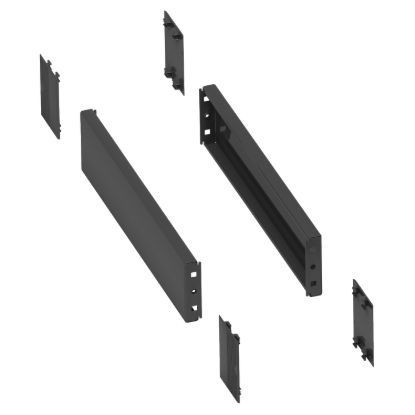

Side panels for the plinth, PanelSeT SFN, Spacial SF, Spacial SM, for electrical enclosure D500mm, set of 2, H100mm
NSYSPS5100
Side panels for the plinth, PanelSeT SFN, Spacial SF, Spacial SM, for electrical enclosure D500mm, set of 2, H100mm
$56.29 inc GST
$45.59 inc GST
$35.64 inc GST
$28.87 inc GST

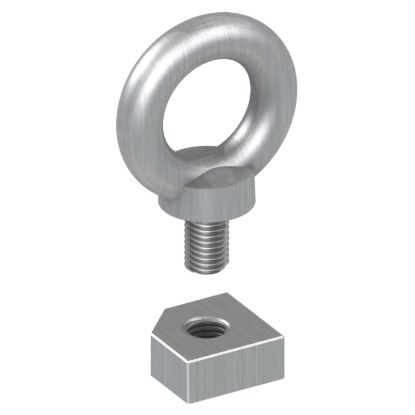

set of 4 Spacial SM M12 lifting eyebolt - galvanized cast steel
NSYSMEB
set of 4 Spacial SM M12 lifting eyebolt - galvanized cast steel
$285.45 inc GST
$231.21 inc GST

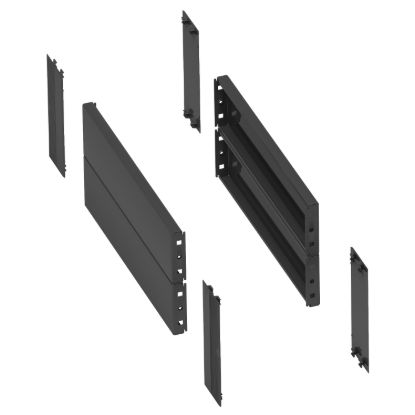

Side panels for the plinth, PanelSeT SFN, Spacial SF, Spacial SM, for electrical enclosure D500mm, set of 4, H200mm
