| Attribute name | Attribute value |
|---|---|
| Main | |
| Enclosure nominal width | 800 mm |
| Device application | multi-purpose |
| Enclosure nominal depth | 600 mm |
| Range | Spacial |
| Enclosure nominal height | 2000 mm |
| Device composition | 1 door with reinforcement frame, 1 cable gland plate, 4 mounting plate bracket, 1 locking system with handle: door, 1 structure |

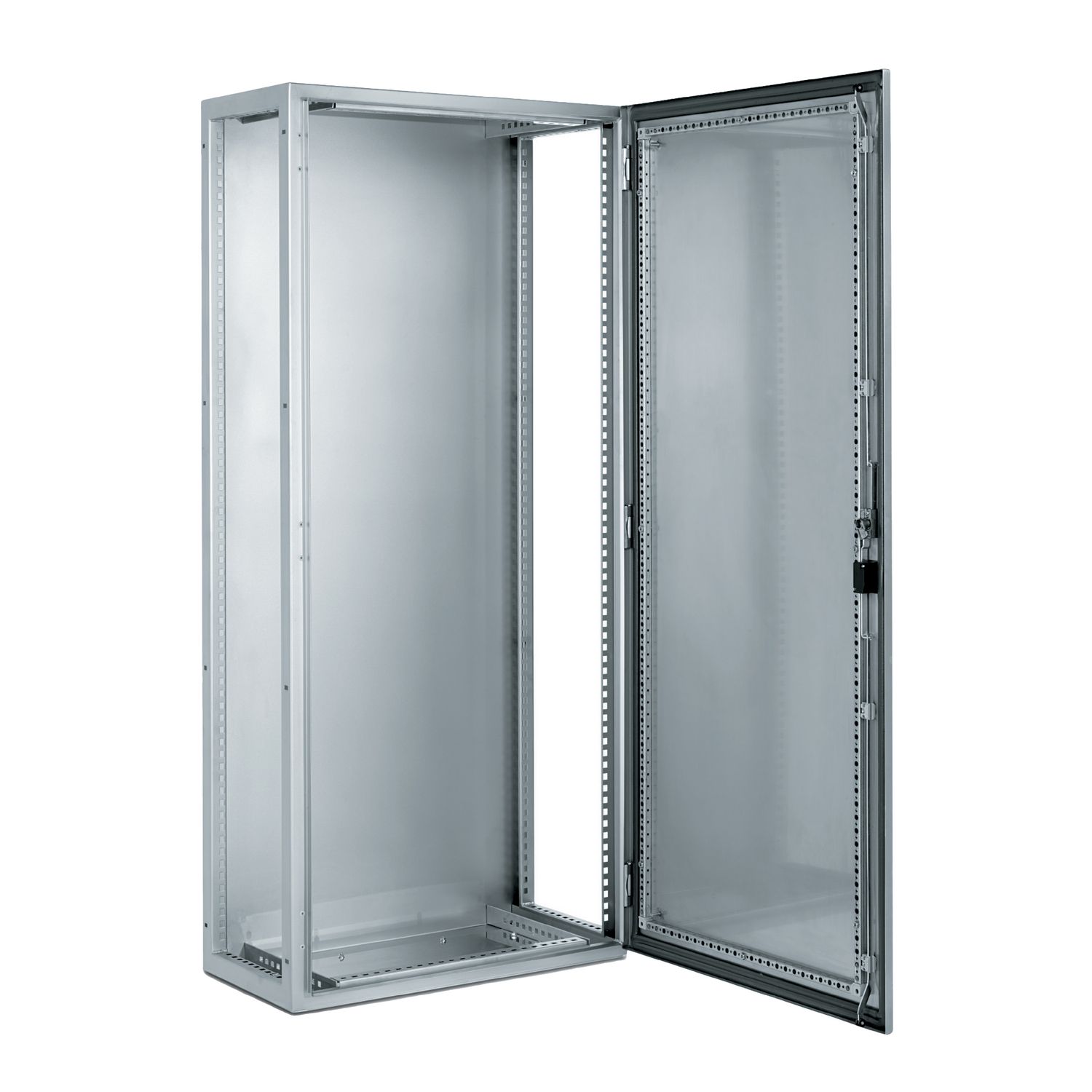

| Product name | Spacial SFX |
| Product or component type | suitable enclosure |
| Installation accessory type | floor-standing |
| Complementary | |
| Mounting plate description | without mounting plate |
| Door type | plain |
| Surface finish | handle: painted, enclosure: Scotch-Brite® brushed |
| Material | hinge: stainless steel, handle: zamak, structure and door: stainless steel 304L |
| Body type | single piece structure folded and welded, rear panel integrated |
| Number of doors | front face: 1 door(s) |
| Door opening side | reversible (120 °) |
| Net weight | 81 kg |
| Lock type | 3 points lock, handle with 5 mm double-bar insert |
| Type of gland plate | plain |
| Removable parts | cable gland plate by clips, mounting plate bracket by screws, door by hinges |
| Accessibility for operation | side, front |
| Environment | |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Environmental characteristic | corrosive, specific hygiene |
| Standards | NEMA 4X, IEC 62208 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Product certifications | UL |
