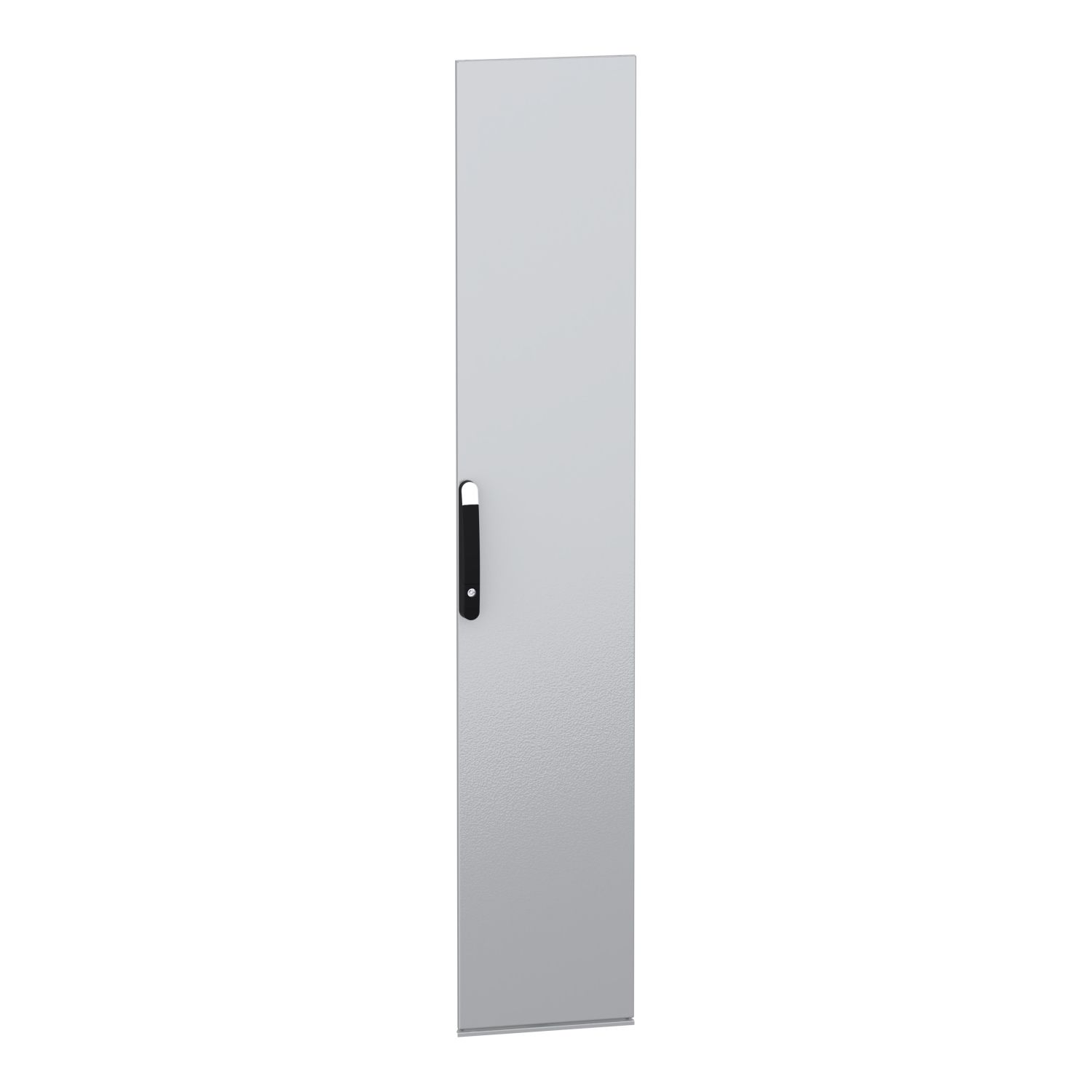

Plain door, PanelSeT SFN, PanelSeT SM, for electrical enclosure H2000 W400mm
Manufacturer: Schneider Electric
SKU: NSYSFND204
GTIN: 3606486378090
This steel door is purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications. It is compatible with PanelSeT SM floor standing steel enclosure. It has a nominal height and width of 2000 mm and 400 mm, respectively. The door is made of steel sheet, while the handle is made of polyamide 6 with 30% fiberglass. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color with a black (RAL 9005) handle. It has an aperture up to 120 degrees and is reversible, meaning it can be opened from either side. The door has a four-point lock with a handle that has a 5 mm double-bar insert for security.
Availability: Out of stock
Old price: $519.90 inc GST
$421.12 inc GST
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Product or component type door
Enclosure nominal dimensions - H: 2000 mm W: 400 mm
Range PanelSeT
Range compatibility PanelSeT SFN
Device composition 4 locking bar catches, 1 locking bar system 4 points, 1 lock with handle and 5 mm double bar insert, 1 door, 4 hinges
Mounting location front, side
Accessory / separate part category enclosure accessory
Quantity per set set of 1
Device application multi-purpose
Complementary
Lock type lock 5 mm double bar
Door opening side reversible (120 °)
Height nominal: 1966 mm
Surface finish epoxy-polyester powder
Colour grey (RAL 7035)
Net weight 19.8 kg
Material sheet steel
Door type external plain
Number of locks 1
Width nominal: 369 mm
Environment
IK degree of protection IK10
Contractual warranty
Warranty 18
