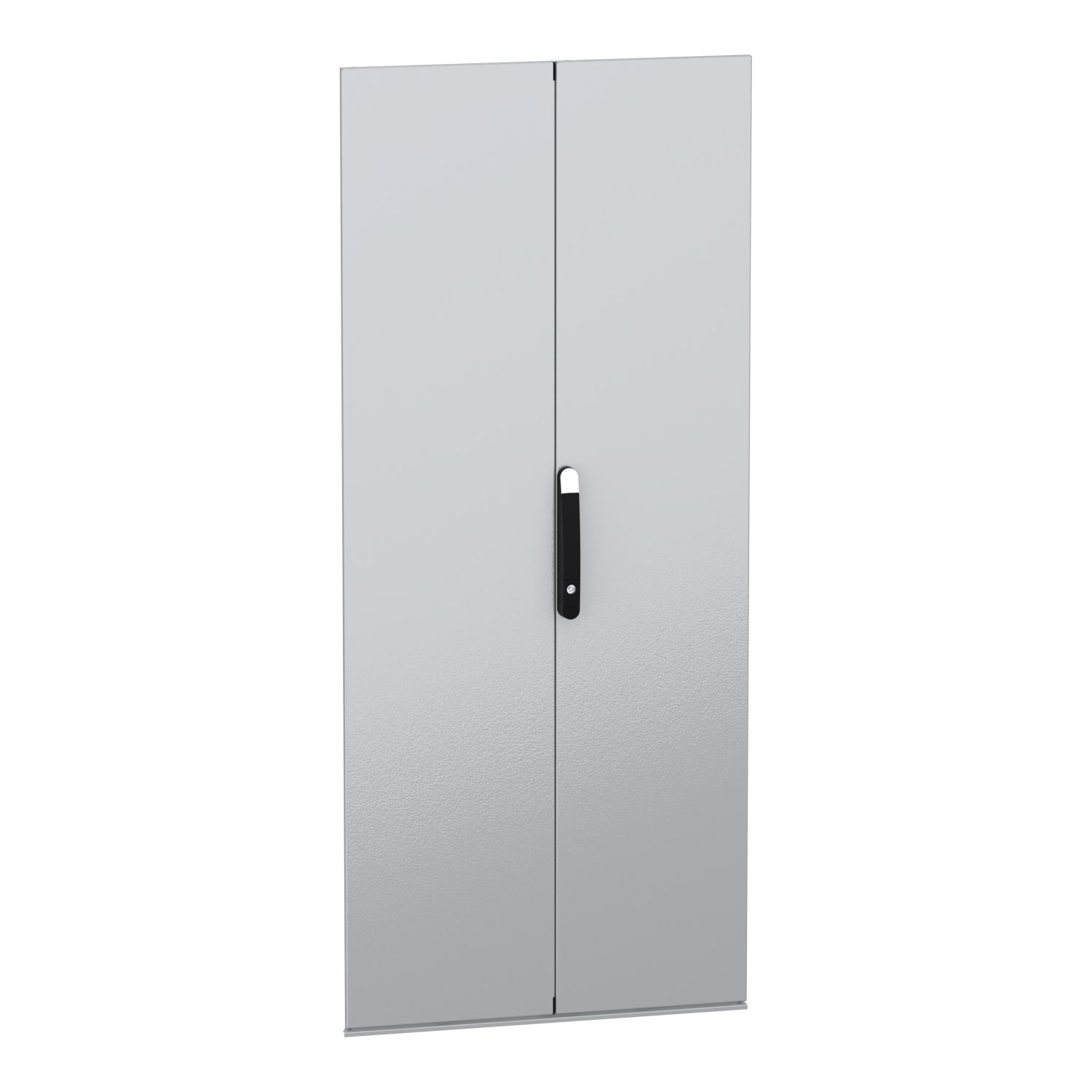

Double plain door, PanelSeT SFN, PanelSeT SM, for electrical enclosure H1800 W800mm
Manufacturer: Schneider Electric
SKU: NSYSFND1882D
GTIN: 3606486378045
This steel double door is purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications. It is compatible with PanelSeT SM floor standing steel enclosure. It has a nominal height and width of 1800 mm and 800 mm, respectively. The doors are made of steel sheet, while the handle is made of polyamide 6 with 30% fiberglass. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color with a black (RAL 9005) handle. They have an aperture up to 120 degrees. The main door has a four-point lock with a handle that has a 5 mm double-bar insert for security, while the secondary door has a locking bar system with a handle.
Availability: Out of stock
Old price: $997.83 inc GST
$808.24 inc GST
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Product or component type door
Enclosure nominal dimensions - H: 1800 mm W: 800 mm
Range PanelSeT
Range compatibility PanelSeT SFN
Device composition 1 lock with handle and 5 mm double bar insert, 1 locking bar system 4 points, 2 door, 1 locking bar system 2 points, 2 reinforcement frame, 8 hinges
Mounting location front
Accessory / separate part category enclosure accessory
Quantity per set set of 1
Device application multi-purpose
Complementary
Lock type lock 5 mm double bar
Door opening side reversible (120 °)
Height nominal: 1766 mm
Surface finish epoxy-polyester powder
Colour grey (RAL 7035)
Net weight 21.8 kg
Material sheet steel
Maximum load 60 kg/m²
Door type external plain
Number of locks 1
Width nominal: 769 mm
Environment
IK degree of protection IK10
Contractual warranty
Warranty 18
