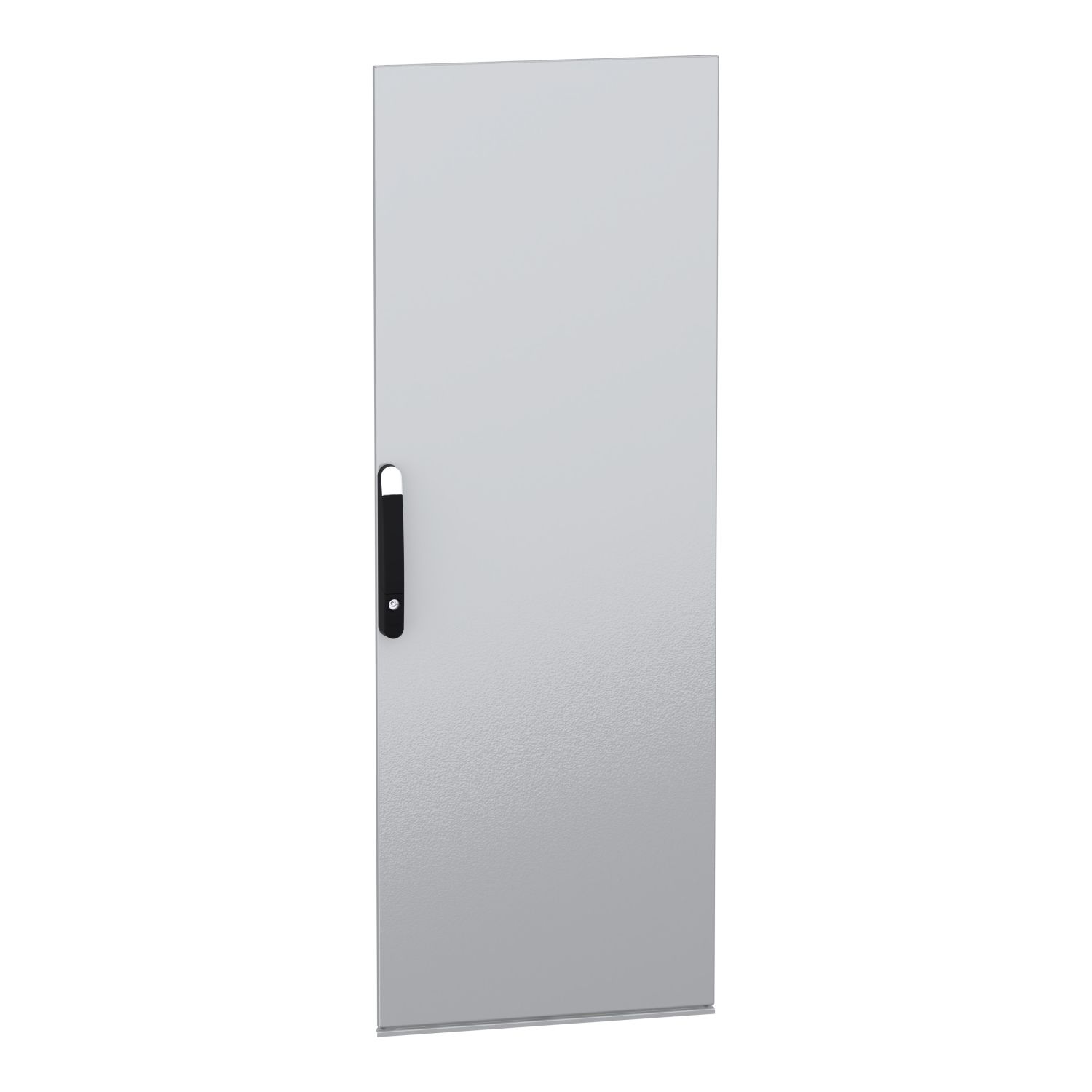

Plain door, PanelSeT SFN, for electrical enclosure H1600 W600mm

Manufacturer: Schneider Electric

SKU: NSYSFND166

GTIN: 3606486377987

PDF

Image of product

Promotional video

Instruction sheet

How to video

Declaration of conformity

Technical illustration

Full Description

This steel door is purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications. It has a nominal height and width of 1600 mm and 600 mm, respectively. The door is made of steel sheet, while the handle is made of polyamide 6 with 30% fiberglass. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color with a black (RAL 9005) handle. It has an aperture up to 120 degrees and is reversible, meaning it can be opened from either side. The door has a four-point lock with a handle that has a 5 mm double-bar insert for security.

Availability: Out of stock

Old price: $565.31 inc GST

Price: $457.90 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Product or component type	door
Enclosure nominal dimensions	- H: 1600 mm W: 600 mm
Range	PanelSeT
Range compatibility	PanelSeT SFN
Device composition	1 door, 1 lock with handle and 5 mm double bar insert, 1 locking bar system 4 points, 1 reinforcement frame, 4 hinges, 4 locking bar catches
Mounting location	side, front
Accessory / separate part category	enclosure accessory
Quantity per set	set of 1
Device application	multi-purpose
Complementary
Lock type	lock 5 mm double bar
Door opening side	reversible (120 °)
Height	nominal: 1600 mm
Surface finish	epoxy-polyester powder
Colour	grey (RAL 7035)
Net weight	17.6 kg
Material	sheet steel
Maximum load	60 kg/m²
Door type	plain
Number of locks	1
Width	nominal: 569 mm
Environment
IK degree of protection	IK10
Contractual warranty
Warranty	18
